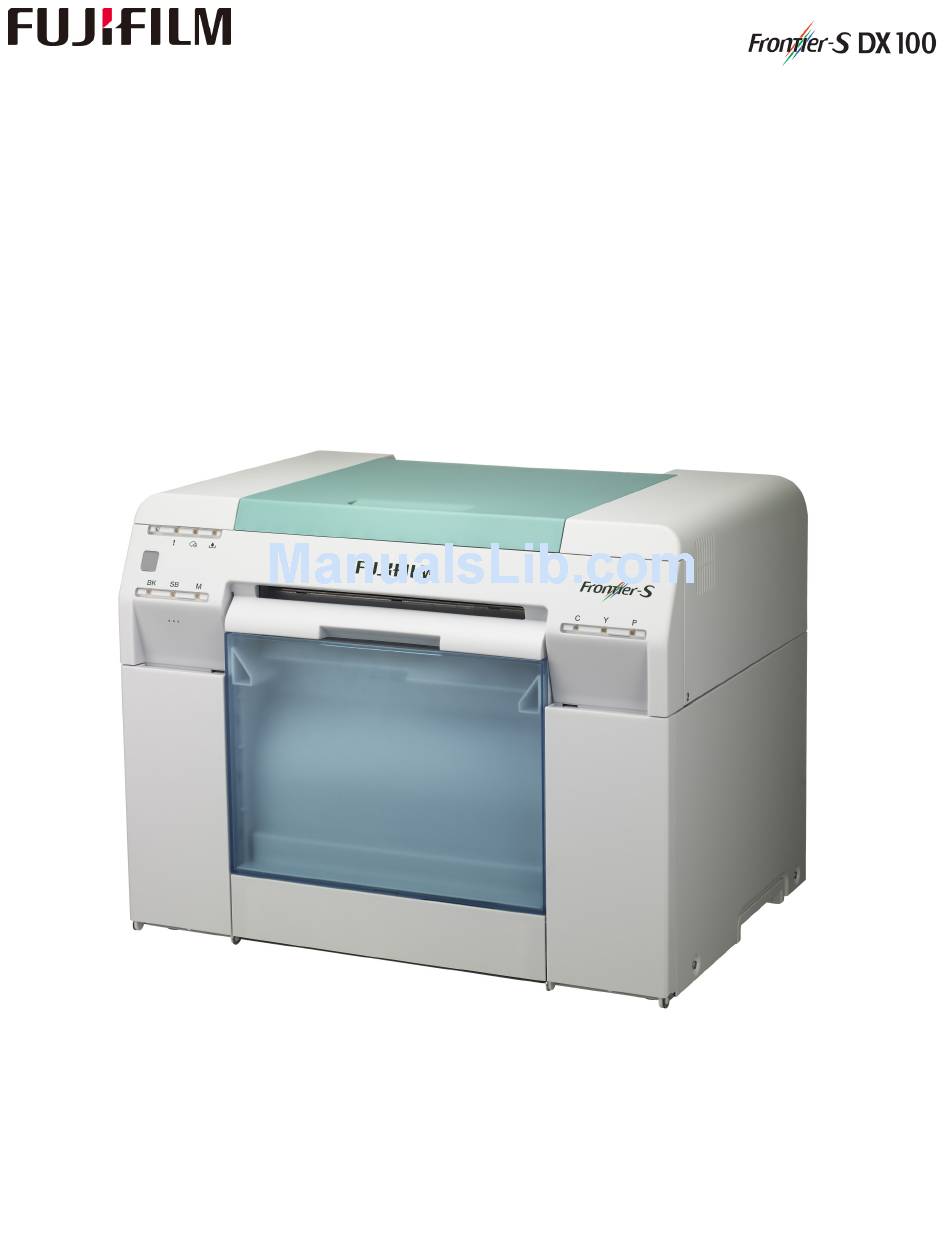

DX100 Field Maintenance Guide
This guide has been created to help you maintain your DX100 printer's peak performance and
quality. It is important to utilize these maintenance procedure based on your environmental
usage of the printer. The frequency of some of these maintenance items may need to be
performed more often based on these conditions.
1

Advertisement

Table of Contents
loading

Related Manuals for FujiFilm Frontier-S DX100

Summary of Contents for FujiFilm Frontier-S DX100

  • Page 1 DX100 Field Maintenance Guide This guide has been created to help you maintain your DX100 printer’s peak performance and quality. It is important to utilize these maintenance procedure based on your environmental usage of the printer. The frequency of some of these maintenance items may need to be performed more often based on these conditions.
  • Page 2 DX100 Field Maintenance Guide Glossary of Tasks • Dusting off the paper roll o When a new roll of paper is opened. It is important to utilize a lint free cloth to wipe the edges of the paper off prior to inserting the paper spindle flanges. Doing so will help to minimize the amount of paper dust being ingested into ...
  • Page 3 • Clean ink from upper paper guide rollers o Daily inspection: If the upper platen is not properly maintained, ink may be transferred to the rollers of the paper guides. Utilize a bemcot moistened with water to clean these rollers. It is extremely important not to push down on these rollers, pushing too hard ...
  • Page 4 o When a small white edge appears on the prints, this may be a result of the paper meandering while bee fed through the printer Check that the paper is tight on the spindle by pressing the black and grey ...
  • Page 5 Dusting off the Paper Roll Paper dust can accumulate on the ends of the roll paper during manufacturing. When the paper is removed from the packaging. It is important to wipe off both ends of the roll prior to placing it on the paper spindle. Important: These step should be followed for every paper change.
  • Page 6 Empty the Wastepaper Box It is extremely important to empty the wastepaper box after every roll of paper. By having the paper slugs collect in the box can result in the slugs being introduced back into the printer causing mechanical failures and paper jamming .
  • Page 7 Cleaning outside surfaces of the DX100 To keep your printer looking its best. It recommended to clean the outside of the printer to control the amount of dust and debris that can collect on its surface. 1. With a cloth moistened with water wipe the front and sides of the printer.
  • Page 8 Cleaning the Roll Unit The roll unit is a vital part of the DX100’s paper transport section. It is important to maintain this sections cleanliness by follow the steps below. Important: Do not vacuum near the white rollers of the roll unit doing so may dislodge the small white rollers.
  • Page 9 Cleaning the Roll Unit 3. Utilizing a list free cloth or a bemcot. Gently wipe the inside of the roll unit to remove any dirt or debris.
  • Page 10 Cleaning the Roll Unit 4. Lift up the rear plate by placing your finger in the teardrop hole and lifting upwards. 5. Gently wipe this area in an up and down manner to dust and clear the area of any debris.
  • Page 11 Cleaning the Roll Unit 6. Lift up on the front plate, by placing your finger in the hole and lifting upwards 7. Gently wipe this area of any dust or debris. Brush lightly across the felt pads to remove excess paper dust. Note: When you have completed the cleaning of the roll unit.
  • Page 12 Cleaning ink/paper dust from Upper Platen Ink may build up on some area of the printer. It is best to inspect these areas and clean them as necessary. A daily inspection of this area will ensure superior image quality. 1. Remove the top cover to expose the upper platen.
  • Page 13 Cleaning ink/paper dust from Upper Platen Important: Do not smear ink around this area, be very careful not to use downward force when dabbing the absorbent material. The absorbent is the cloth like material. 3. Utilizing a lightly moistened bemcot, if there is any debris on the absorbent material wipe/dab it gently towards the front of the printer to remove it.
  • Page 14 Cleaning ink from upper paper guide rollers These rollers can accumulate ink transfered from the upper platen and cause lines on the prints. It is recommended to inspect these rollers daily to ensure high image quality. 1. Remove the top cover to expose the printing section.
  • Page 15 Cleaning ink from upper paper guide rollers 3. Open the rear cover Note: To better clean these rollers it is best to push down on the paper guides to raise the rollers from the main feed roller. 4. Behind the rear cover and above the rubber feed rollers.
  • Page 16 Cleaning ink from upper paper guide rollers Here is a guide removed to show the fins or combs. 5. While holding the guide down the rollers will raise up.
  • Page 17 Cleaning ink from upper paper guide rollers Important: when cleaning these rollers do not push down. The rollers can become dislodged. 6. Using a bemcot moistened with water gently, very gently wipe across the rollers at an angle to rotate them while you are cleaning them.
  • Page 18 Cleaning Anti-Condensing fans The anti-condensing fans are important to keep clear of debris. This will keep the heater section of printer running at normal temperatures and prevent some fan failures. 1. Turn off the power to the printer. The anti-condensing fans are locate on the left and right side of the printer.
  • Page 19 Cleaning Air Filters It is important to keep the two air filter of the DX100 clean and clear. This will ensure proper cooling of the internal circuit boards. 1. Turn the power off then while facing the front of the printer on the left side of the metal frame cover you will see the two air filter louvers.

  • Page 20: Cleaning The Feed Rollers

    Cleaning the feed rollers (Roll Unit) The roll unit is a vital part of the DX100’s paper transport section. It is important to maintain this section cleanliness by follow the steps below. 1. Remove the wastepaper box 2. Release the blue lock lever to open the roll unit.
  • Page 21 Cleaning the feed rollers (Roll Unit) 3. Move the rear paper guide to expose the gray soft roller behind it. Then with a bemcot moistened with water hold it on each roller while rotating the shaft by hand. 4. Place the rear paper guide back to the correct position.
  • Page 22 Cleaning the feed rollers (Roll Unit) 5. Lift up the rear plate by placing your finger in the teardrop hole and lifting upwards. 6. Utilizing the gray knob on the left side of the roll unit 7. Using a bemcot moistened with water. Place the bemcot on each gray roller outlined while turning the gray knob backwards and forwards to ensure...
  • Page 23 Cleaning the feed rollers (Roll Unit) 8. Lift up on the front plate, by placing your finger in the hole and lifting upwards 9. Using a bemcot moistened with water. Place the bemcot on each gray roller while turning the gray knob backwards and forwards to ensure Note: When you have completed the cleaning of the feed rollers.

  • Page 24: Rear Cover

    Cleaning the feed rollers (Rear Cover) Paper dust can accumulate along with other debris to soil these rollers. To ensure proper paper transport it is important to clean these rollers. 1. From the rear of the printer open the rear cover by squeezing the blue release levers.
