Getting Started
Thank you for purchasing the MS-7010 v1.X Micro ATX
mainboard. The MS-7010 is based on VIA
Bridge & VT8237 South Bridge and provides eight USB 2.0
ports for high-speed data transmission, C-Media 9761 audio
codec for 6-channel audio output, and a SPDIF interface for
digital audio transmission. Designed to fit the advanced AMD
Athlon64 processors, the MS-7010 delivers a high performance
and professional desktop platform solution.
Getting Started
®
K8T800 North
®
1-1
Advertisement
Table of Contents
Related Manuals for MSI MS-7010
Summary of Contents for MSI MS-7010
-
Page 1: Chapter 1. Getting
Getting Started Chapter 1. Getting Started Getting Started Thank you for purchasing the MS-7010 v1.X Micro ATX ® mainboard. The MS-7010 is based on VIA K8T800 North Bridge & VT8237 South Bridge and provides eight USB 2.0 ports for high-speed data transmission, C-Media 9761 audio codec for 6-channel audio output, and a SPDIF interface for ®... -
Page 2: Mainboard Specifications
MS-7010 M-ATX Mainboard Mainboard Specifications ® Supports 64-bit AMD Athlon64 processor (Socket 754) Supports up to 3200+, 3400+, or higher CPU Chipset ® K8T800 chipset - HyperTransport connection to AMD Athlon64 processor - 8 or 16 bit control/address/data transfer both directions - 800/600/400/200 MHz “Double Data Rate”... - Page 3 Getting Started IEEE 1394 (Optional) Supports up to 2 * 1394 ports (up to 400Mbps transfer rate) Controlled by VIA VT6307 chipset On-Board Peripherals On-Board Peripherals include: - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port (COMA) - 1 parallel port supports SPP/EPP/ECP mode...
-
Page 4: Mainboard Layout

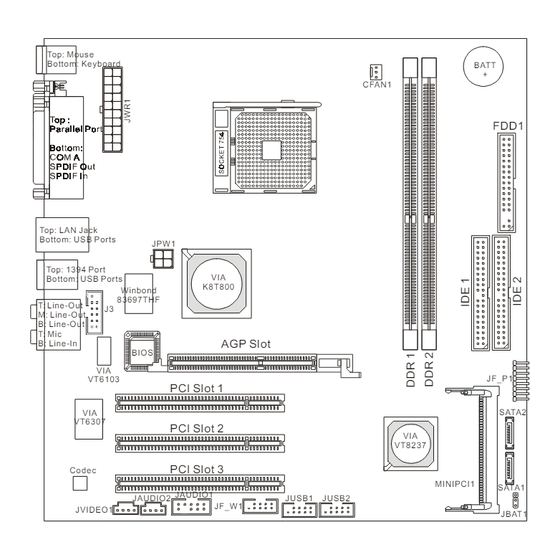

Line-O ut B: Line-O ut T: Mic B: Line-In AGP Slot BIOS JF_P1 VT6103 PCI Slot 1 SATA2 VT6307 PCI Slot 2 VT8237 PCI Slot 3 Codec MINIPCI1 SATA1 JAUDIO1 JAUDIO2 JUSB1 JUSB2 JF_W1 JVIDEO1 JBAT1 MS-7010 v1.X Micro ATX Mainboard... -
Page 5: Chapter 2. Hardware
Hardware Setup Chapter 2. Hardware Setup Hardware Setup This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to setup the jump- ers on the mainboard. Also, it provides the instructions on con- necting the peripheral devices, such as the mouse, keyboard, etc. -
Page 6: Quick Components Guide
MS-7010 M-ATX Mainboard Quick Components Guide JPW1, p.2-11 CFAN1, p.2-15 CPU, p.2-3 DDR DIMMs, p.2-9 JWR1, p.2-11 BATT Back Panel I/O, p.2-12 FDD1, p.2-13 J3, p.2-15 BIOS IDE1/2, p.2-13 AGP Slot, p.2-19 JF_P1, p.2-15 PCI Slots,p.2-19 SATA1/2,p.2-17 VT8237 JBAT1, p.2-19 JVIDEO1, p.2-14... -
Page 7: Central Processing Unit (Cpu)
If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turn- ing on the computer. MSI Reminds You... Overheating Overheating will seriously damage the CPU and system, always make sure the cooling fan can work properly to protect the CPU from overheating. -
Page 8: Cpu Installation Procedures For Socket 754
MS-7010 M-ATX Mainboard CPU Installation Procedures for Socket 754 1. Please turn off the power and unplug the power cord before O pen Lever installing the CPU. Sl i di ng 90 degree Pl at e 2. Pull the lever sideways away from the socket. -
Page 9: Installing Amd Athlon64 Cpu Cooler Set
Hardware Setup Installing AMD Athlon64 CPU Cooler Set When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent overheating. If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer. - Page 10 MS-7010 M-ATX Mainboard 3. Turn over the mainboard a g a i n , a n d p l a c e t h e mainboard on the flat surface. Locate the two screw holes of the mainboard. 4. Align the retention mechanism and the backplate.
- Page 11 Lift up the intensive fixed lever. Safety Hook Fixed Bolt Fixed Lever MSI Reminds You... Mainboard photos shown in this section are for demonstration of the installation of AMD Athlon 64 CPU Cooler Set only. The appearance of your mainboard may vary depending on the...
- Page 12 MS-7010 M-ATX Mainboard 8. Fastened down the lever. 9. Make sure the safety hook completely clasps the fixed bolt of the retention mechanism. MSI Reminds You... While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.
-
Page 13: Introduction To Ddr Sdram
(Double In-Line Memory Module) modules and supports the memory size up to 2GB. You can install PC3200/DDR400, PC2700/DDR333, PC2100/ DDR266 or PC1600/DDR200 unbuffered DIMM modules on the DDR DIMM slots (DDR 1~2). *Please Refer to <www.msi.com.tw> for the latest qualified memory list to DDR DIMM Slots ensure the system stability. -
Page 14: Installing Ddr Modules
MS-7010 M-ATX Mainboard DDR DIMM Population Rules Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any order. You can install either single- or double- sided modules to meet your own needs. -
Page 15: Power Supply
ATX 12V Power Connector: JPW1 This 12V power connector is used to provide power to the CPU. JPW1 Pin Definition SIGNAL JPW1 MSI Reminds You... Power supply of 300 (and up) watt is highly recommended for sys- tem stability. 2-11... -
Page 16: Back Panel
MS-7010 M-ATX Mainboard Back Panel L-Out Parallel Mouse IEEE 1394 Mic-In L-Out L-In Keyboard COM A SPDIF Out SPDIF In USB Ports L-Out Mouse/Keyboard Connector RJ-45 LAN Jack Pin5 Mouse/KBD Pin6 NC Clock Pin4 VCC Pin3 GND SIGNAL SIGNAL Pin1... -
Page 17: Floppy Disk Drive Connector: Fdd1
IDE2 (Secondary IDE Connector) IDE2 can also connect a Master and a Slave drive. MSI Reminds You... If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions. -
Page 18: Front Panel Audio Connector: Jaudio1
MS-7010 M-ATX Mainboard CD-In Connector: JAUDIO2 The connector is for CD-ROM audio connector. Audio Connector: JVIDEO1 This connector allows you to connect to a TV Tuner Card. JVIDEO1 JAUDIO2 VIDEO-L VIDEO-R Front Panel Audio Connector: JAUDIO1 The JAUDIO1 front panel audio connector allows you to connect to the ®... - Page 19 +12V, the black wire is Ground and should be connected to GND. +12V Sensor CFAN1 MSI Reminds You... Always consult the vendors for proper CPU cooling fan. Joystick/Game Connector: J3 (Optional) You can connect a joystick or game pad to this connector.
-
Page 20: Front Usb Connectors: Jusb1/Jusb2
MS-7010 M-ATX Mainboard IEEE 1394 Connector: JF_W1 The mainboard provides one IEEE1394 pin header that allows you to connect IEEE 1394 ports via an external IEEE1394 bracket. Pin Definition SIGNAL SIGNAL TPA+ TPA- JF_W1 Ground Ground TPB+ TPB- Cable power... - Page 21 Take out the dust cover and connect to the hard disk devices Optional Serial ATA cable Connect to SATA1 or SATA2 MSI Reminds You... Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, the loss of data may occur during transmission. 2-17...
- Page 22 MS-7010 M-ATX Mainboard Jumper The motherboard provides the following jumper for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of jumper. Clear CMOS Jumper: JBAT1 There is a CMOS RAM on board that has a power supply from external battery to keep the data of system configuration.
-
Page 23: Pci (Peripheral Component Interconnect) Slots
Hardware Setup Slots The motherboard provides one AGP slot, one mini PCI slot, and three 32-bit PCI bus slots. AGP (Accelerated Graphics Port) Slot The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for the throughput demands of 3D graphics. It introduces a 66MHz, 32-bit channel for the graphics controller to directly access main memory.
