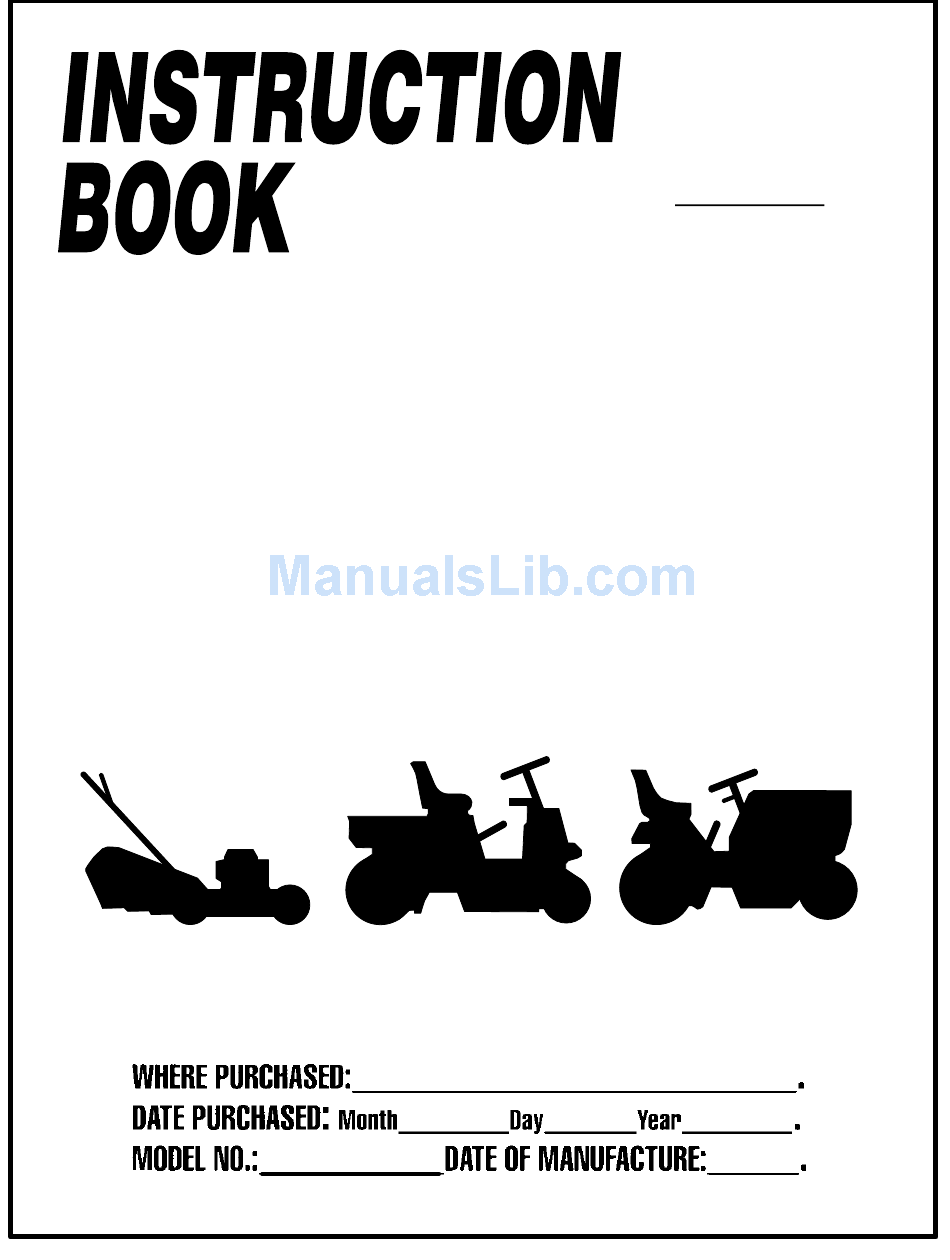

Murray 405011x48A Instruction Book

Murray lawn tractor instruction book
Hide thumbs
Table of Contents

Advertisement

Quick Links

Read and keep this book
for future reference. This book contains
important information on SAFETY, PREPARATION,
OPERATION, AND MAINTENANCE.
PRODUCT INFORMATION
The owner must be certain that all
the product information is included with the unit.
This information includes
the INSTRUCTION BOOKS,
the REPLACEMENT PARTS and the WARRANTIES.
This information must be included to make sure state laws and other laws
are followed.
RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS INFORMATION IS
NECESSARY WHEN ORDERING PARTS OR IN CASE OF LOSS OR THEFT.
F-050745L
MODEL
405011x48A

Advertisement

Table of Contents
loading

Related Manuals for Murray 405011x48A

Summary of Contents for Murray 405011x48A

  • Page 1 REPLACEMENT PARTS and the WARRANTIES. This information must be included to make sure state laws and other laws are followed. RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS INFORMATION IS NECESSARY WHEN ORDERING PARTS OR IN CASE OF LOSS OR THEFT. F-050745L MODEL 405011x48A...

  • Page 2: Table Of Contents

    For assistance in making such adjustments, consult your Instruction Book. To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, return the unit (or if authorized in advance, the defective part) along with your proof of purchase to an Authorized Service Center near you. To locate the nearest Authorized Service Center, call the Central Parts Distributor for your area shown in the list provided with your unit or check the Yellow Page listings in your local telephone directory.

  • Page 3: Responsibility Of The Owner

    This instruction book is for several different models. The instructions are written for a person with some mechanical ability. Like most ser- vice books, not all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can follow with some mechanical ability.
  • Page 4 c. Do not turn sharply. Use care when backing. d. Use counterweights or wheel weights when suggested in the Instruction Book. 18. Do not operate this machine if you are taking drugs or other medication which can cause drowsiness or affect your ability to operate this machine.

  • Page 5: Safe Mowing Guide

    Each person that operates power equipment must learn to use correct and safe mowing procedures. To help you learn, carefully read the following pages. Most of the time the operator was not correctly shown or did not read the instructions on the unit or in the Instruction Book before using the unit.
  • Page 6 mower was completely assembled at the store, you must still check the mower according to the assembly instructions. Make sure the mower is correctly assembled and that all fasteners are tight. Make sure the engine has the correct amount of oil. Check these items often during the life of the mower.
  • Page 7 Also, the grass bagger will function better when the engine is operating at maximum speed. On slopes, decrease the ground speed and use care making sure the mower feels safe to operate. If the weather conditions are bad, do not mow.

  • Page 8: Steps To Follow

    BEFORE MOWING F Be sure to dress correctly. Wear hard shoes, not sandals or tennis shoes. F Examine the blade. A blade that is bent, cracked, or damaged must be replaced with a factory replacement blade. F Fill the fuel tank outside. Clean off spilled fuel. F Read and follow the Owner’s Manual, the instructions with the engine, and the instructions with any attachments.

  • Page 9: International Pictorials

    INTERNATIONAL PICTORIALS INTERNATIONAL PICTORIALS IMPORTANT: Some of the following pic- torials are located on your unit or on literature supplied with the product. Be- fore you operate the unit, learn and un- derstand the purpose for each pictorial. Safety Warning Pictorials Warning Shield Eyes.

  • Page 10: Assembly

    ASSEMBLY Read and follow the assembly and adjustment instructions for your mower. All fasteners are in the parts bag. Do not discard any parts or material until the unit is assembled. NOTE: In this instruction book, left and right describe the loca- tion of a part with the operator on the seat.

  • Page 11: How To Install The Seat

    HOW TO INSTALL THE SEAT Carefully remove the plastic bag from the seat. Use the fasteners shown below to install the seat. The fasteners are shown at full size. 1001054 NOTE: Fasteners may be attached to seat for shipping purposes, if so remove fasteners before proceeding. Align the holes in the seat hinge to the holes in the seat (Figure 1).

  • Page 12: Maintenance Free Battery

    MAINTENANCE FREE BATTERY IMPORTANT: Before you attach the battery cables to the battery, check the battery date. The battery date tells if the battery must be charged. Check the top and the side of the battery for the location of the battery date (Figure 3).

  • Page 13: Important! Before You Start Mowing

    IMPORTANT! BEFORE YOU START MOWING - Check the engine oil. - Fill the fuel tank with gasoline. - Check the air pressure of the tires. - Check the level of the mower housing. - Make sure the battery cables are attached. - Make sure the wire is attached to the spark plug.

  • Page 14: Operation

    Throttle Control Lever Clutch / Brake Pedal Lift Lever BLADE ROTATION CONTROL: control to start and stop the rotation of the blade and also to control various accessories, such as a snow thrower. CLUTCH / BRAKE PEDAL: The first function is a clutch. The second function is a brake. Use the brake pedal to quickly stop the forward or reverse motion of the unit.

  • Page 15: Attachments

    ATTACHMENTS This unit can use many different attachments. See the attachment page in this book. This unit can pull attachments like a lawn sweeper, a lawn aerator, a hopper spreader or a small trailer. This unit can not use attachments that engage the ground like a plow, a disk harrow, or a cultivator.

  • Page 16: How To Use The Blade Rotation Control

    HOW TO USE THE BLADE ROTATION CONTROL The blade rotation control is next to the steering wheel (Figure 6). Use the blade rotation control to engage the blade(s) or to operate a snow thrower attachment. Before you start the engine, make sure the blade rotation con- trol is in the DISENGAGE position.

  • Page 17: How To Set The Parking Brake

    HOW TO SET THE PARKING BRAKE Completely push the clutch/brake pedal forward. Lift the parking brake lever (Figure 7). Remove your foot from the clutch/brake pedal and then release the parking brake lever. Make sure the parking brake will hold the unit.

  • Page 18: How To Operate With The Mower Housing

    HOW TO OPERATE WITH THE MOWER HOUSING WARNING: The deflector is a safety device. Do not re- move the deflector. The deflector forces the dis- charged material toward the ground. Always keep the deflector in the down position. If the deflector is dam- aged, replace the deflector with an original equipment part from an authorized service center.

  • Page 19: Before Starting The Engine

    BEFORE STARTING THE ENGINE CHECK THE OIL NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil. Add oil as needed. See the engine manufacturer’s instructions for the type of gasoline and oil to use.

  • Page 20: Operating Tips

    OPERATING TIPS Check the blade rotation control for correct adjustment. For the blade(s) to disengage correctly, the adjustment must be cor- rect. Before you use the unit, check the oil in the engine and add oil if necessary. If the engine will not start, first make sure the wire is attached to the spark plug.

  • Page 21: Maintenance

    PROCEDURE Blade, Inspect and Sharpen Blade Rotation Control, Check Brake, Check Clutch, Check Tires, Check Battery, Check and Charge Battery, Clean Lubrication * Dusty conditions every 25 hours. GENERAL RECOMMENDATIONS The owner’s responsibility is to maintain this product. This will extend the life of the product and is also necessary to maintain warranty coverage.

  • Page 22: How To Remove And Install The Blade

    INSPECT BLADE WARNING: Before you inspect or remove the blade, disconnect the wire to the spark plug. If the blade hits an object, stop the engine. Check the unit for dam- age. The blade has sharp edges. When you hold the blade, use gloves or cloth material to protect your hands.

  • Page 23: How To Adjust The Blade Rotation Control

    HOW TO ADJUST THE BLADE ROTATION CONTROL WARNING: To prevent an injury, the blade rotation control must operate correctly. In normal usage, the blade rotation control will not require an adjustment. However, if the cutting performance decreases or the quality of cut is poor, make the following changes. When you mow, make sure the throttle control in in the FAST position.

  • Page 24: How To Check And Adjust The Drive Brake

    HOW TO CHECK AND ADJUST THE DRIVE BRAKE Completely push the clutch/brake pedal forward. Set the parking brake. Move the shift lever to the neutral (N) position. Push the unit. If the rear wheels rotate, adjust or replace the brake pads. Adjust the drive brake as follows.

  • Page 25: How To Adjust The Shift Lever

    HOW TO ADJUST THE SHIFT LEVER If the NEUTRAL position on the shift lever does not match neutral on the gearbox, adjust the shift lever as follows. Stop the engine. Disconnect the adjuster nut from the shifter bracket (Figure 18). Make sure the shift lever is in the NEUTRAL position.

  • Page 26: Where To Lubricate

    WHERE TO LUBRICATE Apply grease with a brush to the areas shown. Lubricate the areas shown with engine oil. NOTE: Apply grease to the steering gear assembly. CAUTION: If the unit is operated in dry areas that have sand, use a dry graphite spray to lubricate the unit. HOW TO CHECK THE FUEL FILTER NOTE: Before you replace the fuel filter or the fuel line, the fuel tank must be empty.

  • Page 27: How To Remove The Mower Housing

    HOW TO REMOVE THE MOWER HOUSING Move the blade rotation control to the DISENGAGE position. Move the lift lever to the level adjustment position (Figure 22). WARNING: The lift lever is spring loaded. Make sure the lift lever is locked in the LEVEL ADJUST- MENT position.

  • Page 28: How To Level The Mower Housing

    HOW TO LEVEL THE MOWER HOUSING If the mower housing is level, the blade will cut easier and the lawn will look better. WARNING: Before you make an inspection, adjust- ment, or repair to the unit, disconnect the wire to the spark plug.

  • Page 29: How To Replace The Motion Drive Belt

    HOW TO REPLACE THE MOTION DRIVE BELT REMOVAL Remove the mower housing. See the instructions on “How To Remove The Mower Housing”. Completely push the pedal forward and engage the parking brake. Remove the idler pulley (Figure 27). Motion Drive Belt Idler Pulley Loosen The Belt Guides...
  • Page 30 INSTALLATION Slide the motion drive belt between the stack pulley and the belt guides (Figure 30). Install the motion drive belt on the top pulley of the stack pulley. Make sure the “V” side of the belt is against the pulley. Push the motion drive belt through the opening between the steering plate and the engine plate.

  • Page 31: How To Replace The Mower Drive Belt

    HOW TO REPLACE THE MOWER DRIVE BELT Remove the mower housing. See the instructions on “How To Remove The Mower Housing”. Pull the belt retainer away from the idler pulley and remove the mower drive belt (Figure 33). Pull the belt retainer away from the right mandrel pulley and remove the mower drive belt.

  • Page 32: How To Install The Wheels

    HOW TO INSTALL THE WHEELS If the wheels must be removed for service, make sure they are installed as follows. Front Wheel Make sure the valve stem is to the outside of the tractor. Slide the front wheel on the spindle (See Figure 34). Fasten the front wheel with washer and cotter pin.

  • Page 33: How To Replace The Fuse

    HOW TO REPLACE THE FUSE If the fuse is blown, the engine will not start. Remove the fuse and replace with a automotive fuse (Figure 36). HOW TO REPLACE THE LIGHT BULB Raise the tractor hood. Turn the light socket until the tabs on the socket align with the notches in the bezel (Figure 37).

  • Page 34: Trouble Shooting Chart

    TROUBLE SHOOTING CHART PROBLEM: The engine will not start. Follow the steps, “How To Start The Engine” in this book. Electric-Start Models: Clean the battery terminals. Tighten the cables. Drain the fuel tank. Clean the fuel line. Replace the fuel filter. Remove the spark plug(s).

  • Page 35: How To Order Repair Parts

    See the individual engine or transmission warranties. If you are unable to obtain parts or service in the manner outlined above, then contact: MURRAY, INC., Outdoor Power Equipment, Customer Service Dept., P.O. Box 268, Brentwood, TN 37027 (1-800-251-8007) CANADA MURRAY CANADA, INC., Factory Customer Service, 1195 Coutneypark Drive East, Mississauga, Ont.
  • Page 36 F-050745L CHASSIS & HOOD...

  • Page 37: Parts List

    Part No. Description 690566 Seat 028x23 Cap, Push 0n 094057 Spring 26x229 Screw 1001054 Bolt, Wing 017x47 Z Washer 009x56 Bolt, Shoulder 094154E701 Support, Seat 094156 Z Rod, Pivot 1001648E700 Bracket, Pivot 001x45 Bolt 015x89 009x55 Bolt, Shoulder 094155 Z Washer 164x31 Spring...
  • Page 38 F-050745L MOTION DRIVE...
  • Page 39 Part No. Description 009x39 Bolt, Shoulder 015x89 Nut, Hex 690173 Z Arm, Idler 094041 Z Rod, Clutch 015x79 17x102 Washer 092697 Grip 030x20 Pin, Cotter 094043 Z Lever, Shift 017x47 Z Washer 094044 Z Link, Shift 021920 Z Nut, Adjuster 091079 Grip 1001245 Z...
  • Page 40 F-050745L STEERING...
  • Page 41 Part No. Description 1001980 Wheel, Steering 690625 Post, Steering 1001982 Cover, Steering Wheel 094124 Bearing † 15x111 Nut, Flange † 009x57 Bolt, Shoulder 1001893 Gear, Pinion † 011x25 Ring, Snap † 094121 Gear, Sector 094123 Bearing 001x84 Bolt 1001121E701 Plate, Steering 094006E700 Plate, Engine 015x88...
  • Page 42 F-050745L MOWER HOUSING SUSPENSION...
  • Page 43 Part No. Description 092698 Grip 094157 Z Handle, PTO 094022 Z Pad, Switch 0025x3 Bolt 092697 Grip 166x40 Spring 17x103 Washer 690533 Lever, Lift 094017 Z Lever, PTO 009x39 Bolt, Shoulder 030x20 Pin, Cotter 017x57 Washer 094004 Z Link, PTO 015x84 Nut, Flange 26x249...
  • Page 44 F-050745L MOWER HOUSING 5 47...
  • Page 45 Part No. Description 092851 Pulley, Jackshaft 15x140 Nut, Hex 037x62 Belt, Mower Drive 690387 Pulley, Idler 015x84 Nut, Flange 690212E701 Link, Lift 094137 Pad, Friction 009x52 Bolt, Shoulder 094055E701 Bracket, Suspension 094049E701 Pad Assembly, Left Brake 094068 Knob 009x51 Bolt, Shoulder 094128E700 Plate, Suspension 166x43...
  • Page 46 MODEL 405011x48A REPAIR PARTS ENGINE MOUNT F-050745L...
  • Page 47 For information on Replacement Parts contact the engine manufacturer. † These parts are included with Key number 2. F-050745L Part No. Description 092317 Fuel Cap † 690280 Fuel Tank 095197 Hose Clamp † 7601033 Fuel Line (Must cut to length) † 095197 Hose Clamp †...
  • Page 48 MODEL 405011x48A REPAIR PARTS ELECTRICAL SYSTEM F-050745L...

  • Page 49: Electrical System

    F-050745L Part No. Description 250x92 Harness, Light Wire 1001716 Socket, Light 090084 Bulb, Light 250x138 Harness, Chassis Wire 1001993 Switch, Ignition 020729 Key, Ignition 091489 Nut, Hex 091488 Cap, Ignition 094136 Switch, Limit (PTO) 302031 Fuse 407078 Holder, Fuse 1002004 Solenoid 26x229 Screw, Mounting...

  • Page 50: Slope Guide

    F-050745L...

  • Page 51: Index

    Adjustments Blade Rotation Control, 23 Clutch, 24 Drive Brake, 24 Mower Housing, Level, 28 Shift Lever, 25 Attachments, 15, 52 Battery Charge, 25 Check, 12 Clean, 25 Install, 12 Removal, 25 Storage, 33 Belt Motion Drive Adjust, 24 Replace, 29 Mower Drive Adjust, 23 Replace, 31...

  • Page 52: Lawn Tractor Accessories

    LAWN TRACTOR ACCESSORIES Make your Lawn Tractor do more than you ever imagined. The accessories shown on this page can be used on your Lawn Tractor. See the Store or Dealer where you purchased your Lawn Tractor. If you are unable to obtain the necessary information, contact the Central Parts Distribution Center for your area as listed in your Repair Parts Book.
