This Instruction
Book Contains
Information
For Several Models. Read And Keep This Book For
Future Reference. This Book Contains Important Information On:
SAFETY;,ASSEMBLY, OPERATION AND MAINTENANCE.
PRODUCT
INFORMATION
The owner must be certain that all the product Information Is Included with this unit.
This Information Includes the INSTRUCTION
BOOKS, the REPLACEMENT
PARTS
and the WARRANTIES. This Information must be Included to make
sure state laws and other laws are followed.

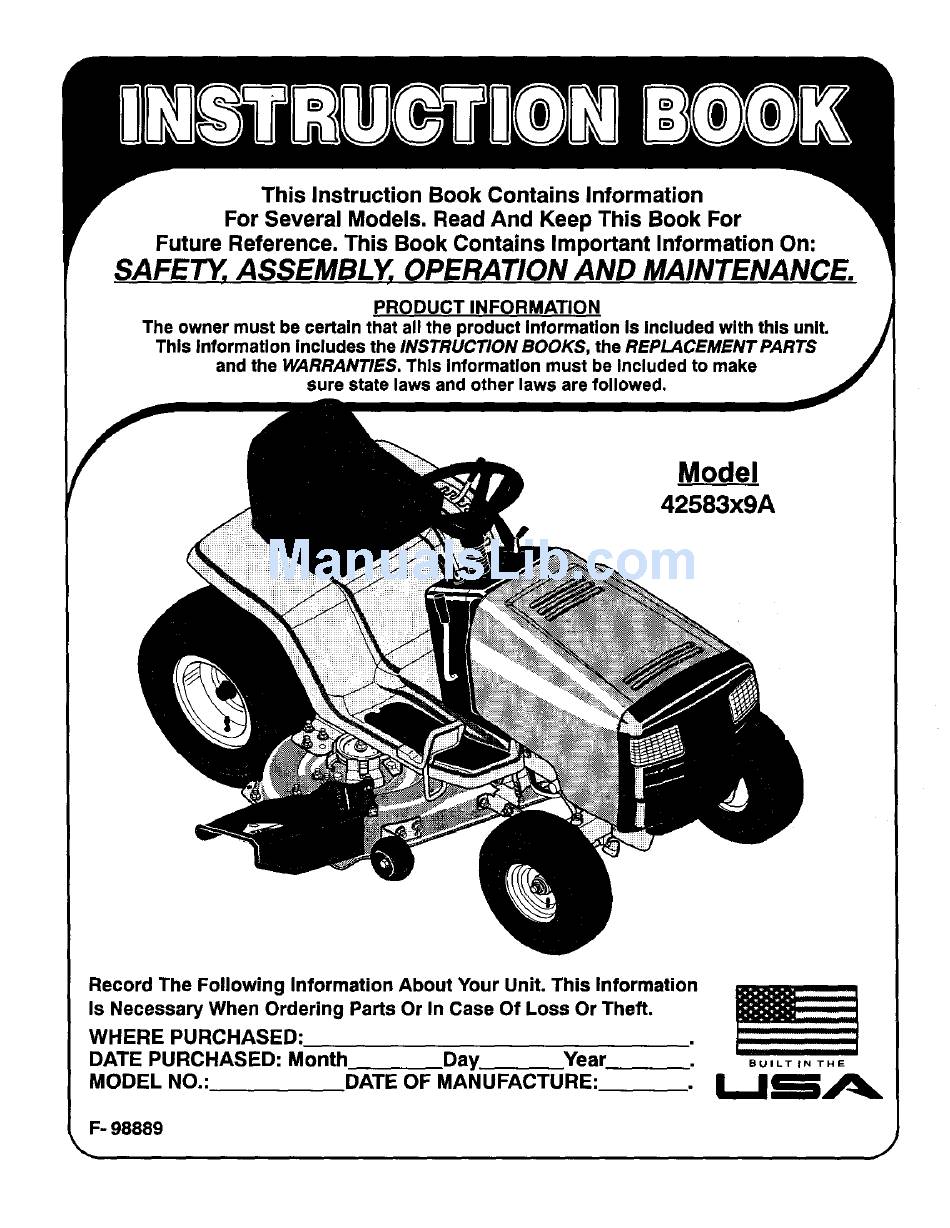

Model
42583x9A
iiiiii
Record The Following Information About Your Unit. This Information
Is Necessary When Ordering Parts Or In Case Of Loss Or Theft,
WHERE
PURCHASED:
DATE PURCHASED:
Month
Day
Year
MODEL NO.:
DATE OF MANUFACTURE:
BUILT
IN
THE
I.-IfA
F- 98889
