HDS 1000 DE

Advertisement

Table of Contents
loading

Related Manuals for Kärcher HDS 1000 DE

Summary of Contents for Kärcher HDS 1000 DE

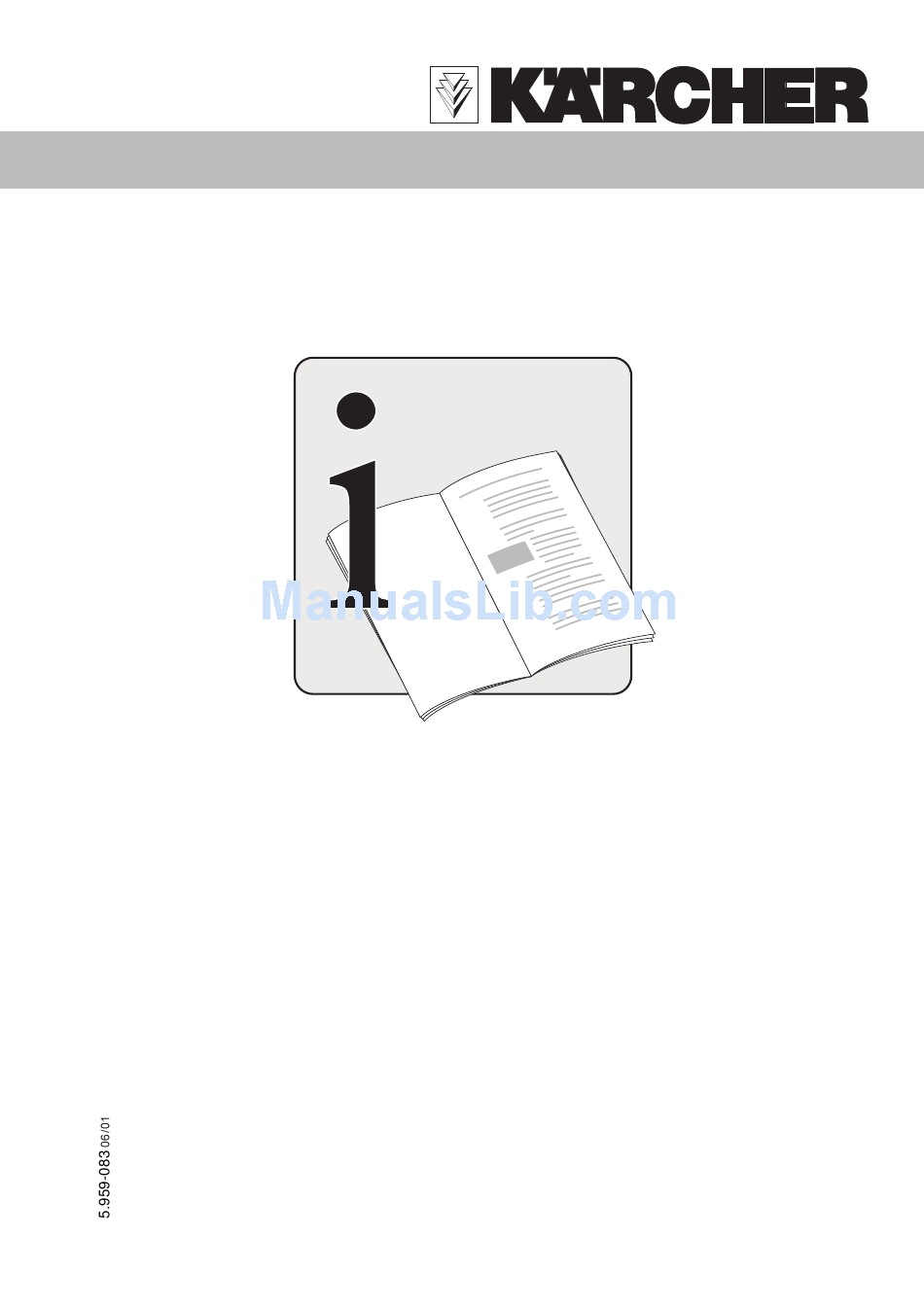

  • Page 1 HDS 1000 DE...

  • Page 3: Table Of Contents

    HDS 1000 DE E N G L I S H Contents Technical data ..... 4 Important notes ....6 III. Operation ......8 Application ......9 Care and maintenance ..10 Trouble shooting....12 VII. General Notes ....14 VIII. Spare parts list ....15...

  • Page 4: Technical Data

    HDS 1000 DE I. Technical data Engine: Yanmar L90 AE-DE Air-cooled single-cylinder 4-stroke diesel engine with hand and electric start Rated power at 3600 rpm KW (Hp) 6.6 (9) Specific fuel consumption g/kWh Performance Operating pressure 40 – 200 Operating pressure at steam-stage (with steam nozzle) <...
  • Page 5 HDS 1000 DE 1 Hand starter 13 Adjustment wheel for pressure 24 Tuyere connection 2 Electric starter and flow regulation 25 Float tank 3 Engine fuel tank 14 Pulsation damper 26 Container for liquid softener 4 Pressure gauge 15 Fuel pump...

  • Page 6: Important Notes

    HDS 1000 DE II. Important notes Unpacking the machine – Should you find that damage has occurred during transport, inform your dealer immediately. Fitting accessories – Connect high-pressure hose to handgun and spray lance and connect to high-pressure outlet of the pump.

  • Page 7: Frost Protection

    HDS 1000 DE Fuel tank Fill the fuel tank for the engine with diesel. Caution! The fuel tank should not be topped up when the engine is running or hot. There is a risk of fire and explosion. Do not smoke and keep away from sparks and flames.

  • Page 8: Operation

    HDS 1000 DE III. Operation 1. Initial operation (cold-water mode) – Open water inlet. – Unit switch to position “SYMBOL Burner off”. – Start engine according to operating instructions. – Retract lever of handgun. The pump first extracts air out of the unit. After a short time water will come out of the nozzle.

  • Page 9: Application

    The unit is now without pressure. IV. Application The high-pressure cleaner HDS 1000 DE is specially designed for use where no electrical connection is available and where the work requires the use of hot water. The unit is particularly suitable for cleaning facades, machines and construction-site vehicles in the open air.

  • Page 10: Care And Maintenance

    HDS 1000 DE V. Care and maintenance Care and maintenance work forms part of the responsibility of the operator. It must be carried out with care and precision in order to maintain the operational efficiency of the unit. a) Engine: Maintenance in accordance with the engine manufacturer’s operating instruction manual...
  • Page 11 HDS 1000 DE 4. Removal of internal deposits If there are internal deposits in the pipe lines, the flow resistance increases with the result that the overflow protection can switch over. According to legal regulations, only boiler cleansing compounds which have certification marks can be...

  • Page 12: Trouble Shooting

    HDS 1000 DE VI. Trouble shooting Fault Cause Remedy 1. Engine does not run a) Fuel tank empty Check, fill up. Spark plug See operating instructions, engine Other causes See operating instructions, engine Unit does not come Pump is sucking in air...
  • Page 13 HDS 1000 DE Fault Cause Remedy 4. Water jet uneven Nozzle blocked Blow nozzle through with compressed air. If necessary clean with a pin or similar. Safety valve out of adjustment Call in Customer Service 5. No suction of Cleaning agent filter blocked or...

  • Page 14: General Notes

    HDS 1000 DE VII. General Notes 1. System test pressure and design accord with the statutory regulations for steam boilers. 2. The “Richtlinien für Flüssigkeitsstrahler” (Guidelines for liquid jets) issued by the Verband der gewerblichen Berufsgenossenschaften, available from Carl Heymanns-Verlag KG, Luxemburger Str.

  • Page 15: Spare Parts List

    6.491-261.0 5.826-020.0 HDS 1000 DE 5.826-020.0 1.811-936.0 6.491-262.0 5.042-252.0 5.363-300.0 5.063-664.0 5.042-402.0 5.731-039.0 5.321-177.0 7.307-181.0 5.132-010.0 5.132-010.0 5.321-023.0 7.305-023.0 4.820-946.0 6.654-074.0 6.654-026.0 6.654-075.0 4.820-732.0 5.045-211.0 4.775-254.0 5.321-493.0 6.390-185.0 4.760-355.0 2.880-296.0 6.303-025.0 6.390-185.0 6.362-422.0 6.390-185.0 5.321-493.0 2.880-296.0 4.760-355.0 10.12.1999 5.401-210.0...
