Page 1: Operating Instructions

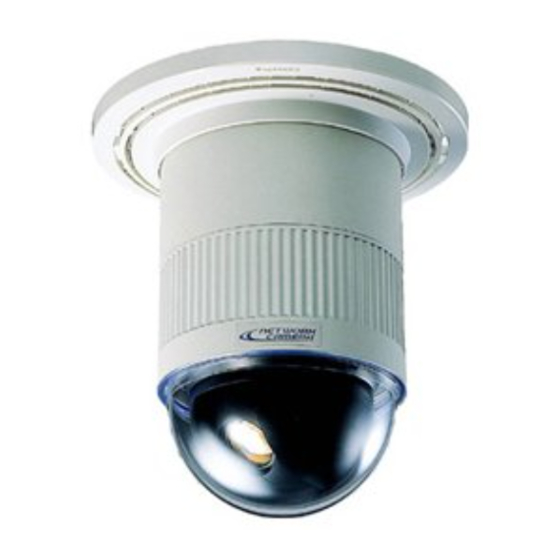

Colour CCTV Camera Operating Instructions WV-NS320 WV-NS324E Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. - Page 2 Model No. WV-NS320/NS324E when the ON-OFF switch is in the ON position. The power cord is the main Serial No.
-
Page 3: Table Of Contents
INSTALLATION ........................8 CONNECTIONS ......................... 11 SETUP WITH PC ........................ 14 Setup with the Provided "Panasonic IP Setup" Software ..........14 PREPARATIONS FOR THE PC ..................15 Network Setup of Your PC ..................15 Network Setup of the Camera ..................16 OPERATING THE CAMERA .................... -
Page 4: Preface
PREFACE Panasonic introduces a newly developed dome camera with highly advanced CCVE technology for connection to both conventional surveillance systems and digital networks. Colour camera, zoom lens, pan and tilt mechanism are all combined in a single compact unit. This high-performance colour CCVE camera is utilized as a video surveillance device. -
Page 5: Document Convention
(See page 37.) To use this camera with the WJ-SX550C Matrix Switcher, set the auto cleaning function on each unit, then clean the WV-NS320/NS324E once a day. Preset Data Uploading or Downloading To download the preset data from the camera to the controller or upload the downloaded data to the cam- era, set the following functions to OFF. -
Page 6: Precautions
PRECAUTIONS 1. Do not attempt to disassemble the camera. 8. Do not operate the camera beyond the specified To prevent electric shock, do not remove screws or temperature, humidity or power source ratings. covers. Do not use the camera in an extreme environment There are no user-serviceable parts inside. -
Page 7: Construction
Panning Starting Point w Alarm Output Connector o Ferrite Core e Video Output Connector !0 "AC 230 V" indication label for WV-NS320 r Network Port !1 * "AC 24 V" indication label for WV-NS324E t Power Cable for WV-NS320... -
Page 8: Installation
INSTALLATION Precautions • The following installation and connection work 8-bit DIP SW should be done by qualified service personnel or system installers and should conform to all local codes. • Be sure to switch the camera off before installation and connection. •... - Page 9 Cutout in Decoration Cover 2. Fix the camera mounting base to the ceiling with four screws (not provided, M4). Caution: Install a camera in accordance with the Ferrite core power source type described in the power indication label on the mounting base. 3.
- Page 10 b. Top Cable Exit Push the decoration cover against the camera mounting base. 5. Tighten the fixing screw M3 (provided). Notes: (1) Tighten the camera fixing screw with a screw- driver. (2) Follow the instructions given here to ensure that the camera and camera mounting base are installed safely.
-
Page 11: Connections
• The following connections should be made by qualified service personnel or system installers in accordance with all local codes. • See the reverse side of the cover page for mains lead connection. Adapter 220 V to 240 V AC (WV-NS320) 24 V AC cable *Ferrite core 24 V AC (WV-NS324E) - Page 12 • Ethernet Connection TX + Orange TX – Data transmission Yellow RX + Data reception Green RX – • ALARM IN Connections • Video Cable Connections An 8-pin and a 4-pin harness are supplied with the The maximum extensible coaxial cable length camera as standard accessories.
- Page 13 • Connection to Intranet (Type 2) Necessaries: A switching hub connected to the intranet is placed • Straight-type network cable (Category 5) between the camera and the PC. • CATV modem (cable modem) or DSL modem • Switching hub or router (for 10BASE-T/100BASE- Notes: •...
-
Page 14: Setup With Pc
• Only one administrator is required. Setup with the Provided "Panasonic IP Setup" Software Set up the network of the camera using the "Panasonic IP Setup" software included on the CD-ROM provided with the camera. Note: If a firewall (including software) exists, allow 3. -
Page 15: Preparations For The Pc
PREPARATIONS FOR THE PC Network Setup of Your PC 4. Double-click the "Network Connections" icon. To set up the network of the PC, first change the TCP/IP settings of the PC to match them to the default settings of the camera. The following are the default network settings of the camera. -
Page 16: Network Setup Of The Camera
7. Click the "Use the following IP address" radio but- Network Setup of the Camera ton and enter the IP address and the subnet mask On completion of the network setup of the PC, begin as follows. the network setup of the camera. If two or more cam- eras are connected, each camera needs to be set up "IP address"... - Page 17 3. Click the [Setup Menu] button. The authentication 5. Click the [Network] button. The "Network Setup" dialog window appears. page appears. • Enter "admin" in the "User Name" input box. 6. Enter parameters for each item in the columns. Note: The default setting is "admin". The adminis- The parameters differ depending on the connec- trator should change the user name and pass- tion type.
-
Page 18: Preliminary Setup
1. Enter an IP address, "http://192.168.0.10" for exam- administrator. ple, in the address bar of the browser to display the "Main Menu" window of the WV-NS320/NS324E Note: You can correct the DHCP setting to "OFF" camera. via the "Panasonic IP Setup" software or "Camera Control"... -
Page 19: Operating The Camera
OPERATING THE CAMERA • Function Comparison / PC Network vs. Camera site Function PC Network Camera Site (*1) VIEWING IMAGES PAN/TILT ZOOM/FOCUS IRIS PRESET AUTO PAN 360MAP AUX Device Control Alarm Log/Alarm Image Display MENU SETUPS Camera Setup (Camera) Network Setup (Camera) Network Setup (HTML) Operating Mode Setup (HTML) Alarm Setup (HTML) -
Page 20: Setup
SETUP Setup Menu Setup menus are shown in the diagram below. These enable you to adapt the camera to your own requirements. The menus are described on the following pages for reference prior to setup. Switches, keys and the joystick are used for setup operations. Presetting Menu Setup Presetting (P. - Page 21 [WV-CU550CJ] Function/Controller WV-CU550CJ WV-CU360CJ WV-CU161C WV-RM70 Joystick PROG SW Zoom wheel FOCUS Switch (for 2 seconds controler ZOOM Switch CAM SETUP CAMERA SETUP or more) and Open CAM SETUP See page 23 key (for 2 sec- key (for 2 seco- SET SW at ALARM BUSY...
-
Page 22: Setting Procedures
SETTING PROCEDURES The following setting procedures are described on the Submenu Display assumption that this model is used in combination with The items marked O can be selected/changed on the the WJ-SX550C Matrix Switcher and WV-CU550CJ submenu. System Controller. In case a controller other than the WV-CU550CJ is used, refer to the table on page 22. - Page 23 ** PRESET NUMBER SET ** ** POSITION →PUSH SET PAN/TILT →PUSH SET ZOOM/FOCUS FLOOR 1 DOOR Notes: Position Setting (POSITION SET) • When the camera is used at a nearly horizontal angle, the focus may not be adjustable to a Aligns the camera position and focal point by panning, high level of accuracy.
- Page 24 Preset Identification Setting (PRESET To Copy a Preset ID from Another Position (1) Move the cursor to COPY and press the CAM (SET) key. First the preset ID in the preceding Assigns a name to preset IDs (identification of up to 16 position is shown.
-
Page 25: Deleting Preset Positions
Light Control Setting (ALC/MANUAL) To Return to the Preset Number Set Menu Selects the ALC or MANUAL mode for adjusting the lens iris. • Move the cursor to RET and press the CAM (SET) 1. The factory default setting is ALC. key. -
Page 26: Home Position Setting (Home Position)
3. Move the cursor to DEL and press the CAM (SET) ** SET UP MENU ** PRESET key. This deletes the preset position and the PRESET HOME POSITION OFF SELF RETURN NUMBER SET menu appears. The * mark to the AUTO MODE right of the number disappears. - Page 27 3. Panning starting point and panning endpoint Notes: Follow the steps below. • If the panning range is changed after the camera (1) Move the cursor to POSITION and press the has not panned for a long time or has been pan- CAM (SET) key.
-
Page 28: Flip-A-Chip Setting (Flip-A-Chip)
Cleaning (CLEANING) CLEANING is used for refreshing the electro-mechani- cal contacts built into the camera. Use this function for maintenance when the camera has been directed at a ** AUTO PAN ** specific spot or panned over a specific range for a long time. -
Page 29: Camera Setting
Camera Setting To Enter a New Camera ID (1) Move the cursor to the desired character using the To Display the Camera Setting Menu joystick, and press the CAM (SET) key. (2) The selected character appears in the editing area. Move the cursor to CAMERA O, and press the CAM (The pointer in the editing area moves to the right (SET) key. - Page 30 (1) ALC Mode with BLC ON 2. Move the cursor to MASK SET and press the In normal use, the important object in a scene is CAM (SET) key. The 48 mask areas appear on placed in the centre of the monitor screen. When the monitor screen.
- Page 31 6. If you want to change the video output level Note: For more information, refer to Digital Noise (picture contrast), move the "I" cursor for Reduction on page 36. LEVEL and adjust the level. Synchronization (SYNC) ** ALC CONT ** BACK LIGHT COMP You can select the internal sync (INT) mode or the line- lock sync (LL) mode.
- Page 32 5. Move the cursor to COARSE by using the joystick. ** SYNC ** V PHASE ** SYNC ** COARSE 4(1--16) V PHASE FINE ••••••|•• COARSE 1(1--16) FINE •|••••••• ** SYNC ** V PHASE 6. Match the vertical phases for both video output sig- nals as closely as possible by using the joystick.
- Page 33 2. For fine adjustment of the ATW, press the CAM Auto Focus Setting (AF MODE) (SET) key. The ATW fine adjustment menu appears The camera adjusts the focus automatically by sensing on the monitor screen. the centre of the picture. MANUAL: Auto-focus is activated only when the AF key on the controller is pressed.
- Page 34 Notes: You can mask the areas in this menu. • A scene magnified by the electronic zoom function may be inferior in picture quality to a 3. Move the cursor to MASK SET and press the CAM non-magnified one. (SET) key. •...
- Page 35 8. Dwell Time (1) Chroma Level Setting (CHROMA GAIN) Move the cursor to DWELL TIME, and select a time with the Joystick. (2) Aperture Level Setting (AP GAIN) When the time specified here elapses after motion detection, the camera will notify the connected (3) Pedestal Level Setting (PEDESTAL) device of the alarm activation.
-
Page 36: Reset To The Factory Default Settings
(6) To Restore the Camera Default Position Reset to the Factory Default Settings (REFRESH) Any of the above settings plus the ALC/MANUAL level control and phase adjustments can be reset to the fac- Move the cursor to REFRESH by using the joystick tory default settings by placing the cursor over the and press the F2 button of the WV-CU550CJ. -
Page 37: Initializing
INITIALIZING You can reset the following data to the factory default settings. Camera Setup HTML files Setting the Switches The camera is provided with an 8-bit DIP switch. The 8- bit DIP switch is used to return the camera to the facto- ry default settings. -
Page 38: Troubleshooting
TROUBLESHOOTING Symptom What to do Reference page No picture is displayed. • Is the AC adapter firmly plugged in to the outlet? • Are the POWER IN terminals on the camera connected with the AC adapter properly? 8, 12 • Is the video cable or network cable connected properly? Cannot access the camera from the •... -
Page 39: Prevention Of Blooming And Smear
PREVENTION OF BLOOMING AND SMEAR When the camera is aimed at a bright light, such as a Smear spotlight, or a surface that reflects bright light, smear or Bright object blooming may appear. Therefore, the camera should be operated carefully in the vicinity of extremely bright objects to avoid smear or blooming. -
Page 40: Accessories
Tilting speed preset position : maximum approx. 100 °/s Controls pan/tilt, lens, 16 preset positions, home position Power source WV-NS320 220 V - 240 V AC, 50 Hz WV-NS324E 24 V AC, 50 Hz Power consumption 16 W 15 W Ambient operating –10 °C to +50 °C (14 °F to 122 °F) -
Page 41: Appendix
APPENDIX Shortcuts Shortcut operations are available to controllers having the CAM FUNCTION key. Entering from one to three digits using the numeric key(s) and pressing the CAM FUNCTION key will create a shortcut to the respective functions. The CAM FUNCTION key is abbreviated as [CAM FUNC] in the table below. Function Function Selecting a PRESET position From #1 to #16... - Page 42 Printed in Japan Gedruckt in Japan Imprimé au Japon Impreso en Japón Stampato in Giappone NM0103-1053 3TR001555BAA 2003 © Matsushita Electric Industrial Co., Ltd. All rights reserved.
