Ultra Start 32 series Owner's Manual

Hide thumbs Also See for 32 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Covers All 32xx and 33xx Series
Advanced 2-Way Remote Starters
www.ultrastarters.com
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
It is the sole responsibility of the user to place the system in Service Mode
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
when parking in an enclosed area ex: garage, partially enclosed area
- The Hood Pin Safety Switch Must Always be Installed!
ex: carport, or when the vehicle is being serviced.
OWNER'S GUIDE
Warning!!

Advertisement

Table of Contents
loading

Related Manuals for Ultra Start 32 series

Summary of Contents for Ultra Start 32 series

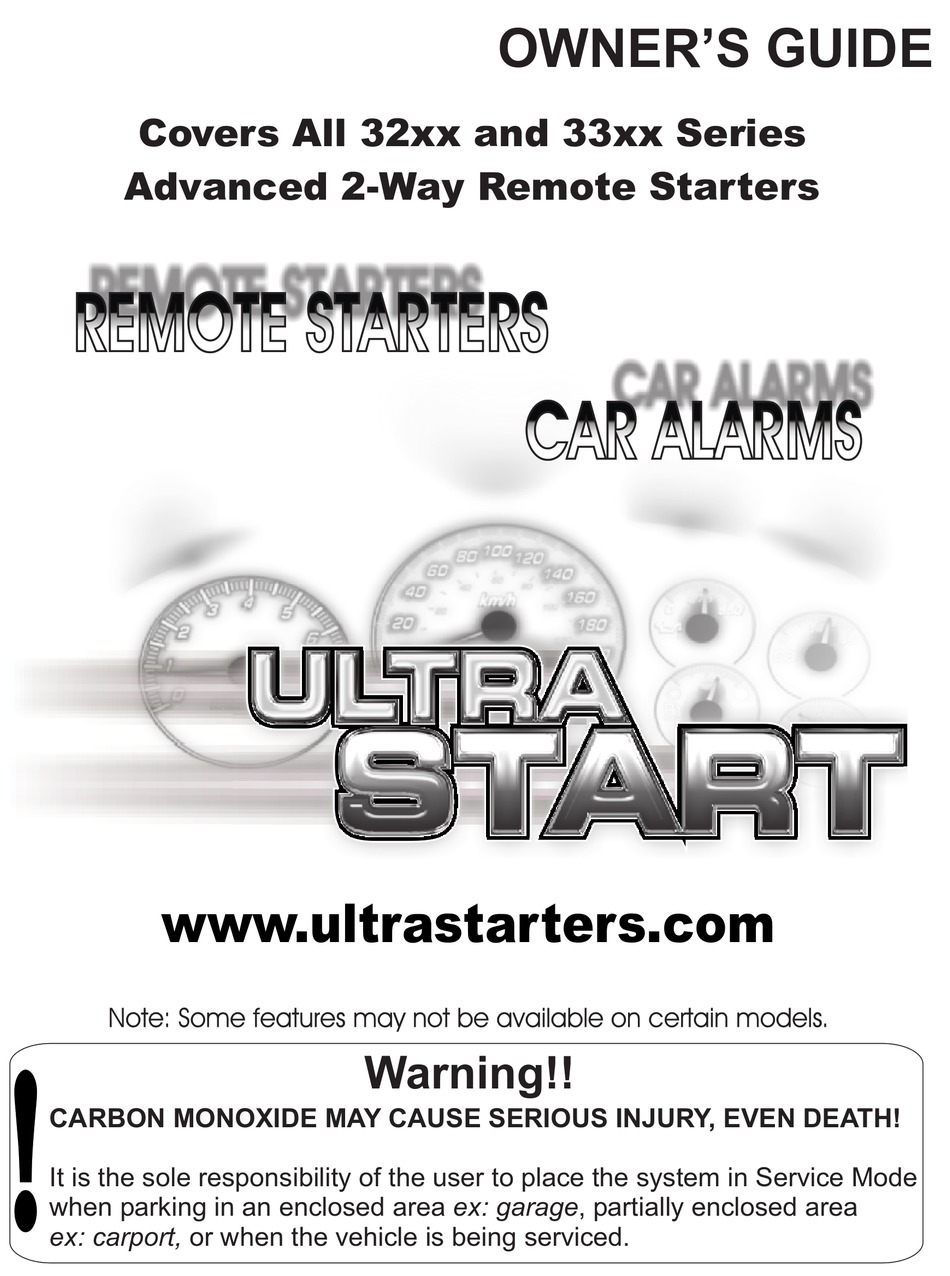

  • Page 1 OWNER’S GUIDE Covers All 32xx and 33xx Series Advanced 2-Way Remote Starters www.ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.

  • Page 2: Table Of Contents

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 2 Table Of Contents Table Of Contents Page 2 Welcome Page 3 About Ultra Start Feature List Safety Page 4 Remote Transmitters & Antenna Page 5 Remote Starter Functions Page 6 Remote Starting Extended Runtime...

  • Page 3: Welcome

    PAGE 3 Welcome Congratulations on your purchase of an Ultra Start remote vehicle starter. Ultra Start remote vehicle starters will provide years of comfort and convenience. To utilize and understand this system to the fullest, PLEASE READ THIS MANUAL IN DETAIL.

  • Page 4: Safety

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 4 Safety VERY IMPORTANT SAFETY NOTES! The owner/user MUST INSTALL a CARBON MONOXIDE DETECTOR in the living area near to where the vehicle is being stored or parked. It is the sole responsibility of the owner/user to keep the remote transmitters away from the reach of children and handle with care so that the system does not unintentionally start.

  • Page 5: Remote Transmitters & Antenna

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 5 Remote Transmitters and Antenna 1 1 2 2 3 3 OE series XR series Two-Way Program Button LEDs Active RF antenna with built in LEDs and Program Button. NOTE Remote transmitter’s and antenna may not be exactly as shown.

  • Page 6: Remote Starter Functions

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 6 Remote Star ter Functions Remote Starting (if remote start fails to start see page 15) 1. Press and release the button. 2. The park lights will flash and the horn (optional) will honk once to confirm. The vehicle will then remote start, the horn (optional) will honk and the park lights will then flash four times then remain on while the vehicle is running.* Extended Run Time...

  • Page 7: Reservation Mode (Manual Transmissions Vehicles Only)

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 7 Reservation Mode - (Manual Transmission Vehicles) Very Important! Do not set Reservation Mode if the vehicle is occupied. Manual transmission remote starters must be set into Reservation Mode before the remote starter will activate. The activation type of Reservation Mode is determined when the system is installed.

  • Page 8: Optional Features

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 8 Optional Remote Features Lock 1. Press and release the button. 2. The doors will lock. The system will confirm with one park light flash and the horn (optional) will honk one time. Constant Lock (optional) 1.

  • Page 9: Panic

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 9 Optional Remote Features Trunk 1. Press and hold the button. 2. The doors will unlock (optional), continue holding until the Trunk Release activates. NOTE: The trunk release output will stay active for 5 seconds as long as the button is pressed.

  • Page 10: Timer Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 10 Timer Mode Timer Mode will start the vehicle at a user selectable start interval. The vehicle can be set to start once every 2, 3 or 4 hours, for a maximum of 12 starts. The vehicle will start at the selected start interval and run for the programmed runtime*.

  • Page 11: Remote Transmitter Learn

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 11 Remote Transmitter Learn IMPORTANT! All remote transmitters not programmed at this time will be erased from memory for security. STEP 1 - Within 3 seconds turn the ignition key to the “ON” position three times leaving “ON” the third time. STEP 2 - Press and hold the Program Button.

  • Page 12: Se Rvice Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 12 System Service Mode (Valet Mode) System Service Mode will disable the remote starter. This will only effect the remote start portion of the system. The optional lock, unlock and trunk release features will still be operational. When the vehicle is to have any under hood or service work done, the system must be placed into Service Mode.

  • Page 13: Lcd Display

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 13 LCD DISPLAY These icon’s display the current status of the system. The icons may not all be present on the screen at all times, certain icons will only turn on when a feature is activated.
  • Page 14 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 14 LCD DISPLAY RUN TIMER- This icon activates during remote starting. The bar graph will count down in 2 minute increments, indicating how much time is left on the remote starter’s runtime. NOTE: At rest four bars will scan back and fourth. EXHAUST and WHEEL’S- These icons activate during remote starting.
  • Page 15 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 15 LCD DISPLAY TRUNK ICON- This icon indicates that the trunk has been opened.
  • Page 16 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 16 LCD DISPLAY Programable Icons- The six squares found at the bottom of the display are user/dealer programmable. TIMER ICON- When the vehicle starts in Timer Mode, this icon will appear in conjunction with the usual icons that indicate that the vehicle is running by the remote starter.
  • Page 17 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 17 LCD DISPLAY Setting The Time Press and hold the buttons until the remote transmitter chimes and the minute portion of the clock begins to flash. To change from minutes to hours, press and release the button.

  • Page 18: Notes

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 18 NOTES...

  • Page 19: Diagnostics

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 19 Diagnostics If the remote starter does not activate when the button is pressed the park lights will flash a diagnostic code to indicate what shutdown input has been triggered. PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid...

  • Page 20: Fcc Notice

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 20 Limited Lifetime Warranty The manufacturer warrants to the original purchaser of their remote starters and alarms, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a two year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the remote starter and/or alarm which the manufacturer agrees to be defective.

This manual is also suitable for:

33 series
