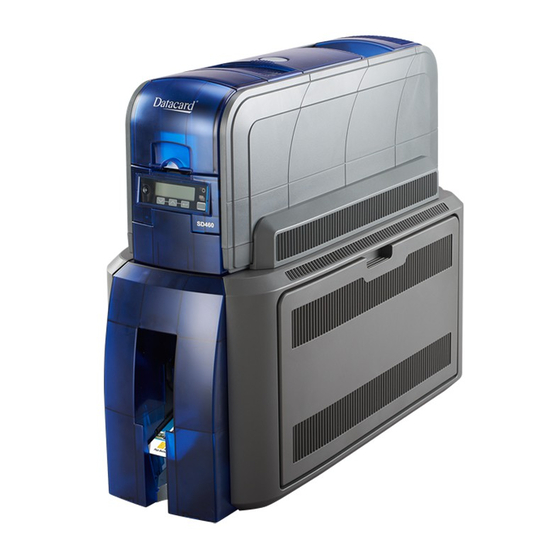

SD460 SLM Laminating System
Quick Install Guide

Advertisement

loading

Related Manuals for DataCard SD460

Summary of Contents for DataCard SD460

  • Page 1 SD460 SLM Laminating System Quick Install Guide...
  • Page 2 Guide found on the Owner’s Library CD that ships with the printer for detailed installation instructions. The latest firmware and user documentation for your SD460 system is available for download at www.datacard.com. 1. Select a Location for the System • Install the system in a location that is clean and well ventilated, free of vibration or shock.
  • Page 3 SD460 Laminating System Quick Install Guide 2. Unpack and Secure the System a. Remove the printer and the laminator from the shipping cartons. The SD460 Quick Install Guide (this guide) is included in the shipping carton. Save the shipping cartons and packing materials. They are required if you need to store, move, or return the system for service.
  • Page 4 SD460 Laminating System Quick Install Guide b. Secure the laminator to the mounting surface (optional). Refer to the printer’s Installation and Administrator’s Guide for detailed measurements and instructions. Carefully tip the laminator onto its left side (the side without the access door). Insert the M6 well nuts into the bolt-down openings in the bottom of the laminator.
  • Page 5 SD460 Laminating System Quick Install Guide 3. Assemble the Printer and Laminator a. Locate the interconnect cable in the cable routing area at the top of the laminator and make sure that it remains accessible. Laminator Front Laminator Interconnect Back Cable b.
  • Page 6 SD460 Laminating System Quick Install Guide d. Lift the printer over the laminator and align the pins on the laminator with the holes on the underside of the printer. e. Press down on the printer carefully, but firmly, to position it. Push the printer locking lever to the right to lock the printer to the laminator.

  • Page 7: Connect The Power Cords

    SD460 Laminating System Quick Install Guide 4. Connect the Power Cords a. Connect the printer power cord to the printer and to the power supply. Plug the power supply cord into the power outlet. Front Back b. Connect the laminator power cord to the laminator and to the power supply.
  • Page 8 SD460 Laminating System Quick Install Guide 5. Load Laminator Supplies Supplies are ordered separately. Refer to the SD and CD Series Card Printers Quick Install Guide to load printer supplies. The L1 (green) and L2 (orange) cartridges fit only in their assigned locations inside the laminator. They are not interchangeable. a. Open the laminator access door.
  • Page 9 SD460 Laminating System Quick Install Guide c. Load the overlay onto the cartridge. SD460 SLM Laminating System...
  • Page 10 SD460 Laminating System Quick Install Guide d. Replace the cartridge in the laminator. e. Remove the L2 (orange) cartridge, if installed, from the laminator. Repeat Steps 5c and 5d to load the overlay onto the L2 cartridge. g. Close the laminator access door when finished. SD460 SLM Laminating System...

  • Page 11: Power On The System

    SD460 Laminating System Quick Install Guide 6. Power On the System Press the power button on the front of the printer. The printer and laminator perform internal checks and initialize supplies. The laminator contains heaters for the L1 and L2 cartridges, and for the impresser if one is installed.

  • Page 12: Print A Test Card

    SD460 Laminating System Quick Install Guide 8. Print a Test Card Use the printer’s LCD panel to print a test card. The card tests the L1 and L2 laminators (if L2 is installed), debows the card, and impresses the card if an impresser is installed.
  • Page 13 SD460 Laminating System Quick Install Guide 9. Verify the Test Card Examine the test card to verify the following: • The overlays are applied properly: • Each overlay is applied completely to the card. • The material adheres well to the edges of the card.
  • Page 16 11111 Bren Road West Minnetonka, Minnesota 55343 952.933.1223 • 952.933.7971 Fax www.datacard.com/id © 2014 DataCard Corporation. March 2014 All rights reserved. 527442-001 Rev A...
