MTD YM CULTIVATOR Parts List

3
41
4
5
3
8
9
1
2
Item Part No. Description
1 791-182059 Air Cleaner/Muffler Cover Assembly
(includes 2 & 41)
2 791-180350 Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182160 Choke Lever Assembly (includes 6)
6 791-182161 Choke Knob and Screw
7 791-182162 Choke Lever and Plate (includes 4 & 5)
8 791-182875 Carburetor Assembly (includes 9 & 21)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-181801 Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10 & 15)
13 791-684451 Reed Assembly
14 791-182790 Power Shaft Assembly
15 753-1208 Carburetor Mount Gasket
16 791-182791 Crank Case Service Assembly
(includes 10, 14 & 24)
17 791-612134 Rear Mounting Pad
18 753-04306 Fuel Tank Assembly (includes 19-21)
19 753-04084 Fuel Cap Assembly
20 791-181168 Fuel Return Line
21 791-682039 Fuel Line Assembly
22 791-145308 Front Mounting Pad
23 791-683065 Shroud Assembly
24 791-181861 Shroud Screw
25 791-182064 Shroud Extension and Stand
26 791-182736 Flywheel Assembly
27 791-181065 Spacer
28 753-04232 Recoil Pulley Assembly
29 791-613102 Recoil Spring
30 791-181441 Pulley Retainer Assembly
31 791-611061 Rope Guide
32 791-180317 Fuel Tank Guard Assembly
33. 791-181079 Pull Handle
34. 791-613103 Rope
35. 791-181912 Housing Screw
6
7
11
13
10
12
14
15
16
48
47
46

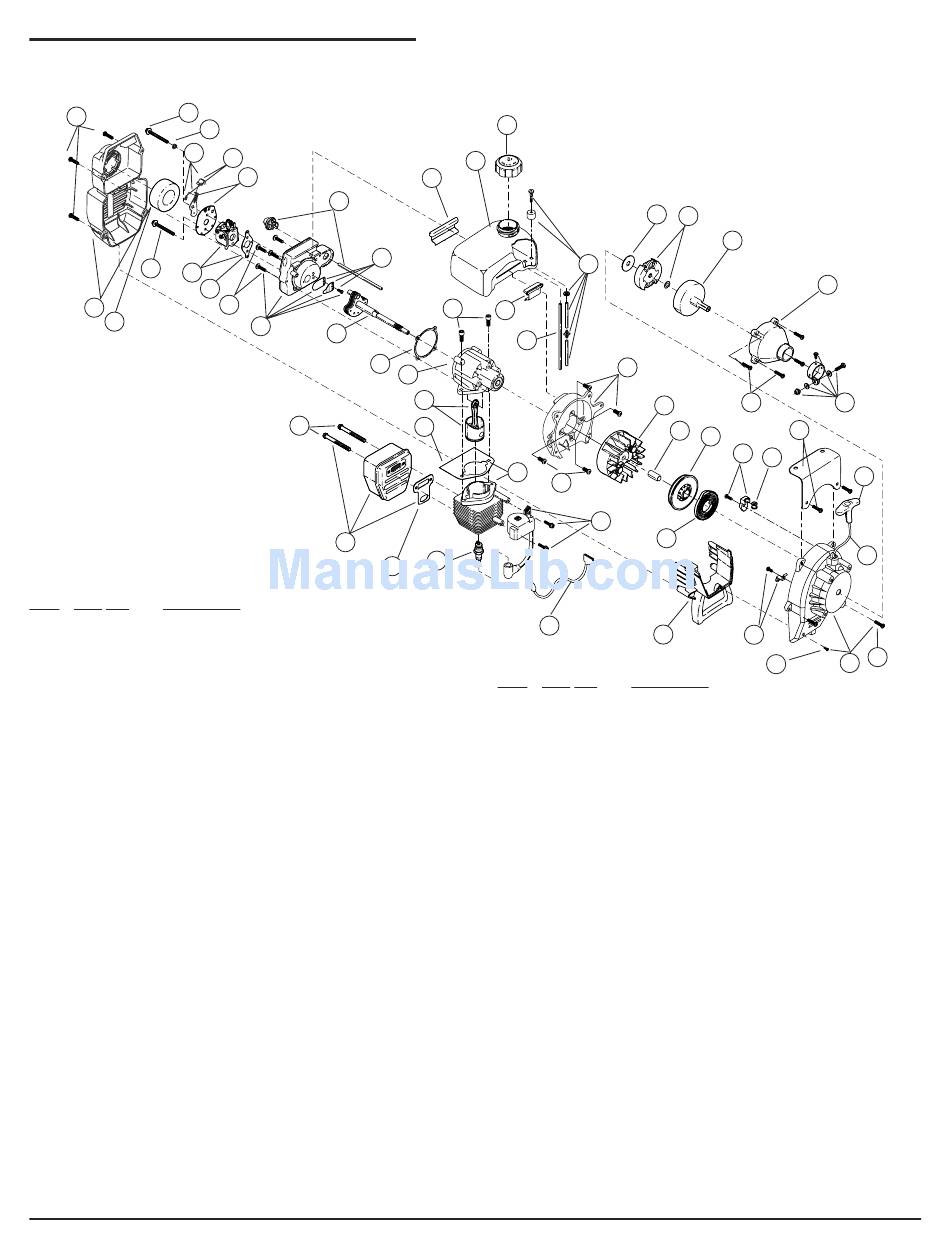

ENGINE PARTS - MODEL YM CULTIVATOR
19
18
17
21
52
22
20
50
51
49
24
43
45
44
Item Part No.
36 791-182776
37 791-182368
38 791-182369
39 791-153592
40 791-180098
41 791-181345
42 791-153597
43 791-181937
44 791-181580
45 791-610311
46 753-04159
47 791-182174
48 791-182464
49 753-1206
50 753-1207
51 753-1197
52 791-182723
* 753-04134
* 791-180090
* 791-180091
* 753-1209
* 753-1210
* 791-181599
* not shown
2-CYCLE GAS CULTIVATOR
PPN 21B-120R000
37
38
39
23
41
26
32
27
28
30
31
29
25
30
41
Description
Starter Housing Assembly
(includes items 28-31, 33-35 & 41)
Clutch Washer
Clutch Rotor Assembly
Clutch Drum Assembly
Clutch Cover Assembly (includes 41)
Clutch Cover Screw
Upper Clamp Assembly
Module Assembly
Wire Lead
Spark Plug
Exhaust Gasket
Muffler Assembly (includes 46 & 48)
Muffler Mounting Bolt Assembly
Cylinder Assembly (includes 51 & 52)
Piston and Rod Assembly
Cylinder Gasket
Cylinder Bolt
Engine Gasket Kit
O.E.M. Carburetor Repair Kit
Gasket-Diaphragm Repair Kit
Piston Ring
Short Block Assembly
(includes 10, 24, 14, 15, 45, 49-52)
Clutch Springs (Qty. 2)
40
42
33
34
36 35
