SuperBus 2000 2X16 LCD Alphanumeric
Touchpad Installation Instructions
Product summary
®
The SuperBus 2000 2x16 LCD (liquid crystal display)
Alphanumeric Touchpad lets you control all programming and
operation of a compatible security system (see "Specifications"
on page 4). The 2-line, 16-character display provides
messages to indicate the current system status.
The touchpad includes police, fire, and auxiliary panic buttons
that can be activated anytime.
A built in speaker provides alarm sounds, status sounds, and
button-press beeps.

Installation guidelines

• Mount the touchpad in an environmentally controlled area
32 to 120°F (0 to 49°C).
• When mounting the touchpad, allow at least 4¼ inches on
the left side for the Quick Guide slide-out card.
™
• For Concord Express systems, up to 4 bus devices can
be connected to the panel. For Concord systems (all
software versions) up to 16 bus devices can be connected
to the panel.
• For Concord systems with software versions 1.0–1.6, each
bus device must have a different unit number setting to
operate correctly. The touchpad unit number is factory set
to 001. For Concord panels with software version 2.0 or
later and Concord Express panels, bus unit numbers are
assigned automatically.
• Table 1 below describes the power used by the touchpad.
Table 1: Touchpad power usage
Current (mA) Condition
90 Maximum alarm current
57 Typical operation
12 Standby current (no AC power)
• Do not exceed the maximum available power when using
panel power for bus devices and hardwire detectors (see
the specific panel Installation Instructions for maximum
available power).
• Table 2 below describes the maximum wire lengths
allowed between the touchpad and panel.
P/N 466-1712 • REV D • January 2011
Table 2: Maximum touchpad wire lengths
Wire Gauge (Unshielded Maximum wire length between
or Shielded) touchpad and panel
18 750 feet
22 300 feet
Tools and equipment needed
• 4-conductor, 22- or 18-gauge wire
• Screwdriver
• Drill/bits
• #6 screws and anchors (included)
• Panhead screws for a gang box installation
• Saw or utility knife for cutting wallboard
Installing the mounting plate
The touchpad can be installed on a wall or electrical gang box,
either single- or dual-gang.
1. Separate the mounting plate from the touchpad by
pressing the tab at the bottom and sliding the mounting
plate down (see Figure 1 below).

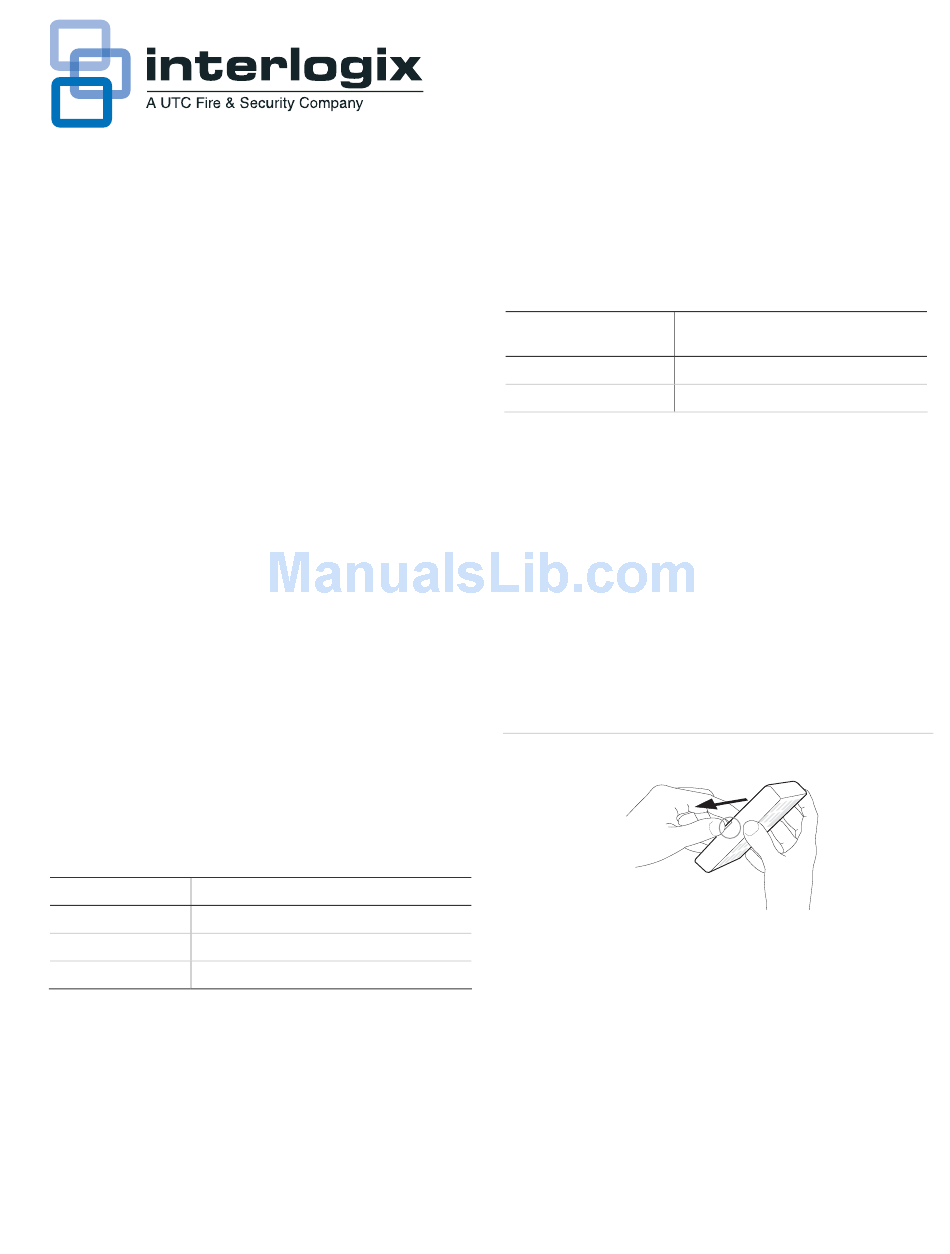

Figure 1: Separating touchpad from mounting plate
2. Place the mounting plate on the wall and mark the four
mounting holes (see Figure 2 on page 2). Be sure to leave
a 4¼-inch clearance on the left side to allow for the Quick
Guide slide-out card.
3. Insert anchors at the marked locations where studs are
not present.
Lift and Pull
Mounting Plate
Tab
Tab
1
