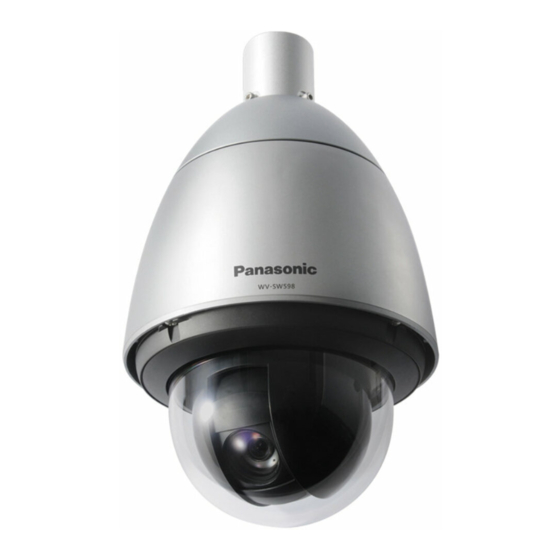

Panasonic WV-SW598 Installation Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Security Camera
  5. WV-SW598
  6. Installation manual
Panasonic WV-SW598 Installation Manual

Panasonic WV-SW598 Installation Manual

Hide thumbs Also See for WV-SW598:
Table of Contents

Advertisement

Quick Links

Installation Guide

Included Installation Instructions

Network Camera

WV-SW598 / WV-SW397A
Model No.
Rain wash coating
Rain wash coating
WV-SW397
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
This manual uses the WV-SW598 as an example in the explanations.
PGQX1224XA
Cs0313-2055
Printed in China

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WV-SW598

Summary of Contents for Panasonic WV-SW598

  • Page 1: Installation Guide

    Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. This manual uses the WV-SW598 as an example in the explanations. PGQX1224XA Cs0313-2055...
  • Page 2 For Europe We declare under our sole responsibility that the product to which Wij verklaren als enige aansprakelijke, dat het product waarop deze this declaration relates is in conformity with the standard or other verklaring betrekking heeft, voldoet aan de volgende norm of ander normative document following the provisions of Directive 2004/108/ normatief dokument, overeenkomstig de bepalingen van Richtlijn 2004/108/EC.

  • Page 3: Table Of Contents

    Contents Important safety instructions ............................. 4 Limitation of liability ................................5 Disclaimer of warranty ............................... 5 Preface ....................................5 About notations ................................. 5 Main functions ................................... 6 About the user manuals ..............................7 System requirements for a PC ............................7 Trademarks and registered trademarks..........................

  • Page 4: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 6) Only use attachments/accessories specified by the manufacturer.

  • Page 5: Limitation Of Liability

    THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;...

  • Page 6: Main Functions

    –50 °C {–58 °F}. * For information on tested PoE injectors (60 W), contact your dealer or access the following website. http://security.panasonic.com/pss/security/support/info.html SDXC/SDHC/SD memory card slot equipped It is possible to save H.264 videos and JPEG images on the SDXC/SDHC/SD memory card manually at an alarm occur- rence, during the period of the schedule, or from a web browser.

  • Page 7: About The User Manuals

    About the user manuals There are 2 sets of operating instructions for the WV-SW598, WV-SW397A or WV-SW397 as follows. • Installation Guide: Explains how to install and connect devices, as well as how to connect and configure the network. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. Adobe ® Reader ® is required to read these operating instructions on the provided CD-ROM. When the Adobe Reader is not installed on the PC, download the latest Adobe Reader from the Adobe web site and install it.

  • Page 8: Trademarks And Registered Trademarks

    Trademarks and registered trademarks • Microsoft, Windows, Windows Vista, Internet Explorer, and DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation. • Intel and Intel Core are trademarks of Intel Corporation in the U.S. and other countries. • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • SDXC Logo is a trademark of SD-3C, LLC. • iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • Android is a trademark of Google Inc. • All other trademarks identified herein are the property of their respective owners. Copyright Distributing, copying, disassembling, reverse compiling and reverse engineering of the software provided with this product are all expressly prohibited.

  • Page 9: Precautions

    Precautions Refer installation work to the dealer. The exclusively designed mount bracket shall be Installation work requires technique and experience. used. Failure to observe this may cause a drop resulting in injury Failure to observe this may cause fire, electric shock, injury, or damage to the product.
  • Page 10 Do not damage the power cable. When an error is detected, this product will restart automatically. Do not damage, fabricate, twist, stretch, bundle, or forci- bly bend the power cable. Do not place heavy objects on This product will be inoperable for around 2 minutes after it, and keep it away from heat sources.
  • Page 11 Transmission interval About the MOS image sensor Image transmission interval may become slow depending • When continuously shooting a bright light source on the network environment, PC performance, shooting such as a spotlight, the color filter of the MOS image subject, access number, etc.
  • Page 12 Lens and pan/tilt head If a lens and pan/tilt head are not performed for a long period of time, the grease coating inside these parts may become sticky. That may obstruct the parts from moving. To prevent this, move the lens or pan/tilt head periodically. Or perform position refresh periodically in the manner described in “Position refresh”.

  • Page 13: Precautions For Installation

    Precautions for installation Panasonic assumes no responsibility for injuries or Protection from lightning property damage resulting from failures arising out When cables are used outdoors, there is a chance that of improper installation or operation inconsistent they may be affected by lightning. In such a case, install a with this documentation.
  • Page 14 Radio disturbance Check before installation When this product is used near TV/radio antenna, strong Compatibility of devices is restricted. Before installation, electric field or magnetic field (near a motor, a transformer check the ratings and dimensions of the devices to be or a power line), images may be distorted and noise may used.

  • Page 15: Major Operating Controls

    *1 Data Matrix is our website address converted into a two-dimensional barcode. Depending on the scanning application used, the Data Matrix may not be able to be read correctly. In this case, access the site by directly entering the following URL. http://security.panasonic.com/pss/security/support/qr_sp_select.html...
  • Page 16 <Rear view of the main body with the main sunshield rear cover detached> Main nameplate Water-resistant cap Link indicator Access indicator INITIAL SET switch (OFF ⇔ ON) Live indicator SD memory card slot...

  • Page 17: Initialize The Camera

    Initialize the camera Use the INITIAL SET switch to reset the settings of the camera to the default. IMPORTANT: • The settings including the network settings will be initialized. Note that the preset position settings and the CRT key (SSL encryption key) used for the HTTPS protocol will not be initialized. Step 1 Step 5 Pull out the water-resistant cap by following steps 1 - 3 of Move the INITIAL SET switch to the left (OFF).

  • Page 18: Insert/Remove An Sd Memory Card

    Insert/remove an SD memory card How to insert an SD memory card IMPORTANT: • When inserting an SD memory card, make sure the direction. Step 1 Step 3 Pull out the main sunshield rear cover on the rear of the Turn the water-resistant cap to the “OPEN” side, and pull camera by pressing the tab on the top of the sunshield.

  • Page 19: How To Remove The Sd Memory Card

    Step 5 Step 7 Align “g” of the water-resistant cap to “OPEN h” of the First, insert the tab on the bottom of the main sunshield camera. Then, turn the water-resistant cap toward “h rear cover into the main body, and then push the tab on LOCK”...

  • Page 20: Installations/Connections

    Installations/Connections Caution: • O NLY CONNECT 24 V AC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/ UL/CSA 60950-1). Before installation, prepare the following • When mounting this camera to a ceiling, mount it using the ceiling mount bracket (WV-Q121B) (option) or a custom- made ceiling mount bracket and the attachment pipe (attached to the camera). Refer to page 22 for the specifications of the custom-made ceiling mount bracket. • When mounting the camera to a wall, use the wall mount bracket WV-Q122 (option). * When using the ceiling mount bracket (WV-Q121B) or the wall mount bracket (WV-Q122), do not use the attachment pipe, use the 4 hexagon screws (M6) removed from the attachment pipe and directly fix the housing base to the ceiling mount bracket or the wall mount bracket.
  • Page 21 How to detach the housing base Before attaching the camera to the ceiling mount bracket, the wall mount bracket or a custom-made mount bracket, detach the housing base and attachment pipe from the camera so that installation and connections can be performed. Step 1 Step 2 Remove the fixing screws (3 pcs.*) that are securing the...
  • Page 22 Installation Before starting installation/connection, make sure that the power cable is not connected to the main power supply. Refer to the “Precautions for installation” section before starting installation/connection. (☞ page 13) w Fix the attachment pipe to the bracket. Step 1 Install the mounting bracket.
  • Page 23 e Connect the safety wire (comes with the camera) to the Step 4 mount bracket. Mount the camera to the bracket. Refer to the operating instructions of each mount q Attach the housing base to the mount bracket using bracket for further information about where to con- the hexagon screws (M5, 4 pcs.) attached to the nect the safety wire.
  • Page 24 e Joint both sides of front and rear sunshields. Fixing screws (3 pcs.) Joint the hook and dent on the linked side, and then joint the other side. Front and rear sunshields Housing base Positioning pin Main sunshield Camera Safety wire IMPORTANT: • Joint both sides of the front and rear sunshields before fitting in the main sunshield.
  • Page 25 Step 7 Step 8 Fix the front and rear sunshields on the camera using the After the installation is completed, remove the tape front/rear sunshields fixing screw (accessory). wrapped around the camera while holding the Protection (Recommended tightening torque: 0.72 N·m {0.53 lbf·ft}) Cover, and then take off the Protection Cover.
  • Page 26 Connection Caution: • B efore starting connections, make sure that the power connection (24 V AC power cord or LAN cable) is discon- nected. Failure to observe this may cause fire, electric shock, injury, or damage to the product. • A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 24 V AC POWER SUPPLY.
  • Page 27 • 24 V AC power supply connector kit (accessory) • Network cable Recommended specification of cable (wire) Connect a LAN cable (category 5e or better) to the net- work connector. AWG size (stranded (0.22 mm (0.33 mm (0.52 mm (0.83 mm IMPORTANT: wire) • Use all 4 pairs (8 pins) of the LAN cable.
  • Page 28 • External I/O cable Note: • Make sure that the stereo mini plug is connected to this cable. When a monaural mini plug is connected, IMPORTANT: audio may not be heard. • Off, input, and output of the external I/O terminal 2 When connecting a monaural speaker with amplifier, and 3 can be switched by configuring the setting.

  • Page 29: Connection Example

    Connection example (Refer to page 26 for how to connect the cables.) When connecting with a PC directly RJ45 female connector (cable coupler) Powered speaker LAN cable (category 5e or better, cross) Power supply Plug-in power type (24 V AC) microphone Recommended total extended cable length*...
  • Page 30 Connecting to a network using a PoE+ hub when the temperature is –30 °C {–22 °F} or less * When connecting to a network using a PoE+ hub when the temperature is –30 °C {–22 °F} or less, use a 24 V AC power supply or a tested PoE injector.

  • Page 31: Configure The Network Settings

    • T he License Agreement will be displayed. Read the Agreement and choose “I accept the term in the license agreement”, and click [OK]. • T he launcher window will be displayed. If the launcher window is not displayed, double click the “CDLauncher. exe” file on the CD-ROM. Note: • R efer to “Using the CD-ROM” in the Operating Instructions on the provided CD-ROM for further information about CDLauncher. Click the [Run] button next to [IP Setting Software]. [Panasonic IP Setting] screen will be displayed. Click the [Network Settings] button after selecting the MAC address/IP address of the camera to be configured. Select the camera you want to configure, and click [Access Camera]. Note: • When cameras are displayed in [Panasonic IP Setting] screen, click the camera with same MAC address as the MAC address printed on the camera that you want to configure.
  • Page 32 Password: 12345 • W hen changing settings related to the network settings, such as connection mode, IP address, and subnet mask, click the [Network Settings] button in [Panasonic IP Setting] screen as shown in step 3, then change each setting. • Due to security enhancements in “IP Setting Software”, “Network settings” of the camera to be configured cannot be changed when around 20 minutes have passed after turning on the power of the camera. (When the effective period is set to “20 min”...

  • Page 33: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE+ device for power supply...
  • Page 34 Or install the software to format the SD memory card on the PC. Live indicator lights red. (included in Refer to our website the CD-ROM) (http://security.panasonic.com/pss/security/support/info.html) for further information about the supported software. • I sn't the inserted SD memory card faulty? Replace the card with a normal one. • Check the following.
  • Page 35 Reference Symptom Cause/solution pages The effectiveness of the rain wash coating may have been SW598 SW397A reduced. Refer to “Cleaning this product body” in “Precautions for It is hard to see images with use” and clean the dome cover. If the situation does not improve the camera when there are contact your dealer.

  • Page 36: Specifications

    SW397A Clear polycarbonate resin SW397 *1 Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about Power source and Power consumption information. *2 When using the camera in low temperature environments, because the heater warms the camera to keep its internal temperature above –10 °C {14 °F}, keep the power for the camera always turned on.
  • Page 37 Color: 0.5 lx {0.0465 foot-candle} Minimum illumination: SW598 (F1.6, Auto slow shutter: Off (1/30 s), AGC: High) 0.031 lx {0.0029 foot-candle} (F1.6, Auto slow shutter: max. 16/30 s, AGC: High)* 0.06 lx {0.0056 foot-candle} (F1.6, Auto slow shutter: Off (1/30 s), AGC: High) 0.004 lx {0.0004 foot-candle} (F1.6, Auto slow shutter: max.
  • Page 38 *2 If “0 °”, “–3 °”, “–5 °”, “–10 °”, or “–15 °” is selected, the area hidden by the camera housing may increase when the tilt angle of the camera is almost level. When “–15 °” is selected for “Tilt Angle”, the upper half of images will be hidden. • Network WV-SW598 WV-SW397 Network: 10BASE-T/100BASE-TX, RJ45 connector • When “2 mega pixel [16:9]” is selected for “Image capture mode”...

  • Page 39: Standard Accessories

    Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SDXC memory card: 64 GB SD memory card* SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...
  • Page 48 For Europe and other countries: Panasonic Corporation Panasonic System Communications Company of North America, http://www.panasonic.com Unit of Panasonic Corporation of North America www.panasonic.com/business/ For customer support, call 1.800.528.6747 Panasonic System Networks Co., Ltd. Two Riverfront Plaza, Newark, NJ 07102-5490 Fukuoka, Japan Panasonic Canada Inc.

This manual is also suitable for:
