Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will meet your
expectations and fulfill your needs for many years to come. Scandinavian design
combines clean lines, everyday functionality, and high quality. These are key
characteristics of all our products and the reason they are greatly appreciated
throughout the world.
To ensure that you get the most out of your new machine, we recommend that
you read the operating instructions before using the machine. The operating
instructions also contain information on how to avoid damaging the environment.
Operating Instructions

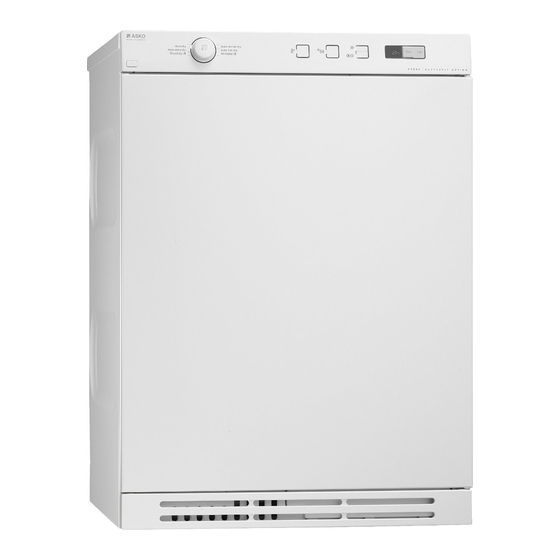

Tumble dryer
ASKO T754 W
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Related Manuals for Asko T754 W
Summary of Contents for Asko T754 W
-
Page 1: Dear Customer
Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfill your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world. -
Page 2: Table Of Contents
Contents Before using your machine for Care and maintenance instructions the first time Cleaning the lint filter Important safety instructions Cleaning the outside of the machine Grounding instructions Troubleshooting Packing material The machine will not start Disposal The machine loses all power during a program Child safety Drying takes too long... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Do you need this Use&Care Guide in Spanish? Log on to www.askona.com/customer-care to download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askona.com/ customer-care. Laundry labels Certain materials are not suitable for tumble drying. -
Page 4: Important Safety Instructions
Important safety instructions • The interior of the machine should be SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE cleaned periodically by an authorized ASKO service agent. WARNING! • Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking... -
Page 5: Grounding Instructions
Important safety instructions Grounding instructions Installation A) Grounding instructions for a grounded, See the section Installation instructions. cord-connected appliance Packing material In the event of malfunction or breakdown, grounding will reduce the risk of electric shock Please sort waste materials in accordance with by providing a path of least resistance for local guidelines. -
Page 6: Child Safety
Child safety General WARNING! Do not allow children to play with the tumble dryer. • If the door is opened when a program is running, the garments may be very hot, with a risk of burn injuries. • The tumble dryer does not start automatically when the door is closed (if a child pulls the door shut from the inside, for example). -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer Main power switch Lint filter Panel Outer door Serial number tag and rating plate Customer Care Center 1-800-898-1879 www.askona.com... -
Page 8: Advice And Tips Before You Tumble Dry
Advice and tips before you tumble dry Static electricity Here are some tips that may help you before you begin tumble drying. To reduce the risk of static electricity in the laundry after tumble drying, you can: Have the clothes been spun? •... -
Page 9: Operating Instructions
Operating instructions WARNING! To reduce the risk of electric shock or injury to persons, read the "Important Safety Instructions" section before operating this appliance. Below are step-by-step instructions to help you achieve the best possible tumble drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. -
Page 10: Select The Program
Operating instructions Select the program Program selector Start Stop Main power switch Options buttons Display window Select a program by turning the program selector. An LED lights next to the selected program. Use the option buttons to select any options. Guidelines as to what specific out what works best. - Page 11 Operating instructions Program chart Here we present the energy and time consumption of a few different programs. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply, and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 73 °F (23 °C)
-
Page 12: Selecting Options
Operating instructions Selecting Options By selecting options, you can Delayed Start tailor a drying program to suit your Select a program and then press Delayed requirements. The available options depend on Start. Press the button to select a delayed start the selected program. -
Page 13: Press The Start Button
Operating instructions Press the Start button Drying program finished Remaining drying time The text "End" is shown on the display An estimate of the remaining drying time for 2 minutes. The machine then turns will be shown on the display a few minutes after off. -
Page 14: Care And Maintenance Instructions
Care and maintenance instructions Cleaning the lint filter 3. Use your hand or a soft cloth to remove the The lint filter must be cleaned after each load. lint from all sides of the filter. If necessary, 1. Lift the filter from the holder in the door. use a damp sponge and a small amount of washing-up liquid dish soap to remove any deposits. -
Page 15: Troubleshooting
Troubleshooting The machine will not start Check: • that the door is properly closed. • that the main power switch is on. • that the Delayed Start option has not been selected. To cancel Delayed Start, press the Stop button for three seconds. •... -
Page 16: Technical Information
Technical information Technical data Height: 33 1/2'' (850 mm) Width: 23 1/2'' (597 mm) Depth: 23 7/8" (606 mm) Weight (net): 88 lb (40 kg) Cylinder volume: 29,6 gal (112 l) Max. drying capacity: 15 lb (7 kg) Speed: 50-55 rpm Rated power: See serial number tag and rating plate. -
Page 17: Service And Guarantee
ASKO Distribution North America, LLC. 1. Replacement parts or repair labor if the (“ASKO”) warrants to the original purchaser ASKO Product is used in a manner that is (the “ASKO Customer”) of the ASKO product inconsistent with published user or operator (the “ASKO Product”), who purchased the... - Page 18 RESPECTIVE PARENTS, SUBSIDIARIES problem after checking “Troubleshooting,” then AND AFFILIATES BE LIABLE FOR DAMAGES additional help can be obtained by calling ASKO OTHER THAN ACTUAL DAMAGES AND IN Customer Care at 1-800-898-1879. Read the NO EVENT FOR DAMAGES IN EXCESS OF “Troubleshooting”...
- Page 19 Limited Warranty, please contact ASKO Customer Care at 1-800-898-1879. After your purchase and prior to first use of the ASKO Product, register your ASKO Product with ASKO by utilizing the address information below. Should you need...
-
Page 20: Installation Instructions
To reduce the risk of of severe injury or death, The tumble dryer can be placed on top of an follow all installation instructions. ASKO washing machine. Use the two foot cups SAVE THESE INSTRUCTIONS FOR FUTURE found in the document bag included with the REFERENCE. - Page 21 Installation instructions 3. Secure the anti-tip device using the screws 6. Push out the knock-out hole on the back as shown in the picture. of the tumble dryer (you don't have to completely remove the knockout, just fold it up far enough for the stacking bracket to fit inside the slot) using a hammer and a screwdriver.
-
Page 22: Adjusting The Feet
Adjusting the feet Install in a closet Screw the feet in or out so that the tumble dryer ASKO's front panel controls make it possible to is both stable and level. install the washers and dryers in a closet. Make sure there is a ½”... -
Page 23: Air Exhaust
NOTE! Asko dryers have a "T-style" Vent exhaust vent that allows you to Excessive duct length and too many bends can connect the duct on the rear, on the left, or on the right side impede drying performance. - Page 24 Installation instructions Connecting the exhaust duct to the Connecting to a ventilation duct Left or Right Side Outlet You will need a UL-CSA-approved, 4-inch To connect the exhaust duct to the left or right ridged metal exhaust duct. If a flexible duct is side outlet, follow the steps below: used, it must comply with the Outline for Clothes 1.
-
Page 25: Electrical Installation
3. Run the duct with as few bends as possible the washing machine or an equivalent. to the point of discharge. ASKO washers rated 208–240 V have two internal fuses of 15 A each. The machine should only be connected to a Ventilation grill (not supplied with machine) grounded wall socket. - Page 26 Installation instructions Electrical Connections WARNING! Read the Electrical requirements and grounding instructions before connecting the tumble dryer. Electric models of the dryer are manufactured for a 3-wire connection system. The dryer frame is grounded by a link to the neutral conductor on the dryer terminal block.
- Page 27 Installation instructions 4. Loosen or remove center terminal block Connecting a 3-wire Power Cord screw. WARNING! Before starting this procedure, be sure the power is turned off at the breaker/fuse box. 5. Connect ground (center) wire of power supply cord to the center, silver-colored terminal screw.
- Page 28 Installation instructions Power Supply Cord You will need a 4-wire power supply cord with four No. 10 copper wires and a matching 4-wire receptacle of NEMA Type 14-30R, as illustrated below. The fourth wire must be identified with a white cover and the ground conductor by a green cover.
-
Page 29: Reversing The Door
Reversing the door 1. Hinge pins (top and bottom) 4. Lock hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Toe kick Customer Care Center 1-800-898-1879 www.askona.com... -
Page 30: Follow These Instructions
Reversing the door You can choose whether the door is hung on the right or the left. Follow these instructions: 1. Remove the Toe kick. 2. Remove the hinge (two screws). 6. Move the plastic plugs on the upper and lower edges of the door. Use a flat screwdriver to remove the plugs. - Page 31 Notes Customer Care Center 1-800-898-1879 www.askona.com...
-
Page 32: Quick Guide
The text ”End” is shown on the display for 2 minutes. The machine then turns off. Clean the lint filter after each load. Close the door. We reserve the right to make changes. www.askona.com TD70.1 T754 W US/CA en (12-14)
