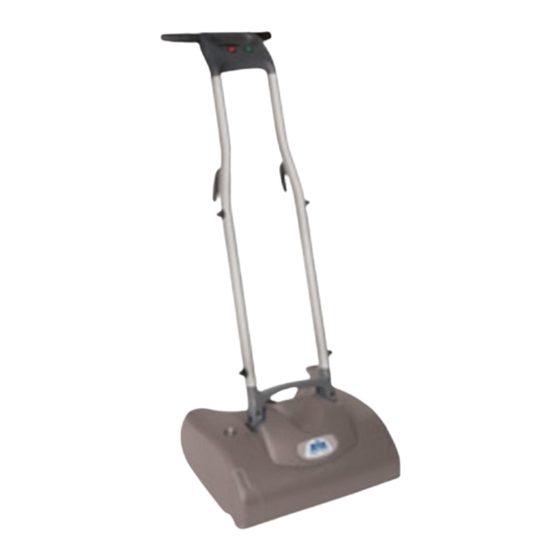

Carpet Maintainer
86269870 - T
09/28/09
Operating instructions (ENG)
MODELS:
Read these instructions before using the machine.
IM
10066360
IMIE17
10066550
IMX
10066400
IMXIE17
10066410
IMIE17 AU
10060990
IMXIE17 AU
10061030
IMIE17 UK
10060980
IMXIE17 UK
10061020

Advertisement

Table of Contents
loading

Related Manuals for Windsor IMIE17 10066550

Summary of Contents for Windsor IMIE17 10066550

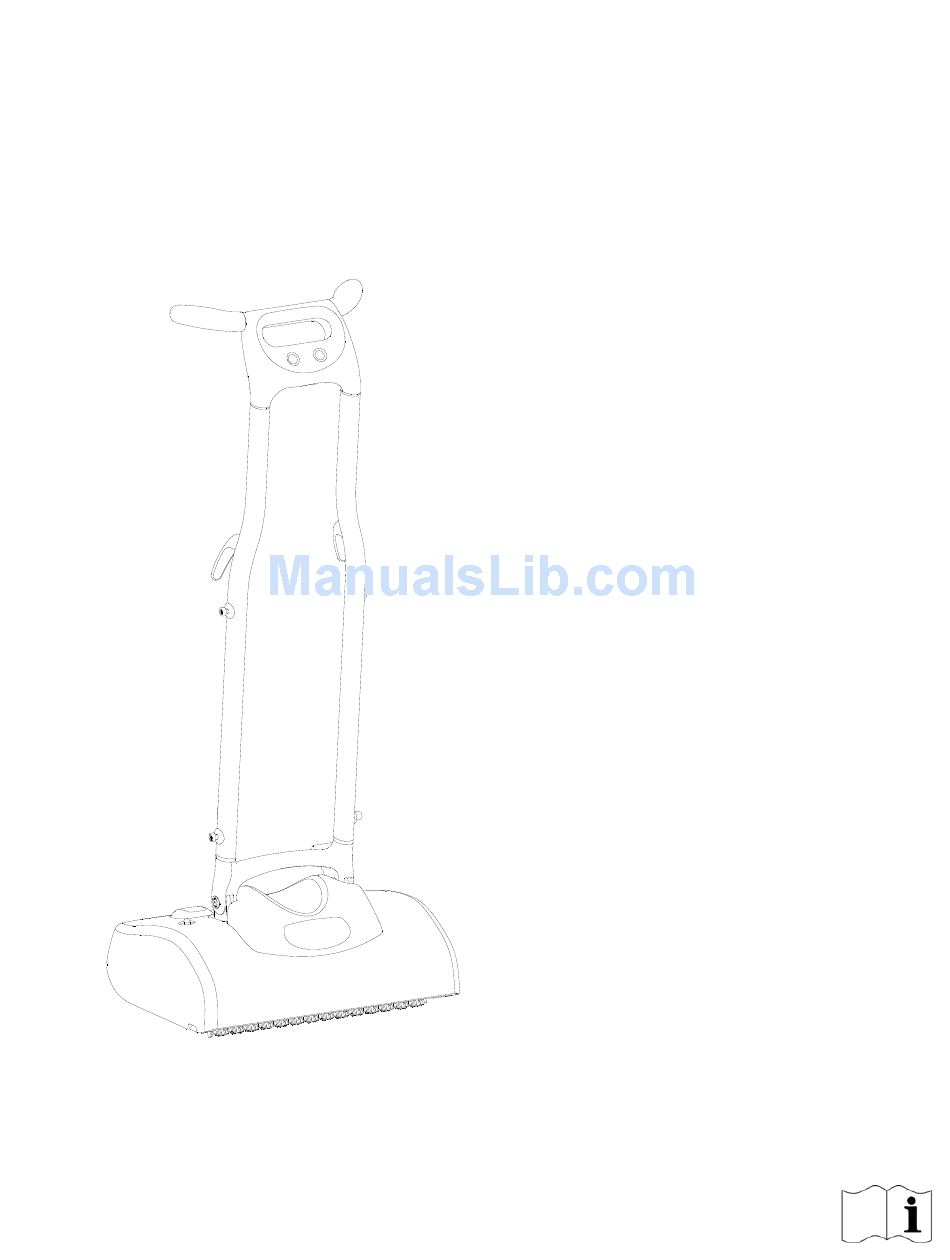

  • Page 1 Carpet Maintainer Operating instructions (ENG) MODELS: 10066360 IMIE17 10066550 10066400 IMXIE17 10066410 IMIE17 AU 10060990 IMXIE17 AU 10061030 IMIE17 UK 10060980 IMXIE17 UK 10061020 Read these instructions before using the machine. 86269870 - T 09/28/09...

  • Page 2: Machine Data Log / Overview

    Machine Data Log / Overview OVERVIEW The Carpet Maintainer is designed to maintain carpet using the Quick Dry Carpet Care System. The machine has two counter rotating brushes that scrub chemical into the carpet. The chemicals, iCapsol or Prochem ProCaps, encapsulates the dirt, allowing both to be vacuumed up once the chemical has dried.

  • Page 3: Table Of Contents

    Table of Contents PARTS Machine Data Log / Overview....2 Brush........20 Table of Contents .

  • Page 4: How To Use This Manual

    How to Use This Manual This manual contains the following sections: The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts lists • HOW TO USE THIS MANUAL include a number of columns of information: • SAFETY •...

  • Page 5: Important Safety Instructions

    Safety IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet. See Grounding Instructions. Do not leave the machine unattended.

  • Page 6: Hazard Intensity Level

    Safety Hazard Intensity Level The following symbols are used throughout this guide as indicated in their descriptions: There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which could result in severe personal injury or death.

  • Page 7: Grounding Instructions

    Safety This Product Is For Commercial Use Only. Electrical In the USA, this machine operates on a standard 15 amp 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine.

  • Page 8: Safety Label Locations

    Safety Safety Label Locations The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove these labels.

  • Page 9: Operations

    Operations Technical Specifications 120V ITEM DIMENSION/CAPACITY Electrical 120V Nominal Power 0.5 HP Rated Amperage 7 Amps Brush Width 17 - 16.5" (430 - 420 mm) Brush RPM 470 RPM Wheels 3 inches (75 mm) non-marking grey Dimensions - Weight - Weight 48 lbs.

  • Page 10: How The Machines Work

    The Carpet Maintainer is designed to maintain your 5. Brush treated area to emulsify soils using the carpet using the Quick Dry Carpet Care System. By Windsor iCapsol or other carpet-brushing machine. using the Carpet Maintainer in conjunction with iCapsol or Prochem ProCaps chemical solution, you can 6.

  • Page 11: Machine Operation

    4. Press green button to start brushes. multiple directions and overlapping strokes. After applying a light spray of diluted interim carpet For best results use Windsor iCapsol or Prochem cleaner onto the carpet using a pressurized tank ProCaps products. sprayer, commence cleaning by pushing and pulling the machine slowly over the wetted carpet.

  • Page 12: Transporting A Sprayer

    Operations Transporting A Sprayer Shut-Down And Storage This machine has the capability to mount a small pump- 1. Flush the spray jet and tank with hot water (Deluxe up sprayer. only) 2. After flushing, uncouple quick disconnect to Transporting Chemical - Deluxe prevent water from dripping out of front jet.

  • Page 13: Components

    Operations Components iCapsol Mini iCapsol Mini Deluxe 5. Tank 1. A. Stop Switch (red-120V only) 6. Strainer B. On/Off Switch (black-230 only) 7. Jet 2. Start Switch (green) 8. Spray Pump Switch 3. Brushes 4. Handle Release 86269870 CARPET MAINTAINER...

  • Page 14: Maintenance

    Maintenance Brush Cleaning And Maintenance 6. Mark left and right on the lift cams. 7. Remove the two cam bolts. This will also free the After each session of carpet cleaning, the brushes and lift cams. the brush housing should be cleaned. Before cleaning or changing the brushes, always unplug the machine NOTE: There are four plastic bushings that the from the power supply.
  • Page 15 Maintenance 13. Unplug motor wires. Loosen end cap screws, 1 full HANDLE MOUNT ASSEMBLY turn. END CAP SCREWS ROTATE MOTOR RIGHT HAND GEAR DRIVE ACCESS HOLE FOR LOWER SCREW LIFT BRACKETS MOTOR CLAMPS BELT ROTATE MOTOR LEFT HAND GEAR DRIVE PULLEY MOTOR 19.

  • Page 16: Machine Maintenance

    Maintenance Machine Maintenance Periodic Maintenance The Maintainer requires very little maintenance. Wipe 1. Check all handles, switches, electrical cables and down the machine periodically with a clean cloth. DO connections on your machine for damage. Repair NOT spray water directly over the top of machine. or replace immediately.

  • Page 17: Machine Troubleshooting

    Maintenance Machine Troubleshooting PROBLEM CAUSE SOLUTION Tripped electrical circuit breaker Check building circuit breaker in fuse box of building Faulty power cord Replace power cord Power switch failure or relay Replace power switch or relay failure No power to machine Reset circuit breaker.

  • Page 18: 86269870 Carpet Maintainer

    Notes 86269870 CARPET MAINTAINER...

  • Page 19: Parts

    PARTS 86269870 CARPET MAINTAINER...

  • Page 20: Brush

    Brush 86269870 CARPET MAINTAINER...
  • Page 21 Brush SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86217340 270130 COVER, BELT, RIGHT 86172630 57314 NUT, M4, LK, SST 86172870 70898 SCR, M4X14, PHMS, DIN7985 SST 86224670 730396 SPRING, BRUSH CLIP INCLUDES 86214850 12544 ASSY, BRUSH & HUB 86214840 86217330 270129...

  • Page 22: Brush Lift

    Brush Lift 86269870 CARPET MAINTAINER...
  • Page 23 Brush Lift SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86215580 141042 BRACKET, CROSSOVER PUSH 86172700 67606 RING, E-TYPE, 5MM ID, DIN6799 86215750 09156 BRG, FLNG, 6MM IDX7MM LONG 86224760 73997 SPRING, COM, 18.28 OD X 25L 86215740 09155 BRG, FLNG, 6MM IDX24MM LONG 86223620 67605...

  • Page 24: Decal

    Decal 86269870 CARPET MAINTAINER...
  • Page 25 Decal SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86221620 501260 LABEL, CHEMICAL INSTR. DELUXE ONLY 86244630 501190 LABEL, MAIN, ICAPSOL MINI WINDSOR ONLY 86244920 501247 LABEL, PROCAP PROCHEM PROCHEM ONLY 86269870 CARPET MAINTAINER...

  • Page 26: Electrical 120V

    Electrical 120V DELUXE ONLY DELUXE ONLY 86269870 CARPET MAINTAINER...
  • Page 27 Electrical 120V SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86002010 14942 BOOT, 3/8 CIRCUIT BREAKER 86217120 23729 CORD SET, 18/3 X 40FT SJT 86214770 38370 ASM RED BUTTON W/BEZEL 86214780 38371 ASM GREEN BUTTON W/BEZEL 86225070 38372 SWITCH, ITW, MICRO 86198450...

  • Page 28: Electrical 230V

    Electrical 230V DELUXE ONLY 14 13 86269870 CARPET MAINTAINER...
  • Page 29 Electrical 230V SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86299810 SWITCH, BLACK, ROCKER, DPST 86295180 ASM, BUTTON, GREEN, W/BEZEL 86313930 SWITCH, W/COUPLER, N.C. *(1) DELUXE (QTY 3) 86172880 70901 SCR, M4X6, BSHCS, SST 86198450 20005 CLAMP, 5/16 NYLON 86217200 23738 CORD SET, EURO 1MM X 40 BLACK...

  • Page 30: Frame

    Frame 86269870 CARPET MAINTAINER...
  • Page 31 Frame SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86225340 78952 TRAY, IRENEW MINI 86217930 34450 FRAME, 3.5", SINGLE MOTOR 86214820 05262 ASSY, COVER, INSULATION 86277600 70882 SCR, M4X20, PPHMS, SST 86222360 58009 NUT, M4X0.7, U-CLAMP, 3MM PANEL 86214830 05263 ASSY, DOME, INSULATION 86173050...

  • Page 32: Frame Deluxe

    Frame Deluxe 86269870 CARPET MAINTAINER...
  • Page 33 Frame Deluxe SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86173050 70920 SCR, M4 X 40 PPHMS, SS 86173040 70919 SCR, M4 X 10 SHCSB BUTHD 86011610 ASSY, COVER, INSULATION, DLX 86217930 34450 FRAME, 3.5, SINGLE MOTOR 86225340 78952 TRAY, IRENEW MINI 86012550 JET, PROMAX, 11001...

  • Page 34: Handle

    Handle 17 16 86269870 CARPET MAINTAINER...
  • Page 35 Handle SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86011380 GRIP, HANDLE 86059580 38324 CONSOLE, BOTTOM 86277600 70882 SCR, M4X20, PPHMS, SST 86217230 38326 CORD HOOK, UPPER 86217220 38325 CORD HOOK, LOWER 86218680 38357 HANDLE, EXTRUSION, LEFT DELUXE ONLY 86218510 38321 HANDLE, EXTRUSION, LEFT...

  • Page 36: Hopper

    Hopper 86269870 CARPET MAINTAINER...
  • Page 37 Hopper SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86214790 41584 ASM, GUIDE, HOPPER 86173040 70919 SCR, M4X10, BSHCS, SST 86214800 41585 ASM, HOPPER FRAME & PLATE 86173080 70933 SCR, 4.2 X 9.5, TAP, ZN 86216310 140977 BUMPER, STOP, HOPPER 86172630 57314 NUT, M4, LK, SST...

  • Page 38: Motor

    Motor 86269870 CARPET MAINTAINER...
  • Page 39 Motor SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86215320 11058 BELT, HTD, 15MM X 300, 60 TOOTH, RH 86215300 11055 BELT, HTD, 15MM X 325, 65 TOOTH, LH 86215960 140979 BRKT, MTR MOUNT, RH 86173310 87499 WASHER, SPRING LK, 6MM, SS 86173060 70921...

  • Page 40: Rear Wheel

    Rear Wheel 86269870 CARPET MAINTAINER...
  • Page 41 Rear Wheel SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86172790 70867 SCR, SHCS, M8X50, ISO4762, BLK 86216450 140942 BUSHING, 11.25MM X 8.0MM, SST 86011020 89202 WHEEL, 3" DIA. CUSHION RUBBER 86173300 87495 WASHER, M8, FL, ISO7089, SST 86172640 57507 NUT, M8, LK, ISO7040, SST 86269870 CARPET MAINTAINER...

  • Page 42: Solution Tank - Deluxe

    Solution Tank - Deluxe 86269870 CARPET MAINTAINER...
  • Page 43 Solution Tank - Deluxe SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86299710 CPLR, BODY, 1/4" BARB, GRY 86299720 CPLR, PNL MNT, 1/4" BARB, GRY 86012500 SEAL, COUPLER, EPDM RUBBER 86219230 41581 HOSE, SUCTION, TANK, DELUXE 86225300 75489 TANK, DLX (MACH) 86013850 WASHER, M6, FNDR, SS 86172820...

  • Page 44: Wiring 120V

    Wiring 120V N.C. N.O. GREEN N.C. RECTIFIER MOTOR RELAY 86269870 CARPET MAINTAINER...
  • Page 45 Wiring 120V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86218820 41563 HARNESS, MAIN 86226220 880462 WIRE, 10" BLK/18 76040 86226260 880468 WIRE, 15" ORG/18 76040 X 76040 86226270 880469 WIRE, 18" ORG/18 86226280 880471 WIRE, 9" BLK/18 76040 X 76040 86269870 CARPET MAINTAINER...

  • Page 46: Wiring 230V

    Wiring 230V N.O. GREEN ON/OFF N.C. RECTIFIER RELAY MOTOR 86269870 CARPET MAINTAINER...
  • Page 47 Wiring 230V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86218880 41594 HARNESS, MAIN, 230VAC 86226220 880462 WIRE, 10" BLK/18 76040 86226260 880468 WIRE, 15" ORG/18 76040 X 76040 86226270 880469 WIRE, 18" ORG/18 86226280 880471 WIRE, 9" BLK/18 76040 X 76040 86302450 ASM, FILTER, EMI MAIN 86310150...

  • Page 48: Wiring 120V - Deluxe

    Wiring 120V - Deluxe N.O. N.O. BLUE BLUE N.C. N.O. GREEN N.C. PUMP MOTOR RECTIFIER MOTOR RELAY 86269870 CARPET MAINTAINER...
  • Page 49 Wiring 120V - Deluxe SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86218820 41563 HARNESS, MAIN 86226220 880462 WIRE, 10" BLK/18 76040 86226260 880468 WIRE, 15" ORG/18 76040 X 76040 86226270 880469 WIRE, 18" ORG/18 86226280 880471 WIRE, 9" BLK/18 76040 X 76040 86013120 HARNESS, PUMP HOUSING, DLX 86013090...

  • Page 50: Wiring 230V - Deluxe

    Wiring 230V - Deluxe N.O. N.O. BLUE BLUE N.O. GREEN ON/OFF N.C. PUMP MOTOR RECTIFIER RELAY MOTOR 86269870 CARPET MAINTAINER...
  • Page 51 Wiring 230V - Deluxe SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86218880 41594 HARNESS, MAIN, 230VAC, IMIE 86226220 880462 WIRE, 10" BLK/18 76040 X 76040 86226260 880468 WIRE, ORG/18 76040 X 76040 86226270 880469 WIRE, 18" ORG/18 76040 X 76040 86226280 880471 WIRE, 9"...

  • Page 52: Suggested Spare Parts

    Suggested Spare Parts SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86216180 141057 BRUSH SET, MTR, 54206/54216 86215800 11055 BELT, HTD, 15MM X 325, 65 TOOTH 86215320 11058 BELT, HTD, 15MM X 300, 60 TOOTH 86214850 12544 ASSY, BRUSH & HUB 86217230 38326 CORD HOOK, UPPER...

  • Page 53: Serial Numbers

    Serial Numbers REF. MODEL: SERIAL # IM: 10066360000690 - IMX: 10066400000781 86269870 CARPET MAINTAINER...
