FI-504 MULTI

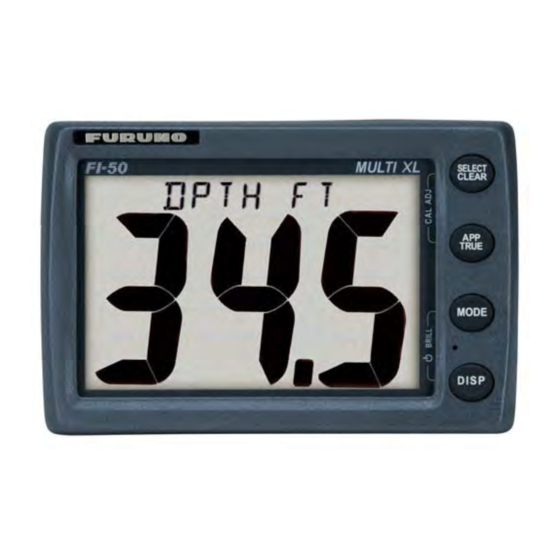

FI-507 MULTI XL
Instrument
www.furuno.co.jp
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Advertisement

Table of Contents
loading

Related Manuals for Furuno FI-504 MULTI

Summary of Contents for Furuno FI-504 MULTI

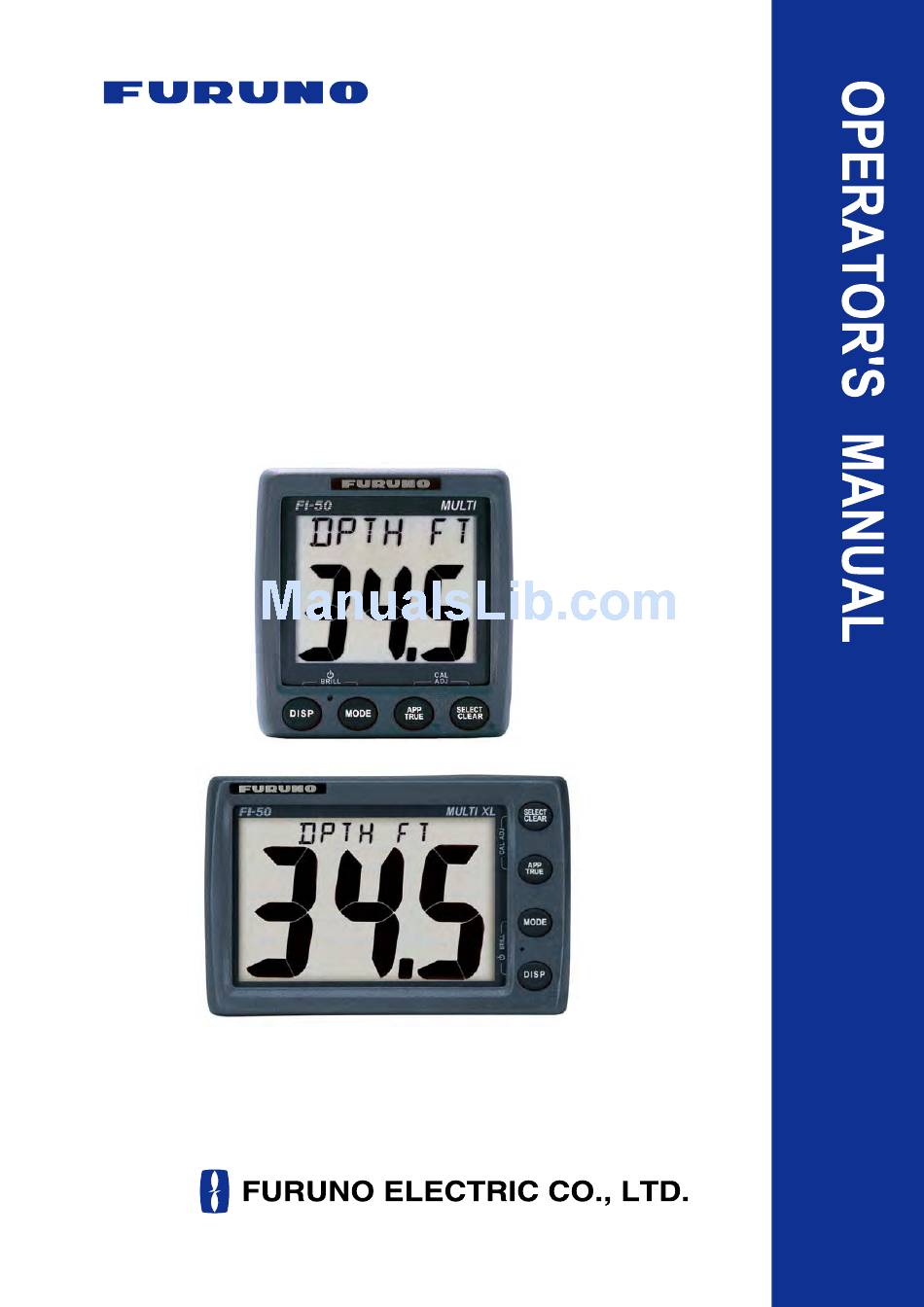

  • Page 1 FI-504 MULTI FI-507 MULTI XL Instrument www.furuno.co.jp All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
  • Page 2 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN Telephone : +81-(0)798-65-2111 : +81-(0)798-65-4200 A : OCT 2007 Printed in Japan All rights reserved. D : JAN . 26, 2011 Pub. No. OME-72690-D...

  • Page 3: Important Notices

    How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit.
  • Page 4 Continued use of the equipment can cause fire or electrical shock. Warning Label A warning label is attached to the equipment. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer about replacement.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOREWORD ....................iv SYSTEM CONFIGURATION ............... v 1.OPERATION ..................... 1 1.1 Operating Controls, Display Layout..............1 1.2 Turning the Power On/Off ..................2 1.3 Adjusting Brilliance and Contrast ................. 2 1.4 Selecting a Display....................3 1.5 Selecting Apparent or True Wind Angle, Wind Speed.......... 8 1.6 Resetting Counters and Indications ..............

  • Page 6: Foreword

    FOREWORD A Word to the Owner of the FI-504, FI-507 Congratulations on your choice of the FURUNO FI-504 Multi/FI-507 Multi XL displays, members of the FI-50 series of marine instruments. We are confident you will see why the FURUNO name has become synonymous with quality and reliability.

  • Page 7: System Configuration

    SYSTEM CONFIGURATION Standalone configuration CAN bus Device NMEA 2000 Sensor (ex. Smart Sensor) FI-504 FI-507 12 VDC : Standard Supply : Optional Supply : Local Supply NOTICE: Turn on the terminal resistor in the instrument when connecting an NMEA 2000 sensor or CAN bus device. For the procedure, see the section on setting up, in the installation chapter.
  • Page 8 SYSTEM CONFIGURATION CAN bus network FI-5001 or FI-5001L FI-504 MULTI WIND TRANSDUCER TERMINAL BOX (where necessary) FI-501* and/or FI-505 FI-506 FI-503 FI-502 COURSE PILOT DIGITAL RUDDER FI-507 MULTI XL CAN bus CAN bus CAN bus CAN bus CAN bus Device...

  • Page 9: Operation

    OPERATION Provided applicable sensors are connected, the FI-504/FI-507 provides the following information, all on a backlit LCD: • Depth • Speed • Heading • Environment data • Autopilot (rudder) • Engine • Wind • Timers • Navigation data Operating Controls, Display Layout Mode name (Ex.

  • Page 10: Turning The Power On/Off

    1. OPERATION Turning the Power On/Off To power the instrument, press the DISP key. All LCD segments go on and off and then the last-used display appears. To power off the instrument, press the DISP and MODE keys together (about 7-10 seconds). The timer appears and counts down from three seconds to one second, and then the power goes off.

  • Page 11: Selecting A Display

    1. OPERATION Selecting a Display Use the DISP key to select a display category. Select desired display with the MODE key. DEPTH SPEED Boat speed Current depth Maximum STW Shallow alarm Average STW Deep alarm Shallow anchor alarm Maximum SOG Deep anchor alarm Average SOG VMG to windward...
  • Page 12 1. OPERATION 1.4.1 Display description Depth category Display title Indication Function Current depth DPTH Current depth, in meters, feet or fathoms. Shallow alarm Set shallow depth alarm. Audio and visual SHALLOW alarms are released when the depth is lower than the threshold value. Deep alarm Set deep depth alarm.
  • Page 13 1. OPERATION Timer category Display title Indication Function Count up timer Count-up timer. Count down timer 1 DOWN 1 Count-down timer 1. Count down timer DOWN 2 Count-down timer 2. Wind category Display title Indication Function Wind speed APP (or TRUE) Wind speed, in knots or meters/second.
  • Page 14 1. OPERATION Heading category Display title Indication Function Current heading Heading, in degrees. Bearing reference in Magnetic (MAG) or True (TRUE). Average heading AVG HDG Average heading, in degrees. Bearing reference in Magnetic (MAG) or True (TRUE). Heading on next tack TACK Heading on next tack, in degrees true (fixed).
  • Page 15 1. OPERATION Environment category Display title Indication Function Battery voltage VOLTS Battery voltage. Minimum battery voltage Set low battery voltage alarm. VOLTS LO alarm Audio and visual alarms are released when the battery voltage goes lower than the threshold value. Time Current time, in 12-hour or 24-hour format.

  • Page 16: Selecting Apparent Or True Wind Angle, Wind Speed

    1. OPERATION Selecting Apparent or True Wind Angle, Wind Speed You can show wind angle and wind speed in apparent or true wind. The apparent wind is the actual flow of air acting upon a sail, or the wind as it appears to the sailor.

  • Page 17: Alarms

    1. OPERATION Alarms There nine conditions which trigger audio and visual alarms: Shallow alarm, Deep alarm, Shallow anchor alarm, Deep anchor alarm, Max. true wind speed alarm, Low true wind speed alarm, High apparent wind angle alarm, low apparent wind angle alarm, and low battery voltage alarm. 1.
  • Page 18 1. OPERATION Alarm description Alarm Alarms released when; Setting range Low battery voltage battery voltage is lower than 5.0 - 20.0 volts alarm this threshold. 2. If the selected alarm page shows “Off,” press and hold down the SELECT/CLEAR key until an alarm setting appears. 3.

  • Page 19: Timers

    1. OPERATION Timers Three timers are provided: • Count-up timer (stopwatch) • Count-down timer (two provided) Time is displayed in seconds or minutes, depending on counter values. Once you have set a timer, you can leave that page and select any other display.
  • Page 20 1. OPERATION To stop or restart the timer, press the SELECT/CLEAR key momen- tarily. A short beep sounds when the timer is stopped or restarted. To stop and reset the timer to start value, press the SELECT/CLEAR key until you hear a long beep. The timer is stopped and reset to start value.

  • Page 21: Maintenance, Troubleshooting

    MAINTENANCE, TROUBLESHOOTING This chapter provides the information necessary for keeping your equip- ment in good working order. WARNING Do not open the equipment. Only qualified personnel should work inside the equipment. Preventive Maintenance Following the recommended procedures below will help maintain perfor- mance.

  • Page 22: Troubleshooting

    2. MAINTENANCE, TROUBLESHOOTING Troubleshooting If you feel the equipment is not functioning properly, follow the proce- dures in the table below to try to restore normal operation. If normal op- eration cannot be restored, do not attempt to check inside the cabinet. There are no user-serviceable parts inside.

  • Page 23: Installation

    INSTALLATION NOTICE Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. Equipment Lists Standard supply (FI-504) Name Type Code No.

  • Page 24: Mounting

    3. INSTALLATION Mounting The display unit can be installed two ways: surface mount (fixed at front panel or fixed from rear panel) and flush mount (optional kit required). This section covers surface mounting. For flush mounting, see the flush mounting instructions, issued separately. Surface mount 1: Fix instrument from front panel 1.
  • Page 25 3. INSTALLATION Surface mount 2: Fix instrument from rear panel 1. Using the applicable template at the back of this manual, open a mounting hole in the installation site. 2. Insert studs (M3×40, 2 pcs. (FI-504) or 4 pcs. (FI-507), supplied) in the holes shown below.

  • Page 26: Wiring

    3. INSTALLATION Wiring For the service technician detailed information about CAN bus wiring is on the FURUNO Tech-net. See “Furuno CAN bus Network Design Guide” (TIE-00170-*). 3.3.1 Standalone configuration For standalone configuration the junction box is not necessary; connect the instrument directly to the power supply.
  • Page 27 3. INSTALLATION Junction box (option) The junction box is required when connecting CAN bus network. This section covers wiring of the junction box. For how to mount the junction box, see its installation instructions, issued separately. 12VDC BACKBONE DROP DROP DROP 12 VDC CAN bus...
  • Page 28 3. INSTALLATION Terminal resistor The illustration below show various system configurations and what units to activate the terminal resistor. Smart sensor+FI-50x Smart FI-50x Sensor Multiple FI-50 series instruments, FI-5002, drop cabling FI-50x FI-50x FI-50x FI-50x Drop cable FI-5002 Multiple FI-50 series instruments, FI-5002 FI-50x FI-50x FI-50x FI-50x FI-5002...

  • Page 29: Setting Up

    3. INSTALLATION Turn on the terminal resistor in the junction box when the FURUNO CAN bus and/or NMEA 2000 sensor(s) connected to it do not have a terminal resistor. Terminal Resistor OFF: For how to turn on the terminal resistor in a FI-50 series instrument, see paragraph 3.4.2 “Setup2 menu”.
  • Page 30 3. INSTALLATION SHWLOCK DPTH M DPTH Depth unit Speed unit Depth offset Depth response Shallow alarm lock SPD --- --- --- LOG NM 0.01 1.00 Speed unit resolution Speed offset LOG unit Speed response SOG response TIMER WIND WIND WINDADJ Wind speed VMG response Wind unit...
  • Page 31 3. INSTALLATION Setup1 menu items Setting range or Default Display Function options setting Select depth unit. M (Meter), DPTH FT (Feet) Set depth offset. -99 - +99 DPTH Lock/unlock shallow alarm setting. ON, OFF SHWLOCK Set depth response. The lower the 0 - 12 setting the faster the response to change in depth.
  • Page 32 Enable/disable the timer alarm’s ON, OFF TIMER audio alarm. Select source of wind data. Select F: For FI-5001 (Furuno WIND “r” for second unit. Sensor), r: repeater Select wind unit. KT (Knot), WIND...
  • Page 33 3. INSTALLATION Setup1 menu items Setting range or Default Display Function options setting Select true or magnetic bearing. MAG (Magnetic), HDG MAG TRU (True Select heading type to display LOC (Locked), HDGLOCK when CUr (Current) activating locked heading. Set heading response. The lower 0 - 12 HDG RES the setting the faster the response...
  • Page 34 3. INSTALLATION 3.4.2 Setup2 menu The setup 2 menu contains user settings which once preset do not re- quire frequent adjustment. 1. Press and hold down the APP/TRUE and SELECT/CLEAR keys together (about 5-6 seconds) to enable the user settings menu. The software version of CPU1 appears.
  • Page 35 3. INSTALLATION Setup2 menu items Setting range or Default Display Function options setting Software version of CPU1. Xxxxx X=program no. and xxxx=program version no. Software version of CPU2. Xxxxx X=program no. and xxxx=program version no. Turn key beep on/off. ON, OFF KEYBEEP Auto brilliance on/off.
  • Page 36 3. INSTALLATION Setup2 menu items Setting range or Default Display Function options setting Turn timer displays on/off. ON, OFF TIMER Turn wind displays on/off. ON, OFF WIND Turn heading displays on/off. ON, OFF HEADING Turn navigation displays ON, OFF NAVI on/off.

  • Page 37: Specifications

    FI-504 MULTI SPECIFICATIONS OF FI-504 MULTI GENERAL 1.1 Indication system Segment LCD 1.2 Brilliance 4 steps 1.3 Contrast 3 steps 1.4 Display Contents Depth, speed, wind speed, wind angle, timer, environmental information (water temperature, air temperature, air pressure, dewpoint, wind chill temperature), rudder angle 1.5 Number of Port...
  • Page 38 FI-507 MULTI XL SPECIFICATIONS OF FI-507 MULTI XL GENERAL Indication system Segment LCD Brilliance 4 steps Contrast 3 steps Display contents Depth, Ship’s speed, Wind speed/angle, Date, Time, Bearing Environmental information , Navigational information, Rudder angle, Engine information Number of port CAN bus: 2 port Mount method Surface or flush mount...
  • Page 47 タッピンネジ用穴（4ヵ所） For tapping screws (4 pcs.) 寸切りボルト用穴（2ヵ所） For bolts (2 pcs.)
  • Page 48 FI-50シリーズ 表示部 フラッシュマウント用型紙 FI-50 series Display unit Flush Mount Template...
  • Page 49 FI-507サーフェイスマウント用型紙 FI-507 Surface Mount Template...
