11

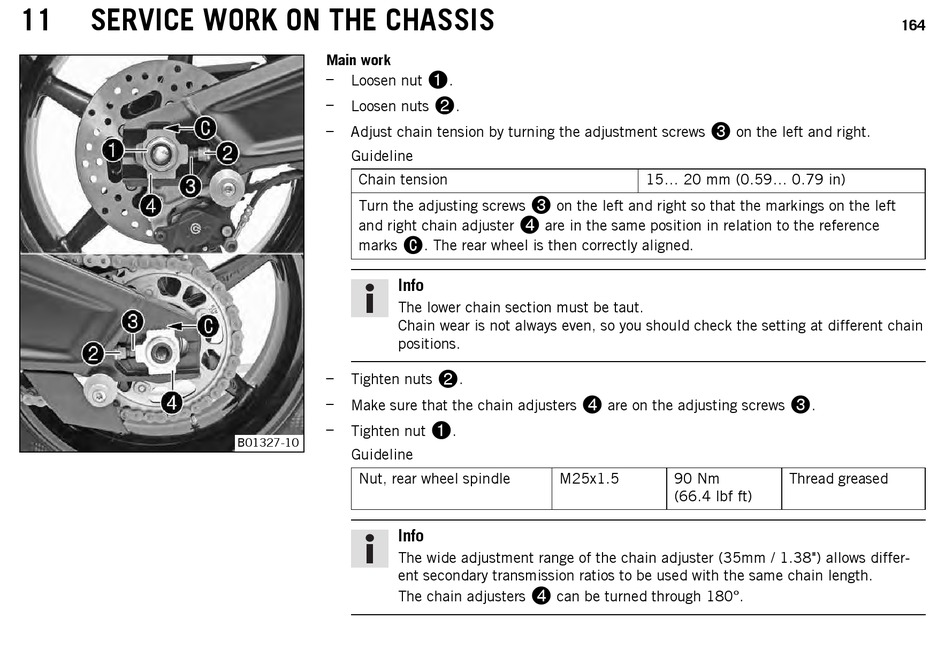

SERVICE WORK ON THE CHASSIS
Main work
–
Loosen nut
–
Loosen nuts
–
Adjust chain tension by turning the adjustment screws
Guideline
Chain tension
Turn the adjusting screws
and right chain adjuster
marks
Info
The lower chain section must be taut.
Chain wear is not always even, so you should check the setting at different chain
positions.
–
Tighten nuts
–
Make sure that the chain adjusters
–
Tighten nut
B01327-10
Guideline
Nut, rear wheel spindle
Info
The wide adjustment range of the chain adjuster (35mm / 1.38") allows differ-
ent secondary transmission ratios to be used with the same chain length.
The chain adjusters
.
.
on the left and right so that the markings on the left
are in the same position in relation to the reference
. The rear wheel is then correctly aligned.
.
.
M25x1.5
can be turned through 180°.
on the left and right.
15... 20 mm (0.59... 0.79 in)
are on the adjusting screws
90 Nm
(66.4 lbf ft)
164
.
Thread greased
