KTM 1190 RC8 R Owner's Manual page 143

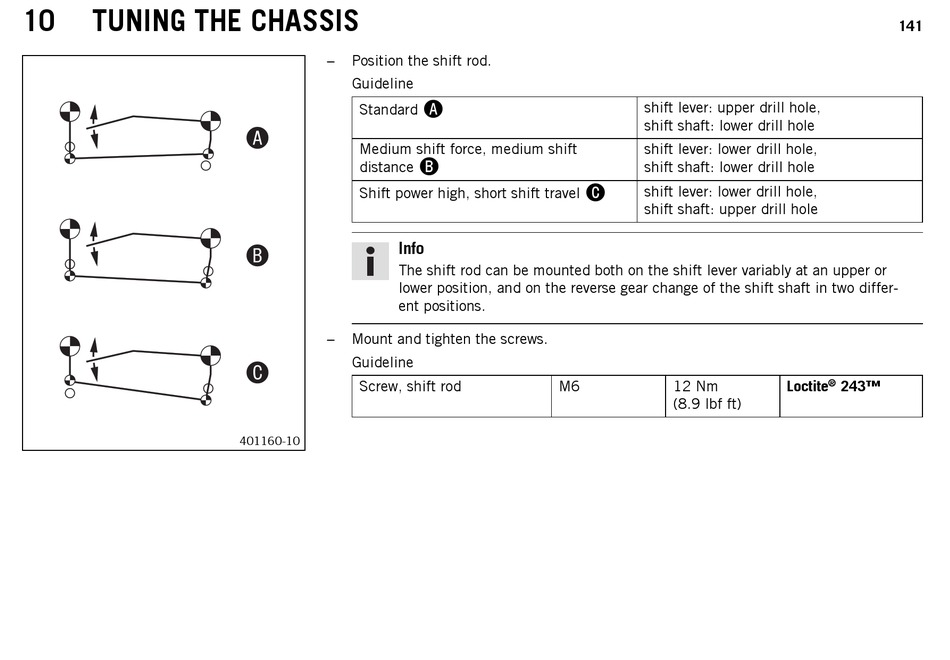

10 TUNING THE CHASSIS
–
Position the shift rod.
Guideline
Standard
0 0 A A
Medium shift force, medium shift
distance
Shift power high, short shift travel
B 0 0 B Info
The shift rod can be mounted both on the shift lever variably at an upper or
lower position, and on the reverse gear change of the shift shaft in two differ-
ent positions.
–
Mount and tighten the screws.
Guideline
0 0 C C
Screw, shift rod
401160-10



M6
shift lever: upper drill hole,
shift shaft: lower drill hole
shift lever: lower drill hole,
shift shaft: lower drill hole
shift lever: lower drill hole,
shift shaft: upper drill hole
12 Nm Loctite
(8.9 lbf ft)
141
® 243™
