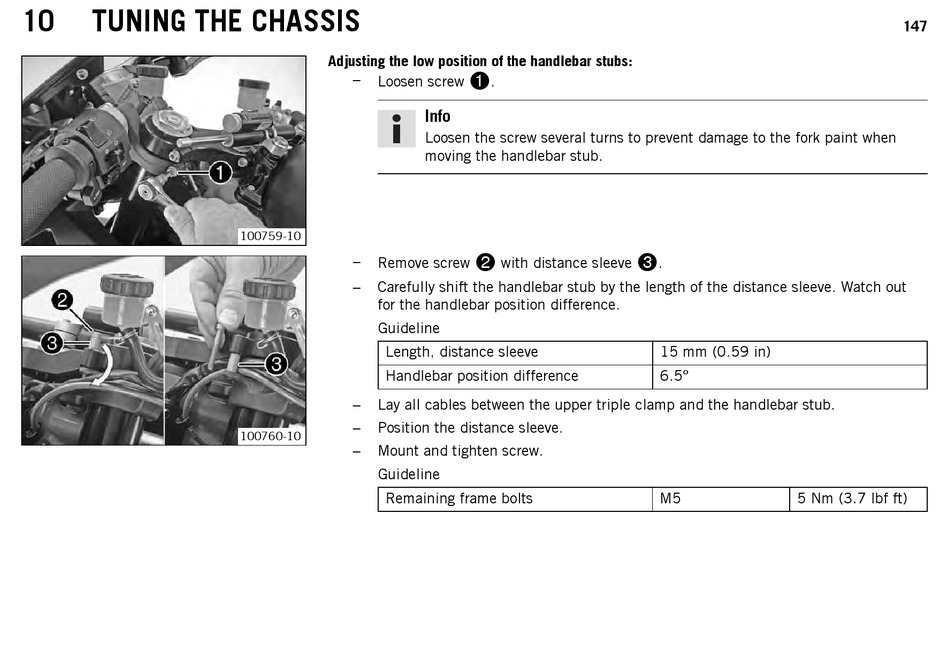

10 TUNING THE CHASSIS
Adjusting the low position of the handlebar stubs:
–
Loosen screw
100759-10
–
Remove screw
–
Carefully shift the handlebar stub by the length of the distance sleeve. Watch out
for the handlebar position difference.
Guideline
Length, distance sleeve
Handlebar position difference
–
Lay all cables between the upper triple clamp and the handlebar stub.
–
Position the distance sleeve.
100760-10
–
Mount and tighten screw.
Guideline
Remaining frame bolts

.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.

with distance sleeve

.
15 mm (0.59 in)
6.5°
M5 5 Nm (3.7 lbf ft)
