Page 2: Table Of Contents
____________________________________________________________02 I. Introduction __________________________________________________________02 • Specifications ___________________________________________________________02 • Accessories ______________________________________________________________03 • Features ___________________________________________________06 II. Installation Instructions ___________________________________________06 1. Installation of the motherboard ___________________________________________07 2. Installation of the power supply _____________________________________________07 3. Installation of external drives _____________________________________________________07 3.1 Optical drives ______________________________________08 3.2 Utilizing the external 3.5 inch bay _____________________________________________09 4. -
Page 3: Introduction

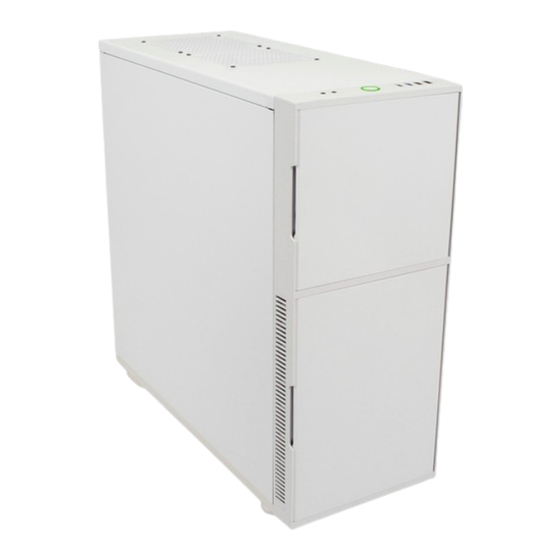

I. Introduction Congratulations on the purchase of your new Nanoxia Deep Silence 5 big tower. We are confi- dent that you will be delighted by your new PC case for many years to come. Nanoxia’s Deep Silence series have been designed and developed by an experienced team of developers in Germany. -
Page 4: Features
- Nanoxia VentCover (noise indulated): 2 x top cover Noise Insulation The Nanoxia Deep Silence 5 has been developed with the aim to offer the buyer a low-noise case, while at the same time allowing for extremely low system temperatures. The sound insu-... - Page 5 All air intake openings (front and bottom) are readily accessible and have easy to clean dust fil- ters. Behind the lower front door of the Deep Silence 5 are two “Easy Access Panels”, allowing an easy access to both the dust filter and the front 140 mm fans.
- Page 6 Watercooling-ready The Nanoxia Deep Silence 5 like any other Nanoxia case has been prepared for the installation of a water cooling system. Therefore you can install radiators or a compact water cooling solution under the top cover as well as behind the front panel.
-
Page 7: Installation Instructions
II. Installation Instructions 1. Installation of the motherboard You can mount E-ATX, XL-ATX, ATX, M-ATX and Mini-ITX motherboards in the Deep Silence 5. In order to ensure an easy installation of your motherboard, we suggest the following procedure: a) Please consult the following charts to find your motherboard form factor:... -
Page 8: Installation Of The Power Supply
Please install the power supply according to the pictures below and secure it with the included PSU screws. 3. Installation of external drives You can install up to four external drives in the Deep Silence 5. An adapter frame for mounting a 3.5 inch drive is included. 3.1 Optical drives To install the optical drives, please remove both side panels. -
Page 9: Utilizing The External 3.5 Inch Bay
Remove the 5.25 inch cover by pulling the lateral tilting lever cautiously towards you and take out the cover Then loosen the lock on both sides by dragging the black slider backwards (1). Then slide the drive into the desired position. -
Page 10: Installation Options Of Hdd's
4. Installation options of HDD’s The Deep Silence 5 allows you the decoupled mounting of 11hard disk drives. 4.1 Mounting of hard disk drives Install the 2.5 or 3.5 inch hard drives in the illustrated mounting frames. In order to extract the frame, squeeze the protruding brackets and pull the slide out gently. -
Page 11: Conversion And Removal Of The Hdd-Cages
4.2 Conversion and removal of the HDD-cages The Deep Silence 5 is equipped with four fully modular HDD-cages (3 x 3-bay, 1 x 2-bay). The cages can be removed, swapped or repositioned almost at will. Due to this unique variability, you can:... - Page 12 The (de-)mounting of the additional HDD- cage on the secondary mounting rail works accordingly. You can purchase the additional cages at your local reseller. The secondary HDD cage is screwed to the case bottom in order to ensure the greatest possible stability.
-
Page 13: Removing The Front Panel
6. Fan assembly Three 140 mm fans are pre-installed in your Deep Silence 5. You can mount up to six fans in total. We recommend the use of the 120 or 140 mm Nanoxia Deep Silence fans, available separately. -
Page 14: Fans Under The Top Cover
“Easy Access Panel”. 6.2 Fans under the top cover If you want to install additional fans at the top of the case, please remove the Nanoxia VentCo- vers first by removing the screws on the outside of the case. -
Page 15: The 2-Channel Fan Controller
(fan rear side facing inwards). 7. The 2-channel fan controller The Deep Silence 5 is equipped with a 2-channel fan control for up to six case fans. You can operate up to three fans per channel. -
Page 16: Operation Of The Fan Control
B. 8. Installing a water cooling solution In Nanoxia Deep Silence 5 you can install radiators or compact water cooling systems both behind the front panel and under the top cover. We recommend the installation of the radiator behind the front panel. - Page 17 For the installation, please remove the modular HDD-cages (see Chapter 4.2). Open the lower front door and the “Easy Access” Panels and remove the fans. Hold the radiator from the inside and secure it with screws, using the corresponding mounting slots. Finally, reinstall the fans.
-
Page 18: Installation Of A Slim Radiator Or Compact Water Cooling Under The Top Cover
8.2 Installation of a slim radiator or com- pact water cooling solution under the top cover Under the top cover, you can install in a 240/280 mm slim radiator. To mount a radia- tor under the cover, please use the 120/140 mm fan mounting holes. -
Page 19: Usb 3.0
If, however, the pin allocation of the internal USB port and the one shown in diagram 10A differ, please consult a professional. Wrong connected cables might cause serious damage to your hardware. diagram 10A diagram 10B 10.2 USB 3.0 Diagram 10C shows the typical pin assignment of the internal 19-Pin USB 3.0. -
Page 20: Hd Audio
10.3 HD Audio Diagram 10E shows the pin assignment of the standard HD audio cable plug. The pins are assi- gned in a way to fit on current motherboards. By referring to the motherboard manual, please check that the HD audio port is identical to the one shown in diagram 10E. -
Page 21: Support
For general inquiries, comments, suggestions and the like please refer to: info@nanoxia-world.com We are sure that you will be satisfied with Nanoxia Deep Silence 5 for many years to come, so please enjoy your new PC case. Your Nanoxia Support-Team...
