FTP

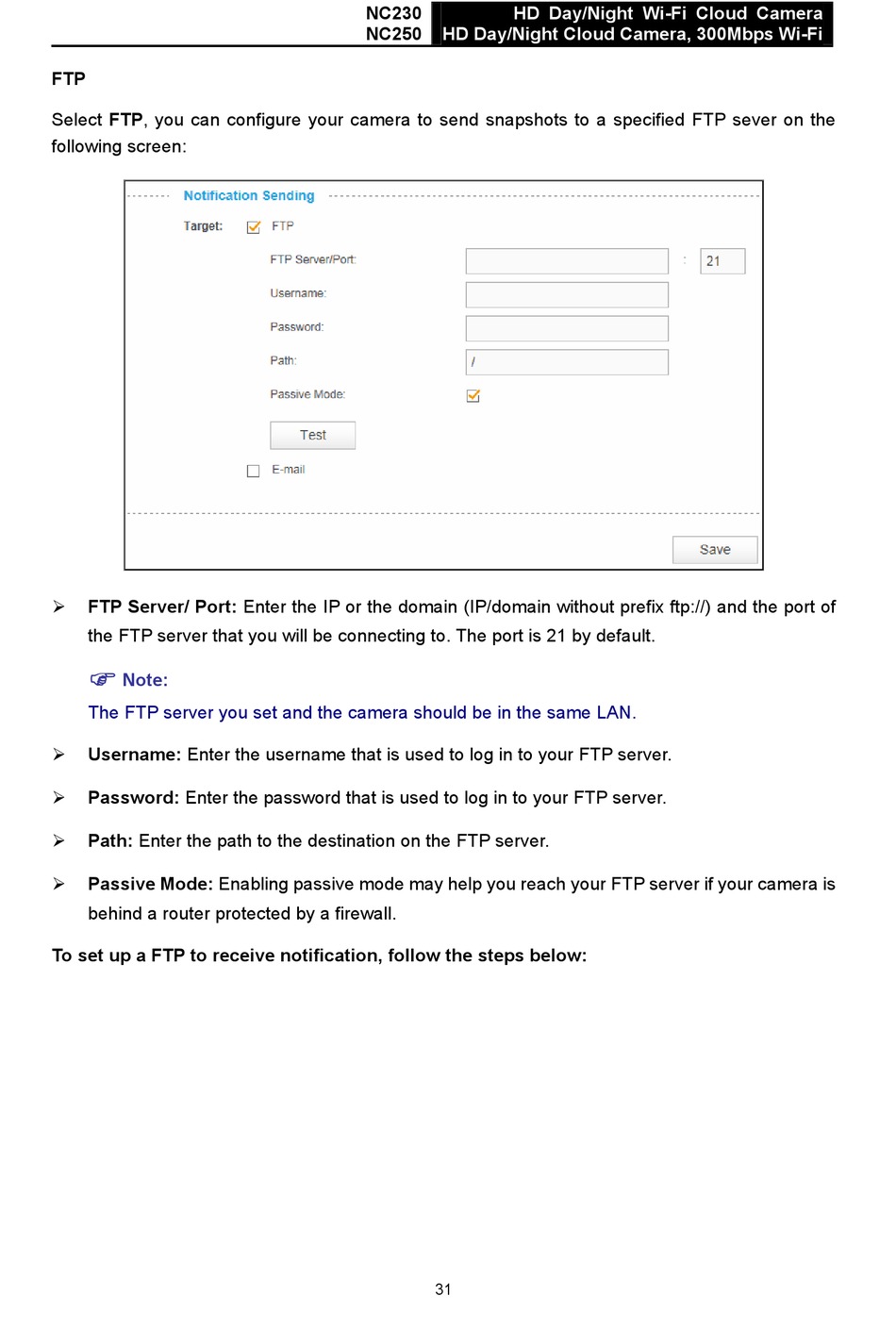

Select FTP, you can configure your camera to send snapshots to a specified FTP sever on the
following screen:
 FTP Server/ Port: Enter the IP or the domain (IP/domain without prefix ftp://) and the port of
the FTP server that you will be connecting to. The port is 21 by default.

Note:
The FTP server you set and the camera should be in the same LAN.
 Username: Enter the username that is used to log in to your FTP server.
Password: Enter the password that is used to log in to your FTP server.

 Path: Enter the path to the destination on the FTP server.
 Passive Mode: Enabling passive mode may help you reach your FTP server if your camera is
behind a router protected by a firewall.
To set up a FTP to receive notification, follow the steps below:
NC230 HD Day/Night Wi-Fi Cloud Camera
NC250 HD Day/Night Cloud Camera, 300Mbps Wi-Fi
31
