INSTALLATION INSTRUCTIONS FOR PART 99-2006
99-2006/
99-2006G
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked DIN Head Units Provision
• Painted To Match Factory Dash
99-2006 = BLACK
99-2006G = GRAY
KIT COMPONENTS

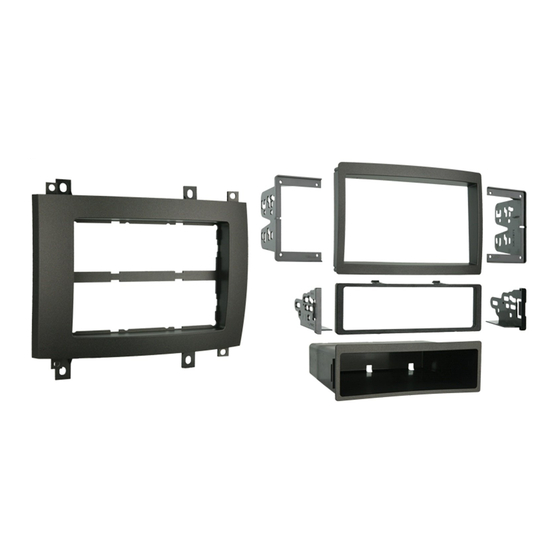

A) Radio Housing • B) DDIN Brackets • C) DDIN Trim Plate • D) ISO Brackets • E) Trim Plate • F) (8) Phillips screws
• (G) Pocket
B
A
Phillips Screwdriver • Small Flat Blade Screwdriver • Socket Wrench
1-800-221-0932
© COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION
APPLICATIONS
Cadillac CTS 2003-2007
Cadillac SRX 2004-2006
C
TOOLS REQUIRED:
www.metraonline.com
E
D
G
F
