Gigabyte GA-8ID2003 User Manual

P4 titan sdram motherboard
Hide thumbs Also See for GA-8ID2003:
Table of Contents

Advertisement

Quick Links

Download this manual

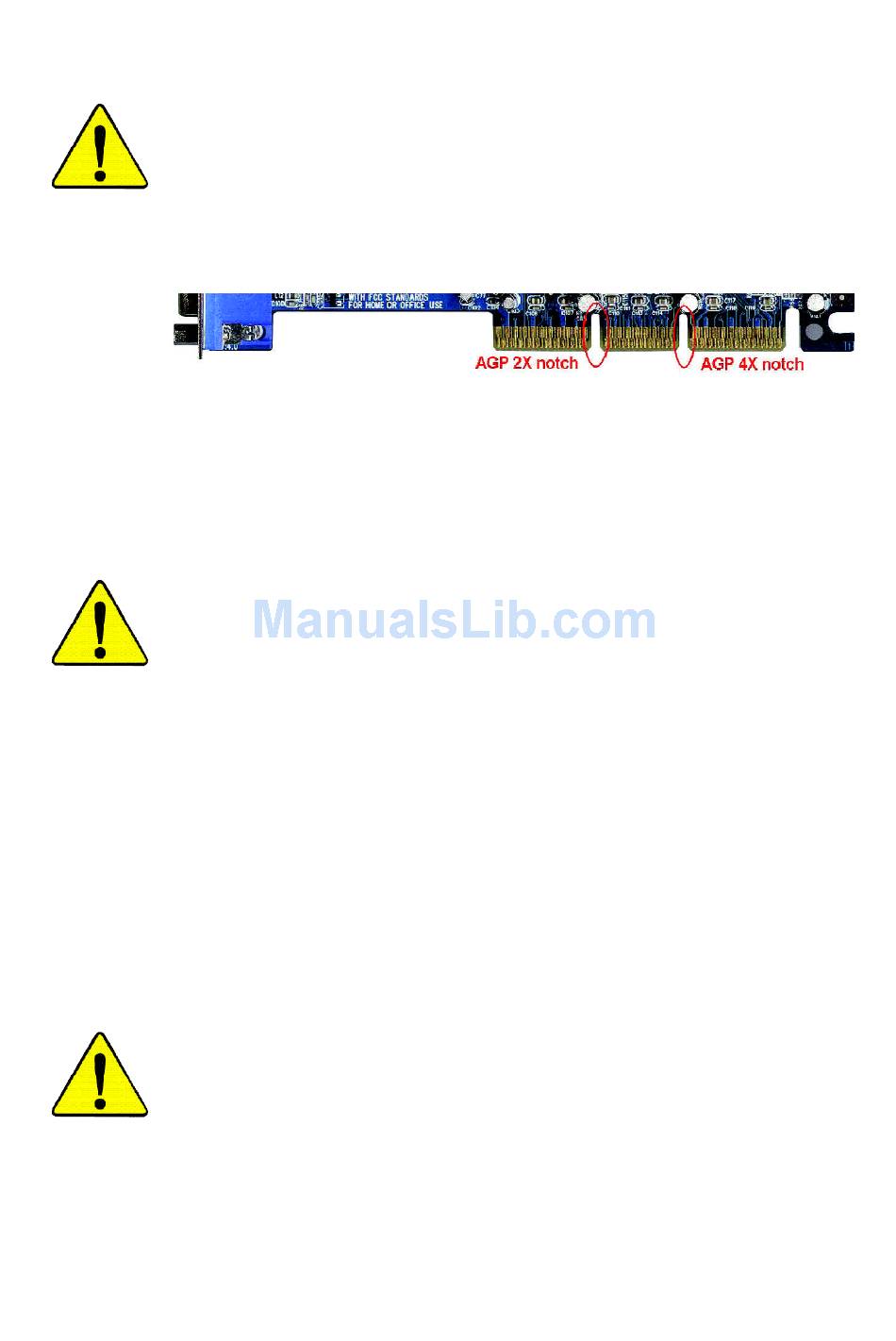

When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has "AGP
4X notch"(show below), please make sure your AGP card is AGP 4X
(1.5V).
Do not use AGP 2X card (3.3V) in this motherboard. It will burn and
damage the motherboard due to Intel
845(E/G) / 850(E) chipset
®
can't support AGP 2X(3.3V).
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X (1.5V)
mode by adjusting the jumper. The factory default for this card is 2X (3.3V).
If you install this card in GA-8ID2003 (or any AGP 4X only) motherboards
without switching the jumper to 4X mode (1.5V), it will burn the motherboard.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",
the graphics card manufacturer & some SiS 305 cards, their golden finger is
compatible with 2X/4X mode AGP slot, but they support 2X(3.3V) only. If you
install this card in GA-8ID2003 (or any AGP 4X only) motherboards, it will
burn the motherboard.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X (1.5V)
specification. Therefore, AG32S(G) will work fine with Intel
845(E/G) /
®
850(E) based motherboards.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-8ID2003

Summary of Contents for Gigabyte GA-8ID2003

  • Page 1 The factory default for this card is 2X (3.3V). If you install this card in GA-8ID2003 (or any AGP 4X only) motherboards without switching the jumper to 4X mode (1.5V), it will burn the motherboard.
  • Page 2 The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the informa- tion contained herein. Third-party brands and names are the property of their respective owners. Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

  • Page 3: Declaration Of Conformity

    Ausschlager Weg 41, 1F, 20537 Hamburg, Germany declare that the product ( description of the apparatus, system, installation to which it refers) Mother Board GA-8ID2003 is in conformity with (reference to the specification under which conformity is declared) in accordance with 89/336 EEC-EMC Directive...
  • Page 4 City of Industry, CA 91748 Phone/Fax No: (818) 854-9338/ (818) 854-9339 hereby declares that the product Product Name: Motherboard GA-8ID2003 Model Number: Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109 (a),Class B Digital Device Supplementary Information: This device complies with part 15 of the FCC Rules.
  • Page 5 GA-8ID2003 P4 Titan SDRAM Motherboard USER'S MANUAL Pentium 4 Processor Motherboard ® Rev. 2001 12ME-8ID2003-2001...

  • Page 6: Table Of Contents

    Item Checklist ..................4 WARNING! ..................4 Chapter 1 Introduction ................. 5 Features Summary ..................5 GA-8ID2003 Motherboard Layout..............7 Chapter 2 Hardware Installation Process ..........8 Step 1: Install the Central Processing Unit (CPU) ........9 Step 1-1: CPU Installation ................... 9 Step 1-2: CPU Heat Sink Installation .................
  • Page 7 PnP/PCI Configurations ................42 PC Health Status ................... 43 Frequency/Voltage Control ................45 Top Performance ..................47 Load Fail-Safe Defaults ................48 Load Optimized Defaults ................49 Set Supervisor/User Password..............50 Save & Exit Setup ..................51 Exit Without Saving ..................52 Chapter 4 Technical Reference ............

  • Page 8: Item Checklist

    Item Checklist The GA-8ID2003 motherboard 2 Port USB Cable x 1 4 Port USB Cable x 1 IDE cable x 1 / Floppy cable x 1 SPDIF KIT x 1 (SPD-KIT) CD for motherboard driver & utility IEEE 1394 Cable x 1...

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Features Summary Form Factor — 19.6cm x 29.5cm ATX size form factor, 4 layers PCB — Socket 478 for Intel Micro FC-PGA2 Pentium 4 processor ® ® — Support Intel Pentium 4 (Northwood, 0.13 m) processor ® ®...
  • Page 10 CPU, chipset and most of the peripherals. Whether your system can run under these specific bus frequencies properly will depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards… etc. GA-8ID2003 Motherboard - 6 -...

  • Page 11: Ga-8Id2003 Motherboard Layout

    GA-8ID2003 Motherboard Layout KB_MS SOC KET478 F_AU DIO A TX_12V CPU_FAN I ntel 845 CD_I N CODEC 2X_DE T BATTERY PCI1 PCI2 SYS _FAN PCI3 IC H2 C LR_PWD P4 Titan PCI4 IDE2 PCI5 I TE 8712 IDE1 PWR_LE D...

  • Page 12: Chapter 2 Hardware Installation Process

    Step 4- Connect ribbon cables, cabinet wires, and power supply Step 5- Setup BIOS software Step 6- Install supporting software tools Step 2 Step 1 Step 4 Step 1 Step 4 Step 4 Step 3 GA-8ID2003 Motherboard - 8 -...

  • Page 13: Step 1: Install The Central Processing Unit (Cpu)

    Step 1: Install the Central Processing Unit (CPU) Step 1-1: CPU Installation Socket Angling the Actuation rod to 65 Lever 2. Pull the rod to the 90-degree directly . 1. Angling the rod to 65-degree maybe feel a kind of tight , and then continue pull the rod to 90-degree when a noise "cough"...

  • Page 14: Step 1-2: Cpu Heat Sink Installation

    Make sure the CPU fan power cable is plugged in to the CPU fan connector, this completes the installation. Please refer to CPU heat sink user's manual for more detail installation procedure. GA-8ID2003 Motherboard - 10 -...

  • Page 15: Step 2: Install Memory Modules

    Step 2: Install memory modules The motherboard has 3 dual in-line memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Socket .The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.

  • Page 16: Step 3: Install Expansion Cards

    When an AGP 2x (3.3V) card is installed the 2X_DET will light up, indicating a non- supported graphics card is inserted. Informing users that system might not boot up normally due to AGP 2x (3.3V) is not supported by the chipset. GA-8ID2003 Motherboard - 12 -...

  • Page 17: Step 4: Connect Ribbon Cables, Cabinet Wires And

    Step 4: Connect ribbon cables, cabinet wires and power supply Step 4-1: I/O Back Panel Introduction u PS/2 Keyboard and PS/2 Mouse Connector This connector supports standard PS/2 PS/2 Mouse Connector keyboard and PS/2 mouse. (6 pin Female) PS/2 Keyboard Connector (6 pin Female) v USB Connector Before you connect your device(s) into USB...

  • Page 18: Audio Connectors

    After install onboard audio driver, you may y Audio Connectors connect speaker to Line Out jack, micro phone to MIC In jack. Device like CD-ROM, walkman etc can be connected to Line-In jack. MIC In Line Out Line In GA-8ID2003 Motherboard - 14 -...

  • Page 19: Step 4-2: Connectors Introduction

    Step 4-2: Connectors Introduction 1) ATX_12V 10) BATTERY 2) ATX 11) F_AUDIO 3) CPU_FAN 12) CD_IN 4) SYS_FAN 13) AUX_IN 5) FDD 14) F_USB1 6) IDE1 / IDE2 15) CI 7) F_PANEL 16) CLR_PWD 8) PWR_LED 9) 2X_DET - 15 - Hardware Installation Process...
  • Page 20 AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard. Pin No. Definition 3.3V 3.3V Power Good 5V SB (stand by +5V) +12V 3.3V -12V PS_ON(soft on/off) GA-8ID2003 Motherboard - 16 -...
  • Page 21 3) CPU_FAN (CPU Fan Connector) Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating. The CPU fan connector supports Max. current up to 600 m A. Pin No.
  • Page 22 6) IDE1 / IDE2 (IDE1 / IDE2 Connector) Im portant Notice: Please connect first hard disk to IDE1 and connect CD-ROM to IDE2. The red stripe of the ribbon cable m ust be the sam e side with the Pin1. IDE2 IDE1 GA-8ID2003 Motherboard - 18 -...
  • Page 23 7) F_PANEL (2 x 10 pins Connector) Please connect the power LED, PC speaker, reset switch and power switch etc of your chassisfront panel to the F_PANEL connector according to the pin assignment above. So ft Pow er Spea ker Co nnector Me ssa g e LED /Po w e r / Conne ctor...
  • Page 24 When an AGP 2X (3.3V) card is installed the 2X_DET will light up, indicating a nonsupported graphics card is inserted. Informing users that system might not boot up normally due to AGP 2X (3.3V) is not supported by the chipset. GA-8ID2003 Motherboard - 20 -...
  • Page 25 10) BATTERY CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the sam e or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’ s instructions. If you want to erase CMOS... 1.
  • Page 26 Connect CD-ROM or DVD-ROM audio out to the connector. Pin No. Definition AUX-L AUX-R 13) AUX_IN (AUX In Connector) Connect other device (such as PCI TV Tunner audio out) to the connector. Pin No. Definition AUX-L AUX-R GA-8ID2003 Motherboard - 22 -...
  • Page 27 14) F_USB1 (Front USB Connector, Yellow) Be careful with the polarity of the front USB connector. Check the pin assignment while you connect the front USB cable. Please contact your nearest dealer for optional front USB 2.0 cable. Pin No. Definition Power Power...
  • Page 28 When Jum per is set to "open" and system is restarted, the password that is set will be cleared. On the contrary when Jumper is set to "close", the current status remains. open: Clear password close: Normal GA-8ID2003 Motherboard - 24 -...
  • Page 29 - 25 - Hardware Installation Process...
  • Page 30 GA-8ID2003 Motherboard - 26 -...

  • Page 31: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Powering ON the comput e r and pressing <Del>...

  • Page 32: The Main Menu (For Example: Bios Ver. : E1)

    Standard CMOS Features This setup page includes all the items in standard compatible BIOS. Advanced BIOS Features This setup page includes all the items of Award special enhanced features. GA-8ID2003 Motherboard - 28 -...

  • Page 33: Integrated Peripherals

    Integrated Peripherals This setup page includes all onboard peripherals. Power Manag ement Setup This setup page includes all the items of Green function features. PnP/PCI Configurations This setup page includes all the configurations of PCI & PnP ISA resources. PC Health Status This setup page is the System auto detect Temperature, voltage, fan, speed.

  • Page 34: Standard Cmos Features

    The w eek, from Sun to Sat, determined by the BIOS and is display only Month The month, Jan. Through Dec. The day , from 1 to 31 (or the max imum allow ed in the month) Year The y ear, from 1999 through 2098 GA-8ID2003 Motherboard - 30 -...
  • Page 35 Time The times format in <hour> <mi n ute> <second>. The time is calculated base on the 24-hour military- time clock. For example, 1 p.m. is 13:00:00. IDE Primary Master, Slave / IDE Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer. There are two types: auto type, and manual type.

  • Page 36: Base Memory

    Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU’ s memory address map. GA-8ID2003 Motherboard - 32 -...

  • Page 37: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are Adv anced BIOS Features First Boot Dev ice [Floppy ] Item Help Second Boot Dev ice [HDD-0] Menu Lev el u Third Boot Dev ice [CDROM] Select Boot Dev ice Boot Up Floppy Seek [Disabled]...

  • Page 38: Password Check

    Set DRAM Data Integrity Mode by ECC. Non-ECC Set DRAM Data Integrity Mode by Non-ECC. (Default v alue) Init Display First Set Init Display First to AGP. (Default v alue) Set Init Display First to PCI. GA-8ID2003 Motherboard - 34 -...

  • Page 39: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are Integrated Peripherals On-Chip Primary PCI IDE [Enabled] Item Help On-Chip Secondary PCI IDE [Enabled] Menu Lev el u IDE1 Conductor Cable [Auto] If a hard disk IDE2 Conductor Cable [Auto] controller card is USB Controller...

  • Page 40: Usb Controller

    Disable USB Key board Support. (Default v alue) USB Mouse Support Enabled Enable USB Mouse Support. Disabled Disable USB Mouse Support. (Default v alue) AC97 Audio Auto Enable onboard AC'97 audio function. (Default Value) Disabled Disable this function. GA-8ID2003 Motherboard - 36 -...

  • Page 41: Onboard Serial Port 1

    Onboard Serial Port 1 Auto BIOS w ill automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8. (Default v alue) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8. 3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8. 2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8.

  • Page 42: Parallel Port Mode

    Set CIR Port Address to 310. 8310 Set CIR Port Address to 320. 8320 Disable this function. (Default Value) 8Disabled CIR Port IRQ Set CIR Port IRQ to 5. Set CIR Port IRQ to 11. (Default Value) GA-8ID2003 Motherboard - 38 -...

  • Page 43: Power Management Setup

    Power Management Setup CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are Pow er Management Setup ACPI Suspend Ty pe [S1(POS)] Item Help Pow er LED in S1 state [Blinking] Menu Lev el u Soft-Off by PWR-BTTN [Instant-Off] [S1] PME Ev ent Wake Up [Enabled]...

  • Page 44: Resume By Alarm

    Disabled Disabled this function. (Default v alue) Key board 98 If y our key board hav e "POWER Key " button, y ou can press the key to pow er on y our sy stem. GA-8ID2003 Motherboard - 40 -...

  • Page 45: Kb Power On Password

    KB Power ON Password Enter Input passw ord (from 1 to 5 characters) and press Enter to set the Key board Pow er On Passw ord. AC Back Function Memory Sy stem pow er on depends on the status before AC lost. Soft-Off Alw ay s in Off state w hen AC back.

  • Page 46: Pnp/Pci Configurations

    Auto assign IRQ to PC I 3. (Default v alue) 3,4, 5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10, 11,12,14,15 to PCI 3. PCI 4 IRQ Assignment Auto Auto assign IRQ to PC I 4. (Default v alue) 3,4, 5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10, 11,12,14,15 to PCI 4. GA-8ID2003 Motherboard - 42 -...

  • Page 47: Pc Health Status

    PC Health Status CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are PC Health Status Reset Case Open Status [Disabled] Item Help Case Opened Menu Lev el u VCORE 1.696V [Disabled] VCC18 1.776V Don't reset case +3.3V 3.248V open status 5.134V +12V...

  • Page 48: Cpu Warning Temperature

    Fan Warning function disable. (Default v alue) Enabled Enalbe FAN w arning alarm w hen FAN s tops. SYSTEM FAN Fail Warning Disabled Fan Warning function disable. (Default v alue) Enabled Enalbe FAN w arning alarm w hen FAN s tops. GA-8ID2003 Motherboard - 44 -...

  • Page 49: Frequency/Voltage Control

    Frequency/Voltage Control CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are Frequency /Voltage Control CPU Clock Ratio [15X] Item Help CPU Host Clock Control [Disabled] Menu Lev el u x CPU Host Frequency (Mhz) x Fix ed PCI/AGP Frequency 33/66 Host/DRAM Clock ratio [Auto]...
  • Page 50 Set Memory frequency by DRAM SPD data. (Default v alue) 8Auto Memory Frequency (Mhz) The v alues depend on CPU Host Frequency (Mhz) . PCI/AGP Frequency (Mhz) Setup PCI/AGP frequency by adjusting CPU Host Frequency or PCI/AGP Div ider item. GA-8ID2003 Motherboard - 46 -...

  • Page 51: Top Performance

    Top Performance CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features Top Performance }Adv anced BIOS Features Load Fail-Safe Defaults Top Performance }Integrated Peripherals Load Optimized Defaults }Pow er Management Setup Set Superv isor Passw ord Disabled....[ n] }PnP/PCI Configurations Set User Passw ord...

  • Page 52: Load Fail-Safe Defaults

    F10:Sav e & Ex it Setup Load Fail-Safe Defaults Figure 10: Load Fail-Safe Defaults Load Fail-Safe Defaults Fail-Safe defaults c ontain the most appropriate v alues of the sy stem parameters that allow m ini- mum sy stem performance. GA-8ID2003 Motherboard - 48 -...

  • Page 53: Load Optimized Defaults

    Load Optimized Defaults CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features Top Performance }Adv anced BIOS Features Load Fail-Safe Defaults }Integrated Peripherals Load Optimized Defaults }Pow er Management Setup Set Superv isor Passw ord Load Optimized Defaults ( Y/N) ? N }PnP/PCI Configurations Set User Passw ord...

  • Page 54: Set Supervisor/User Password

    Setup Menu. If y ou selec t "Setup" at "Passw ord Check" in Adv ance BIOS Features Menu, y ou w ill be prompted only w hen y ou try to enter Setup. GA-8ID2003 Motherboard - 50 -...

  • Page 55: Save & Exit Setup

    Save & Exit Setup CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features Top Performance }Adv anced BIOS Features Load Fail-Safe Defaults }Integrated Peripherals Load Optimized Defaults }Pow er Management Setup Set Superv isor Passw ord }PnP/PCI Configurations Set User Passw ord Save to CMOS and EXIT ( Y/N) ? Y...

  • Page 56: Exit Without Saving

    Abandon all Data Figure 14: Ex it Without Sav ing Ty pe "Y" w ill quit the Setup Utility w ithout sav ing to RTC CMOS. Ty pe "N" w ill return to Setup Utility . GA-8ID2003 Motherboard - 52 -...
  • Page 57 - 53 - BIOS Setup...
  • Page 58 GA-8ID2003 Motherboard - 54 -...

  • Page 59: Chapter 4 Technical Reference

    Revision History Chapter 4 Technical Reference Block Diagram Pentium 4 CPUCLK+/- (100/133* M Hz) Socket 478 AGP 4X System Bus AGPCLK 400/533 MHz (66MHz) SDRAM 100/133MHz Intel MCH66 (66MHz) 82845 MCHCLK+/- (100/133* MHz) 5 PCI 66 MHz 33 MHz 14.318 MHz 48 MHz BIOS Intel...

  • Page 60: Bios™ Introduction

    Or you may want to keep a backup for your current BIOS, just choose "Save Current BIOS" to save it first. You make a wise choice to use Gigabyte, and @BIOS update your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily.

  • Page 61: Easytune™ 4 Introduction

    4 has already turned the "Overclock" technology toward to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test drive of "EasyTune 4" to find out more amazing features by themselves.

  • Page 62: Flash Bios Method Introduction

    Tim e, Date, Hard Disk Type... b. Q-Flash Utility Q-Flash Utility V1.30 Flash Type/Size : SST 39SF020 / 256K Keep DMI Data Enabled Load BIOS from Floppy Save BIOS to Floppy Enter: Run hi: Move ESC: Reset F10: Power OFF GA-8ID2003 Motherboard - 58 -...
  • Page 63 Load BIOS From Floppy !In the A:drive, insert the "BIOS" diskette, then Press Enter to Run. 1 File(s) found XXXX.XX 256K Total Size: 1.39M Free Size: 1.14M F5: Refresh DEL: Delete ESC: Return Main Where XXXX.XX is name of the BIOS file. !Press Enter to Run.

  • Page 64: Method 2 : Bios Flash Utility

    (1) With an available floppy disk in the floppy drive. Please leave the diskette "UN-write protected" type. Double click the "My Computer" icon from Desktop, then click "3.5 diskette (A)" and right click to select "Format (M)" GA-8ID2003 Motherboard - 60 -...
  • Page 65 (2) Select the "Quick (erase)" for Format Type, and pick both "Display summary when finished" and "Copy system files", after that press "Start". That will format the floppy and transfer the needed system files to it. Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingly. (3) After the floppy has been formatted completely, please press "Close".
  • Page 66 STEP 3: Download BIOS and BIOS utility program. (1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support". (2) From Support zone, click the "Motherboards BIOS & Drivers". GA-8ID2003 Motherboard - 62 -...
  • Page 67 (3) We use GA-7VTX motherboard as example. Please select GA-7VTX by Model or Chipset optional menu to obtain BIOS flash files. (4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up a file download screen, then select the "Open this file from its current location"...
  • Page 68 (5) At this time the screen shows the following picture, please click "Extract" button to unzip the files. (6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and press "Extract". GA-8ID2003 Motherboard - 64 -...
  • Page 69 STEP 4: Make sure the system will boot from the floppy disk. (1) Insert the floppy disk (contains bootable program and unzip file) into the floppy drive A. Then, restart the system. The system will boot from the floppy disk. Please press <DEL> key to enter BIOS setup main menu when system is boot up.
  • Page 70 EXIT WITHOUT SAVING ESC: Quit hifg : Select Item (Shift)F2 : Change Color F5: Old Values F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit Save Data to CM OS & Exit SETUP GA-8ID2003 Motherboard - 66 -...
  • Page 71 STEP 5: BIOS flashing. (1) After the system boot from floppy disk, type "A:\> dir/w" and press "Enter" to check the entire files in floppy A. Then type the "BIOS flash utility" and "BIOS file" after A:\>. In this case you have to type "A:\>...
  • Page 72 Are you sure to flash the BIOS? [Enter] to continue Or [Esc] to cancel? (4) The BIOS flash completed. Please press [ESC] to exit Flash Utility. EXIT? [Enter] to continue Or [Esc] to cancel? GA-8ID2003 Motherboard - 68 -...
  • Page 73 STEP 6: Load BIOS defaults. Normally the system redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the BIOS defaults after BIOS has been upgraded. This important step resets everything after the flash. (1) Take out the floppy diskette from floppy drive, and then restart the system. The boot up screen will indicate your motherboard model and current BIOS version.
  • Page 74 (Shift)F2 : Change Color F5: Old Values F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit Save Data to CM OS & Exit SETUP (4) Congratulate you have accomplished the BIOS flash procedure. GA-8ID2003 Motherboard - 70 -...

  • Page 75: Method 3: @ Bios Utility

    Method 3: @ BIOS Utility If you don’ t have DOS boot disk, we recommend that you used Gigabyte @BIOS program to flash BIOS. 2.Click"Start"-"Programs"- Press here. "GIGABYTE"-"@BIOS" 1.Click "@BIOS" 3.Click "P". 4.Click here. 5. Please select @BIOS sever site, then Click "OK".
  • Page 76 In method I, if the BIOS file you need cannot be found in @BIOS server, please go onto ™ Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted GA-8ID2003 Motherboard...
  • Page 77 - 73 - Technical Reference...
  • Page 78 GA-8ID2003 Motherboard - 74 -...

  • Page 79: Chapter 5 Appendix

    Revision History Chapter 5 Appendix Install Drivers Pictures below are shown in Windows XP (CD ver.: 2.22) Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.
  • Page 80 USB Patch for WinXP This patch driver can help you to resolve the USB device wake up S3 hang up issue in XP n RealTek ALC101A/201A/202/650 AC97 Codec Driver For Intel ® ICH/ICH2/ICH4 AC97 audio GA-8ID2003 Motherboard - 76 -...

  • Page 81: Software Application

    SOFTWARE APPLICATION This page reveals the value-added software developed by Gigabyte and its worldwide partners. n Gigabyte Windows Utilities Manager (GWUM) This utility can integrate the Gigabyte's applications in the system tray n Gigabyte Management Tool (GMT) A useful tool which can manage the computer via the network...

  • Page 82: Software Information

    SOFTWARE INFORMATION This page list the contects of softwares and drivers in this CD title. HARDWARE INFORMATION This page lists all device you have for this motherboard. CONTACT US Please see the last page for details. GA-8ID2003 Motherboard - 78 -...
  • Page 83 EasyTune 4 Utilities Installation Powerful utility that integrates the overclocking and hardware monitoring functions 1. Click "EasyTune4" item. 2. Click "Next". 3. Click "Finish" to restart computer. 4. Right Click the icon to start "EasyTune 4". - 79 - Appendix...
  • Page 84 Extended Capabilities Port ESCD Extended System Configuration Data Error Checking and Correcting Electromagnetic Compatibility Enhanced Parallel Port Electrostatic Discharge Floppy Disk Device Front Side Bus Hard Disk Device Integrated Dual Channel Enhanced Interrupt Request to be continued..GA-8ID2003 Motherboard - 80 -...
  • Page 85 Acronyms Meaning IOAPIC Input Output Advanced Programmable Input Controller Industry Standard Architecture Local Area Network Input / Output Logical Block Addressing Light Emitting Diode Megahertz MIDI Musical Instrument Digital Interface Memory Translator Hub Memory Protocol Translator Network Interface Card Operating System Original Equipment Manufacturer PCI A.G.P.
  • Page 86 Model name/Lot Number: PCB revision: BIOS version: O.S./A.S.: Hardware Mfs. Model name Size: Driver/Utility: Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: GA-8ID2003 Motherboard - 82 -...

  • Page 87: Troubleshooting

    Troubleshooting If you encounter any trouble during boot up, please follow the troubleshooting procedures. START Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables from motherboard. Please isolate Please make sure motherboard & chassis are not short ? the short pin.
  • Page 88 If the above procedure unable to solve your problem, please contact with your local retailer or national distributor for help. Or, you could submit your question to the service mail via Gigabyte website technical support zone (http://www.gigabyte.com.tw). The appropriate response will be provided ASAP.
  • Page 89 - 85 - Memo...
  • Page 90 GA-8ID2003 Motherboard - 86 -...
  • Page 91 - 87 - Memo...
  • Page 92 GA-8ID2003 Motherboard - 88 -...
  • Page 93 - 89 - Memo...
  • Page 94 GA-8ID2003 Motherboard - 90 -...
  • Page 95 - 91 - Memo...
  • Page 96 CONTACT US Contact us via the information in this page all over the world. — Taiwan — The Netherlands Gigabyte Technology Co., Ltd. Giga-Byte Technology B.V. Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Address: Postbus 1385, 5602 BJ, Eindhoven, The Hsien, Taiwan, R.O.C.
