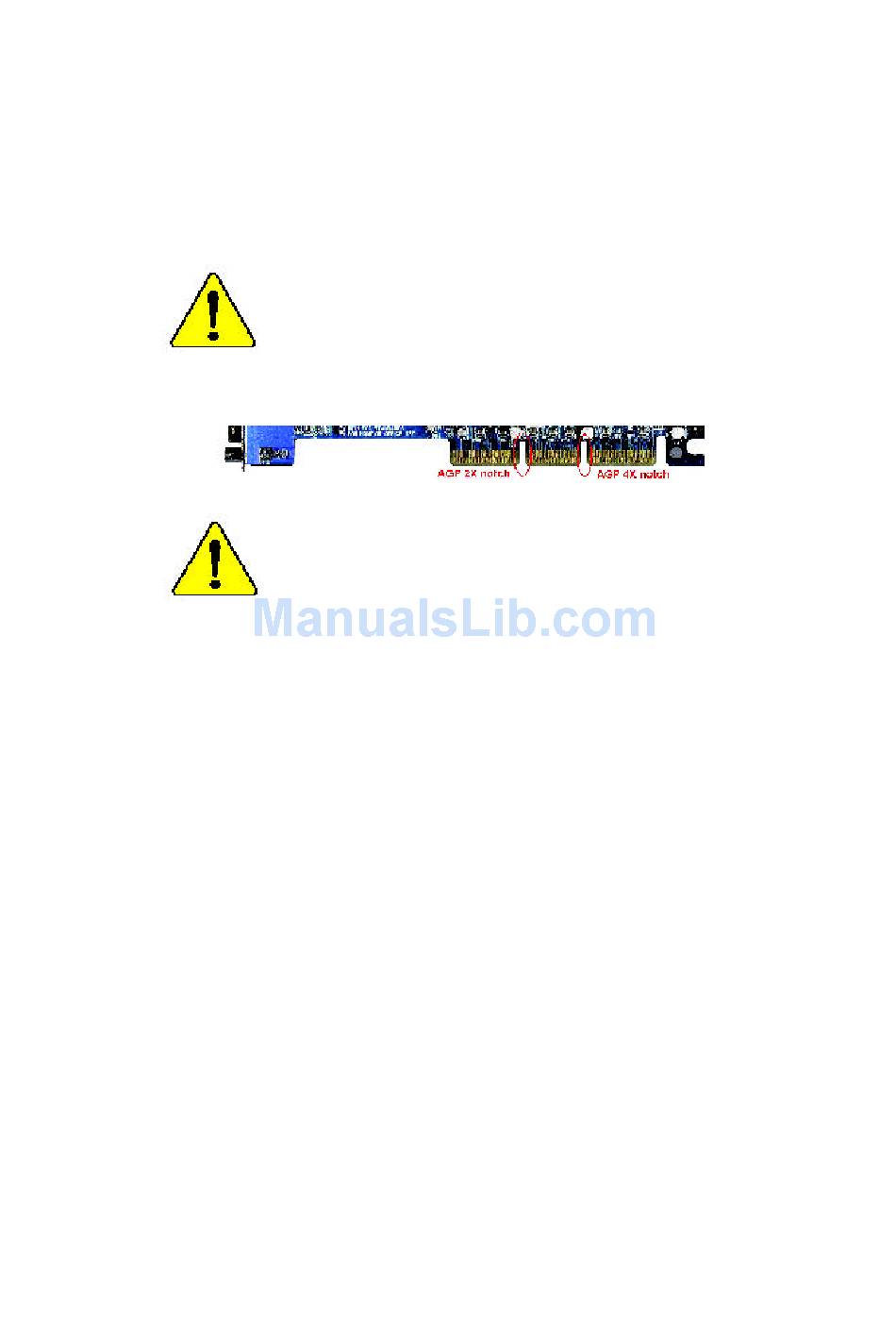

When you installing AGP card, please make sure the
following notice is fully understood and practiced. If your
AGP card has "AGP 4X notch"(show below), please make
sure your AGP card is AGP 4X (1.5V).
Do not use AGP 2X card (3.3V) in this motherboard. It will
burn and damage the motherboard due to Intel
can't support AGP 2X(3.3V).
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/
4X mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X
(1.5V) mode by adjusting the jumper. The factory default for this card is
2X(3.3V). If you install this card in GA-8IDML series (or any AGP 4X
only) motherboards without switching the jumper to 4X mode (1.5V), it
will burn the motherboard.
Example 2: ATi Rage 128 Pro (Power Color) & SiS 305 golden finger is
compatible with 2X/4X mode AGP slot, but it supports 2X(3.3V) only. If
you install this card in GA-8IDML series (or any AGP 4X only)
motherboards, it will burn the motherboard.
Note : Although Gigabyte's AG32S graphics card is based on ATi Rage
128 Pro chip, the design of AG32S is compliance with AGP 4X (1.5V)
specification. Therefore, AG32S will work fine with Intel 845 / 850 based
motherboards.
845 chipset
®
Advertisement
Table of Contents
Related Manuals for Gigabyte GA-8IDML
Summary of Contents for Gigabyte GA-8IDML
- Page 1 4X mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X (1.5V) mode by adjusting the jumper. The factory default for this card is 2X(3.3V). If you install this card in GA-8IDML series (or any AGP 4X only) motherboards without switching the jumper to 4X mode (1.5V), it will burn the motherboard.
- Page 2 ? The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. ? Third-party brands and names are the property of their respective owners. ? Please do not remove any labels on motherboard, this may void the warranty of this motherboard.
-
Page 3: Declaration Of Conformity
Representative Person’ s Name: Signature: Eric Lu Date: G.B.T. INC. (U.S .A.) 17358 Railroad S treet City of Industr y, CA 91748 (818) 854-9338/ (818) 854-9339 Mother boar d GA-8IDML ERIC LU July 28,2001... - Page 4 (Stamp) Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-8IDML is in conformity with in accordance with 89/336 EEC-EMC Directive EN 61000-3-2* EN 60555-2 EN 61000-3-3* EN 60555-3 EN 50081-1...
- Page 5 GA-8IDML Series P4 Titan-SDRAM Motherboard USER’S MANUAL Pentium 4 Processor Motherboard ® Rev. 2.0 Sixth Edition 12ME-8IDML-2006...
-
Page 6: Table Of Contents
Item Checklist ...4 WARNING! ...5 Chapter 1 Introduction ...6 Summary of Features ... 6 GA-8IDML Series Motherboard Layout ... 8 GA-8IDML-LE Motherboard Layout ... 9 Chapter 2 Hardware Installation Process ... 10 Step 1: Install the Central Processing Unit (CPU) ... 11 Step 1-1:CPU Installation ... - Page 7 Integrated Peripherals ... 33 Power Management Setup ... 40 PnP/PCI Configurations ... 44 PC Health Status ... 46 Frequency/Voltage Control ... 48 Load Fail-Safe Defaults ... 49 Load Optimized Defaults ... 50 Set Supervisor/User Password ... 51 Save & Exit Setup ... 52 Exit Without Saving ...
-
Page 8: Revision History
Revision History Revision Revision Note Initial release of the GA-8IDML Series motherboard user's manual. Second release of the GA-8IDML Series motherboard user's manual. Third release of the GA-8IDML Series motherboard user's manual. Fourth release of the GA-8IDML Series motherboard user's manual. -
Page 9: Warning
WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. Unplug your computer when working on the inside. -
Page 10: Chapter 1 Introduction
Chapter 1 Introduction Summary of Features Form Factor ? 24.4cm x 22.4cm Micro ATX size form factor, 4 layers PCB. Motherboard ? GA-8IDML Series Motherboard: GA-8IDML and GA-8IDML-C ? Socket 478 for Intel ? ?Support Intel ? Intel Pentium ? 2nd cache depend on CPU... - Page 11 CPU, chipset and most of the peripherals. Whether your system can run under these specific bus frequencies properly will depend on your hardware configurations, including CPU, Chipsets,SDRAM,Cards… .etc. "*" Only for GA-8IDML. Introduction...
-
Page 12: Ga-8Idml Series Motherboard Layout
GA-8IDML Series Motherboard GA-8IDML Series Motherboard Layout CPU_FAN KB_MS USB_VS F_AUDIO AC97 CT5880* CD_IN RTL8100* "*" Only for GA-8IDML. SOCKET478 AUX_12V Brookdale PCI1 PCI2 BATTERY PCI3 ICH2 F_PANEL FRONT USB... -
Page 13: Ga-8Idml-Le Motherboard Layout
GA-8IDML-LE Motherboard Layout USB_VS CPU_FAN KB_MS F_AUDIO AUX_12V AC97 CD_IN1 SOCKET478 Brookdale PCI1 PCI2 BATTERY PCI3 Hardware Installation Process ICH2 F_PANEL FRONT USB... -
Page 14: Chapter 2 Hardware Installation Process
GA-8IDML Series Motherboard Chapter 2 Hardware Installation Process To set up your computer, you must complete the following setps: Step 1- Install the Central Processing Unit (CPU) Step 2- Install memory modules Step 3- Install expansion cards Step 4- Connect ribbon cables, cabinet wires, and power supply... -
Page 15: Step 1: Install The Central Processing Unit (Cpu)
Step 1: Install the Central Processing Unit (CPU) Step 1-1:CPU Installation Pin1 indicator CPU Top View Socket Actuation Lever 1. Pull up the CPU socket level and up to 90-degree angle. 3. Press down the CPU socket lever and finish CPU installation. ? Please make sure the CPU type is supported by the motherboard. -
Page 16: Step 1-2: Cpu Heat Sink Installation
GA-8IDML Series Motherboard Step 1-2: CPU Heat Sink Installation 1. Hook one end of the cooler bracket to the CPU socket first. ? Please use Intel approved cooling fan. ? Make sure the CPU fan power cable is plugged in to the CPU fan connector, this completes the installation. -
Page 17: Step 2: Install Memory Modules
Step 2: Install memory modules The motherboard has 2 dual in-line memory module (DIMM) sockets support 4 banks. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Sl o t .The DIMM module can only fit in one di r ection due to the two notch. Memory size can vary between sockets. -
Page 18: Step 3: Install Expansion Cards
GA-8IDML Series Motherboard Step 3: Install expansion cards 1. Read the related expansion card’s instruction document before install the expansion card into the computer. 2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer. 3. Press the expansion card firmly into expansion slot in motherboard. -
Page 19: Step 4: Connect Ribbon Cables, Cabinet Wires, And Power Supply
Step 4: Connect ribbon cables, cabinet wires, and power supply Step 4-1: I/O Back Panel Introduction ? PS/2 Keyboard and PS/2 Mouse Connector PS/2 Mouse Connector (6 pin Female) PS/2 Keyboard Connector (6 pin Female) ? Parallel Port and Serial Ports (COMA/COMB) Parallel Port (25 pin Female) COMA... -
Page 20: Audio Connectors
NT with SP 6) supports USB controller. If your OS does not support USB controller, please contact OS vendor for pos- sible patch or driver upgrade. For more information please contact your OS or device(s) vendors. "*" Only for GA-8IDML. -
Page 21: Step 4-2: Connectors Introduction
Step 4-2: Connectors Introduction A CPU_FAN B ATX C IR D PWR_FAN E FLOPPY F IDE1/IDE2 G SYS_FAN H F_PANEL Hardw are Installation Process FRONT_USB J BATTERY K WOL L CD_IN M AUX_12V N F_AUDIO O USB_VS... - Page 22 GA-8IDML Series Motherboard A / D / G : CPU_FAN / PWR_FAN / SYS FAN Connector CPU_FAN B : ATX Power +12V 5V SB (Stand by +5V) Power Good 3.3V 3.3V ? AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard.
- Page 23 E / F : Floppy / IDE1 / IDE2 Connector L : CD_IN N: F_AUDIO Connector There are two types of Front Audio connector, please refer to the tables below before you install. Type 1 Rear Audio(L) Front Audio(L) Rear Audio(R) Front Audio(R) +12V Incase Speaker (R)
- Page 24 GA-8IDML Series Motherboard C:IR IRTX IRRX ? Be careful with the polarity of the IR connector while you connect the IR. Please contact you nearest dealer for optional IR device. I :Front USB J:Battery WARNING ? Danger of explosion if battery is incorrectly replaced.
-
Page 25: Chapter 3 Bios Setup
Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Power ON the computer and press <Del>... -
Page 26: The Main Menu (For Example: Bios Ver. :F1)
GA-8IDML Series Motherboard GETTING HELP Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. -
Page 27: Integrated Peripherals
Integrated Peripherals This setup page includes all onboard peripherals. Power Management Setup This setup page includes all the items of Green function features. PnP/PCI Configurations This setup page includes all the configurations of PCI & PnP ISA resources. PC Health Status This setup page is the System auto detect T emperature, voltage, fan, speed. -
Page 28: Standard Cmos Features
GA-8IDML Series Motherboard Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Standard CMOS Features Date (mm:dd:yy) Time (hh:mm:ss) ?IDE Primary Master ?IDE Primary Slave ?IDE Secondary Master ?IDE Secondary Slave Drive A Drive B Floppy 3 Mode Support... - Page 29 Time The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military- time clock. For example, 1 p.m. is 13:00:00. IDE Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard di s k from drive C t o F that has been installed in the computer. There are two types: auto type, and manual type.
- Page 30 GA-8IDML Series Motherboard Floppy 3 Mode Support (for Japan Area) Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive. Drive B Drive B is 3 mode Floppy Drive. Both Drive A & B are 3 mode Floppy Drives.
-
Page 31: Base Memory
Memory The category is display-onl y which is determi n ed by POST (Power On Self T est) of the BIOS. Base Memory The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512 K for systems with 512 K memory installed on the motherboard, or 640 K for systems with 640 K or more memory installed on the motherboard. -
Page 32: Advanced Bios Features
GA-8IDML Series Motherboard Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Advanced BIOS Features First Boot Device Second Boot Device Third Boot Device Boot Up Floppy Seek Boot Up Num-Lock Password Check MPS Version Control For OS HDD S.M.A.R.T. Capability... -
Page 33: Boot Up Numlock
Boot Up Fl oppy Seek During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360 K type is 40 tracks 720 K, 1.2 M and 1.44 M are all 80 tracks. Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note that BIOS can not tell from 720 K, 1.2 M or 1.44 M drive type as they are all 80tracks. -
Page 34: Advanced Chipset Features
GA-8IDML Series Motherboard Advanced Chipset Features CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Advanced Chipset Features Configure DRAM Timing ?CAS Latency Time ?Active to Precharge Delay ?DRAM RAS# to CAS# Delay ?DRAM RAS# Precharge ?Refresh Mode Select DRAM Data Integrity Mode... - Page 35 SDRAM RAS# to CAS# delay Set SDRAM RAS# to CAS# delay 3 SCLKs. Set SDRAM RAS# to CAS# delay 2 SCLKs.(Default value) SDRAM RAS# Precharge Set SDRAM RAS# Precharge Time to 3. (Default value) Set SDRAM RAS# Precharge Time to 2. Refresh Mode Select 7.8 usec Set active to Refresh mode timing is 7.8 usec.
- Page 36 GA-8IDML Series Motherboard AGP Graphics Aperture Size AGP Graphics Aperture Size is 4MB. AGP Graphics Aperture Size is 8MB. AGP Graphics Aperture Siz e is 16MB AGP Graphics Aperture Siz e is 32MB. AGP Graphics Aperture Siz e is 64MB.(Def ault Value) AGP Graphics Aperture Siz e is 128MB.
-
Page 37: Integrated Peripherals
Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Integrated Peripherals On-Chip Primary PCI IDE On-Chip Secondary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA USB Controller... - Page 38 GA-8IDML Series Motherboard Parallel Port Mode ?EPP Mode Select ?ECP Mode Use DMA AC BACK Function ????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults Figure 5: Integrated Peripherals On-Chip Primary PCI IDE Enabled Enable onboard 1st channel IDE port. (Default value) Disabled Disable onboard 1st channel IDE port.
- Page 39 IDE Secondary Slave PIO (for onboard IDE 2nd channel) Auto BIOS will automatically detect the IDE HDD Accessing mode. (Default value) Mode0~4 Manually set the IDE Accessing mode. IDE Primary Master UDMA Auto BIOS will automatically detect the IDE HDD Accessing mode. (Default value) Disabled Disable UDMA function.
- Page 40 Bios will automatically detect onboard AC97 Modem. (Default value) Disabled Disabled AC97 Modem. Onboard LAN* Enable Enable onboard LAN function.(Default value) Disable Disable onboard LAN function. Onboard Sound* Enable Enable onboard LAN function. (Default value) Disabled Disabled onboard LAN function. "*" Only for GA-8IDML.
-
Page 41: Keyboard Power On
Mouse Power On Disabled Disabled this function. (Default value) Mouse Click Power On by Mouse click. Keyboard Power On Password Enter from 1 to 5 characters to set the Keyboard Power On Password. Disabled Disabled this function. (Default value) Keyboard 98 If your keyboard have “POWER Key”... -
Page 42: Uart Mode Select
GA-8IDML Series Motherboard Onboard Ser ial Port 2 Auto BIOS will automatically setup the port 2 address. 3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8. 2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8. (Default Value) 3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8. -
Page 43: Parallel Port Mode
Use IR Pins IR-Rx2Tx2 Enable On Board LPT port and address is 378.(Default Value) RxD2,TxD2 Enable On Board LPT port and address is 278. OnBoard Par allel port 378/IRQ7 Enable On Board LPT port and address is 378.(Default Value) 278/IRQ5 Enable On Board LPT port and address is 278. -
Page 44: Power Management Setup
GA-8IDML Series Motherboard Power Management Setup CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Power Management Setup ACPI Suspend Type ?USB Device Wake-Up From S3 Power Management Video Off Method Video Of f In Suspend Suspend Type MODEM Use IRQ Suspend Mode... -
Page 45: Power Management
ACPI Sleep Type S1/POS Set ACPI Sleep Type to S1/POS (Power On Suspend). (Default value) S3/STR Set ACPI Sleep Type to S3/STR (Suspend To RAM). USB Dev Wakeup From S3 Enabled Enable USB Device Wakeup From S3. Disabled Disable USB Device Wakeup From S3. (Default value) Power Management For configuring our own power management features User Define... -
Page 46: Modem Use Irq
GA-8IDML Series Motherboard MODEM Use IRQ Set MODEM Use IRQ to NA. Set MODEM Use IRQ to 3.(Default value) Set MODEM Use IRQ to 4. Set MODEM Use IRQ to 5. Set MODEM Use IRQ to 7. Set MODEM Use IRQ to 9. - Page 47 Modem Ring On/ Wak eOnLAN Disabled Disabled Modem Ring On / Wake On LAN function. Enabled Enabled Modem Ring On / Wake On LAN function. (Default Value) RTC Alarm Power On You can set “RTC Alarm Power On” item to enabled and key in Data/time to power on system.
-
Page 48: Pnp/Pci Configurations
GA-8IDML Series Motherboard PnP/PCI Configurations CMOS Setup Utility-Copyright (C) 1984-2001 Award Software PnP/PCI Configurations Resources Controlled By ?IRQ Resources PCI1 IRQ Assignment PCI2 IRQ Assignment PCI3 IRQ Assignment ????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults... - Page 49 BIOS Setup PCI3 IRQ Assignment Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9.,10,11,12,14,15 Set 3,4,5,7,9,10,11,12,14,15 to PCI3.
-
Page 50: Pc Health Status
GA-8IDML Series Motherboard PC Health Status CMOS Setup Utility-Copyright (C) 1984-2001 Award Software PC Health Status VCORE +3.3V + 5V +12V - 12V Current System Temperature Current CPU Temperature Current CPU FAN Speed Current POWER FAN Speed Current SYSTEM FAN speed... -
Page 51: Cpu Warning Temperature
CPU Warning Temperature 60° C / 140° F Monitor CPU T emp. at 60° C / 140° F. 70° C / 158° F Monitor CPU T emp. at 70° C / 158° F. 80° C / 176° F Monitor CPU T emp. at 80° C / 176° F. 90°... -
Page 52: Frequency/Voltage Control
GA-8IDML Series Motherboard Frequency/Voltage Control CMOS Setup Utility-Copyright (C) 1984-2001 Award Software Frequency/Voltage Control CPU Clock Ratio CPU Host Clock Control CPU Host Frequency(MHz) Host/DRAM Clock ratio Memory Frequency(MHz) PCI/AGP Frequency(MHz) ????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults... -
Page 53: Load Fail-Safe Defaults
Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2001 Award Software ?Standard CMOS Features ?Advanced BI O S Features ?Advanced Chi p set Features ?Integrated Peripherals ?Power Management Setup Load Fail-Safe Defaults? (Y/N)?Y ?PnP/PCI Configurations ?PC Healt h Status ESC:Quit F10:Save & Exit Setup Load Fail-Safe Defaults Figure 10: Load Fail-Safe Defaults Load Fail-Safe Defaults... -
Page 54: Load Optimized Defaults
GA-8IDML Series Motherboard Load Optimized Defaults CMOS Setup Utility-Copyright (C) 1984-2001 Award Software ?Standard CMOS Features ?Advanced BI O S Features ?Advanced Chi p set Features ?Integrated Peripherals ?Power Management Setup ?PnP/PCI Configurations Load Optimized Defaults? (Y/N)?Y ?PC Healt h Status ESC:Quit F10:Save &... -
Page 55: Set Supervisor/User Password
Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2001 Award Software ?Standard CMOS Features ?Advanced BI O S Features ?Advanced Chi p set Features ?Integrated Peripherals ?Power Management Setup ?PnP/PCI Configurations Enter Password: ?PC Healt h Status ESC:Quit F10:Save & Exit Setup Change/Set/Disable Password Figure 12: Password Setting When you select this function, t h e following message will appear at the center of the screen to assist you... -
Page 56: Save & Exit Setup
GA-8IDML Series Motherboard Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2001 Award Software ?Standard CMOS Features ?Advanced BI O S Features ?Advanced Chi p set Features ?Integrated Peripherals ?Power Management Setup ?PnP/PCI Configurations Save to CMOS and EXIT (Y/N)? Y... -
Page 57: Exit Without Saving
Exit Without Saving CMOS Setup Utility-Copyright (C) 1984-2001 Award Software ?Standard CMOS Features ?Advanced BI O S Features ?Advanced Chi p set Features ?Integrated Peripherals ?Power Management Setup ?PnP/PCI Configurations Quit Without Saving ( Y/N)? N ?PC Healt h Status ESC:Quit F10:Save &... -
Page 58: Chapter 4 Technical Reference
GA-8IDML Series Motherboard Chapter 4 Technical Reference Revision History Performance List The following performance data list is the testing results of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users. -
Page 59: Block Diagram
Block Diagram AGP 4X AGPCLK (66MHz) 3 PCI RTL8100(B)L Creative CT5880 PCICLK (33MHz) AC97 Game Port CODEC PCICLK (33MHz) USBCLK (48MHz) 14.318 MHz 33 MHz Technical Reference CPUCLK+/- (100MHz) Pentium 4 System Bus 100MHz 100/133 MHz SDRAM Intel HCLK+/- (100MHz) 82845 MCHCLK (66MHz) 66 MHz... -
Page 60: Four Speaker & Spdif Introduction
GA-8IDML Series Motherboard Four Speaker & SPDIF Introduction Four Speaker Introduction A. What is Four Speaker? The Creative CT5880 audio chip can support up to 4 speaker output. If you select “Four speaker out”, Line In will be reconfigured as another line out to support a second pair of speakers. - Page 61 Microsoft Windows Me setup procedure: C. Four Speaker Application The four speaker function will only be supported in application softwares that use Microsoft DirectX and Creative EAX, for example, the game titles, software DVD player and MP3 player. Technical Reference Go to “Control Panel”...
-
Page 62: Spdif Introduction
GA-8IDML Series Motherboard SPDIF Introduction A. What is SPDIF? The SPDIF output is capable of providing digital signal to AC3 decoder which can support upto 5.1 speakers. B. How to use SPDIF? Click your mouse right button in “My Computer”... - Page 63 Recommend you to select “Autosense”, It will automatically detect the type (mono or stereo) of the audio connector that you plug into Line Out audio jack, then configure Line Out to either SPDIF or Speaker accordingly. Technical Reference Click “Settings” item and select the “Output Mode”...
-
Page 64: Bios Introduction
Certainly, you wonder why motherboard vendors could not just do something right to save your time and effort and save you from the lousy BIOS updating work? H ere it comes! Now Gigabyte announces @BIOS— the first Windows BIOS live update utility. This is a smart BIOS update software. -
Page 65: Easy Tuneiii Tm Introduction
Now everything is different because of a Windows overdrive utility EasyTuneIII— announced by Gigabyte. This utility has totally changed the gaming rule of “overdrive”. This is the first overdrive utility suitable for both normal and power users. Users can choose either “Easy Mode” or “Advanced Mode”... -
Page 66: Chapter 5 Appendix
GA-8IDML Series Motherboard Chapter 5 Appendix Revision History Picture below are shown in Windows ME (VUCD driver version 1.8) Appendix A: Intel 845 Chipset Driver Installation A. Windows 9x/ME/2000/XP INF Update Utility: Insert the support CD that came with your motherboard into your CD-ROM driver or double – click the CD driver icon in My Computer to bring up the screen. - Page 67 Revision History Appendix B: Creative CT5880 Chipset Driver Installation Insert the support CD that came with your motherboard into your CD-ROM driver or double click the CD driver icon in My Computer to bring up the screen. 1.Click "Creative CT5880 Sound Driver" item.
