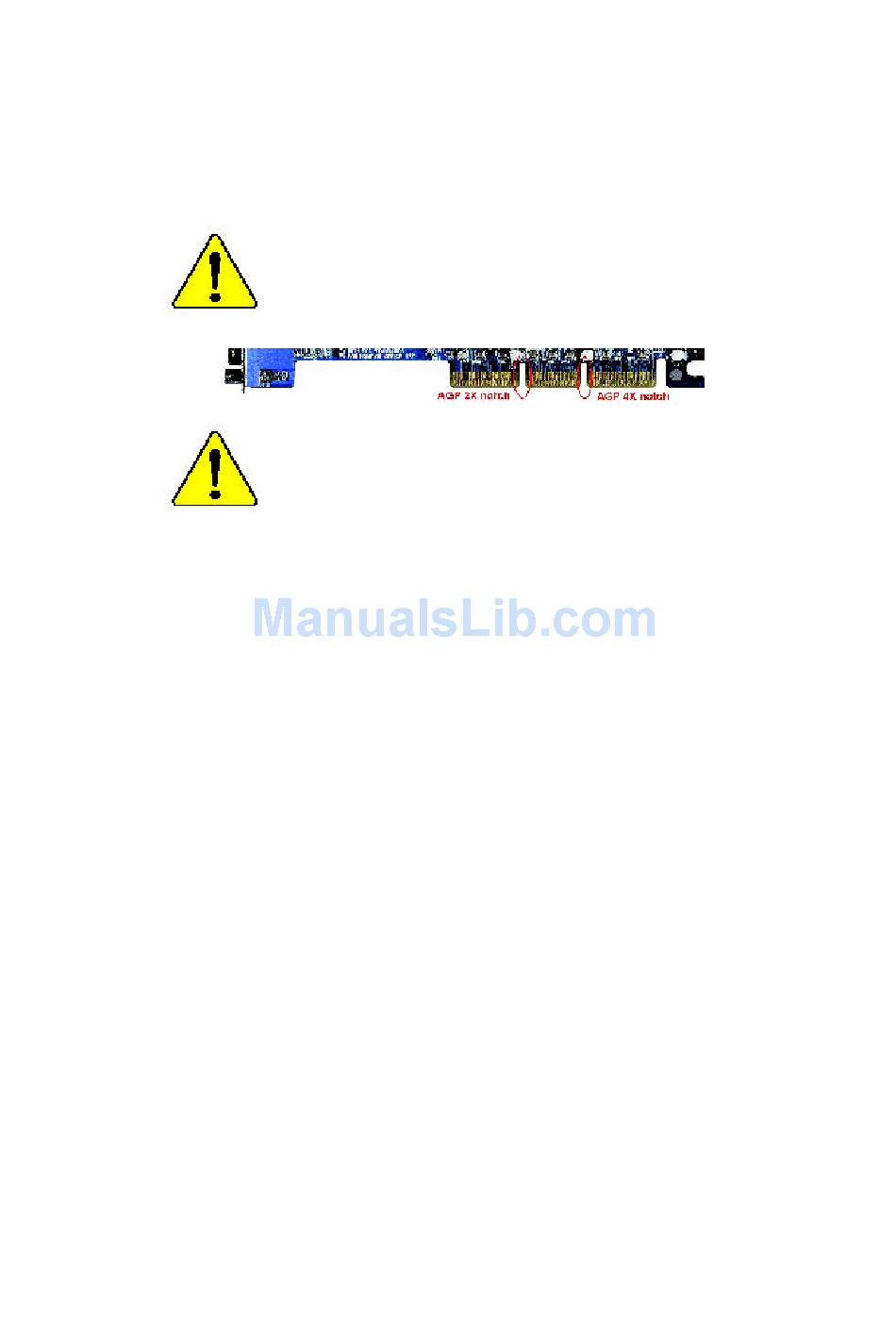

When you installing AGP card, please make sure the follow
ing notice is fully understood and practiced. If your AGP
card has "AGP 4X notch"(show below), please make sure
your AGP card is AGP 4X (1.5V).
Do not use AGP 2X card (3.3V) in this motherboard. It will
burn and damage the motherboard due to Intel
®
845 (E/G)/
Intel
®
850(E) chipset can't support AGP 2X(3.3V).
Example 1: Diamond Vipper V770 golden finger is compatible
with 2X/4X mode AGP slot. It can be switched between AGP 2X
(3.3V) or 4X(1.5V) mode by adjusting the jumper. The factory
default for this card is 2X(3.3V). If you install this card in
GA-8IGMK (or any AGP 4X only) motherboards without
switching the jumper to 4X mode (1.5V), it will burn the
motherboard.
Example 2: Some ATi Rage 128 Pro graphics cards made by
" Power Color" , the graphics card manufacturer & some SiS 305
cards, their golden finger is compatible with 2X/4X mode AGP
slot, but they support 2X(3.3V) only. If you install this card in
GA-8IGMK (or any AGP 4X only) motherboards, it will burn the
motherboard.
Note : Although Gigabyte's AG32S(G) graphics card is based on
A Ti Rage 128 Pro chip, the design of AG32S(G) is compliance
with AGP 4X (1.5V) specification. Therefore, AG32S (G)will work
fine with Intel
845(E/G) / 850(E) based motherboards.
®
