Check the LEDs

When power is connected, the access point LEDs light up. The illustration and the following table describe the

LEDs and their functions.

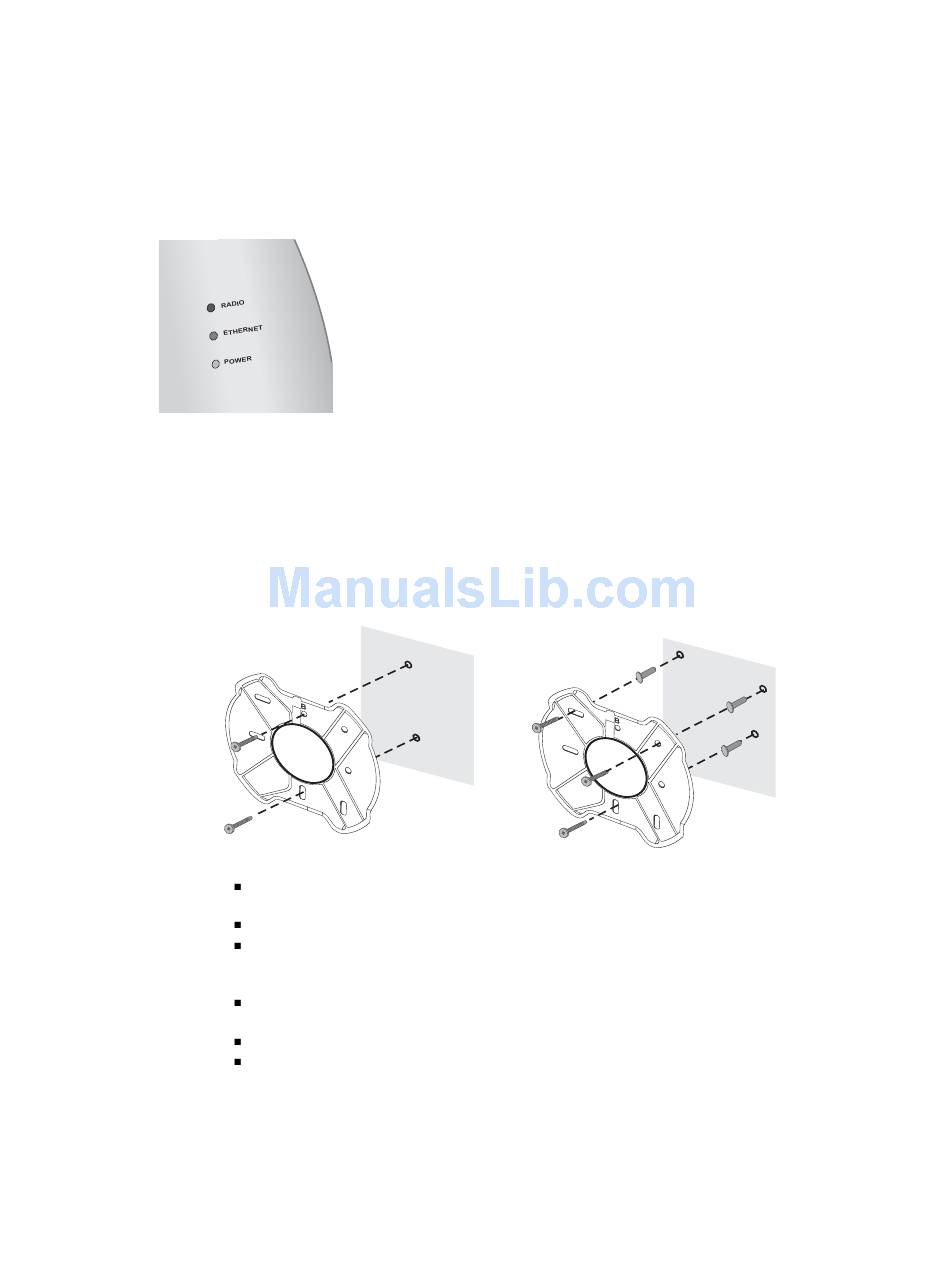

Install the mounting plate as shown in the following illustration, on either a stud (or other

hard wall surface), or onto drywall.

If installing into a stud or other

secure vertical surface, use 2 screws.

Allow for a clearance of at least 25 cm (10 inches) between the ceiling and the top of the

mounting plate.

Orient the bracket with the letter "B" at the top of the bracket.

For installation on a wall stud, install the top screw into the stud, as shown at left in the

illustration, and then vertically align the mounting plate before installing the

bottom screw.

For installation on to drywall, mark three screw holes using the mounting plate as a

template for vertical alignment, as shown at right in the illustration above.

Use a 5-mm (3/16-in.) drill bit if using the plastic anchors provided.

For drywall mounts, you can route the cable through the center opening for a seamless

appearance using one of the methods illustrated below. Alternatively, you can simply

attach the Ethernet cable to the top of the unit, allowing it to trail along the wall.

Name

Description

Radio

LED blinks red to indicate radio activity. Faster blinking

indicates more activity.

Ethernet

LED lights yellow when 10 Mbps Ethernet link is

established. LED lights green when 100 Mbps Ethernet

link is established. LED blinks to indicate activity on the

Ethernet. Faster blinking indicates more activity.

Power

LED lights green when operational code is running. LED

lights yellow when a power-on fault occurs.

If installing into drywall, use 3 plastic

anchors and 3 screws
