Programmer's Guide, cont'd

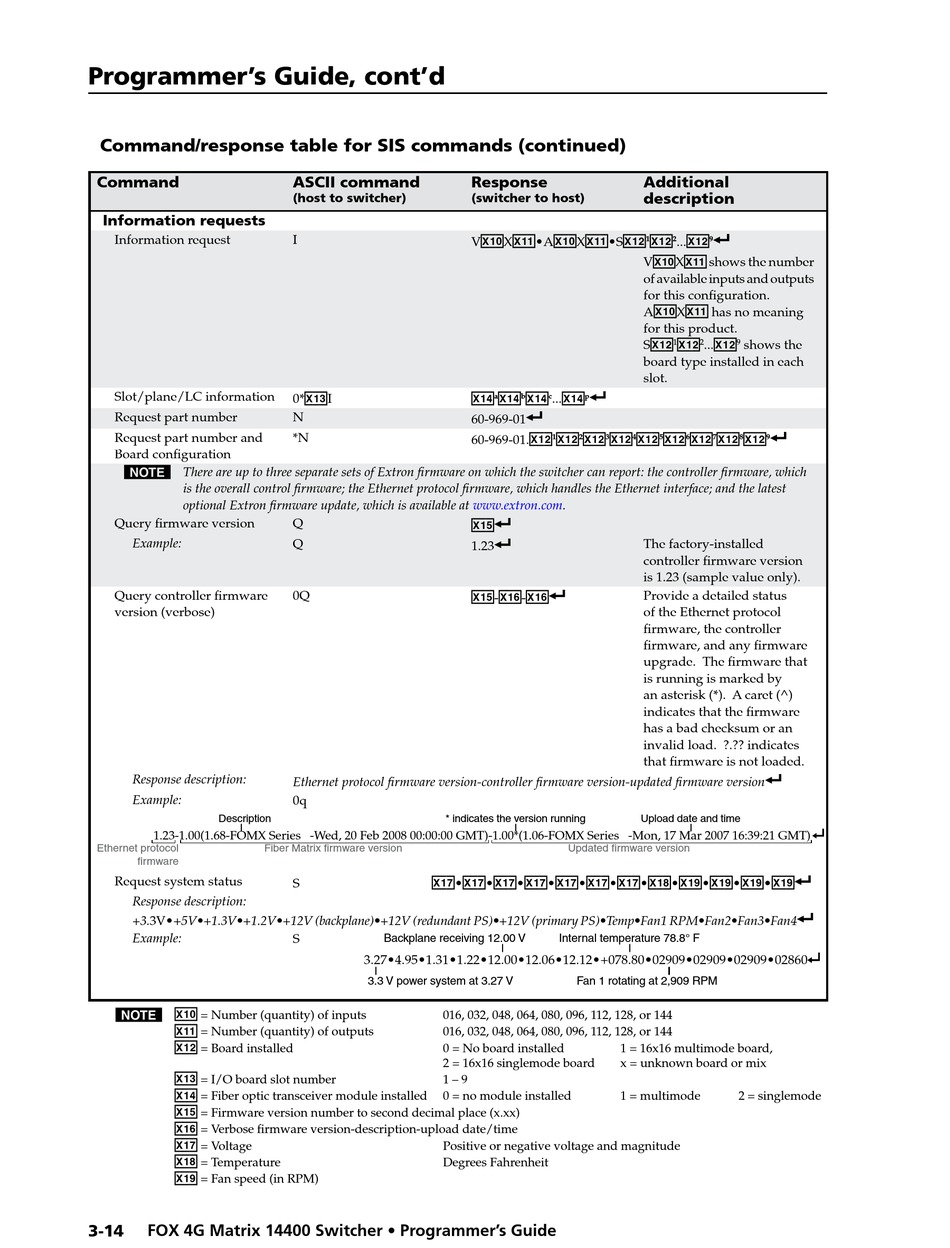

Command/response table for SIS commands (continued)
Command
Information requests
Information request
Slot/plane/LC information
Request part number
Request part number and
Board configuration
N There are up to three separate sets of Extron firmware on which the switcher can report: the controller firmware, which
is the overall control firmware; the Ethernet protocol firmware, which handles the Ethernet interface; and the latest
optional Extron firmware update, which is available at www.extron.com.
Query firmware version
Example:
Query controller firmware
version (verbose)
Response description:
Example:
Description
1.23-1.00(1.68-FOMX Series -Wed, 20 Feb 2008 00:00:00 GMT)-1.00*(1.06-FOMX Series -Mon, 17 Mar 2007 16:39:21 GMT)
Ethernet protocol Fiber Matrix firmware version
firmware
Request system status
Response description:
+3.3V•+5V•+1.3V•+1.2V•+12V (backplane)•+12V (redundant PS)•+12V (primary PS)•Temp•Fan1 RPM•Fan2•Fan3•Fan4
Example:
X1)
N = Number (quantity) of inputs
X1!
= Number (quantity) of outputs
X1@
= Board installed
X1#
= I/O board slot number
X1$
= Fiber optic transceiver module installed
X1%
= Firmware version number to second decimal place (x.xx)
X1^
= Verbose firmware version-description-upload date/time
X1&
= Voltage
X1*
= Temperature
X1(
= Fan speed (in RPM)
3-14 FOX 4G Matrix 14400 Switcher • Programmer's Guide
