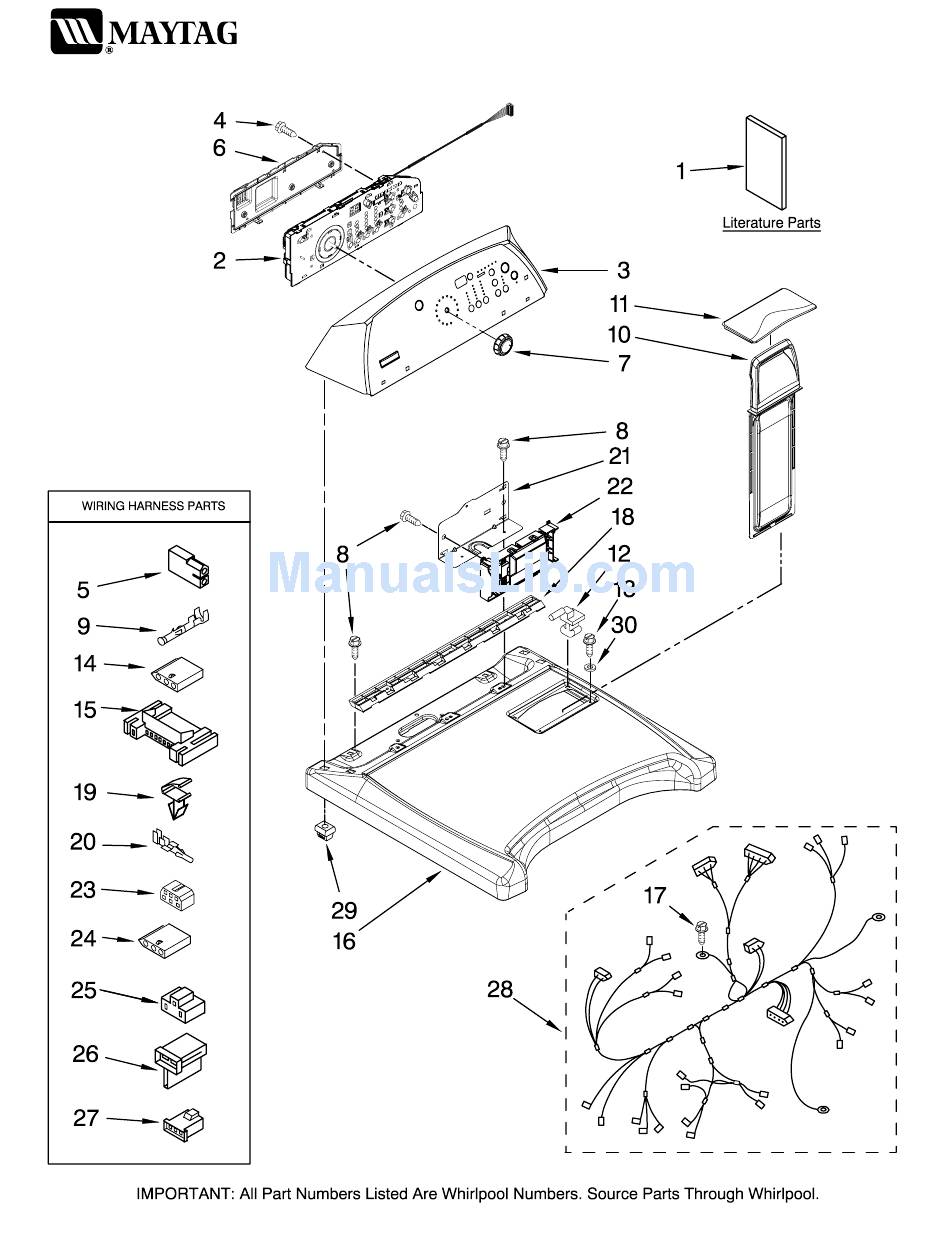

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Models: MGD6300TQ0 (White) Part No. W10131677 Rev.A. 3−07 Litho in U.S.A. (LT)
- Page 2 4 W10003770 Screw, 6−19 x 3/64 717252 Plug, 2 Way Terminal 8564265 Cover, Rear UI−Assembly 7 W10110196 Knob, Assembly 337686 Screw, 8−18 x 1/2 TOP AND CONSOLE PARTS For Models: MGD6300TQ0 (White) Illus. Part DESCRIPTION 94614 Terminal, Female 8572270 Assembly, Lint Screen 11 W10044320 Cover, Lint Screen 12 W10044470 Hinge, R.H.
-
Page 3: Cabinet Parts
CABINET PARTS For Models: MGD6300TQ0 (White) W10131677... - Page 4 Assembly 3389420 Retainer−Idler 1/4−20 x 1/16 12 W10050060 Filler−Door 8578538 Belt Restrainer 8578560 Hole−Plug 8565018 Assembly, Hinge & Pin CABINET PARTS For Models: MGD6300TQ0 (White) Illus. Part DESCRIPTION 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.) 342055 Screw, 8−18 3/64...
- Page 5 BULKHEAD PARTS For Models: MGD6300TQ0 (White) W10131677...
- Page 6 BULKHEAD PARTS For Models: MGD6300TQ0 (White) Illus. Part DESCRIPTION 8544805 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3387459 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3196537 Screw 8539889 Harness, Flame Switch 8577274 Thermister, Internal−Bias...
-
