Installation
Clearance from the drive to any other surface (except mounting surfaces) must be a
minimum of 1.25 mm (0.05 inches).

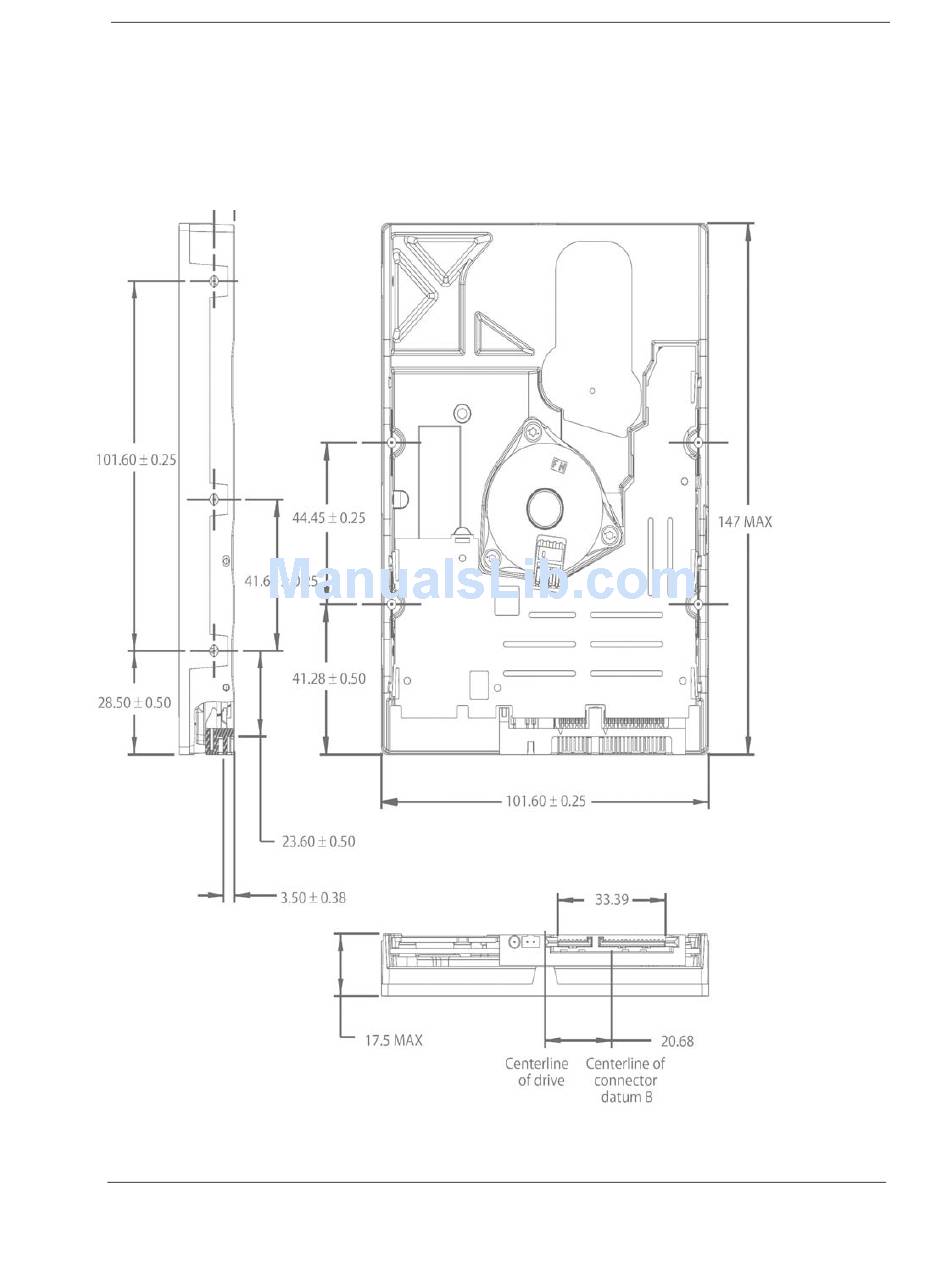

Mounting Dimensions and Clearance
Figure 4-6
Maxtor DiamondMax 8S 40GB SATA
4-8
