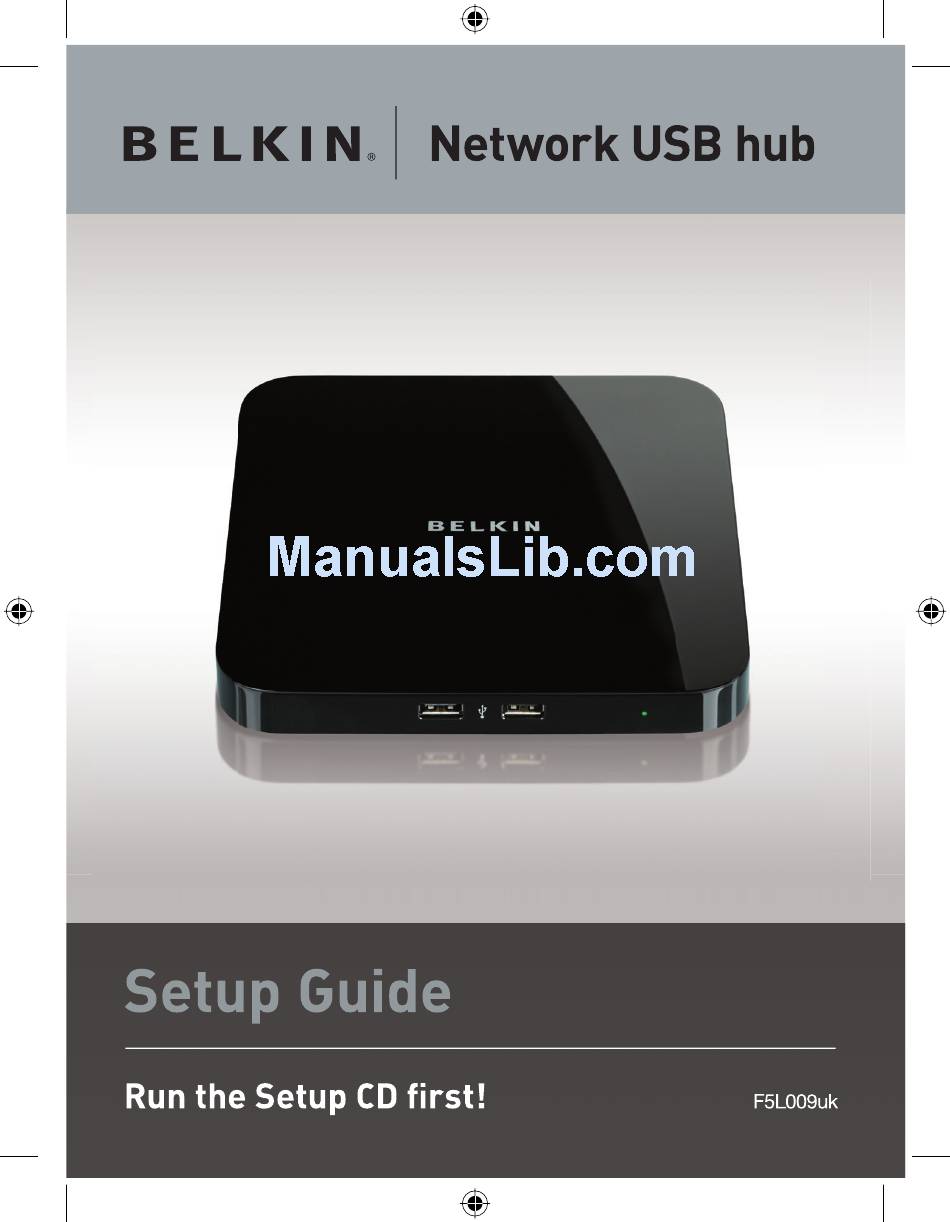

Belkin F5L009UK Setup Manual
Belkin F5L009UK Setup Manual

Belkin F5L009UK Setup Manual

Network usb hub
Hide thumbs Also See for F5L009UK:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the F5L009UK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belkin F5L009UK

  • Page 2 Knowing your Network USB Hub Power LED USB-port Reset button USB-port Power Port Ethernet-port Knowing your Network USB Hub...
  • Page 3: Preparing For Setup

    1. Preparing for Setup Plug the AC adapter into the Network USB Hub. Check the Power LED. It should be illuminated. Plug the Ethernet cable into the Network USB Hub. Plug the other end of the Ethernet cable into your network router. : If you are connected to a network router that uses Dynamic NOTE Host Configuration Protocol (DHCP), which most networks do,...
  • Page 4: Installing The Software

    2. Installing the Software IMPORTANT: If you do not install the software on your PC, the Network USB Hub will not work. Insert the setup CD into your CD-ROM drive. You will see the Network USB Hub Setup CD screen. Click “Install Control Center”.
  • Page 5 Choose a destination folder in which to install the software, or simply click “Next”. Next Choose the program group for the software, or simply click “Next”. Next Installing the Software...
  • Page 6 Start the installation. Click “Start”. Start Installation is complete. Click “Finish” Finish Installing the Software...
  • Page 7: Using The Network Usb Hub Control Center

    3. Using the Network USB Hub Control Center Connected to this computer – Currently being used Unavailable – Removed from the device Not Connected – Available Not Connected – Not available Setting and Configuring the Connection Settings for Automatic Connection to a Device You can connect to a device by double-clicking the device on the list, or by selecting it on the list, and then clicking “Connect”, on the bottom of the screen.
  • Page 8 Select a device to which you want to automatically connect. Click “Properties”. Properties Click to select the “Connection” tab. Click “Automatically connect this device when the Control Center starts”. The next time the software starts, the computer will automatically connect to the device for your convenience.
  • Page 9 4. Confi guring Printer Sharing Install the printer software and driver first. Select the printer from the list and click “Connect”. It will install the printer driver for the first time. Select the printer and click “Properties”. If you want to share a printer among computers on the network, select “This is a shared printer, automatically connect and disconnect only when printing”.
  • Page 10: Appendix - Operation/Compatibility Notes

    Appendix – Operation/Compatibility Notes Certain USB devices may not be compatible with the Hub. Since the Network USB Hub uses virtual network technology, some USB devices (e.g., TV tuners, webcams, USB audio devices) may not be compatible with it. You may see a warning message like the one illustrated below. WLAN connection The Network USB Hub’s virtual network technology may not work properly if the WLAN connection is interrupted.
