I N S T A L L A T I O N
ELEFUJ42-SML
Static Wall Mount
With Lateral Shift
Prior to assembly, unpack carton completely
and verify contents. If you are missing any of
the following components, please contact
Technical Support at 1-800-776-5768.

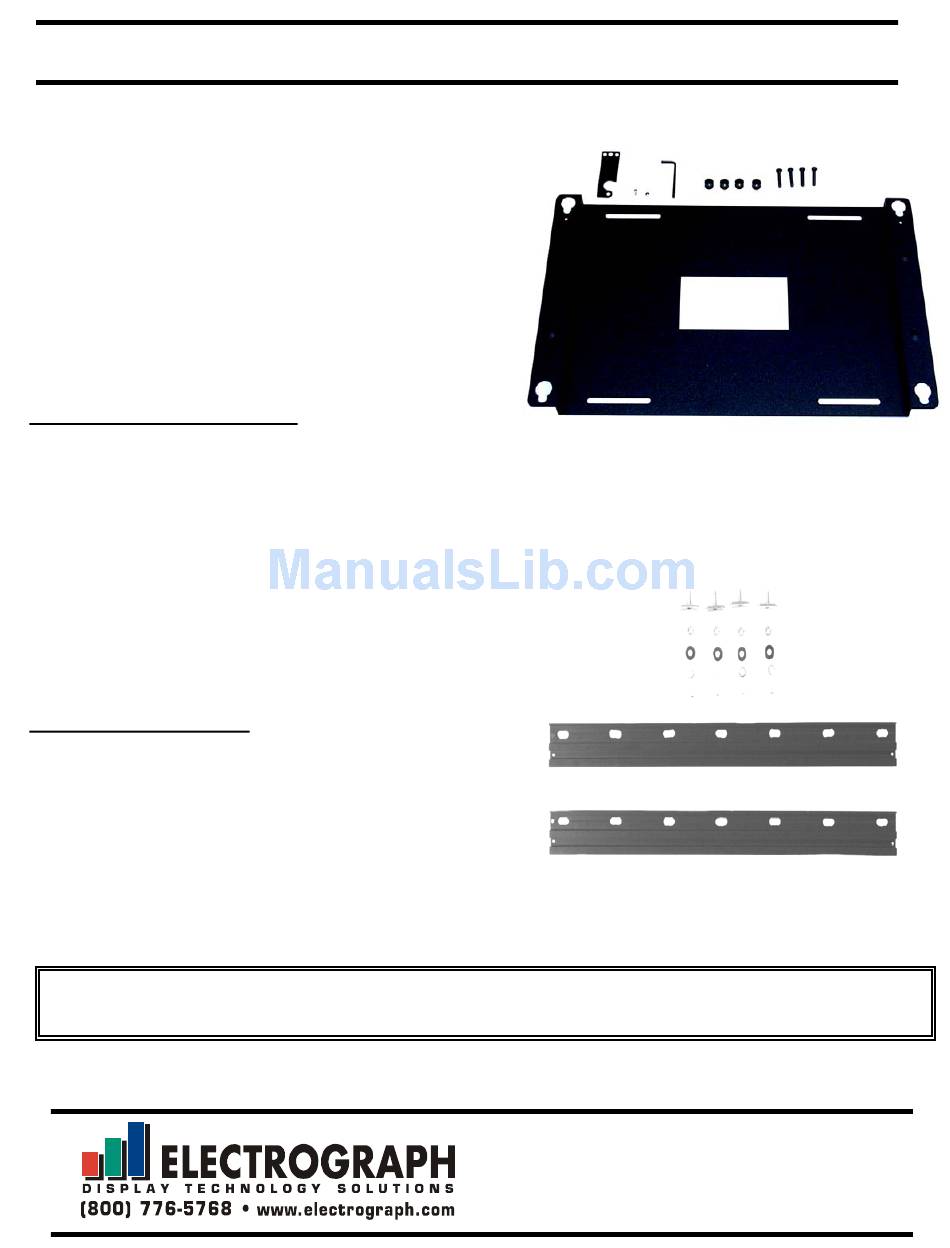

Static Wall Mount Components
(1) PLASMA STATIC WALL MOUNT
(2) LATCH, SAFETY
(2) 10-24 X .5 FH UNDERCUT SCREW
(2) WASHER, NYLON
(2) NUT, NYLOCK, 10-24
(4) M8 X 25MM BUTTON HEAD CAP SCREWS
(4) MOUNTING BUTTONS-BLACK
(1) WRENCH, ALLEN, M5
Lateral Shift Components
(2) LATERAL SHIFT EXTRUSIONS
(4) STUDS, 5/16-18 Threaded
(4) NUTS, T-slot 5/16-18
(4) WASHERS, Lock 5/16
(4) WASHERS, Flat 5/16
(4) SCREWS, Panhead Self Tapping
8 x .25
(4) NUTS, Hex 5/16-18
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
CAUTION: PLASMA DISPLAYS ARE EXTREMELY FRAGILE!
I N S T R U C T I O N S
Static Wall Mount
Components
Lateral Shift
Components
PART NO. ELEFUJ420-SML
©2003
Printed in USA 05-03
Advertisement
Table of Contents
Related Manuals for Electrograph ELEFUJ42-SML
Summary of Contents for Electrograph ELEFUJ42-SML
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S ELEFUJ42-SML Static Wall Mount With Lateral Shift Prior to assembly, unpack carton completely and verify contents. If you are missing any of the following components, please contact Technical Support at 1-800-776-5768.
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS READ COMPLETELY BEFORE PROCEEDING Assemble Lateral Shift SELF TAPPING SCREW T-SLOT NUT ASSEMBLIES SELF TAPPING Figure 1 SCREW Figure 2 1. Install the four threaded studs into the four T-slot nuts. 2. Insert two T-slot nut assemblies into each of the lateral shift extrusions (Figure 1). 3. - Page 3 ALL COMPONENTS MUST BE SECURELY FASTENED TO A STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE EQUIPMENT WARNING BEING MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 150 POUNDS (68.04 KG).
