I N S T A L L A T I O N
ELESAN42-PRO
Mounting Bracket
Prior to assembly, unpack carton completely and verify contents. If you are missing any of the following
components, please contact Technical Support at 1-800-776-5768.

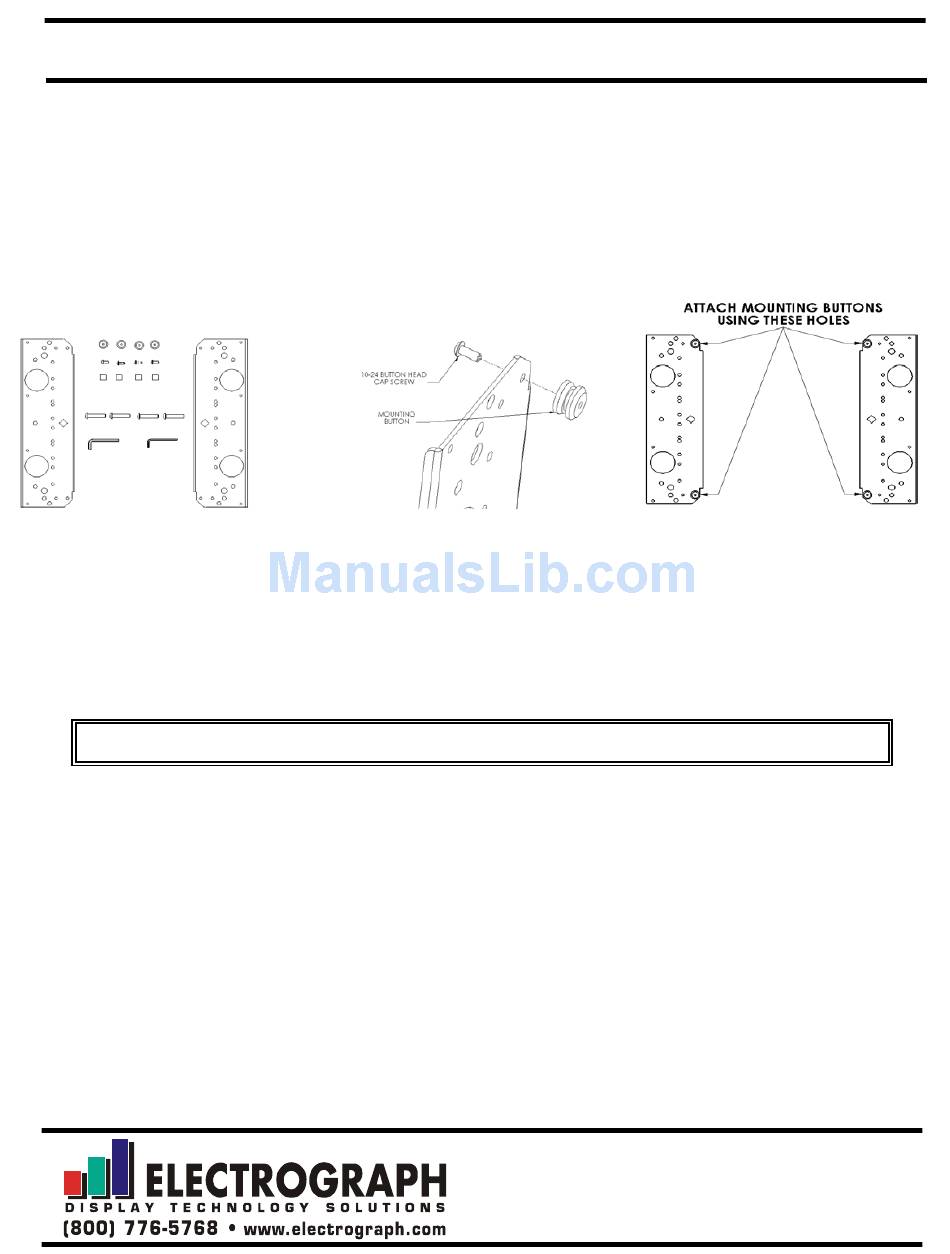

Figure 1
(2)
Plasma Side Bracket
(4)
Mounting Button – Tapped 10-24
(12) M5 X 20mm Phillips Head Cap Screw
CAUTION:
READ INSTALLATION INSTRUCTIONS COMPLETELY
Instructions
1. Prior to assembly, unpack carton completely and verify contents. Refer to Figure 1.
2. Using a 10-24 button head cap screw inserted from back side of bracket through holes, secure mounting
button, with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see
Figure 2 & Figure 3).
PLASMA DISPLAYS ARE EXTREMELY FRAGILE!
BEFORE PROCEEDING
I N S T R U C T I O N S
Figure 2
(12)
.75 x .266 x .313 Nylon Spacer
(4)
10-24 x .5 Button Head Cap Screw
(1)
1/8" Allen Key
Figure 3
PART NO. ELESAN42-PRO(L)
Printed in USA 07-04
©2003
Advertisement
Table of Contents
Related Manuals for Electrograph ELESAN42-PRO
Summary of Contents for Electrograph ELESAN42-PRO
- Page 1 2. Using a 10-24 button head cap screw inserted from back side of bracket through holes, secure mounting button, with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see Figure 2 & Figure 3). PART NO. ELESAN42-PRO(L) ©2003 Printed in USA 07-04...
- Page 2 Figure 5 Figure 4 Instructions (cont’d) 3. Place Nylon spacers on mounting holes and align hole pattern on brackets with pattern on back of display (see Figure 4 & Figure 5). Attach bracket using the M5 screws. With the aid of another person, lift the display up to the mount, aligning buttons of mounting brackets with slots in the mount.
