I N S T A L L A T I O N
ELESAM42-SM
Static Wall Mount

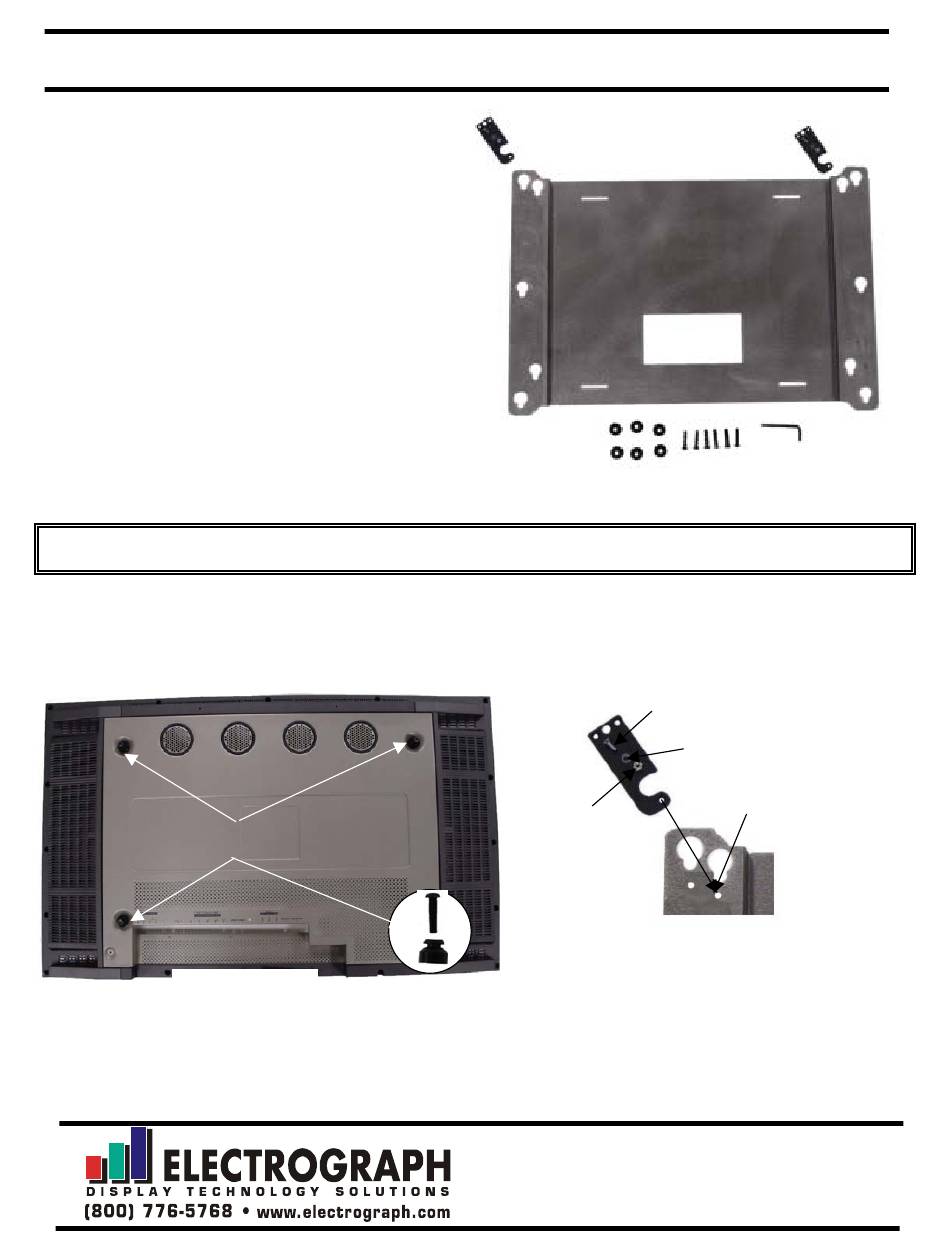

Prior to assembly, unpack carton completely and
verify contents. If you are missing any of the
following components, please contact Technical
Support at 1-800-776-5768.
(1) BRACKET, PLASMA MOUNTING, STATIC
(6) SCREWS, M8 X 35MM BUTTON HEAD CAP
(6) MOUNTING BUTTONS, NYLON STEPPED, PAN STYLE
(1) ALLEN KEY, 5MM
(2) LATCHING FLAG
(2) 10-24 X .5 FH UNDERCUT SCREW
(2) NYLON WASHER
(2) 10-24 NYLOCK NUT
READ INSTALLATION INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
Mounting Button
Locations
Figure 2
1. Attach four mounting buttons to plasma using four M8 x 35mm button head cap screws
provided (see Figure 2
2. Secure two latching flags to Plasma Static Mount using one 10-24 x .5 FH Undercut
Screw, one Nylon Washer, and one 10-24 Nylock Nut for each flag (See Figure 3).
CAUTION: PLASMA DISPLAYS ARE EXTREMELY FRAGILE!
).
I N S T R U C T I O N S
10-24 x .5 FH
Undercut Screw
10-24 Nylock Nut
installed from underside
Figure 1
Nylon Washer
between flag & mount
Latching Flag
(Note outer
hole location)
Figure 3
PART NO. ELESAM42-SM
©2002
Printed in USA 08-02
Advertisement
Related Manuals for Electrograph ELESAM42-SM
Summary of Contents for Electrograph ELESAM42-SM
- Page 1 (see Figure 2 2. Secure two latching flags to Plasma Static Mount using one 10-24 x .5 FH Undercut Screw, one Nylon Washer, and one 10-24 Nylock Nut for each flag (See Figure 3). PART NO. ELESAM42-SM ©2002 Printed in USA 08-02...
- Page 2 Securely anchor the plasma static mount to the wall using wall studs or supporting framework (See Figure 4). 4. Make sure the flags are lowered before attempting to place the plasma on the mount. With the aid of another person, lift the plasma display up to the mount, align the mounting buttons on the plasma with the teardrop slots in the mount, and set the plasma into place.
