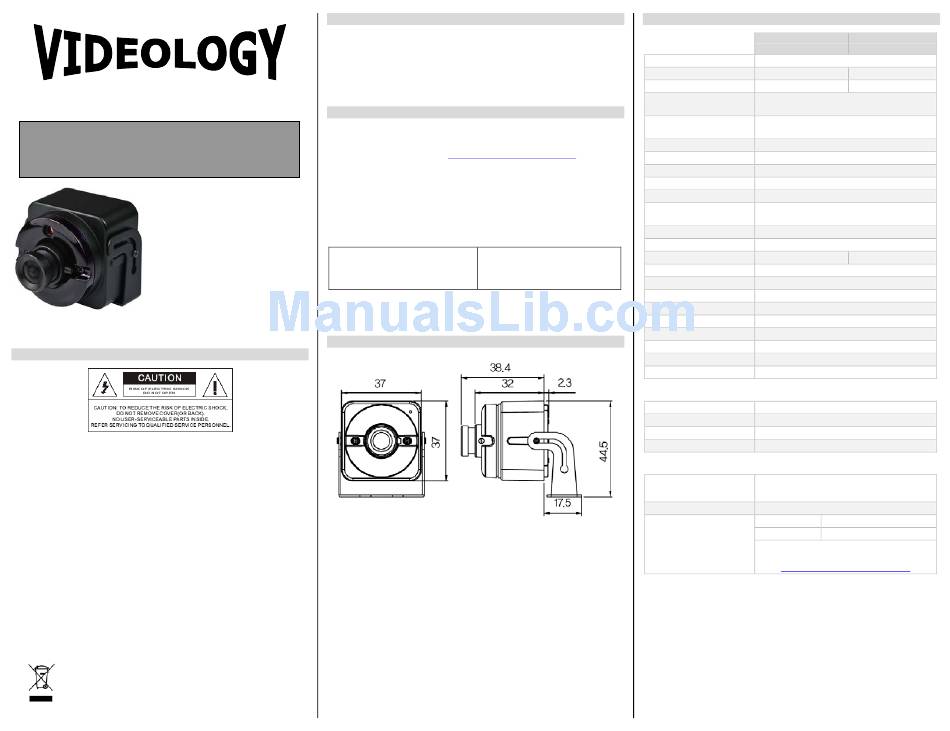

Videology 20H705IR NTSC Instruction Manual

High resolution mini color ir camera

Advertisement

Quick Links

IMAGING SOLUTIONS INC.
Original Equipment Manufacturer
Instruction Manual
Miniature IR Camera
2XH705IR Series
2XH705IR
2XH705IR-1
High Resolution Mini Color IR Camera
CAUTION AND WARNING
1. Please read/follow all instructions and heed all warnings before
operating the camera.
2. If the camera is to be mounted outdoors a secondary waterproof
enclosure should be used.
3. To reduce the risk of fire or electric shock, the camera cannot be
exposed to water or moisture.
4. Installing the camera in a humid, dusty or sooty location may
cause fire or electric shock.
5. Use the camera within the specified temperature (-10℃ ~ 50℃).
6. Handle with care. Dropping it can cause serious damage to the
camera.
7. Avoid aiming the camera directly at the sun or other very bright
objects as this may damage the image sensor.
8. If this camera fails to operate normally, contact your distributor
or Videology Imaging Solutions. Never disassemble or modify
this product in any way.
9. Use an AC adaptor 12VDC, 500mA regulated.
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which is
not harmful to the environment.
10/31/13 INS-20H705IR Rev B
BOX CONTENTS
• CAMERA - 20H705IR (NTSC) OR 21H705IR (PAL)
• LENS
• ADJUSTABLE MOUNTING BRACKET
• POWER/ VIDEO CABLE
CONTACT INFORMATION
For technical assistance with this product, please contact the
supplier from whom the product was purchased.
Please visit our website at:
VIDEOLOGY IMAGING SOLUTIONS is an ISO 9001 registered video
camera developer and manufacturer serving industrial, machine
vision, biometric, security, and specialty OEM markets.
3.6mm fixed lens
Videology designs, develops, manufactures, and distributes video,
6mm fixed lens
image acquisition, and display technologies and products to OEMs
worldwide.
For OEM inquiries:
North/South America
37M Lark Industrial Parkway
Greenville, RI 02828
email: support@videologyinc.com
DIMENSIONS
Preliminary
http://www.videologyinc.com
Europe
Neutronenlaan 4
NL-5405 NH Uden, Netherlands
email:support@videology.nl
SPECIFICATIONS
Electrical
20H705IR
(NTSC)
Image Sensor
1/3" Sony Super Had II CCD
Effective Pixels (H x V)
768 x 494
Pixel Size (H x V)
6.35µm x 7.4µm
Resolution
650 TVL Color
720 TVL B&W
Sensitivity
0 Lux (10M Range): LED ON
0.01 Lux (F/1.2): LED OFF
Signal To Noise Ratio
>52dB (AGC Off)
Gamma
0.45 (adjustable)
Gain
Low/ Middle/ High / Off
Synchronization
Scan Mode
2:1 Interlaced
Back Light
OFF/ BLC/ HLC/ DWDR
Compensation
White Balance
ATW (2,500°k ~ 9,500°k)/ Manual/ AWC
Day/Night Mode
Electronic (Auto/ color/ B&W)
Shutter Speed
1/60 – 1/100,000
Motion Detection
ON/ OFF (4 ZONES)
Mirror Mode
DNR (3D)
Auto/ Low/ Middle/ High/ Off
Privacy Zone
On/ Off (8 Zones)
Iris Controls
Electronic (No DC signal)
Video Output
Composite Video 1Vp-p (75 Ohms)
Power Supply
Regulated 12VDC (+/- 10%)
Power Consumption
OSD Control
Yes (Multi language)
Environmental
Operating Temperature
-10°C ~ 50°C (-14°F ~ 122°F)
Operating Humidity
20% ~ 93% RH
Storage Temperature
-20°C ~ 60°C (-4°F ~ 140°F)
Storage Humidity
Up to 98% RH
Mechanical
Dimensions W x H x D
37mm x 37mm x 38.4mm
(1.46" x 1.46" x 1.52")
Weight
100g (3.52oz)
Lens
2XH705IR
2XH705IR-1
Please refer to Videology's board mount
lens guide for options.
www.videologyinc.com/lenses
21H705IR
(PAL)
752 x 582
6.5µm x 6.25µm
Internal
1/50 – 1/100,000
ON/ OFF
< 250mA
3.6mm fixed lens
6mm fixed lens
