Prior to Using This Document: Videology reserves the right to modify the information in this
document as necessary and without notice. It is the user's responsibility to be certain they possess the
most recent version of this document by going to www.videologyinc.com, searching for the model
number, and comparing revision letters on the respective document, located in the document's footer.
For technical assistance with this product, please contact the supplier from whom the product was
purchased.
Videology
®
Imaging Solutions, Inc.
37M Lark Industrial Parkway
Greenville, Rhode Island 02828 USA
Tel: (401) 949 – 5332 Fax: (401) 949 – 5276
Americas, Middle East, Far East & Australia sales:
sales@videologyinc.com
Doc # INS-24RS2.0SW-EXSDI
Revision: A
IMAGING SOLUTIONS INC.
Original Equipment Manufacturer
Instruction Manual

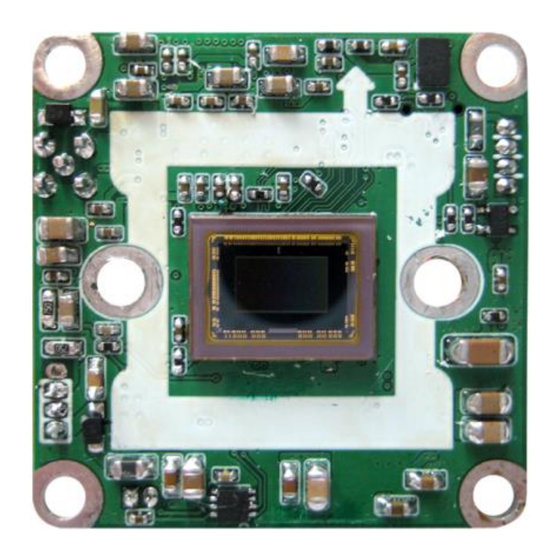

24RS2.0XW-EXSDI
Videology
®
Imaging Solutions, Europe B.V.
5405 NH Uden, The Netherlands
Tel: +31 (0) 413 256261 Fax: +31 (0) 413
Europe & N. Eurasia sales:
Issue Date: 11/27/2017
Page 1 of 19
Neutronenlaan 4
251712
info@videology.nl
Advertisement
Table of Contents
Related Manuals for Videology 24RS2.0XW-EXSDI
Summary of Contents for Videology 24RS2.0XW-EXSDI
- Page 1 Instruction Manual 24RS2.0XW-EXSDI Prior to Using This Document: Videology reserves the right to modify the information in this document as necessary and without notice. It is the user’s responsibility to be certain they possess the most recent version of this document by going to www.videologyinc.com, searching for the model number, and comparing revision letters on the respective document, located in the document’s footer.
- Page 2 The Software is licensed, not sold, to you for use only under the terms of this Agreement. Videology grants to you, the purchaser, the right to use all or a portion of this Software provided that the Software is used only in conjunction with Videology's family of products.
- Page 3 Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
- Page 4 Table of Contents Document History ........................5 Heading ..........................5 Dimensions ..........................5 OSD Menu Table ........................6 OSD Menu ..........................7 5.1. LENS (Default: MANUAL) ....................7 5.1.1. DC (auto iris) ......................7 5.1.2. MANUAL ........................7 5.2. FOCUS ASt........................7 5.3.
-
Page 5: Document History
1. Document History Revision Issue Date Reason Rev A 11-08-17 Initial release 17-0081 2. Heading • Ultra low light performance with SONY’s STARVIS sensor • Color 0.005 LUX, B/W 0.0001 LUX • Full HD 2MP HD-SDI/ EX-SDI camera • 1920x1080 @ 30/25fps •... -
Page 6: Osd Menu Table
4. OSD Menu Table Camera setup menu can be accessed and controlled by OSD controller. • EXIT: You can exit the menu with saving changed commands or by cancelling the changed commands. • RETURN: Returns to the previous menu. MENU SUB MENU CONFIGURATION MODE (INDOOR, OUTDOOR, DEBLUR) -
Page 7: Osd Menu
5. OSD Menu 5.1. LENS (Default: MANUAL) Choose either DC (auto iris) or MANUAL lens depending on which you intend to use with the camera. 5.1.1. DC (auto iris) DC is for when DC Auto iris Vari-focal lens is installed •... -
Page 8: Shutter
5.3.2. SHUTTER Selects AUTO, Manual of Flickerless. If SHUTTER is set to MANUAL, SENS-UP mode is inactivated. 5.3.2.1. AUTO Optimizes the video level by controlling the iris and the shutter speed automatically. • DEBLUR: The shutter is set to fixed values to remove any appearance of blur. •... -
Page 9: Backlight
5.4. BACKLIGHT When there is a strong backlight behind the object, clear images of the background as well as the object can still be obtained by using the BACKLIGHT function. 5.4.1. HLC (High Light Compensation) HLC (High Light Compensation): This function is used to suppress or mask a strong light source (for example, headlights of cars during nighttime) so that other subjects can be seen in more detail. -
Page 10: Wdr (Wide Dynamic Range)
5.4.3. WDR (Wide Dynamic Range) The WDR function works to correct excessive light within the frame to produce a usable image. When the image has simultaneous bright and dark areas, it makes both areas distinct. Video outputs image processed from two images by dual shutter (long and short shutter) in a field to provide the best dynamic range. -
Page 11: Day & Night
5.5. DAY & NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition. 5.5.1. EXTERN (Not supported) DAY or NIGHT is determined by the built-in light photo sensor. 5.5.2. AUTO Used when DAY or NIGHT is determined by light level through the lens and DAY from/to NIGHT is switched automatically by the scene brightness. -
Page 12: Color (Default: Color)
5.5.3. COLOR (Default: COLOR) The camera is always in COLOR mode. DAY/NIGHT is disabled and outputs color video. 5.5.4. B/W The camera is always in B/W mode. 5.5.4.1. SMART IR OFF (Available only with a built-in LED model) 5.5.4.2. ANTI-SAT. NOT USED (Available only if the SMART IR is ON in LED models) 5.6. -
Page 13: D-Nr (Digital Noise Reduction)
5.7. 3D-NR (Digital Noise Reduction) DNR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Settings are: off, low, middle or high level. 3DNR (3-dimensional noise reduction) which reduces noise. It is effective at low light. High level setting has the greatest noise reduction but loss of sharpness may occur. -
Page 14: Ace (D-Wdr, Works In Both Cvbs And Hd-Sdi)
5.8.5. ACE (D-WDR, Works in both CVBS and HD-SDI) This function illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark areas. -
Page 15: Motion
5.8.7.7. CR LEVEL Adjusts the mask color by CR LEVEL. (0: Green ~20: magenta) 5.8.7.8. TRANS. Selects transparency rate for the mask area from 0 to 3 0: Privacy mask is not transparent. 1: Privacy mask is 25% transparent. 2: Privacy mask is 50% transparent. 3: Privacy mask is 100% transparent. -
Page 16: Sensitivity
Please set ANALOG OUT0 to AHD MODE, TVI MODE or CVI MODE if CVBS video is necessary through sub-out port. * AHD, TVI and CVI not available on current model (24RS2.0XW-EXSDI). If ANALOG OUT0 is set to CVBS, there is no CVBS video through sub-out port, on OSD PCB. -
Page 17: Resolution
5.10.2. RESOLUTION Select the video resolution 1080p / 720p 1080p (1920x1080) video has frame rates of 25fps/30fps. 720p (1280x720) video has frame rates of 25fps/30fps / 50fps/60fps. 5.10.3. TV SYSTEM Selects HDTV standards for analog video output switches to 60HZ, US (NTSC) or 50HZ, EU (PAL) accordingly. -
Page 18: Specifications
6. Specifications Electrical 24RS2.0XW-EXSDI Image Sensor 2MP 1/2.8” STARVIS IMX291 sensor Effective Pixels 1920 x 1080 Scan Frequency 25 / 30hz / Progressive Video Format HD 16:9, CVBS 16:9 Video Output EX-SDI (1.0, 2.0) HD-SDI CVBS 1Vp-p ± 10%, 75Ω... -
Page 19: Contact Information
Fax: +31 (0) 413-251712 Please visit our website: videologyinc.com VIDEOLOGY IMAGING SOLUTIONS is an ISO 9001 registered video camera developer and manufacturer serving industrial, machine vision, biometric, security, and specialty OEM markets. Videology designs, develops, manufactures, and distributes video, image acquisition, and display technologies and products to OEMs worldwide.
