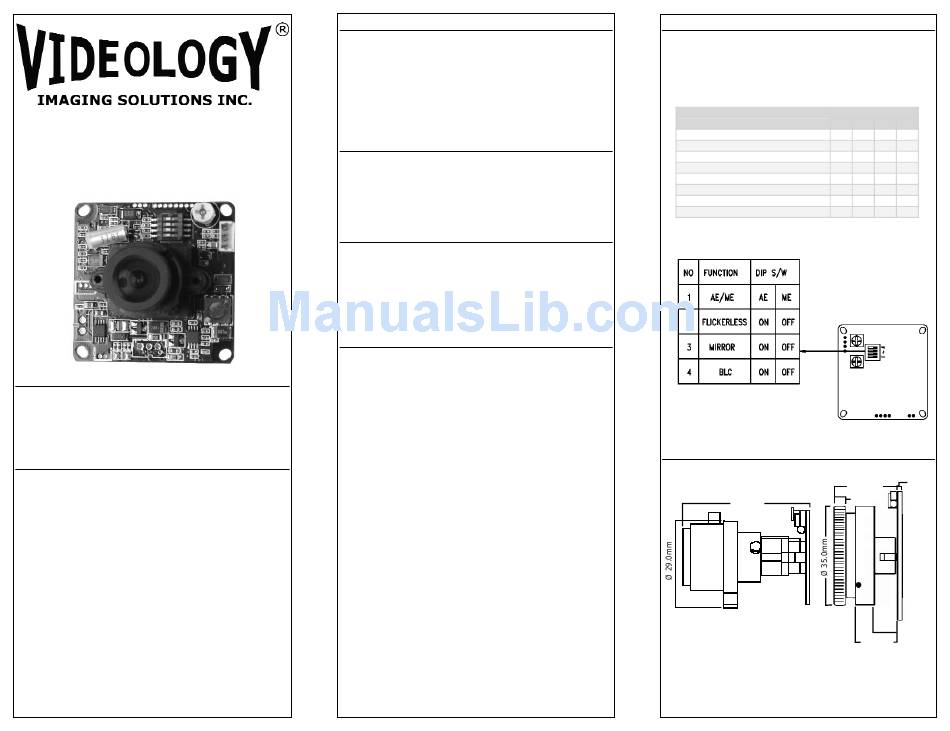

Videology 20E445 Operation Manual

Operation Manual
Standard Resolution
20E445 (NTSC) / 21E445 (PAL)
High Resolution
20E456 (NTSC) / 21E456 (PAL)

BOX CONTENTS

1. Camera module
2. Connection cable
3. User manual
SAFEGUARDS & WARNINGS
Prior to installation and use of this
product, the following WARNINGS should
only be observed.
1. Installation and servicing should only
be done by qualified service and
installation personnel.
2. Installation shall be done in accordance
with all local and national electrical and
Mechanical codes.
3. Use only installation methods and mate-
rials capable of supporting four (4) times
the maximum specified load.
*Only enginering samples have classic 4-pin DC iris
pinout connector for evaluation ease.
12/15/05 INS-20/21E445 - 20/21E456 Rev A

High Quality Picture

20E445/20E456 uses a Sony 1/3" CCD,
which has high sensitivity and low smear
and 10 bit A/D converter, the more image
data sensed by CCD can be processed to
reproduce a natural crisp and sharp pic-
tures.

Wide Operating Voltage Range

20E445/20E456 also has a wide operating
voltage range from 6V to 18V that offers
better reliability and flexible installation
both PAL and NTSC versions.

All Types of Lenses Available

20E456 is compatible with fixed focal lens-
es, C/CS mount lenses, and DC-drive vari-
focal lenses. This allows the installer more
flexibility when trying to set each cus-
tomer's desired angle of view.

Metal Lens Holder

Newly designed metal lens holder helps
increasing the reliability of security cam-
eras since it is hardly broken even by very
strong impact. Besides, since metal Lens
holder helps heat conduction of the CCD, it
reduces the defect possibility of the CCD
caused by high heat.

Dip Switch Function

The dip switch function offers convenience
by allowing features to be selected to opti-
mize the video image.
ADJUSTMENT
1
Mechanical iris (Using DC iris lens) ON
Electronic iris OFF
Flickerless on (1/100 sec.)
Flickerless off
Mirror mode on
Mirror mode off
Backlight Compensation on
Backlight Compensation off

Dimensions

50.0mm
VARI FOCAL LENS 4-9MM
M-12 MOUNT (20E445VA)
C & CS MOUNT
DIP SWITCH
2 3 4
ON
OFF
ON
OFF
ON
OFF
21.5mm
1.0mm
5.0mm
6.0mm
14.0mm
