Sanyo HEC-DR7700 Service Manual page 27

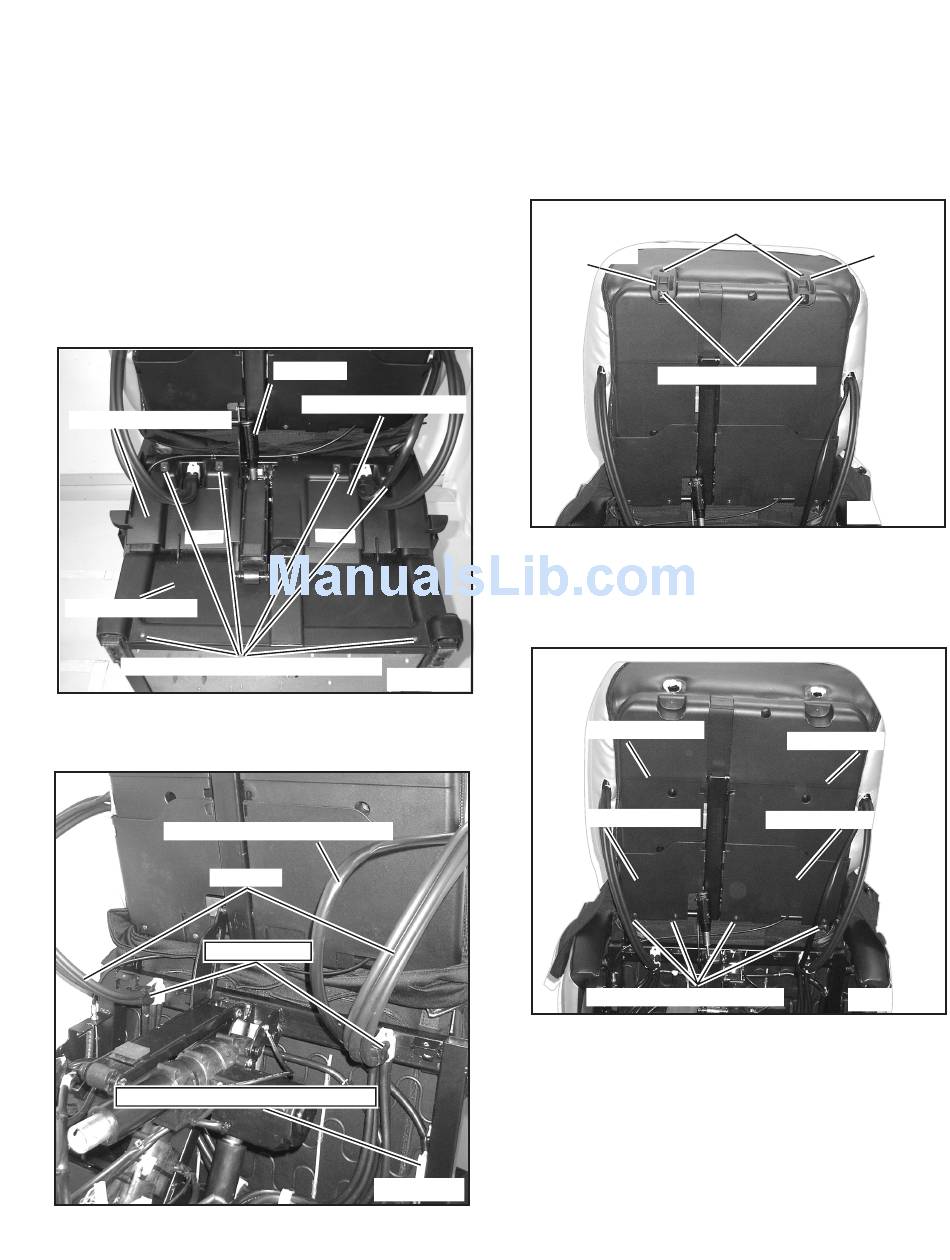

Replacement Procedure
(22) Replacement of Foot rest comp.
1, Defeat the main body so that a leg becomes
the top with the back possible.
2, Lift up a foot rest and insert a screwdriver
and so forth into a link to fix the link.
3, Remove six cover (under) set screws and
take off the cover (under upper)right ,cover
(under upper)left, cover (under front).
Cover (under upper)right
Cover (under fornt)
Cover (under upper,fornt) set screws
4, Disconnect each air hose and disconnect
connector assembly (HEATER B). Photo-41
Connector assemlby (HEATER B)
Air hose
Air hose joint
Connector assemlby (HEATER B) joint
Photo-40
Photo-40
Photo-40
Driver,etc
Cover (under upper)left
Photo-40
Photo-41
5, Remove four stand piece set screws and
take off the stand piece.
Stand piece
6, Remove four cover (leg upper) set screws
and take off the cover (leg upper) right ,
cover (leg upper) left.
Cover (leg lower) right
Cover (leg upper) right
Cover (leg upper) set screws
- 27 -
HEC-DR7700
Stand piece set screws
Stand piece
Stand piece set screws
Cover (leg lower) left
Cover (leg upper) left
Photo-42
Photo-42
Photo-43
Photo-43
