Summary of Contents for Drainvac Atomik

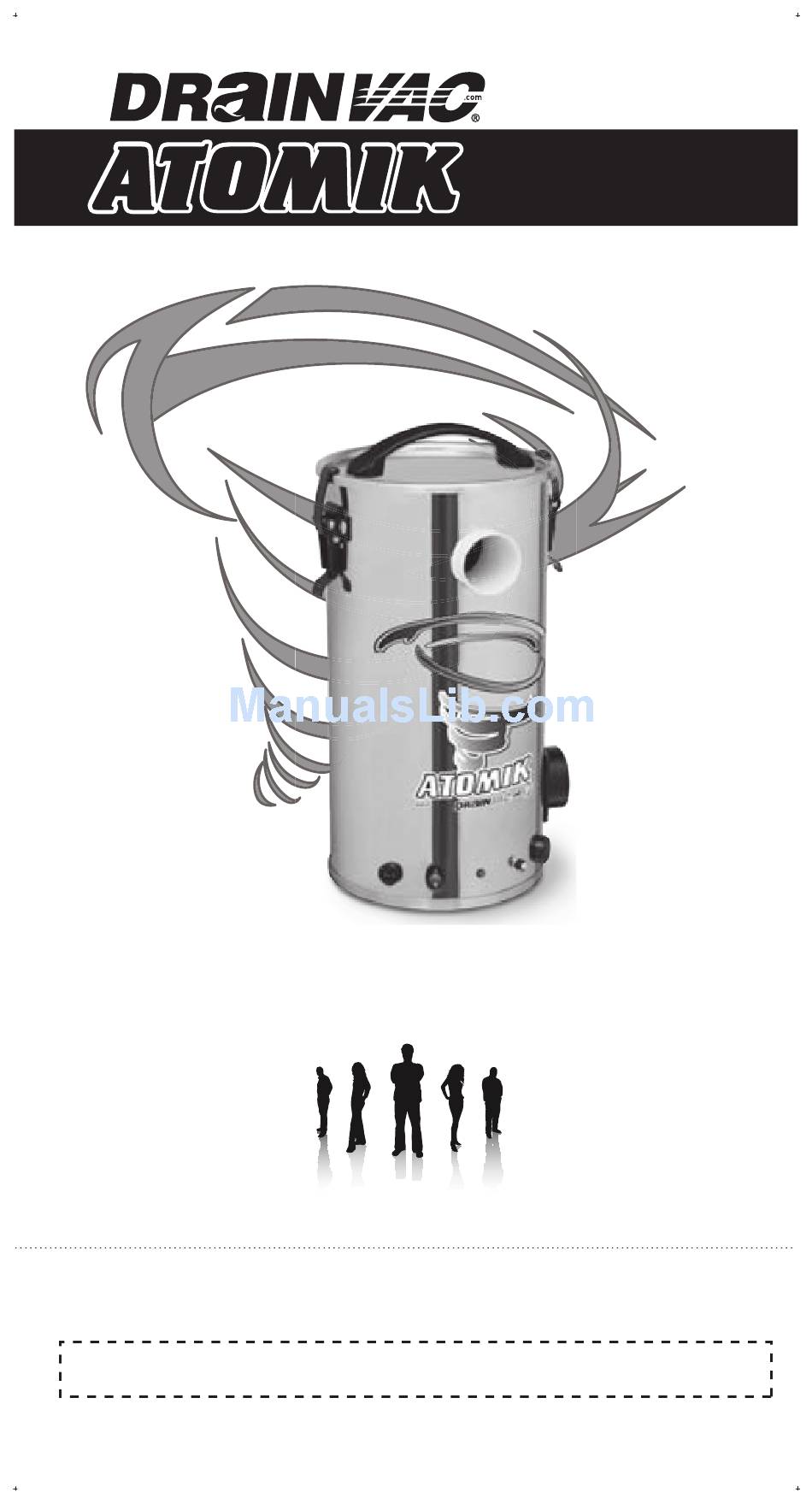

- Page 1 OWNER’S MANUAL *** Open the lid of the vacuum cleaner before using.***...
- Page 2 We take this opportunity to express our gratitude and extend our congratulations for your decision to purchase a Drainvac product. There’s a judicious investment you will enjoy for many years. The Drainvac Atomik central vacuum cleaner is built with the bests components available on the market.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tools required page 3 Equipment page 4 STEP 1 : Remove the unit from the packaging page 5 Unit dimensions page 6 Minimum space required page 7 Unit installation page 8 Installation of the Activac1 exhaust filter page 9 Installation, ready to use page 10... -
Page 4: Tools Required
TOOLS REQUIRED Pair of pliers Pair of cutters Phillips screw driver (star) Flat screw driver 2.25 ’’ – 57 mm 0.5’’ – 12,5 mm Measuring tape Hole saw Hand drill Mitre box & saw Pipe cutter... -
Page 5: Equipment
EQUIPMENT Clamps Wall bracket Entry Exhaust Power cord North America 120V International 240V Breaker - Fuse 24 volt North America 120V International 240V GreenLED On/Off button On ‘’I’’ position Off ‘’O’’ position Activac 1 exhaust filter 2 x Dust bags (One without zipper &... -
Page 6: Step 1 : Remove The Unit From The Packaging
STEP 1 *** Remove the Drainvac Atomik vacuum cleaner and the equipment from the packaging.*** *** Open the vacuum cleaner before using.*** 1 - Detach the clamps, remove the lid and take off the plastic bag. (The plastic bag included equipment for the installation of the unit. Keep it near the unit). -
Page 7: Unit Dimensions
UNIT DIMENSIONS Front view 9.75’’ (24.75cm) 15.5’’ (39.5cm) Side view 11’’ (28cm) -
Page 8: Minimum Space Required
MINIMUM SPACE REQUIRED TO INSTALL THE UNIT Front view Min.12’’ (30.5cm) Min.12’’ Min.9’’ (30.5cm) (22.75cm) Install the unit near an electrical outlet. 120 volt, 15amps 240 volt, 16amps Min.1’’ (2.5cm) Side view Min.18’’ (45.75cm) -
Page 9: Unit Installation
UNIT INSTALLATION How to install the unit? 1- Remove the wall plate that is attached to the back of the unit using the pair of cutters. Cut strap with the pair of cutters 2- Fasten the wall plate to the wall using the 4 x #1 screws included with the unit. -
Page 10: Installation Of The Activac1 Exhaust Filter
INSTALLATION OF THE EXHAUST FILTER Activac 1 exhaust filter Flat screw driver Collar Collar 90˚ medium abs elbow Flat screw driver... -
Page 11: Installation, Ready To Use
DRAINVAC ATOMIK, READY TO USE 2 x Collar Utility inlet PVC coupling Phillips screw driver (star) Flat screw driver 1 foot (30cm) 24 volt wire with connectors. -
Page 12: Installation On A Piping Network
INSTALLATION ON A PIPING NETWORK In a condo, in a garage, in a RV, in the mecanic room... Example : RV installation Power outlet 24 volt wire... -
Page 13: Electrical Installation
ELECTRICAL INSTALLATION The Drainvac Atomik vacuum cleaner is equipped with one electrical cord. An adequate electrical power outlet must be installed close to the unit. We strongly recommend installing an electrical circuit that will be used only by the unit. -
Page 14: Maintenance & Cleaning Procedures
MAINTENANCE AND CLEANING PROCEDURE All mechanical systems require a minimum of maintenance, your system is not an exception. Beyond the occasional external cleaning, we recommend a complete inspection of the motor brushes after 500 hours of usage. (1000ft /100 m2 represents 1 hour of usage for each use). For a house approximately 2500 sq. -
Page 15: Weee Directive
WEEE DIRECTIVE This appliance has been assessed in accordance with the European Parliament Directive on Waste Electrical and Electronic Equipment, usually referred to as the WEEE Directive. The WEEE Directive requires that the appliance be disposed of at the end of its useful life an in environmentally responsible manner. -
Page 16: Trouble Shooting
TROUBLE SHOOTING PROBLEM : The unit will not start 1 - Check the circuit breaker on your electrical panel. 2 - Check the circuit breaker of the unit. ( Image C1 ) 3 - Check the 24 volt circuit: To check the 24 volt circuit, proceed as follow ; - Establish the contact between the two ports of a wall mounted air inlet valve with a piece of metal (ex. -
Page 17: Kits A-B-C
KITS ZIP1021 ZIPBROOM kit 20’ (6m) extensible hose + tools, hose hanger and handle TGA30-6 Econo kit 30’ (9m) regular hose + brush, tools kit, hose hanger & telescopic handle KIT130C DELUXE kit 30’ (9m) on/off hose + brush, tools kit, accessory hanger &... -
Page 18: Accessories - Filters - Dust Bags
All illustrations, specifications, colors and photographs shown may vary. While Drainvac International takes care to ensure that the information contained in this publication is accurate, it cannot guarantee complete accuracy. Drainvac International is not responsible for errors or omissions contained in this publication. -
Page 19: Warranty
WARRANTY Warranty covers any defect in material or workmanship produces by Drainvac International Inc. It excludes damage caused by normal wear and tear, misuse & modification. RESIDENTIAL *see conditions 5 years for : Motor - Parts - Caissing - Labor... - Page 20 OWNER’S MANUAL DRAINVAC ATOMIK • PRINTED APRIL 4 -2011 .com...
