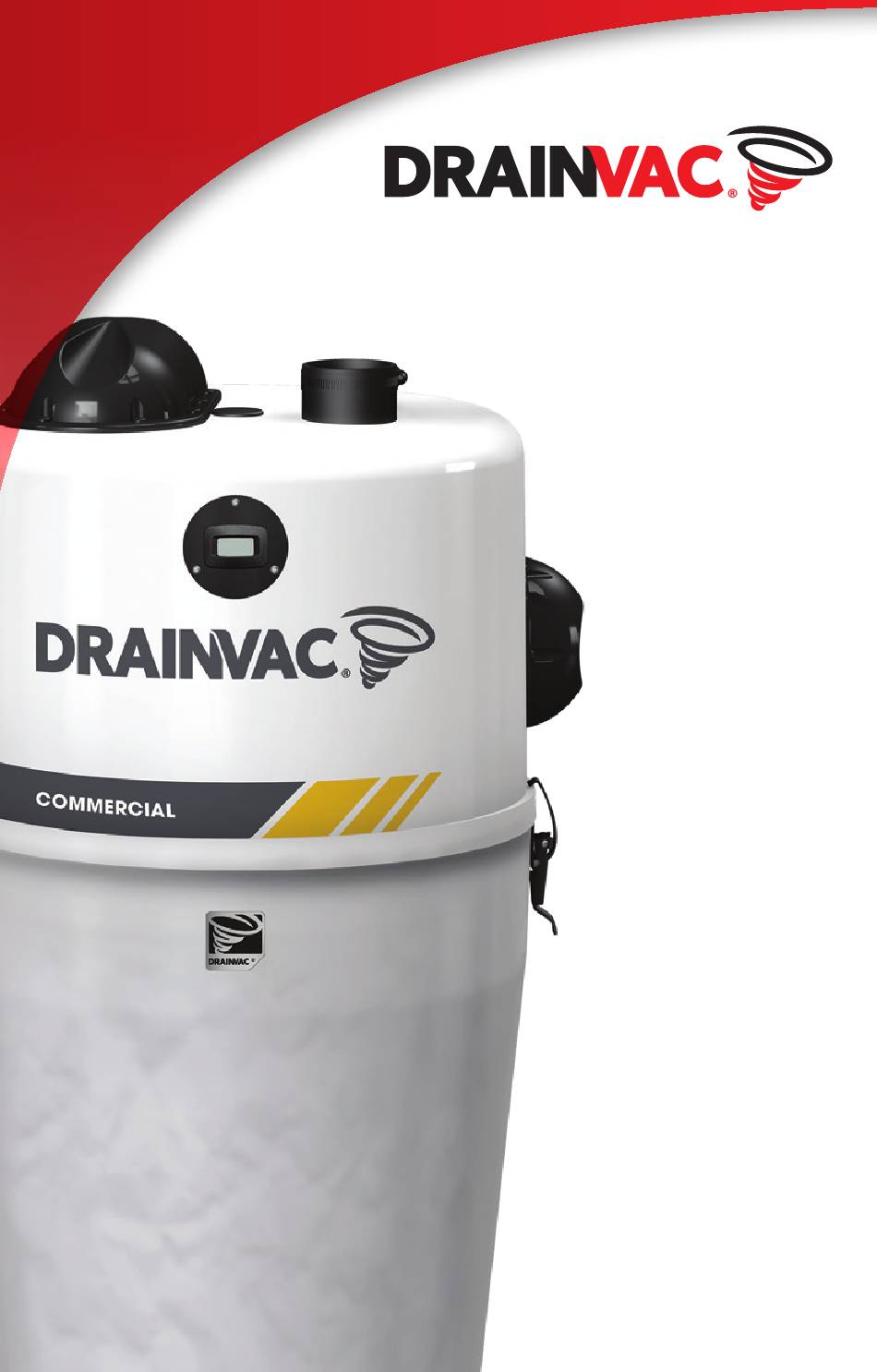

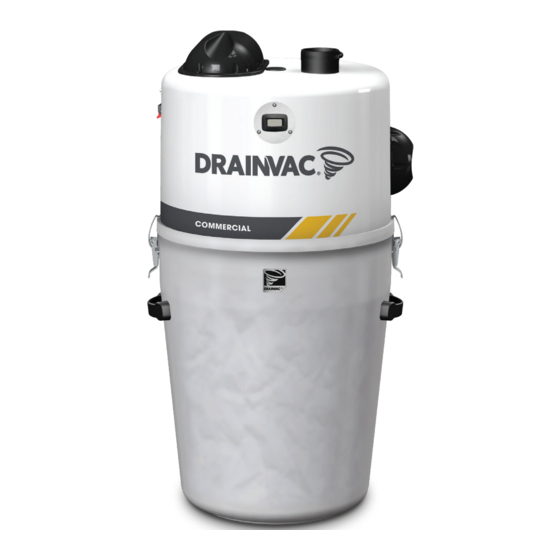

- Page 1 All manuals and user guides at all-guides.com Cleaning Systems OWNER’S MANUAL COMMERCIAL SERIES LIVR-20 - PRINTED IN CANADA (07-19)
- Page 2 • Hoses with electrical connections must not be used if damaged. By overlooking safety rules, you might risk putting your health in danger and to those who surround you! Drainvac disclaims any responsibility should you infringe upon these guidelines. SAVE THESE INSTRUCTIONS...
-
Page 3: Table Of Contents
TYPES OF UNITS ............6 We wish to thank you for your trust and congratulate you for having chosen a Drainvac UNIT DESCRIPTION . -
Page 4: Unit Description
All manuals and user guides at all-guides.com TECHNICAL SPECIFICATIONS UNIT DESCRIPTION You have purchased one of the following models. Identify the one to related to it. The model number appears on Audioprotek the technical label stuck on the muffler Exhaust muffler left side of the unit. -
Page 5: Dust Bags And Filters
All manuals and user guides at all-guides.com UNIT DESCRIPTION DUST BAGS AND FILTERS All units found in this manual operates with a dust bag. SAC--14 Disposable 2-ply paper dust bags, 9 gal. (41L) Exhaust muffler Exhaust muffler Audioprotek SAC--20 muffler Audioprotek Disposable 3-ply cloth 24V plug... -
Page 6: Unit Installation
All manuals and user guides at all-guides.com UNIT INSTALLATION UNIT INSTALLATION - FIRST THINGS FIRST - - FIRST THINGS FIRST - REQUIRED TOOLS WHERE TO INSTALL THE UNIT We recommend installing the system on the lowest level of the building to avoid having to work against gravity. -
Page 7: Mounting The Unit On The Wall
All manuals and user guides at all-guides.com UNIT INSTALLATION UNIT INSTALLATION 1) MOUNTING THE UNIT ON THE WALL • Lift the head to slide its support onto the wall bracket. • Undo the fastener securing the wall bracket and base at the back of the unit with cutting pliers. -
Page 8: Dust Bag
All manuals and user guides at all-guides.com UNIT INSTALLATION UNIT INSTALLATION 3) DUST BAG 4) AUDIOPROTEK MUFFLER • Install the appropriate dust bag for your model and follow the instructions printed Your unit is supplied with audioprotek mufflers. on the back of the packaging. •... -
Page 9: 2Ac9932-S Installation
All manuals and user guides at all-guides.com 2AC9932-S INSTALLATION PIPING INSTALLATION • Repeat steps 1 to 5 to install the 2AC9932-S. Remember to connect the The following pages illustrate piping diagrams, typical installations and the parts 2AC9932-M with the 2AC9932-S in parallel as illustrated. that we recommend for an optimum performance of your central vacuum system. -
Page 10: Different Installation Possibilities
All manuals and user guides at all-guides.com PIPING INSTALLATION PIPING INSTALLATION DIFFERENT INSTALLATION POSSIBILITIES EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS On the top floor On an intermediary floor On the first floor (at the end of a pipeline) (connected above a pipeline under the floor) Thick wall Thin wall... - Page 11 All manuals and user guides at all-guides.com PIPING INSTALLATION PIPING INSTALLATION EXAMPLES OF PROPER EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS AND IMPROPER INSTALLATIONS...
-
Page 12: Electrical Power Supply
All manuals and user guides at all-guides.com ELECTRICAL POWER SUPPLY ELECTRICAL POWER SUPPLY DIAGRAM OF AN APPROPRIATE CONNECTION An electrical cord is equipped to all central vacuum systems. An adequate electrical power outlet must be installed near the unit. We strongly recommend installing an The electric installation must be compliant to the building code in effect of your state electrical circuit which will be used only for the unit. -
Page 13: Grounding Instructions
All manuals and user guides at all-guides.com ELECTRICAL POWER SUPPLY MAINTENANCE PROCEDURES GROUNDING INSTRUCTIONS Each system requires a minimum maintenance, without any exception. MOTOR BRUSHES These units must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric Beyond the occasional external cleaning, we recommend that you inspect your motor shock. -
Page 14: Weee Guidelines / Rohs / Support
Unplug the power cord. SUPPORT If you wish to speak with a customer service representative, please contact your supplier/dealer. To find a retailer near you, please visit our website . Drainvac International 150 Brunet Street, Mont-St-Hilaire, QC J3H 0M6, Canada... - Page 15 All manuals and user guides at all-guides.com...
