CERT # LC773211
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
DANGER: IF YOU SMELL GAS
Shut off gas to the appliance. Extinguish any open flame. If the odor continues, keep away
from the appliance and immediately call your gas supplier or your fire department.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

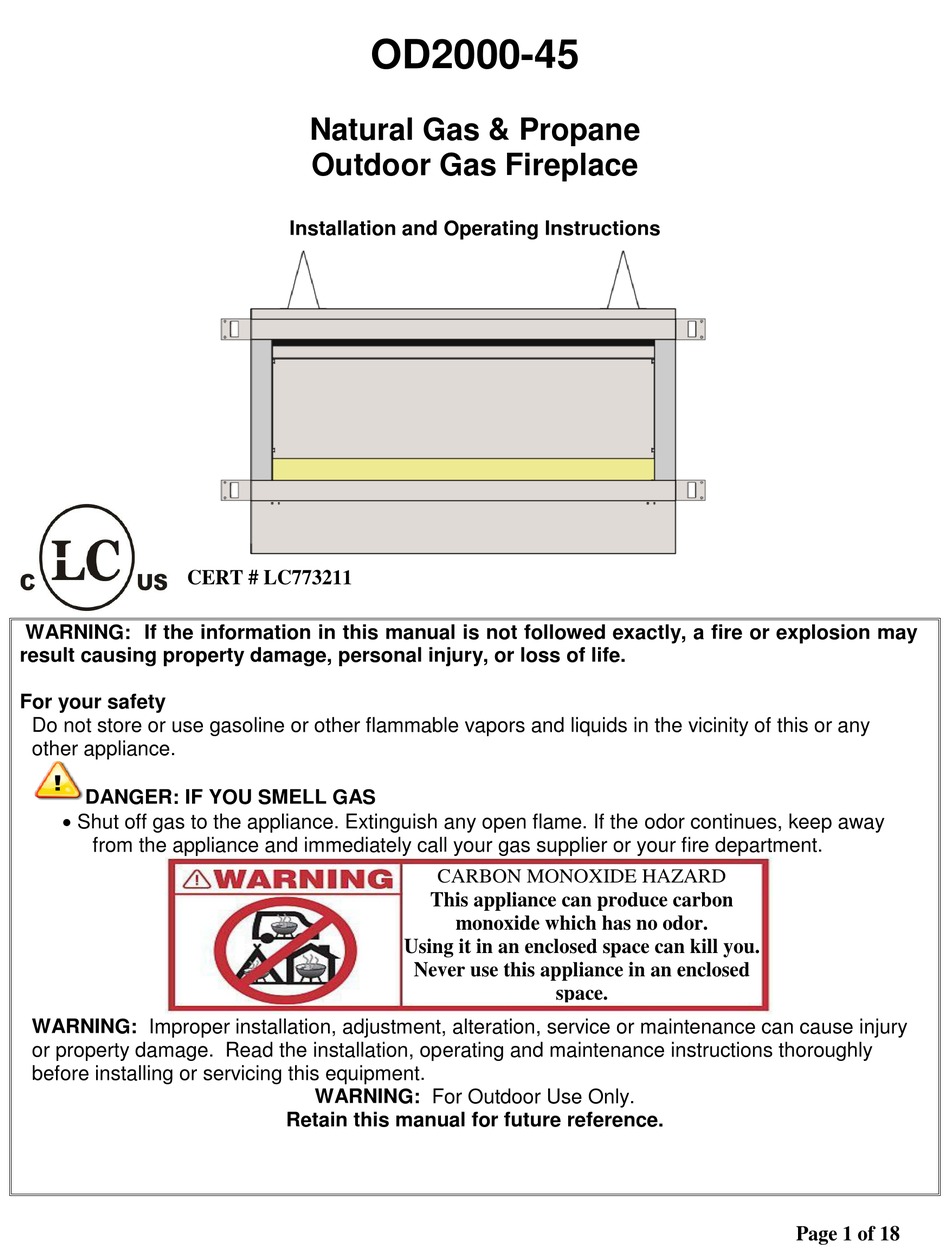

OD2000-45
Natural Gas & Propane
Outdoor Gas Fireplace
Installation and Operating Instructions
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
WARNING: For Outdoor Use Only.
Retain this manual for future reference.
space.
Page 1 of 18
Advertisement
Table of Contents
Related Manuals for Savannah Heating OD2000-45
Summary of Contents for Savannah Heating OD2000-45
- Page 1 OD2000-45 Natural Gas & Propane Outdoor Gas Fireplace Installation and Operating Instructions CERT # LC773211 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
- Page 2 AVERTISSEMENT: Si les renseignements dans ce manuel ne sont pas suivies à la lettre, un incendie ou une explosion peut entraîner des dommages matériels, des blessures ou des pertes de vie. Pour votre sécurité Ne pas entreposer ni utiliser d'essence ou d'autres vapeurs et liquides inflammables à proximité...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ........................Specifications & Dimensions ....................4 Installation Codes ........................5 General Safety ........................ 5 - 6 OPERATION ........................... Lighting Instructions ....................... 7 - 9 Flame Adjustment ........................ 9 Gas Safety Information & Leak Testing ................10 INSTALLATION ........................ -
Page 4: 1.0 Introduction
Maximum: 13.5” w.c. (3.4 kPa) Maximum: 14” w.c. (3.49 kPa) adjustable from 1/8” open AIR SHUTTER Fully open SETTING to fully open ORIFICE SIZE: @ 0-2000’ # 30 DMS # 47 DMS APPLIANCE DIMENSIONS OD2000-45 43.13 47.37 14.00 43.13 16.00 Page 4 of 18... -
Page 5: Installation Codes
INSTALLATION CODES Installation must conform to local codes or in the absence of local codes, installation must conform to the National Fuel Gas Code, ANSI Z233.1, or the current CAN/CGA B149.1 Installation Codes. In the state of Massachusetts, this product can only be installed by a licensed plumber or a licensed gas fitter. - Page 6 It is highly recommended that this fireplace be installed in a “sheltered” area. Direct wind will • cause an erratic flame and possible pilot or main burner outage. / Il est fortement recommandé que ce foyer est installé dans une zone "protégé". Vent direct provoquer une flamme irrégulière et pilote possible ou principal panne de brûleur.
-
Page 7: Lighting Instructions
LIGHTING INSTRUCTIONS - for Intermittent Pilot FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand. BEFORE LIGHTING smell all around the appliance area for gas. - Page 8 POUR PLUS DE SÉCURITÉ, LIRE AVANT D’ALLUMER AVERTISSEMENT: Quiconque ne respecte pas à la letter les instructions dans la présente notice risqué de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Cet appareil est équipé d'un dispositif d'allumage qui allume automatiquement le pilote. Ne pas tenter d'allumer le pilote à la main. Avant d’allumer la veilleuse, reniflez tout autour de l’appareil pour déceleur une odeur de gaz.
-
Page 9: Flame Adjustment
GAS VALVE DIAGRAM FLAME ADJUSTMENT The valve supplied with the appliance has a HI/LO knob to control the flame height. To adjust the flame height, turn the adjustment knob. Turning the knob in a clockwise direction sets the valve to the maximum setting, turning the knob in a counterclockwise direction sets the valve to the minimum setting. -
Page 10: Gas Safety Information & Leak Testing
GAS SAFETY INFORMATION How to Leak Test Your Appliance Mix a solution of liquid soap and water in a small container. Make sure that the gas supply is turned on. For LP gas appliances make sure that the valve on the gas cylinder is turned on. -
Page 11: Installation
INSTALLATION & SAFETY NOTES Read all instructions before starting installation and follow them carefully during installation to ensure maximum benefit and safety. Failure to follow these instructions will void your warranty and may present a fire hazard. See the warranty at the back of this manual for disclaimers regarding improper This outdoor fireplace and it’s components are tested and safe when installed in installation. - Page 12 INITIAL FIRING When lit for the first time, the appliance may emit an odor resulting from evaporation of paint and lubricants used in the manufacturing process. This is normal and will subside after the unit has run for an hour or so. Periodic visual checks of the pilot and burner flames should be conducted. For proper operation, the pilot and main burner flames must be steady and not lifting off or floating.
-
Page 13: Altitude Adjustment
Propane Gas – Fully Open ALTITUDE ADJUSTMENT All valves have been pre-set and certified for installation at elevations from 0 - 4000 feet (0 -1219.2m) above sea level. When installing this unit at higher elevations, it is necessary to decrease the input rating by replacing the existing burner orifice with a smaller size for installations over 4000 feet (1219.2 m). -
Page 14: Maintenance
WARNING AVERTISSEMENT YOU MUST WEAR FLAME AND HEAT RESISTANT GLOVES FOR THESE ADJUSTMENTS. VOUS PORTER DES GANTS DE FLAMME ET RESISTANT A LA CHALEUR DE CES AJUSTEMENTS. MAINTENANCE MAINTENANCE SAFETY Turn off the gas to the main burner and allow the fireplace to cool for 30 minutes before servicing. -
Page 15: Trouble Shooting
TROUBLE SHOOTING - INTERMITTENT PILOT SYMPTOM CORRECTIVE ACTION POSSIBLE CAUSE A. No spark at electrode (weak or not heat source for pilot ignition) I. Pilot will not light after repeated triggering of the remote control – intermittent pilot 1. Align the electrode with 1/8” (3mm) gap 1. -
Page 16: Replacement Parts
REPLACEMENT PARTS When requesting service or replacement parts for your unit, please provide model name and serial number. All parts listed below may be ordered from an authorized dealer. Description Part# Burner 1213 Pilot Assembly 80869066 Orifice - NG MP0505-30 Orifice - LPG MP0505-47 Gas Valve... -
Page 17: Warranty
INCA’S WARRANTY PROTECTION FOR ALL INCA GAS FIREPLACE PRODUCTS Inca’s products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak tested and test fired at a quality control test station. Once assembled the complete fireplace is thoroughly inspected by a qualified technician, before packaging, to ensure that you, the customer, receives the quality product that you expect from Inca’s. -
Page 18: Label Information
CONDITIONS AND LIMITATIONS (continued) Notwithstanding any provisions contained in this warranty, Inca’s responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages. This warranty defines the obligations and liability of Inca with respect to the Inca gas fireplace and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.
