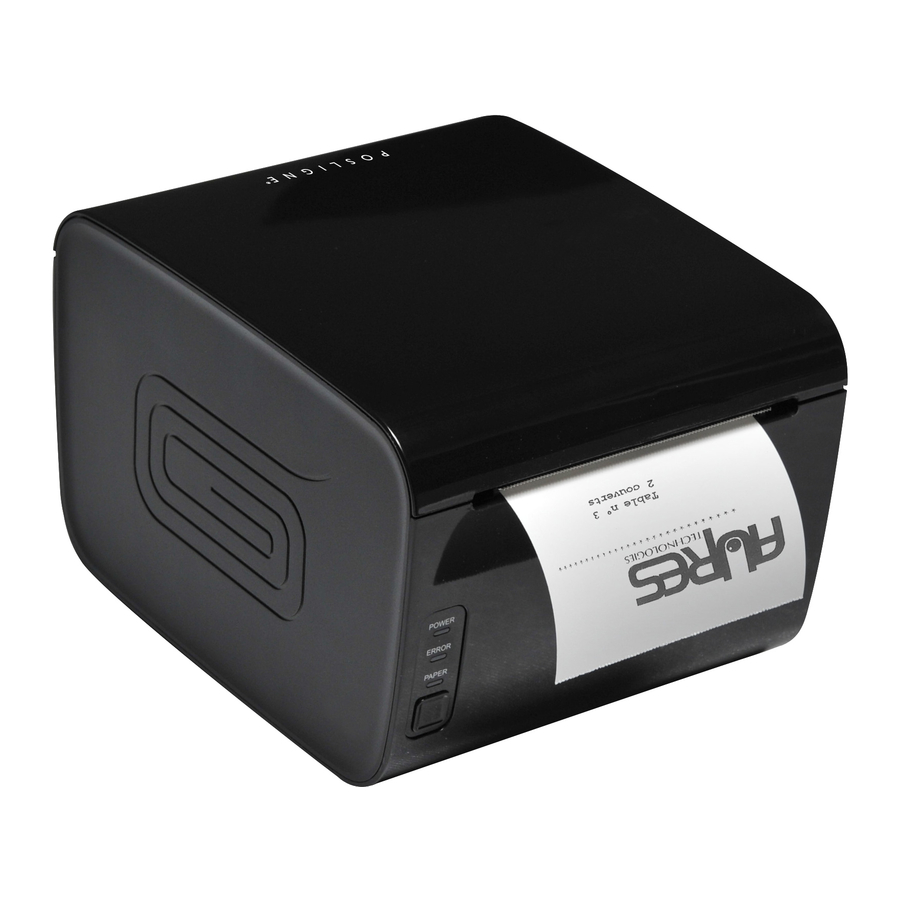

MODEL : ODP 1000
Receipt Printer User's Manual
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODP 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Posligne ODP 1000

Summary of Contents for Posligne ODP 1000

  • Page 1 MODEL : ODP 1000 Receipt Printer User’s Manual All specifications are subject to change without notice...

  • Page 4: Table Of Contents

    Table of Contents 1. Parts Identifications 1. Parts Identifications TOP COVER 2. Setting up the printer Open this cover to 2.1 Unpacking load or replace paper. 2.2 Connecting the cables 2.3 Loading the roll paper 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicating 4.

  • Page 5: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your You can connect up the cables required for printing to the printer. dealer for assistance.
  • Page 6 2-2-1.Interface Connector 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing. SIGNAL DESCRIPTION Signal GND Serial Interface Drawer kick-out drive signal 1...

  • Page 7: Loading The Roll Paper

    5. Be sure to note the correct direction that the paper comes off the roll. 2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. (Turn off power switch) 1.

  • Page 8: Control Panel And Other Functions

    3. Control panel and other functions ♣CAUTION: 3-1. Control panel When the paper is jammed from cutter, the top cover might be stuck as well. In this case, repeat power You can control the basic paper feeding operations of the printer with the button on the control panel. on and off several times.

  • Page 9: Self Test

    4. Self Test 5. Hexadecimal Dump The self-test lets you know if your printer is operating properly. It checks the control circuits, printer This feature allows experienced users to see exactly what data is coming to the printer. This can be mechanisms, print quality, ROM version and DIP switch settings.

  • Page 10: Specifications

    6. Specifications 6-1. General Specifications (8) Overall dimension (1) Printing Method Direct line thermal printing. 164.34 (2) Print speed 160 mm/sec. (Approx 35.4LPS) (3) Dot density 180 DPI (Hor / Ver) 180 / 180 (0.141mm / 0.141mm dot) (4) Printing Width 180 DPI Max 72mm (512 dots) (5) Number of print columns.

  • Page 11: Auto Cutter Specifications

    6-2. Auto Cutter Specifications ♣Important! (1) Cutting Frequency Max. 30 cuts per minute When connecting or disconnecting the power supply from the printer, be sure to follow instructions below. (2) Thickness of paper 0.065 ~ 0.1mm Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. Be careful when installing the printer in an area where there is noise.

  • Page 12: Command List

    7. Command List Command Function REMARKS Command Function REMARKS Horizontal tab ESC t Select character code table Print and line feed ESC { Turn upside-down printing mode on/off Print and carriage return FS p Print NV bit image Print and return to standard mode(in page mode) FS q Define NV bit image Cancel print data in page mode...
  • Page 13 Rev. 1.0...
