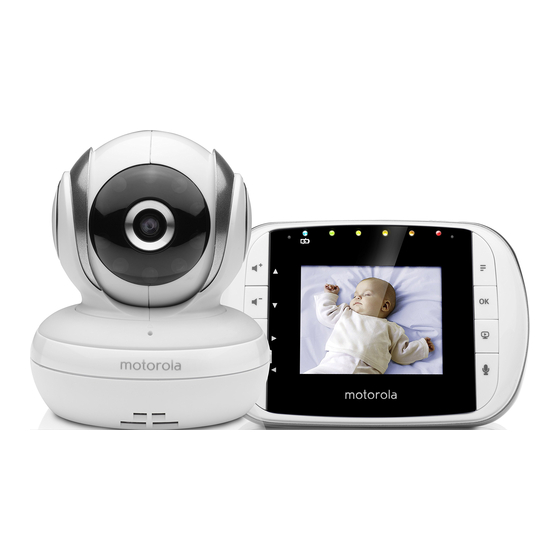

Motorola MBP33S Quick Start Manual

MODELS:
MBP33S,
MBP33S-2,
MBP33S-3,
MBP33S-4
QUICK START GUIDE
For a full explanation of all features and instructions, please refer to the User's Guide.
1. Setting up your Digital Video Baby Monitor
A. Connecting power supply for the Baby Unit
C. Fastening the cover for the Parent Unit
WARNING:
STRANGULATION HAZARD: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away) from the crib.
Do not use with an extension cord. Only use the AC Adapters provided.
B. Installing the battery pack for the Parent Unit
Connect the small plug of
the power adapter to the
Baby Unit and the other end
to the electrical outlet.
Only use the enclosed
adapter (5V DC/600mA).
Ensure the ON/OFF switch
is at "ON" position.
D. Connecting power supply for the Parent Unit
Small cross head or
Flat end screw driver
Insert the wire tab of the
rechargeable battery pack
Red
into the contact slot as
shown above and fit the
battery pack into the
compartment.
Black
Connect the small plug of
the power adapter to the
parent unit and the other
end to the electrical outlet.
Only use the enclosed
adapter (5V DC / 600mA).
Recommend charging at
least 16 hours before first
use.
