DO GUIDE
TSW-1052
10.1" Touch Screen
DO Install the Touch Screen

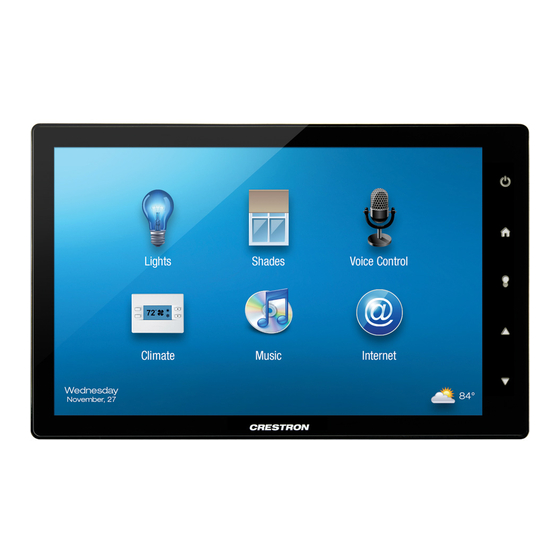

The Crestron ® TSW-1052 touch screen installs easily over a standard 2-gang or 3-gang U.S.
electrical box or a 2-gang European electrical box. It can also be attached directly to drywall
and other surfaces over the front of a 2 3/8" (60 mm) high by 3 3/8" (86 mm) wide cutout.
When installed, the touch screen protrudes just 1/2" (13 mm) from the mounting surface and is
magnetically adhered to its mounting bracket, eliminating any visible screws for an ultra clean
appearance.

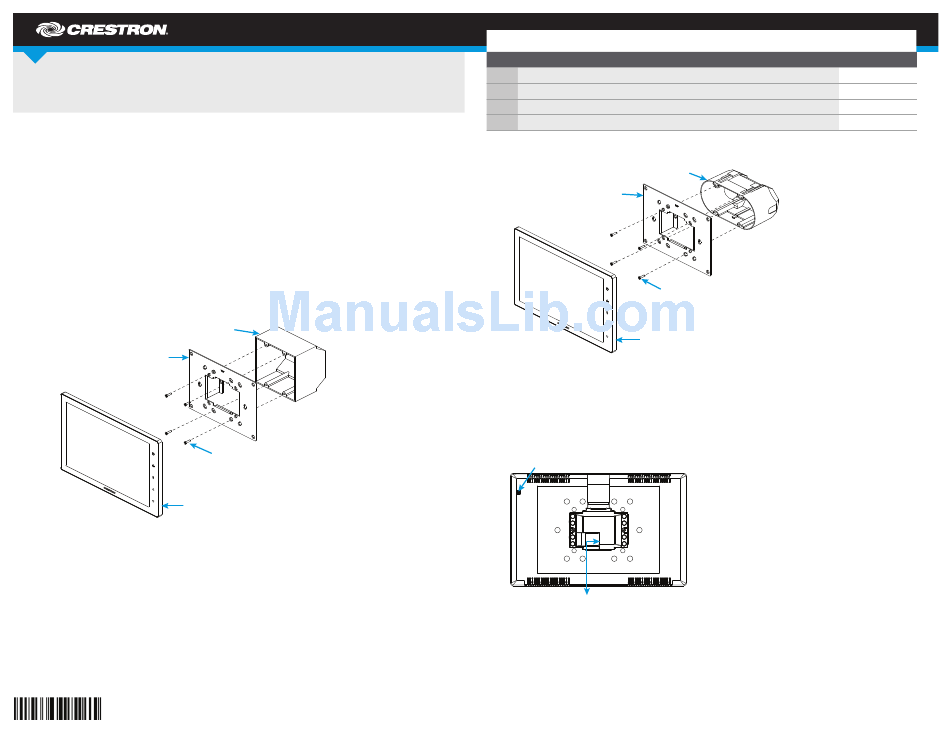

To mount the TSW-1052 into an electrical box, use the following procedure:
1. Use four of the eight included screws (four 06-32 x 3/4" or four 3 x 16 mm screws) to attach
the mounting bracket to the electrical box, as shown in the following illustrations.
NOTE: For U.S.-style installations, use a #2 Phillips screwdriver. For European-style
installations, use a #1 Phillips screwdriver or equivalent.
For U.S.-style installations, use the 06-32 x 3/4" screws.
U.S. Electrical Box
Mounting Bracket
Screws (4) 06-32 x 3/4"
TSW-1052
DO Check the Box
QTY PRODUCT
1 Mounting Bracket
4 Screws, 06-32 x 3/4", Undercut Head, Phillips
4 Screws, 3 x 16 mm, Flat Head, Phillips
2 Screws, M3.5 x 25 mm, Flat Head, Phillips
For European-style installations, use the 3 x 16 mm screws.
European Electrical Box
Mounting Bracket
Screws (4) 3 x 16 mm
TSW-1052
2. Make connections to the TSW-1052 using Crestron power supplies for Crestron equipment.
Power and data connection to the TSW-1052 is provided by a single Ethernet cable
connected to the LAN port at the rear of the unit. A Crestron PoE power supply or PoE-
capable network switch is recommended (both sold separately). Apply power after the
Ethernet cable is connected.
Hardware Connection for the TSW-1052
Reset Button
LAN PoE:
10BASE-T / 100BASE-TX
Ethernet to LAN
3. Carefully hold the touch screen over the mounting bracket and gently place it in position.
The magnets on the rear of the touch screen hold it in place on the mounting bracket.
PART NUM.
2034503
2033247
2013788
2023756
