Crestron TSW-750 Quick Start Manual

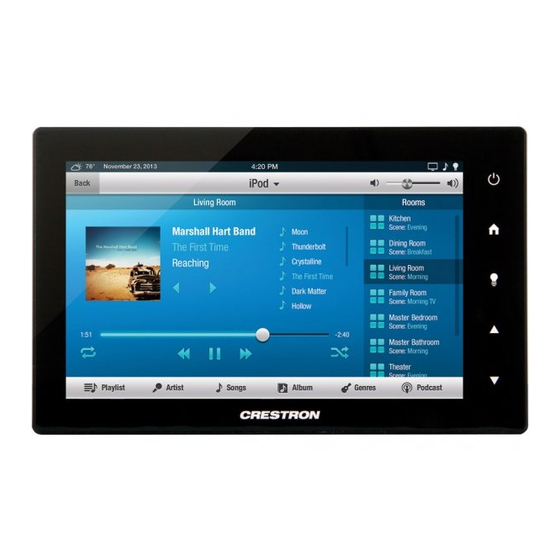

TSW-750
7" Touch Screen
1

Install the Touch Screen

The Crestron ® TSW-750 touch screen installs into a standard 2-gang or 3-gang U.S electrical box or a
2-gang European electrical box. It can also be attached directly to drywall and other surfaces over the
front of a 2 3/8" (60 mm) high by 3 3/8" (86 mm) wide cutout. When installed, it protrudes just 1/2"
(13 mm) from the mounting surface and magnetically adheres to its included mounting bracket.
It is supplied with screws for installation.
NOTE: For proper positioning of the touch screen unit, the electrical box or cutout must be positioned
approximately 1/4 inch (6 mm) to the right of center and 1/10 inch (3 mm) above center.
To mount the TSW-750 into an electrical box, use the following procedure:
1. Use four of the eight included screws (four #06-32 x 3/4" or four 3 x 16 mm) to attach the mounting
bracket (2031833) to the electrical box, as shown in the following illustrations.
For U.S.-style installations, use the #06-32 x 3/4" screws (2033247).
For European-style installations, use the 3 x 16 mm screws (2013788).
NOTE: For U.S.-style installations, use a #2 Phillips screwdriver. For European-style installations,
use a #1 Phillips screwdriver or equivalent.

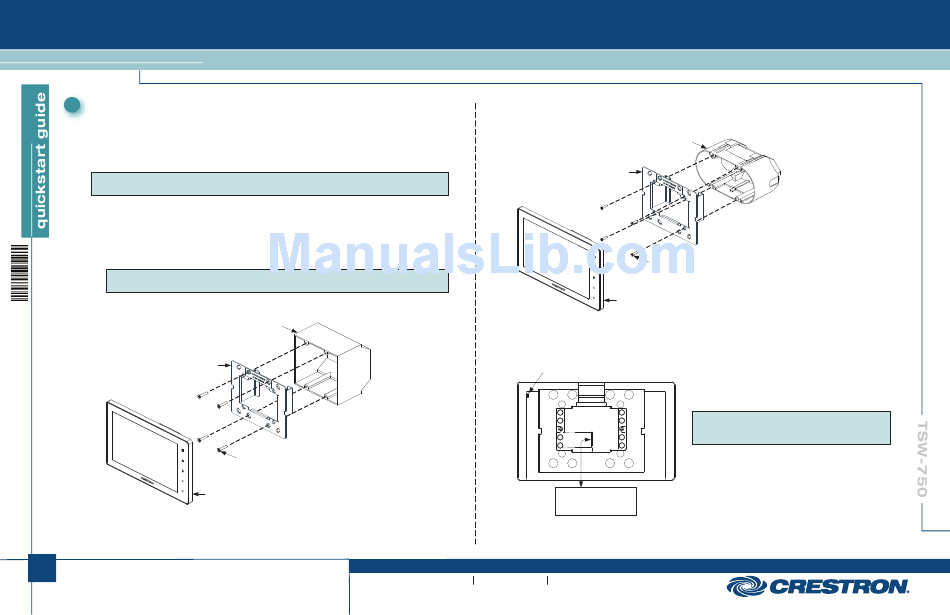

Mount the TSW-750 into a U.S. Electrical Box
Mounting Bracket
(2031833)
TSW-750
1
For Regulatory Compliance information, refer to the latest
version of Doc. 7326.
QUICKSTART DOC. 7325F (2033254, Sheet 1 of 2)
U.S. Electrical Box
Screws (4) #06-32 x 3/4"
(2033247)
www.crestron.com
05.13 Specifications subject to
change without notice.
Mount the TSW-750 into a European Electrical Box
European Electrical Box
Mounting Bracket
( 2031833 )
Screws ( 4 ) 3 x 16 mm
TSW - 750
2. When making connections to the TSW-750, use Crestron power supplies for Crestron equipment.
Apply power after all connections have been made.
Hardware Connections for the TSW-750
Reset Button
LAN PoE :
10 BASE - T / 100 BASE - TX
Ethernet to LAN
3. Carefully position the touch screen over the mounting bracket and gently place it in position.
The magnets on the rear of the touch screen hold it in place on the mounting bracket.
888.273.7876 201.767.3400
( 2013788 )
NOTE: The included cable mount ferrite bead, FBTH-2
(2033216) should be placed on the LAN cable in the
electrical box.
