Summary of Contents for Jeep 2015 Renegade

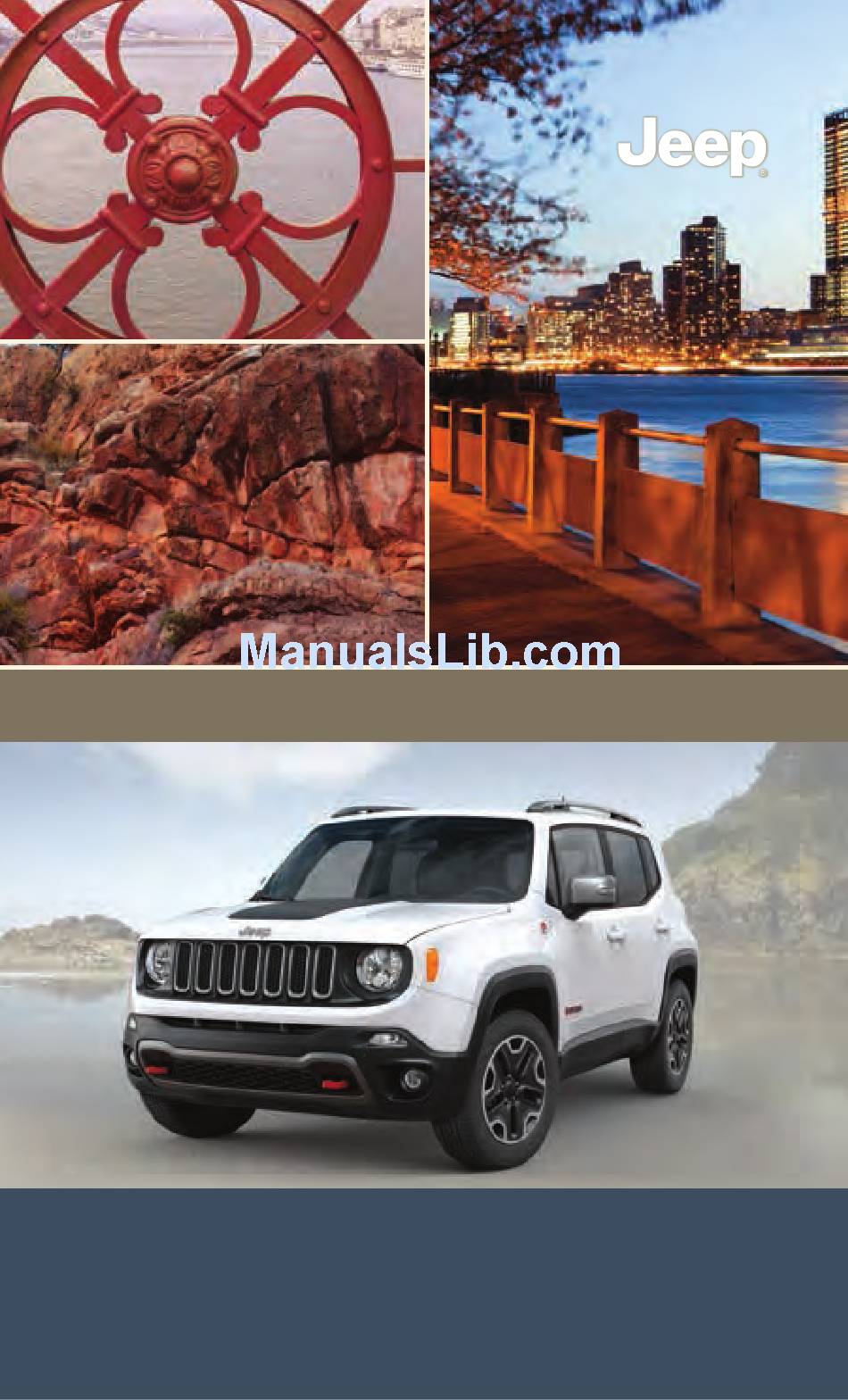

  • Page 1 U S ER G U I DE 2015 Renegade...
  • Page 2 If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/ Uconnect Manuals or Warranty Booklet by calling 1-877-426-5337 (U.S.) or 1-800-387-1143 (Canada) or by contacting your dealer. The driver’s primary responsibility is the safe operation of the vehicle.
  • Page 3: Table Of Contents

    FOUR WHEEL DRIVE — JEEP ACTIVE VEHICLE SECURITY ALARM ..13 DRIVE (4WD) AND JEEP ACTIVE DRIVE LOW KEYLESS ENTER-N-GO™ ..14 (4WD LOW) ....150 SEAT BELT SYSTEMS .
  • Page 4: Table Of Contents

    TABLE OF CONTENTS CUSTOMER ASSISTANCE MOPAR® ACCESSORIES FCA US LLC CUSTOMER CENTER . . . 206 AUTHENTIC ACCESSORIES BY FCA CANADA INC. CUSTOMER MOPAR ® ....208 CENTER .
  • Page 5: Welcome From Fca Us Llc

    INTRODUCTION/WELCOME WELCOME FROM FCA US LLC Congratulations on selecting your new FCA US LLC (“FCA US”) vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. Your new FCA US vehicle has characteristics to enhance the driver's control under some driving conditions.
  • Page 6 INTRODUCTION/WELCOME VEHICLES SOLD IN CANADA With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc. used in substitution (excluding legal lines). WARNING! • Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.
  • Page 7 If your symptoms persist, please see an authorized dealer. When it comes to service, remember that your authorized dealer knows your Jeep ® vehicle best, has factory-trained technicians and genuine MOPAR ®...
  • Page 8: Driver Cockpit

    CONTROLS AT A GLANCE DRIVER COCKPIT 1. Headlight Switch pg. 34 2. Electronic Vehicle Information Center (EVIC) Or Driver Information Display (DID) Controls pg. 138 3. Turn Signal/Light Lever pg. 37 4. Tachometer pg. 8 5. Electronic Vehicle Information Center (EVIC) Or Driver Information Display (DID) pg.
  • Page 9: Controls At A Glance

    CONTROLS AT A GLANCE 11. Switch Panel • ParkSense ® pg. 58 • Hazard Switch 12. Climate Controls pg. 43 13. Power Outlet pg. 147 14. Media Hub – Playing iPod ® /USB/MP3/ Devices pg. 108 15. Shift Lever 16. Selec-Terrain System pg. 150 17.
  • Page 10: Instrument Cluster

    CONTROLS AT A GLANCE INSTRUMENT CLUSTER 1. Tachometer 2. Electronic Vehicle Information Center (EVIC) Or Driver Information Display (DID) 3. Temperature Gauge (See page 156 for Instrument Cluster Warning Lights information.)
  • Page 11 CONTROLS AT A GLANCE 4. Gear Position 5. Speedometer 6. Fuel Gauge 7. Fuel Filler Door Location (See page 162 for Instrument Cluster Indicator Lights information.)
  • Page 12: Getting Started

    GETTING STARTED KEY FOB • This feature allows the driver to oper- ate the ignition switch with the push of a button as long as the Remote Keyless Entry (RKE) transmitter is in the pas- senger compartment. Keyless Enter-N-Go Key Fob 1 —...
  • Page 13 GETTING STARTED Locking And Unlocking The Doors/Liftgate • Push LOCK button once to lock all the doors and the liftgate. Push UNLOCK button once to unlock the driver’s door only and twice within five seconds to unlock all the doors and the liftgate. •...
  • Page 14: Remote Start

    GETTING STARTED REMOTE START This system uses the Remote Keyless Entry (RKE) transmitter to start the engine conveniently from outside the vehicle while still maintaining security. The system has a range of at least 300 ft (91 m). The Remote Starting System also activates the Climate Control and (if equipped) the optional heated seats and optional heated steering wheel depending on temperatures outside and inside the car.
  • Page 15: Vehicle Security Alarm

    GETTING STARTED VEHICLE SECURITY ALARM The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the Keyless Enter-N-Go™ START/STOP button for unauthorized operation. While the Vehicle Security Alarm is armed, interior switches for door locks and decklid release are disabled.
  • Page 16: Keyless Enter-N-Go

    GETTING STARTED KEYLESS ENTER-N-GO™ The Keyless Enter-N-Go™ system is an enhancement to the vehicle’s Remote Keyless Entry (RKE) feature. This feature allows you to lock and unlock the vehicle's door(s) and liftgate without having to push the Key Fob LOCK or UNLOCK buttons, as well as starting and stopping the vehicle with the push of a button.
  • Page 17 GETTING STARTED To Lock The Vehicle: • Both front door handles have buttons located on the outside of the handle. With one of the vehicle’s Keyless Enter-N-Go™ Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's or passenger front door handle, push the door handle button to lock all four doors and liftgate.
  • Page 18 GETTING STARTED Lock Or Unlock The Liftgate To Lock The Liftgate With a valid Passive Entry RKE transmit- ter within 5 ft (1.5 m) of the liftgate, push Passive Entry LOCK button located to the right of Passive Entry liftgate unlock/release button (2).
  • Page 19: Seat Belt Systems

    GETTING STARTED Stopping 1. Place the shift lever in PARK. 2. Push the ENGINE START/STOP button once. The ignition switch will return to the OFF position. NOTE: If the shift lever is not in PARK, the ENGINE START/STOP button must be held for two seconds and vehicle speed must be above 5 MPH (8 km/h) before the engine will shut off.
  • Page 20: Supplemental Restraint System Srs) — Air Bags

    GETTING STARTED Seat Belt Pretensioner • The front seat belt system is equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision. • A deployed pretensioner or a deployed air bag must be replaced immediately. WARNING! •...
  • Page 21 GETTING STARTED Advanced Front Air Bags • This vehicle has Advanced Front Air Bags for both the driver and front passenger as a supplement to the seat belt restraint systems. The Advanced Front Air Bags will not deploy in every type of collision. •...
  • Page 22 GETTING STARTED • Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you. • If it is necessary to modify the air bag system for persons with disabilities, contact your authorized dealer.
  • Page 23 GETTING STARTED WARNING! • Side Air Bags need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat. • Being too close to the Side Air Bags during deployment could cause you to be severely injured or killed.
  • Page 24: Child Restraints

    GETTING STARTED These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded.
  • Page 25 GETTING STARTED Locating LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage symbols on the seat- back. They are just visible when you lean into the rear seat to install the child restraint.
  • Page 26 GETTING STARTED Installing The Child Restraint Using The Vehicle Seat Belts The seat belts in the passenger seating positions are equipped with a Switchable Automatic Locking Retractor (ALR) that is designed to keep the lap portion of the seat belt tight around the child restraint. Any seat belt system will loosen with time, so check the belt occasionally, and pull it tight if necessary.
  • Page 27 GETTING STARTED Tether Anchorage Installation 1. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. 2. If your vehicle is equipped with ad- justable rear head restraints, raise the head restraint, and where possible, route the tether strap under the head restraint and between the two posts.
  • Page 28: Head Restraints

    GETTING STARTED HEAD RESTRAINTS Head restraints are designed to reduce the risk of injury by restricting head movement in the event of a rear impact. Head restraints should be adjusted so that the top of the head restraint is located above the top of your ear. WARNING! The head restraints for all occupants must be properly adjusted prior to operating the vehicle or occupying a seat.
  • Page 29: Seats

    GETTING STARTED SEATS Seats are a part of the Occupant Restraint System of the vehicle. WARNING! • It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.
  • Page 30 GETTING STARTED Height Adjustment The driver’s seat height can be raised or lowered by using a lever, located on the outboard side of the seat. Pull upward on the lever to raise the seat height or push downward on the lever to lower the seat height. Recline Adjustment To adjust the seatback, lift the lever located on the outboard side of the seat, lean back to the desired position and release the lever.
  • Page 31 GETTING STARTED Heated Seats — If Equipped The heated seat switches are located on the instrument panel. You can choose between two heating levels: • Push the heated seat button once to turn the HI setting ON. • Push the heated seat button a second time to turn the LO setting ON.
  • Page 32: Rear Seats

    GETTING STARTED REAR SEATS Rear Seats The split rear seat increases the storage of the rear cargo area. NOTE: • Prior to folding the rear seat down, it may be necessary to position the front seat to its mid-track position. Be sure that the front seats are fully upright and positioned forward, this will allow the rear seat to fold down easily.
  • Page 33 GETTING STARTED Partial Enlargement Of Cargo Area Enlargement of the left side of the cargo area allows you to carry a single passenger on the right side of the rear seat, while the enlargement of the right side allows you to carry two passengers.
  • Page 34: Heated Steering Wheel

    GETTING STARTED Cargo Area Enlargement Folding both sides of the rear seat provides additional storage in the rear cargo area. Proceed as follows: 1. Fully lower the rear seat head restraints. 2. Move the safety belts to the outboard side of the seat. 3.
  • Page 35: Tilt/Telescoping Steering Column

    GETTING STARTED WARNING! • Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaus- tion, or other physical conditions must exercise care when using the steering wheel heater.
  • Page 36: Operating Your Vehicle

    OPERATING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable. While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in.
  • Page 37 OPERATING YOUR VEHICLE Automatic Lighting — If Equipped Light Sensor The light sensor is equipped with an infrared LED, located on the windshield. It detects changes in light intensity outside the vehicle, based on the sensitivity of light set by using the Menu on the display or on the Uconnect system.
  • Page 38 OPERATING YOUR VEHICLE Parking Lights Rotate the headlight switch to the first position to turn on the parking lights. The parking light indicator in the cluster will illuminate. Headlight Delay This feature provides the safety of headlight illumination for up to 90 seconds when leaving your vehicle in an unlit area.
  • Page 39: Wipers And Washers

    OPERATING YOUR VEHICLE High Beams To turn on the high beam headlights, push the turn signal lever forward (toward the front of the vehicle) and an indicator will illuminate in the cluster. To turn off the high beams, pull the turn signal lever rearward (toward the rear of the vehicle). NOTE: The headlights must be on for the high beams to activate.
  • Page 40 OPERATING YOUR VEHICLE To use the washer, push the lever forward and hold while spray is desired. If the lever is pushed while in the intermittent setting, the wiper will turn on and operate for several wipe cycles after the end of the lever is released, and then resume the intermittent interval previously selected.
  • Page 41: Speed Control

    OPERATING YOUR VEHICLE SPEED CONTROL When engaged, the Electronic Speed Control takes over accelerator operations at speeds greater than 25 mph (40 km/h). The Electronic Speed Control buttons are located on the right side of the steering wheel. NOTE: • In order to ensure proper operation, the Electronic Speed Control System has been designed to shut down if multiple Speed Control functions are...
  • Page 42 OPERATING YOUR VEHICLE Setting A Desired Speed Turn the Electronic Speed Control ON. NOTE: The vehicle should be traveling at a steady speed and on level ground before pushing the SET (+) or SET (-) button. When the vehicle has reached the desired speed, push the SET (+) or SET (-) button and release.
  • Page 43 OPERATING YOUR VEHICLE To Decrease Speed When the Electronic Speed Control is set, you can decrease speed by pushing the SET - button. The drivers preferred units can be selected through the Uconnect system if ® equipped. The speed increment shown is dependant on the chosen speed unit of U.S.
  • Page 44: Manual Climate Controls

    OPERATING YOUR VEHICLE MANUAL CLIMATE CONTROLS Manual Climate Controls 1 — Blower Control 4 — Rear Defroster 2 — Temperature Control 5 — A/C Control 3 — Mode Control 6 — Air Recirculation Control Air Recirculation • Use recirculation for maximum A/C operation. •...
  • Page 45 OPERATING YOUR VEHICLE AUTOMATIC TEMPERATURE CONTROLS (ATC) Automatic Temperature Controls (ATC) 1 — Driver Temperature Control 8 — Passenger Temperature Display 2 — A/C Control 9 — SYNC Control 3 — MAX Front Defrost Control 10 — Rear Defroster 4 — Blower Control 11 —...
  • Page 46: Electric Park Brake (Epb)

    OPERATING YOUR VEHICLE Max Defrost • Push the MAX Defrost button to change the current airflow setting to Defrost mode. Performing this function will cause the ATC to change to manual mode, the blower speed will increase to full, the A/C compressor is turned ON, the tempera- ture controls are set to (HI), defrost mode is selected, rear defroster is turned ON, and the air recirculation is turned OFF.
  • Page 47 OPERATING YOUR VEHICLE To release the park brake manually, the ignition switch must be in RUN. Then put your foot on the brake pedal and push the park brake switch down momentarily. Once the park brake is fully disengaged, the BRAKE warning lamp and the switch indicator will extinguish.
  • Page 48: Blind Spot Monitoring (Bsm)

    OPERATING YOUR VEHICLE WARNING! • Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage. • When leaving the vehicle, always remove the key fob from the ignition and lock your vehicle.
  • Page 49 OPERATING YOUR VEHICLE The BSM detection zone covers approximately one lane width on both sides of the vehicle, 10 ft (3 m). The zone length starts at the outside mirror and extends approximately 20 ft (6 m) beyond the rear bumper of the vehicle. The BSM system monitors the detection zones on both sides of the vehicle when the vehicle speed reaches approximately 6 mph (10 km/h) or higher and will alert the driver of vehicles in these areas.
  • Page 50 OPERATING YOUR VEHICLE WARNING! The Blind Spot Monitoring system is only an aid to help detect objects in the blind spot zones. The BSM system is not designed to detect pedestrians, bicyclists, or animals. Even if your vehicle is equipped with the BSM system, always check your vehicles mirrors, glance over your shoulder, and use your turn signal before changing lanes.
  • Page 51 OPERATING YOUR VEHICLE Blind Spot Alert Lights Only When operating in Blind Spot Alert mode, the BSM system will provide a visual alert in the appropriate side view mirror based on a detected object. However, when the system is operating in Rear Cross Path (RCP) mode, the system will respond with both visual and audible alerts when a detected object is present.
  • Page 52: Forward Collision Warning (Fcw With Mitigation

    OPERATING YOUR VEHICLE System Not Available In the case of the system being temporary unavailable: • BSM Mirror Warning Lights are turned on continuously. • A chime will turn on. • A instrument cluster message will display “Blind Spot Monitoring Temporary Unavailable.”...
  • Page 53 OPERATING YOUR VEHICLE Vehicles With Automatic Transmission: After the end of the intervention of automatic braking, the transmission may remain in last gear stored: therefore the car could lurch forward, once the brakes release a few seconds later. If the Forward Collision Warning with Mitigation event stops the vehicle completely, the system will hold the vehicle at standstill for two seconds and then release the brakes.
  • Page 54 OPERATING YOUR VEHICLE Turning FCW ON And OFF The forward collision menu setting is located in the Uconnect settings. ® NOTE: The default status of FCW is “Warning + Active Braking,” this allows the system to warn you of a possible collision with the vehicle in front of you and enable the active braking.
  • Page 55 OPERATING YOUR VEHICLE FCW Limited Warning If the EVIC/DID displays “FCW Limited Functionality” or “FCW Limited Functionality Clean Front Windshield” momentarily, there may be a condition that limits FCW functionality. Although the vehicle is still drivable under normal conditions, the active braking may not be fully available.
  • Page 56: Lanesense

    OPERATING YOUR VEHICLE Precautions While Driving With FCW In certain driving conditions, such as: • Driving in the vicinity of a curve • Small vehicles and/or not aligned to the lane • Lane changing of other vehicles • Passing of vehicles in an oncoming intersection The intervention of the system could be unexpected or delayed.
  • Page 57 OPERATING YOUR VEHICLE The driver may manually override the haptic warning by applying torque into the steering wheel at any time. When only a single lane marking is detected and the driver unintentionally drifts across the lane marking (no turn signal applied), the LaneSense system provides a visual warning through the EVIC/DID to prompt the driver to remain within the lane.
  • Page 58 OPERATING YOUR VEHICLE Left Lane Departure — Only Left Lane Detected • When the LaneSense system is ON, the LaneSense indicator is solid white when only the left lane marking has been detected and the system is ready to provide visual warnings in the EVIC if an unintentional lane departure occurs.
  • Page 59 OPERATING YOUR VEHICLE Left Lane Departure — Only Left Lane Detected • When the LaneSense system is ON, the LaneSense indicator is solid white when only the left lane marking has been detected and the system is ready to provide visual warnings in the DID if an unintentional lane departure occurs.
  • Page 60: Rear Park Assist

    OPERATING YOUR VEHICLE Changing LaneSense Status The LaneSense system has settings to adjust the intensity of the torque warning and the warning zone sensitivity (early/late) that you can configure through the Uconnect ® system screen. NOTE: • When enabled the system operates above 37 mph (60 km/h) and below 112 mph (180 km/h).
  • Page 61 OPERATING YOUR VEHICLE When the system emits a beeping sound, the volume of the Uconnect ® system, if turned on, is automatically lowered by Rear Park Assist. Detection Distances If the sensors detect more obstacles, it is taken into account only what is the shorter distance.
  • Page 62 OPERATING YOUR VEHICLE Service The Rear Park Assist System During vehicle start up, when the Rear Park Assist System has detected a faulted condition, the instrument cluster will actuate a single chime, once per ignition cycle, and it will display the “PARK ASSIST UNAVAILABLE WIPE REAR SENSORS” or the “PARK ASSIST UNAVAILABLE SERVICE REQUIRED”...
  • Page 63 OPERATING YOUR VEHICLE CAUTION! • Rear Park Assist is only a parking aid and it is unable to recognize every obstacle, including small obstacles. Parking curbs might be temporarily detected or not detected at all. Obstacles located above or below the sensors will not be detected when they are in close proximity.
  • Page 64: Rear Back Up Camera

    OPERATING YOUR VEHICLE REAR BACK UP CAMERA The Rear Back Up Camera that allows you to see an on-screen image of your vehicle's rear surroundings when the shift lever is put into REVERSE. The image will be displayed on the touchscreen display along with a note to “check entire surround- ings”...
  • Page 65: My Sky Sun Roof — If Equipped

    OPERATING YOUR VEHICLE WARNING! Drivers must be careful when backing up even when using the Rear Back Up Camera. Always check carefully behind your vehicle, and be sure to check for pedestrians, animals, other vehicles, obstructions, or blind spots before backing up.
  • Page 66 OPERATING YOUR VEHICLE Venting The Front Panel To vent the front panel push and release the vent switch. During the vent operation any push on the Open/Close switch will stop the closing of the panel. NOTE: If the My Sky is in open position, the vent switch must be held until the panel vents. Anti-Pinch Feature The front panel of the retractable roof is equipped with a anti-pinch safety system that is able to detect the presence of an obstacle during the opening and closing...
  • Page 67 OPERATING YOUR VEHICLE Removing Panels 1. Front panel must be in the closed position to remove panel. 2. From inside of the passenger compartment, insert the supplied key into the latch key hole. Supplied Key Latch Key Hole...
  • Page 68 OPERATING YOUR VEHICLE 3. Rotate and keep the key turned to the symbol to release the lock and pull the panel handle down and away from the stowed position, unlocking the panel. Rotating Supplied Key Unlocking Panel Handle 4. Remove the key from the Latch Key Hole.
  • Page 69 6. Place the panel(s) inside of the pro- vided bag for storage in the cargo area. NOTE: An air deflector is available on the Jeep accessory line. This deflector may be used to avoid the “tunnel effect” inside the vehicle, if the front panel is removed.
  • Page 70 OPERATING YOUR VEHICLE Installing Panel 1. From outside the vehicle, place the panel(s) on the slides. Installing Panel 2. Gently slide the front panel forward, or the rear panel backwards. Installing Panel...
  • Page 71 OPERATING YOUR VEHICLE 3. Align the colored guide tabs to ensure the panel(s) close properly. Front panel is labeled with yellow guide tabs. Rear panel is labeled with blue guide tabs. Guide Tabs 4. From inside the vehicle, pull the handle down and toward the stowed position, locking it into place.
  • Page 72 OPERATING YOUR VEHICLE 5. Make sure that the panel has been properly refitted. From inside the pas- senger compartment, push upward on the panel from the bottom, in order to verify that it is properly latched to the clamping locks. Panel Locked Bag For Housing Panels —...
  • Page 73 OPERATING YOUR VEHICLE Emergency Open/Close If the Power My Sky switch fails, the retractable roof can be operated manually as follows: 1. Remove the protective cap located on the inner lining. 2. Remove the Allen Key or My Sky Key that is supplied in the tool bag in the cargo area.
  • Page 74: Your Vehicle's Sound System

    ELECTRONICS YOUR VEHICLE'S SOUND SYSTEM 1. Uconnect ® Phone Button pg. 126 2. Uconnect ® Voice Command Button pg. 133 3. Phone Hang Up Button 4. Left Steering Wheel Audio Controls (Located Behind The Steering Wheel) pg. 137 5. Right Steering Wheel Audio Controls (Located Behind The Steering Wheel) pg. 137 6.
  • Page 75 ELECTRONICS 7. Uconnect 6.5AN Radio pg. 103 ® 8. Back Button 9. Tune/Scroll Knob – Browse/Enter Button 10. USB Port pg. 108 11. AUX Jack pg. 108 12. Front Power Outlet pg. 147...
  • Page 76: Identifying Your Radio

    ELECTRONICS IDENTIFYING YOUR RADIO Uconnect® 3.0 • 3.0” Display • Two buttons on the faceplate on either side of the display Uconnect® 3.0 Uconnect® 5.0 • 5.0” Full Color Touchscreen Display • Bluetooth ® Connectivity/Bluetooth ® Streaming Audio Uconnect® 5.0 Uconnect®...
  • Page 77: Uconnect ® Access

    ELECTRONICS Uconnect® ACCESS Uconnect® Access — If Equipped (Available On Uconnect® 6.5AN — U.S. Residents Only) WARNING! ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the Uconnect features and applications in this vehicle.
  • Page 78 ELECTRONICS 3. The Uconnect ® Voice Command and Uconnect ® Phone buttons are located on the left side of your steering wheel. These buttons let you use your voice to give commands, make phone calls, send and receive text messages hands-free, enter navigation destinations, and control your radio and media devices.
  • Page 79 ELECTRONICS 6. Check for an email from Uconnect ® Access that contains your personalized registration link. If you don't see it, check your spam or junk mail folder. Open the email and click on the link to continue registering. NOTE: For security reasons, this link is valid for 72 hours from the time you’ve submitted your email address into the radio touchscreen.
  • Page 80 ELECTRONICS Renewing Subscriptions And Purchasing WiFi Hotspot (Uconnect® 6.5AN, U.S. 48 Contiguous States And Alaska) Subscriptions, and WiFi Hotspot, can be purchased from the Uconnect Store within ® your vehicle, and online at Mopar Owner Connect. If you need help push the ASSIST button in the overhead console, then select Uconnect ®...
  • Page 81 ELECTRONICS Purchasing WiFi Hotspot While In Your Vehicle You must set up a Uconnect ® Access Payment Account online (log in to moparownerconnect.com, go to Edit Profile, then Uconnect ® Payment Account, to set up and manage your Payment Account). 1.
  • Page 82 ELECTRONICS Get started with your Uconnect ® Access apps by pushing the MORE button on the faceplate and then the “Apps” button on the touchscreen. Available apps and features are organized by the tabs on the left of the screen: Favorite Apps —...
  • Page 83 ELECTRONICS Maintaining Your Uconnect® Access Account Reinstalling An App (Uconnect® 6.5AN) You can easily correct many Application related issues you may be experiencing by resetting the App back to the factory setting. From the vehicle’s radio touchscreen, complete the following steps: 1.
  • Page 84 ELECTRONICS Built-In Features (Uconnect® 6.5AN) CAUTION! • Ignoring the light/LED on the 9-1-1 button in the overhead console could mean you may not have 9-1-1 Call service if needed. If the light/LED on the 9-1-1 button in the overhead console is illuminated, have an authorized dealer service the 9-1-1 Call system immediately.
  • Page 85 ELECTRONICS 1. Assist Call – The overhead console contains an ASSIST push button which (once registered) automatically connects the vehicle occupants to one of these pre- defined destinations for immediate support: • Roadside Assistance Call — If you get a flat tire, or need a tow, you’ll be connected to someone who can help anytime.
  • Page 86 ELECTRONICS obtained through such recording and monitoring in accordance with regulatory requirements. You acknowledge, agree and consent to any recording, monitoring or sharing of information obtained through any such call recordings. 4. Yelp® — Customers have the ability to search for nearby destinations or a point of interest (POI) either by category or custom search by using keywords (for example, “Italian restaurant”).
  • Page 87 ELECTRONICS Uconnect® Access Remote Features If you own a compatible iPhone ® or Android ® powered device, the Uconnect ® Access App allows you to remotely lock or unlock your doors, start your engine or activate your horn and lights from virtually anywhere (Vehicle must be within the United States and have network coverage).
  • Page 88 ELECTRONICS You can set-up notifications for your account to receive an email or text (SMS) message every time a command is sent. Login to Mopar Owner Connect (moparownerconnect.com) and click on Edit Profile to manage Uconnect Notifica- ® tions. Remote Horn And Lights — It’s easy to locate a vehicle in a dark, crowded or noisy parking area by activating the horn and lights.
  • Page 89 ELECTRONICS 5. Wait for the beep and say a contact that is in your phonebook, or a mobile phone number that you would like to send the message to. 6. Uconnect ® will prompt you “Please say the message that you would like to send.” (If you do not hear this prompt, you may not have an active subscription with Uconnect Access).
  • Page 90: Uconnect ® 3.0

    ELECTRONICS Uconnect® 3.0 Uconnect® 3.0 Radio 1 — RADIO Button 8 — SEEK Next Button 2 — INFO Button 9 — ON/OFF Button/Volume Knob 3 — MEDIA Button 10 — BROWSE/ENTER Button — 4 — A-B-C Button TUNE/SCROLL Knob 5 — Preset Buttons 11 —...
  • Page 91 ELECTRONICS Audio • Push the AUDIO button on the radio faceplate. The Audio Menu shows the following options for you to customize your audio settings. Treble, Mid, Bass, Fade, Balance, Speed Adjusted Volume, Loudness • Select the desired setting to adjust, then push the ENTER/BROWSE button. Turn the TUNE/SCROLL knob to adjust the setting + or - 9.
  • Page 92: Uconnect ® 5.0

    ELECTRONICS Uconnect® 5.0 Uconnect® 5.0 Radio 1 — RADIO Button 6 — Back Button 2 — Display ON/OFF Control 7 — Mute Button 3 — COMPASS Button 8 — On/Off Button – Volume Knob 4 — MORE Functions Button 9 — Uconnect ®...
  • Page 93 ELECTRONICS 4. Press the “Up” or “Down” arrows to adjust the hours or minutes, then select the “AM” or “PM” button on the touchscreen. You can also select 12hr or 24hr format by pressing the desired button on the touchscreen. 5.
  • Page 94 ELECTRONICS Radio Operation Radio Operation 1 — Radio Station Preset 5 — Station Information 2 — All Presets 6 — Direct Tune 3 — Seek Next 7 — Radio Band 4 — Audio Settings 8 — Seek Previous Store Radio Presets Manually The Radio stores up to 12 presets in each of the Radio modes.
  • Page 95 ELECTRONICS SiriusXM Premier Over 160 Channels Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the premium programming, including Howard Stern, every NFL game, Oprah Radio ®...
  • Page 96 ELECTRONICS Audio Jack (AUX) The AUX jack allows a portable device, such as an MP3 player or an iPod ® , to be plugged into the radio and utilize the vehicle’s audio system, using a 3.5 mm audio cable, to amplify the source and play through the vehicle speakers. •...
  • Page 97 ELECTRONICS Voice Text Reply (Not Compatible With iPhone®) Once your Uconnect system is paired with a compatible mobile device, the system ® can announce a new incoming text message, and read it to your over the vehicle audio system. You can reply to the message using Voice Recognition by selecting, or saying, one of the 18 pre-defined messages.
  • Page 98 ELECTRONICS Uconnect® 5.0 VOICE RECOGNITION QUICK TIPS Introducing Uconnect® Start using Uconnect ® Voice Recognition with these helpful quick tips. It provides the key Voice Commands and tips you need to know to control your Uconnect ® system. Key Features: •...
  • Page 99 ELECTRONICS Get Started 1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition. 3. Speak clearly at a normal pace and volume while facing straight ahead. The microphone is positioned on the rearview mirror and aimed at the driver.
  • Page 100 ELECTRONICS Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect ® system. Push the VR button . After the beep, say: • Cancel to stop a current voice session • Help to hear a list of suggested Voice Commands •...
  • Page 101 ELECTRONICS Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) Push the VR button . After the beep, say: • Tune to ninety-five-point-five FM •...
  • Page 102 ELECTRONICS Media Push the VR button . After the beep, say one of the following commands and follow the prompts to switch your media source or choose an artist. • Change source to Bluetooth ® • Change source to iPod ®...
  • Page 103 ELECTRONICS Phone Making and answering hands-free phone calls is easy with Uconnect . When the ® Phonebook button is illuminated on your touchscreen, your system is ready. U.S./Canadian residents can visit • UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.
  • Page 104 ELECTRONICS Additional Information © 2015 FCA US LLC. All rights reserved. Mopar, Mopar Owner Connect and Uconnect are registered trademarks of FCA US LLC. Android is a trademark of Google Inc. SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc. Yelp, Yelp logo, Yelp burst and related marks are registered trademarks of Yelp.
  • Page 105: Uconnect ® 6.5An

    ELECTRONICS Uconnect® 6.5AN At A Glance Uconnect® 6.5AN Radio 1 — Display On/Off Control 7 — Uconnect Navigation (NAV) ® 2 — Settings Button Button 3 — Back Button 8 — MEDIA Button 4 — BROWSE/ENTER Button — 9 — RADIO Button TUNE/SCROLL Knob 10 —...
  • Page 106 ELECTRONICS Setting The Time Model 6.5AN synchronizes time automatically via GPS, so should not require any time adjustment. If you do need to set the time manually, follow the instructions below. • For Model 6.5AN, turn the unit on, then press the time display at the top of the screen, a pop-up will ask if you want to set the time.
  • Page 107 ELECTRONICS Radio Uconnect® 6.5AN Radio 1 — Radio Station Presets 6 — Direst Tune Radio Stations 2 — Toggle Presets 7 — Seek Previous 3 — HD Radio Available 8 — Browse/Manage Presets 4 — Audio Settings 9 — Radio Bands 5 —...
  • Page 108 ELECTRONICS Store Radio Presets Manually Your radio can store 36 total preset stations, 12 presets per band (AM, FM and SXM). They are shown at the top of your radio screen. To see the 12 preset stations per band, press the “Arrow” button on the touchscreen at the top right of the screen to toggle between the two sets of six presets.
  • Page 109 ELECTRONICS Activates the favorites menu. You can add up to 50 favorite artists or songs. Just press Add Fav Artist or Add Fav Song while the song is playing. You will then be alerted any time one of these songs, or works by these artists, is playing on other SiriusXM channels.
  • Page 110 ELECTRONICS Replay Lets you replay up to 44 minutes of the content of the current SiriusXM channel. Replay Option Option Description Play/Pause Press to Pause content playback. Press Pause/Play again to resume playback. Rewind/RW Rewinds the channel content in steps of five seconds. Press and hold to rewind continuously, then release to begin playing content at that point.
  • Page 111 ELECTRONICS • The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device. • To route the audio cable out of the center console, use the access cut out in the front of the console.
  • Page 112 ELECTRONICS iPod®/USB/AUX/Bluetooth® Controls 1 — Repeat Music Track 4 — Currently Queue 2 — Shuffle Music Tracks 5 — Browse Music 3 — Music Track Information 6 — Music Source • The iPod ® /USB/AUX/Bluetooth ® controls are accessed by pressing the desired button on the touchscreen displayed on the side of the screen and choosing between AUX, iPod ®...
  • Page 113 ELECTRONICS Uconnect® 6.5AN NAVIGATION • Press the NAV button to access the Navigation feature. Changing The Navigation Voice Prompt Volume 1. Press the "Settings" button on the touchscreen from the Nav Main Menu. 2. In the Settings menu, press the “Guidance” button on the touchscreen. 3.
  • Page 114 ELECTRONICS Finding A Place By Spelling The Name • From the Main Navigation Menu press the “Where to?” button on the touchscreen, press the “Points of Interest” button on the touchscreen and then press the “Spell Name” button on the touchscreen. •...
  • Page 115 ELECTRONICS Go Home A Home location must be saved in the system. • From the Main Navigation menu, press the “Where To?” button on the touch- screen, then press the “Go Home” button on the touchscreen. • Your route is marked with a blue line on the map. If you depart from the original route, your route is recalculated.
  • Page 116 ELECTRONICS Taking A Detour To take a detour you must be navigating a route: • Press the “Detour” button on the touchscreen. NOTE: If the route you are currently taking is the only reasonable option, the device might not calculate a detour. •...
  • Page 117 ELECTRONICS Get Started 1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition. 3. Speak clearly at a normal pace and volume while facing straight ahead. The microphone is positioned on the rearview mirror and aimed at the driver.
  • Page 118 ELECTRONICS Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect ® system. Push the VR button . After the beep, say: • Cancel to stop a current voice session • Help to hear a list of suggested Voice Commands •...
  • Page 119 ELECTRONICS Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you ® would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) Push the VR button . After the beep, say: •...
  • Page 120 ELECTRONICS Media Uconnect offers connections via USB, Bluetooth and auxiliary ports (if equipped). ® ® Voice operation is only available for connected USB and iPod ® devices. Push the VR button . After the beep, say one of the following commands and follow the prompts to switch your media source or choose an artist.
  • Page 121 ELECTRONICS Phone Making and answering hands-free phone calls is easy with Uconnect . When the ® Phonebook button is illuminated on your touchscreen, your system is ready. U.S./Canadian residents can visit: • UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.
  • Page 122 ELECTRONICS Navigation (6.5AN) The Uconnect navigation feature helps you save time and become more productive ® when you know exactly how to get to where you want to go. 1. To enter a destination, push the VR button . After the beep, say: •...
  • Page 123 ELECTRONICS Uconnect® Access — If Equipped (6.5AN) An included trial and/or subscription is required to take advantage of the Uconnect ® Access services in the next section of this guide. To register with Uconnect ® Access, push the MORE button on the faceplate and then the “Apps” button on the touchscreen to get started.
  • Page 124 ELECTRONICS Register (6.5AN) 1. Press the pushing the MORE button on the faceplate and then the “Apps” button on the 6.5-inch touchscreen. 2. If a pop-up message appears, press “Register” or go to the “Favorite Apps” or “All Apps” menu and press “Uconnect® Registration.” 3.
  • Page 125 ELECTRONICS Mobile App (6.5AN) Securely link your mobile device to your vehicle with the Uconnect ® Access App. Once you have downloaded the App, you may start your vehicle or lock it from virtually any distance. (Vehicle must be properly equipped with factory-installed Remote Start.) Download the Uconnect ®...
  • Page 126 ELECTRONICS 2. Listen to the prompt. After the beep, dictate the message you would like to send. Wait for Uconnect ® to process your message. 3. The Uconnect ® system will repeat your message and provide a variety of options to add to, delete, send or hear the message again.
  • Page 127 ELECTRONICS SiriusXM Travel Link™ (6.5AN — US Market Only) Need to find a gas station, view local movie listings, check a sports score or the 5 - day weather forecast? SiriusXM Travel Link™ is a suite of services that brings a wealth of information right to your Uconnect ®...
  • Page 128: Uconnect ® Phone

    ELECTRONICS Mon. – Fri., 7:00 am – 12:00 am, ET Sat., 8:00 am – 10:00 pm, ET Sun., 9:00 am – 5:00 pm, ET Uconnect Access Services Support 1-855-792-4241. Please have your Uconnect ® ® Security PIN ready when you call. Uconnect®...
  • Page 129 ELECTRONICS Uconnect® 6.5AN Phone Menu 1 — Favorite Contacts 11 — Recent Call Log 2 — Mobile Phone Battery Life 12 — Browse Phone Book Entries 3 — Currently Paired Mobile Phone (Contains 911) 4 — Mobile Phone Signal Strength 13 —...
  • Page 130 ELECTRONICS Refer to the Understand The Features Of Your Vehicle section of your vehicle's Owner's Manual on the DVD for further details. NOTE: • The Uconnect Phone requires a mobile phone equipped with the Bluetooth ® ® Hands-Free Profile, Version 1.0 or higher. •...
  • Page 131 ELECTRONICS 5. If No is selected, and you still would like to pair a mobile phone, press the “Settings” button from the Uconnect ® Phone main screen. • Select “Paired Phones” then press the “Add Device” button on the touch- screen.
  • Page 132 ELECTRONICS Uconnect® 6.5AN: 1. Place the ignition in the ACC or ON position. 2. Press the “Phone” button in the Menu Bar on the touchscreen. 3. Select “Settings.” 4. Select “Paired Phones.” 5. Select “Add device.” • Uconnect ® Phone will display an Uconnect®...
  • Page 133 ELECTRONICS Select The iPhone's Priority Level When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite mobile phone. Selecting “Yes” will make this mobile phone the highest priority. This mobile phone will take precedence over other paired mobile phones within range and will connect to the Uconnect ®...
  • Page 134 ELECTRONICS Select The Android Mobile Phone's Priority Level When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite mobile phone. Selecting “Yes” will make this mobile phone the highest priority. This mobile phone will take precedence over other paired mobile phones within range and will connect to the Uconnect ®...
  • Page 135 ELECTRONICS Voice Command Tips • Speaking complete names (i.e; Call John Doe vs. Call John) will result in greater system accuracy. • You can “link” commands together for faster results. Say “Call John Doe, mobile,” for example. • If you are listening to available voice command options, you do not have to listen to the entire list.
  • Page 136 ELECTRONICS 3. Select located under DEVICES next to Uconnect. 4. Turn “Show Notifications” to On. Enable iPhone® Incoming Text Messages Android Devices 1. Push the Menu button on the mobile phone. 2. Select Settings. 3. Select Connections. 4. Turn “Show Notifications” to On. •...
  • Page 137 ELECTRONICS Voice Text Reply (Not Compatible With iPhone®) NOTE: Voice texting reply and voice texting features require a compatible mobile device enabled with Bluetooth Message Access Profile (MAP). iPhone , and some other ® ® smartphones, may not entirely support Bluetooth ®...
  • Page 138 ELECTRONICS Helpful Tips And Common Questions To Improve Bluetooth® Performance With Your Uconnect® System Mobile Phone won’t reconnect to system after pairing: • Set mobile phone to auto-connect or trusted device in mobile phone Bluetooth ® settings (Blackberry devices). • Perform a factory reset on your mobile phone. Refer to your mobile phone manufacturer or cellular provider for instructions.
  • Page 139: Steering Wheel Audio Controls

    ELECTRONICS STEERING WHEEL AUDIO CONTROLS The steering wheel audio controls are located on the rear surface of the steering wheel. Right Switch • Push the switch up or down to in- crease or decrease the volume. • Push the button in the center to change modes AM/FM/CD/SXM/AUX or USB port.
  • Page 140: Center (Evic) And Driver Information Display (Did)

    ELECTRONICS ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) AND DRIVER INFORMATION DISPLAY (DID) Your vehicle may be equipped with one of the following vehicle information systems: • Electronic Vehicle Information Center (EVIC) • Driver Information Display (DID) The EVIC/DID features a driver interac- tive display that is located in the instru- ment cluster.
  • Page 141 ELECTRONICS Menu Items The Menu has the following options: • Speedometer • Vehicle Info • Driver Assist • Fuel Consumption • Trip • Audio • Alerts • Display Setup • Vehicle Setup Speedometer Push and release the UP or DOWN arrow button until “Speedometer” is highlighted in the EVIC or DID.
  • Page 142 ELECTRONICS • Notice LaneSense By selecting this function, you can select the "readiness" of LaneSense, choosing between the options "Near," "Medium," or "Far." • Intensity LaneSense Using this function, you can select the force applied to the steering wheel to keep the car in the roadway through the electrical drive system due to LaneSense.
  • Page 143 ELECTRONICS • "USB" Title display or number song playing • "Ipod" Display song title (if equipped) See Phone The instrument cluster display can also display the information concerning phone mode. The information that can be displayed is the connection status of the mobile phone (phone connected or disconnected), the active telephone calls/incoming/on hold, and the management of double calls (first incoming second waiting, etc.).
  • Page 144 ELECTRONICS In The Top Left/Top Right The information relating to the following can be displayed: • External temperature • Compass (If Equipped) • Date (Month/Day) • Time (Hours/Minutes) In the central area of the display, you can view all of the information listed above as well as the following: •...
  • Page 145 ELECTRONICS “Display” By selecting the "Display," you can access the following settings: • Language: allows you to select the language in which to display the information/ warnings. • See Phone: allows you to view, on the instrument cluster display, the information relating to Phone mode displayed on the display of the Uconnect ®...
  • Page 146 ELECTRONICS • ParkSense: a selection of the type of reporting provided by ParkSense • Rear Parks. Vol.: selection of the volume of acoustic signals provided by ParkSense • ParkSense Vol.: a selection of the volume of acoustic signals provided by ParkSense •...
  • Page 147 ELECTRONICS • Horn With Remote Start: activation/deactivation of the horn at the Remote Starting of the engine with the RKE. • Unlock On First Push Of Key Fob (vehicles without Passive Entry): allows you to choose whether to unlock all the doors or only the driver's side door on the first push of the UNLOCK button on the RKE •...
  • Page 148: Programmable Features

    ELECTRONICS PROGRAMMABLE FEATURES Uconnect® Customer Programmable Features The Uconnect system allows you to access Customer Programmable feature ® settings such as Display, Units, Voice, Clock, Safety & Driving Assistance, Lights, Doors & Locks, Engine Off Options, Audio, Phone/Bluetooth ® , SiriusXM Setup, System Information, Restore Default Settings, Clear Personal Data, and Compass (Uconnect ®...
  • Page 149: Power Outlet

    ELECTRONICS NOTE: The power inverter is designed with built-in overload protection. If the power rating of 150 Watts is exceeded, the power inverter will automatically shut down. Once the electrical device has been removed from the outlet, the inverter should automatically reset.
  • Page 150 ELECTRONICS • This power outlet is located in the drivers side rear cargo area. Rear Cargo Power Outlet NOTE: • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.
  • Page 151 ELECTRONICS F18 Fuse 20A Yellow Rear Cargo Power Outlet. F94 Fuse 15A Blue Instrument Panel Power Outlet. Body Computer Fuses...
  • Page 152: Drive (4Wd) And Jeep Active Drive Low 4Wd Low)

    OFF-ROAD CAPABILITIES FOUR WHEEL DRIVE — JEEP ACTIVE DRIVE (4WD) AND JEEP ACTIVE DRIVE LOW (4WD LOW) Your vehicle may be equipped with a Power Transfer Unit (PTU). This system is automatic with no driver inputs or additional driving skills required. Under normal driving conditions, the front wheels provide most of the traction.
  • Page 153 OFF-ROAD CAPABILITIES Active Drive Control — If Equipped The Power Transfer Unit (PTU) is locked to ensure immediate availability of torque to the rear drive axles. This feature is selectable in AUTO mode and auto- matic in the other driving mode. 4WD LOCK can be enabled by the following ways: •...
  • Page 154: Selec-Terrain

    OFF-ROAD CAPABILITIES SELEC-TERRAIN™ Selec-Terrain™ combines the capabilities of the vehicle control systems, along with driver input, to provide the best performance for all terrains. Mode Selection Guide Rotate the Selec-Terrain™ knob to select the desired mode. • AUTO: This four-wheel drive operation is a continuous operation, is fully au- tomatic and can be used on and off road.
  • Page 155: Cargo Area Features

    UTILITY CARGO AREA FEATURES Cargo Load Floor The vehicle is equipped with a load floor that can be adjusted as needed. Position 1 (Floor Flush): This position allows you to make the load floor flat for ease of loading/unloading objects from the cargo area. This position also makes it possible to use the space below as another compartment for storing fragile or smaller objects.
  • Page 156: Recreational Towing

    UTILITY RECREATIONAL TOWING Towing This Vehicle Behind Another Vehicle FOUR-WHEEL FRONT WHEEL DRIVE (FWD) DRIVE (4WD) MANUAL/ TOWING CONDI- WHEELS OFF AUTOMATIC MANUAL AUTOMATIC TION THE GROUND TRANSMISSION TRANSMISSION TRANSMISSION Flat Tow NONE NOT ALLOWED NOT ALLOWED NOT ALLOWED REAR NOT ALLOWED NOT ALLOWED NOT ALLOWED Dolly Tow FRONT...
  • Page 157 UTILITY CAUTION! • DO NOT flat tow this vehicle. Damage to the drivetrain will result. If this vehicle requires towing, make sure the drive wheels are OFF the ground. • Ensure that the Electric Park Brake is released, and remains released, while being towed.
  • Page 158: What To Do In Emergencies

    WHAT TO DO IN EMERGENCIES ROADSIDE ASSISTANCE Dial toll-free 1-800-521-2779 for U.S. Residents or 1-800-363-4869 for Canadian Residents. • Provide your name, vehicle identification number, license plate number, and your location, including the telephone number from which you are calling. •...
  • Page 159 WHAT TO DO IN EMERGENCIES - Air Bag Warning Light This light will turn on for four to eight seconds as a bulb check when the ignition switch is first turned to the MAR/RUN position. If the light is either not on during starting, stays on, or turns on while driving, have the system inspected at an authorized dealer as soon as possible.
  • Page 160 WHAT TO DO IN EMERGENCIES Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low EVIC or DID display. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
  • Page 161 WHAT TO DO IN EMERGENCIES WARNING! A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. -Transmission Temperature Warning Light This light indicates that there is excessive transmission fluid temperature that might occur with severe usage such as trailer towing.
  • Page 162 WHAT TO DO IN EMERGENCIES The dual brake system provides a reserve braking capacity in the event of a failure to a portion of the hydraulic system. A leak in either half of the dual brake system is indicated by the Brake Warning Light, which will turn on when the brake fluid level in the master cylinder has dropped below a specified level.
  • Page 163 WHAT TO DO IN EMERGENCIES - Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of an onboard diagnostic system called OBD II that monitors engine and automatic transmission control systems. The light will illuminate when the key is in the MAR/RUN position before engine start. If the bulb does not come on when turning the key from STOP/OFF to MAR/RUN, have the condition checked promptly.
  • Page 164: Instrument Cluster Indicator Lights

    WHAT TO DO IN EMERGENCIES INSTRUMENT CLUSTER INDICATOR LIGHTS - Turn Signal Indicator The arrows will flash with the exterior turn signals when the turn signal lever is operated. A tone will chime, and a EVIC/DID message will appear if either turn signal is left on for more than 1 mile (1.6 km).
  • Page 165 WHAT TO DO IN EMERGENCIES - Door Ajar Indicator This indicator will illuminate when a door(s) is left ajar and not fully closed. - Forward Collision Warning (FCW) OFF Indicator NOTE: • The default status of FCW is “On.” This allows the system to warn you of a possible collision with the vehicle in front of you.
  • Page 166: If Your Engine Overheats

    WHAT TO DO IN EMERGENCIES Vehicles Not Equipped With Keyless Enter-N-Go 1. Turn the ignition switch to the MAR/RUN position (do not start the engine). 2. Fully depress the accelerator pedal, slowly, three times within 10 seconds. 3. Turn the ignition switch to the STOP/OFF position. NOTE: If the indicator message illuminates when you start the engine, the oil change indicator system did not reset.
  • Page 167: Tire Service Kit Storage

    WHAT TO DO IN EMERGENCIES TIRE SERVICE KIT STORAGE The Tire Service Kit is located in the rear storage compartment inside a storage container. Located inside the container are a screwdriver and the emergency fuel funnel. To access the Tire Service Kit open the lift gate and remove the load floor. Tire Service Kit —...
  • Page 168 WHAT TO DO IN EMERGENCIES WARNING! • Do not attempt to seal a tire on the side of the vehicle closest to traffic. Pull far enough off the road to avoid the danger of being hit when using the Tire Service Kit.
  • Page 169 WHAT TO DO IN EMERGENCIES WARNING! Tire Service Kit is not a permanent flat tire repair. Have the tire inspected and repaired or replaced after using Tire Service Kit. Do not exceed 65 mph (110 km/h) until the tire is repaired or replaced. Failure to follow this warning can result in injuries that are serious or fatal to you, your passengers, and others around you.
  • Page 170: Jacking And Tire Changing

    WHAT TO DO IN EMERGENCIES JACKING AND TIRE CHANGING WARNING! • Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.
  • Page 171 WHAT TO DO IN EMERGENCIES Preparations For Jacking 1. Park the vehicle on a firm level surface as far from the edge of the roadway as possible. Avoid icy or slippery areas. WARNING! Do not attempt to change a tire on the side of the vehicle close to moving traffic, pull far enough off the road to avoid being hit when operating the jack or changing the wheel.
  • Page 172 WHAT TO DO IN EMERGENCIES Jacking Instructions WARNING! Carefully follow these tire changing warnings to help prevent personal injury or damage to your vehicle: • Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle.
  • Page 173 WHAT TO DO IN EMERGENCIES 4. Place the jack underneath the lift area that is closest to the flat tire. Turn the jack screw clockwise to firmly engage the jack saddle with the lift area of the sill flange, centering the jack saddle inside the cutout in the sill cladding. Jacking Locations Front Jacking Location Rear Jacking Location...
  • Page 174 WHAT TO DO IN EMERGENCIES 5. Raise the vehicle just enough to remove the flat tire. WARNING! Raising the vehicle higher than necessary can make the vehicle less stable. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire.
  • Page 175 WHAT TO DO IN EMERGENCIES 8. Install the wheel bolts with the threaded end of the wheel bolt toward the wheel. Lightly tighten the wheel bolts. WARNING! To avoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel bolts until the vehicle has been lowered.
  • Page 176: Jump Starting

    WHAT TO DO IN EMERGENCIES 3. Lower the vehicle to the ground by turning the jack handle counterclockwise. 4. Finish tightening the wheel bolts. Push down on the wrench while at the end of the handle for increased leverage. Tighten the wheel bolts in a star pattern until each wheel bolt has been tightened twice.
  • Page 177 WHAT TO DO IN EMERGENCIES Preparations For Jump Start The battery in your vehicle is located in the front of the engine compartment, behind the left headlight assembly. NOTE: The positive battery post is covered with a protective cap. Lift up on the cap to gain access to the positive battery post.
  • Page 178 WHAT TO DO IN EMERGENCIES WARNING! Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result. Jump Starting Procedure WARNING! Failure to follow this jump-starting procedure could result in personal injury or property damage due to battery explosion.
  • Page 179: Freeing A Stuck Vehicle

    WHAT TO DO IN EMERGENCIES 3. Disconnect the positive (+) end of the jumper cable from the positive (+) post of the booster battery. 4. Disconnect the opposite end of the positive (+) jumper cable from the positive (+) post of the vehicle with the discharged battery. If frequent jump starting is required to start your vehicle you should have the battery and charging system inspected at your authorized dealer.
  • Page 180: Emergency Tow Hooks

    WHAT TO DO IN EMERGENCIES CAUTION! • Racing the engine or spinning the wheels may lead to transmission overheating and failure. Allow the engine to idle with the transmission in NEUTRAL for at least one minute after every five rocking-motion cycles. This will minimize overheating and reduce the risk of clutch or transmission failure during prolonged efforts to free a stuck vehicle.
  • Page 181: Shift Lever Override

    WHAT TO DO IN EMERGENCIES WARNING! • Do not use a chain for freeing a stuck vehicle. Chains may break, causing serious injury or death. • Stand clear of vehicles when pulling with tow hooks. Tow straps may become disengaged, causing serious injury. CAUTION! Tow hooks are for emergency use only, to rescue a vehicle stranded off road.
  • Page 182: Towing A Disabled Vehicle

    WHAT TO DO IN EMERGENCIES TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial towing service. FWD MODELS FOUR WHEEL DRIVE Wheels Towing AUTOMATIC MANUAL TRANSMIS- AUTOMATIC/MANUAL OFF the Condition TRANSMISSION SION TRANSMISSION 4X4 Ground NOT ALLOWED NOT ALLOWED...
  • Page 183 WHAT TO DO IN EMERGENCIES VERSIONS WITH FRONT WHEEL DRIVE (FWD) Versions with a manual gearbox It is recommended to tow the car with all four wheels OFF the ground on the floor of a rescue vehicle. These versions can be towed even on the floor (all wheels on the ground) with the transmission in neutral, but for short distances (about 15 km / 9.3 miles) and at reduced speed (maximum 25 km/h / 16 mph).
  • Page 184: Maintaining Your Vehicle

    MAINTAINING YOUR VEHICLE HOOD Opening Two latches must be released to open the hood. Pull the hood release lever located under the drivers side of the instrument panel. Move to the outside of the vehicle and push the safety latch release lever toward the passenger side of the vehicle.
  • Page 185 MAINTAINING YOUR VEHICLE CAUTION! To prevent possible damage, do not slam the hood to close it. Lower the hood until it is open approximately 6 inches (15 cm), and then drop it. This should secure both latches. Never drive your vehicle unless the hood is fully closed, with both latches engaged.
  • Page 186: Engine Compartment — 1.4L Turbo

    MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 1.4L TURBO 1. Engine Air Filter 2. Engine Oil Dipstick 3. Engine Oil Fill 4. Brake Fluid Reservoir...
  • Page 187 MAINTAINING YOUR VEHICLE 5. Battery 6. Power Distribution Center (Fuses) 7. Washer Fluid Reservoir 8. Engine Coolant Reservoir...
  • Page 188: Engine Compartment — 2.4L

    MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 2.4L 1. Engine Air Filter 2. Engine Oil Dipstick 3. Engine Oil Fill 4. Brake Fluid Reservoir...
  • Page 189 MAINTAINING YOUR VEHICLE 5. Battery 6. Power Distribution Center (Fuses) 7. Washer Fluid Reservoir 8. Engine Coolant Reservoir...
  • Page 190: Fluid Capacities

    MAINTAINING YOUR VEHICLE FLUID CAPACITIES Metric Fuel (Approximate) 1.4L Turbo/2.4L Engine 12.7 Gallons 48 Liters Engine Oil With Filter 1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4.0 Quarts 3.8 Liters 2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts 5.2 Liters Cooling System * 1.4L Turbo Engine (MOPAR ®...
  • Page 191: Maintenance Procedures

    MAINTAINING YOUR VEHICLE Chassis Component Fluid, Lubricant, or Genuine Part Manual Transmission – If Equipped We recommend you use MOPAR ® C Series Manual & Dual Dry Clutch Transmission Fluid. Automatic Transmission – If Equipped Use only MOPAR ® ZF 8&9 Speed ATF™ Automatic Transmission Fluid, or equiva- lent.
  • Page 192 MAINTAINING YOUR VEHICLE Severe Duty All Models Change Engine Oil at 4,000 miles (6,500 km) if the vehicle is operated in a dusty and off road environment. This type of vehicle use is considered Severe Duty. NOTE: The Oil Change Indicator will not illuminate under these conditions. Once A Month Or Before A Long Trip: •...
  • Page 193 MAINTAINING YOUR VEHICLE...
  • Page 194 MAINTAINING YOUR VEHICLE...
  • Page 195 MAINTAINING YOUR VEHICLE...
  • Page 196 MAINTAINING YOUR VEHICLE...
  • Page 197 MAINTAINING YOUR VEHICLE...
  • Page 198: Fuses

    MAINTAINING YOUR VEHICLE FUSES WARNING! • When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material.
  • Page 199 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Cartridge Fuse Micro Fuse Description – 20 Amp Blue – Controller Power Supply Body Computer – 30 Amp Pink – Brake Control Electronics Module 70 Amp Tan – – Electric Power- Assisted Steer- 20 Amp Yellow –...
  • Page 200 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Cartridge Fuse Micro Fuse Description – – 7.5 Amp Brown Air Conditioner Compressor – – 5 Amp Tan Electronic Power Four- Wheel Drive – – 15 Amp Blue Fuel Pump – – 20 Amp Yellow Power Control Module Engine –...
  • Page 201 MAINTAINING YOUR VEHICLE Cavity Mini Fuse Description 20 Amp Yellow Power Window Front (Passenger Side) 15 Amp Blue Supply Uconnect ® System, Air Conditioning, Alarm, Power Fold- ing Outside Mirrors, USB Port 10 Amp Red System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC 20 Amp Yellow Central Locking...
  • Page 202 MAINTAINING YOUR VEHICLE Rear Cargo Fuse/Relay Distribution Unit To access the fuses, remove the access door from the left rear panel of the rear cargo area. The fuses may be contained in two units. fuse holder No. 1 is located closest to the rear of the vehicle and fuse holder No.
  • Page 203: Adding Fuel

    MAINTAINING YOUR VEHICLE ADDING FUEL The Capless Fuel System uses a flapper placed at the filler pipe of the fuel tank; it opens and closes automatically upon insertion/extraction of the fuel nozzle. The Capless Fuel System is designed so that it prevents the filling of an incorrect type of fuel.
  • Page 204: Tire Pressures

    MAINTAINING YOUR VEHICLE WARNING! • Do not to affix objects/plugs to the end of the filler neck other than is provided on the car. • The use of objects/plugs do not comply with the vehicle and may cause pressure increases inside the tank, creating dangerous conditions. •...
  • Page 205: Spare Tires — If Equipped

    MAINTAINING YOUR VEHICLE WARNING! • Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. • Improperly inflated tires are dangerous and can cause collisions. Under- inflation increases tire flexing and can result in over-heating and tire failure.
  • Page 206 MAINTAINING YOUR VEHICLE Do not install a wheel cover or attempt to mount a conventional tire on the compact spare wheel, since the wheel is designed specifically for the compact spare tire. Do not install more than one compact spare tire and wheel on the vehicle at any given time.
  • Page 207: Wheel And Wheel Trim Care

    MAINTAINING YOUR VEHICLE WHEEL AND WHEEL TRIM CARE All wheels and wheel trim, especially aluminum and chrome plated wheels, should be cleaned regularly with a mild soap and water to prevent corrosion. To remove heavy soil and/or excessive brake dust, use MOPAR ®...
  • Page 208: Customer Assistance

    Warranty Booklet. United States customers may visit the Jeep Contact Us page at www.jeep.com scroll to the bottom of the page and select the “Contact Us” link, then select the “Owner’s Manual and Glove Box Material” from the left menu.
  • Page 209: Reporting Safety Defects In The United States

    • A street address is required when ordering manuals (no P.O. Boxes). • The Owner's Manual and User Guide electronic files are also available on the Chrysler, Jeep, Ram Truck, Dodge and SRT websites. • Click on the “For Owners” tab, select “Owner/Service Manuals”, then select your desired model year and vehicle from the drop down lists.
  • Page 210: Authentic Accessories By Mopar

    MOPAR® ACCESSORIES AUTHENTIC ACCESSORIES BY MOPAR® • The following highlights just some of the many Authentic Jeep Accessories by MOPAR ® featuring a fit, finish, and functionality specifically for your Jeep Renegade. • In choosing Authentic Accessories you gain far more than expressive style,...
  • Page 211: Frequently Asked Questions

    How do I improve the Bluetooth ® performance of my Uconnect ® System? pg. 136 OFF-ROAD CAPABILITIES How do I shift into different four-wheel drive selections? pg. 150 UTILITY How do I know how much I can tow with my Jeep Renegade? pg. 153...
  • Page 212 FAQ’s WHAT TO DO IN EMERGENCIES What do I do if my TPMS warning light is blinking? pg. 157 How do I change a flat tire? pg. 168 How do I Jump-Start my vehicle? pg. 174 MAINTAINING YOUR VEHICLE Where is my Fuse Block located? pg. 196 What type of oil do I use? pg.
  • Page 213: Index

    INDEX Access Brake Fluid ....189 Uconnect ....75 Brakes ....189 Access, Uconnect .
  • Page 214 INDEX Vehicle Security Light ..162 Engine Clutch ....189 Air Cleaner ... .189 Clutch Fluid .
  • Page 215 INDEX Cleaning ... . .189 Lane Change And Turn Signals ..37 Delay ....36 LaneSense .
  • Page 216 INDEX Roll Over Warning ... .5 Filter ... .188, 189 Filter Disposal ..189 Materials Added To .
  • Page 217 INDEX Jacking ....168 In Vehicle Features ..82 Pressure Warning Light ..157 Purchase Apps ...78 Spare Tire .
  • Page 218 NOTES...
  • Page 219 Not all features shown in this guide may apply to your vehicle. For additional information on accessories to help personalize your vehicle, visit www.mopar.com (U.S.), www.mopar.ca (Canada) or your local Jeep dealer. Driving and Alcohol: Drunken driving is one of the most frequent causes of collisions. Your driving ability can be seriously impaired with blood alcohol levels far below the legal minimum.
  • Page 220 Download a FREE electronic copy of the Owner’s Manual and Warranty Booklet by visiting: www.jeep.com/en/owners/manuals or www.jeep.com/en/warranty (U.S.); www.owners.mopar.ca/en (Canada). © 2015 FCA US LLC. All Rights Reserved. Jeep and Renegade are registered trademarks of FCA US LLC. 15BU-926-AA Renegade Third Edition User Guide...

Table of Contents

Save PDF
