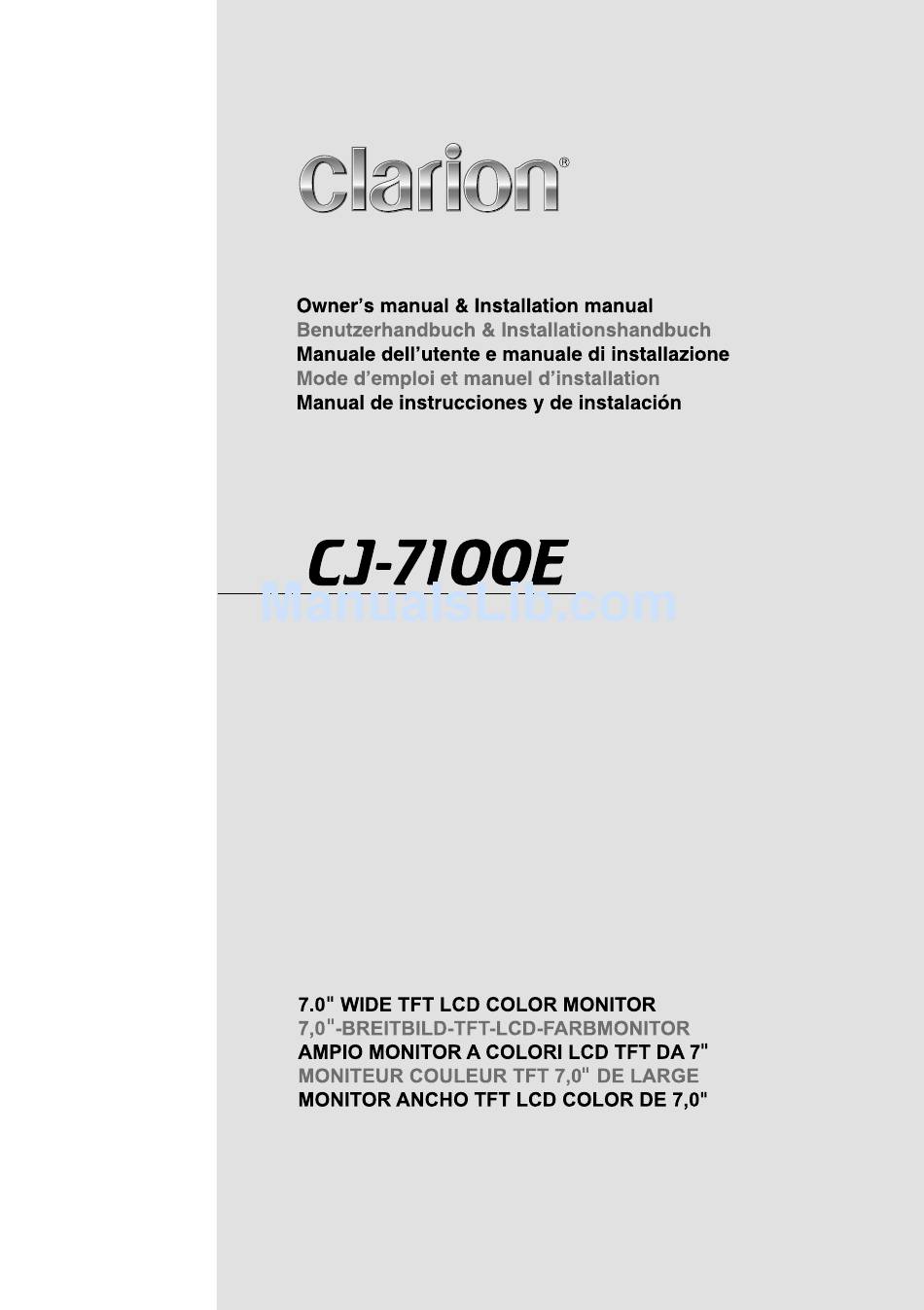

Clarion CJ-7100E Owner's Manual

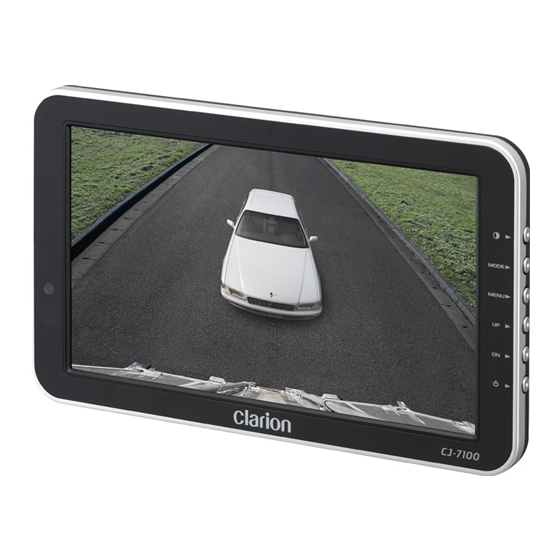

7.0 wide tft lcd color monitor
Hide thumbs Also See for CJ-7100E:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CJ-7100E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion CJ-7100E

Summary of Contents for Clarion CJ-7100E

  • Page 2: Table Of Contents

    Contents 1. Before Use........... 3 2. Features ............4 3. Names of the Monitor Buttons ..... 4 4. Operations of Monitor ........4 5. Names of the Remote Controller Buttons..8 6. Operations of Remote Controller....8 7. Connections..........12 8.

  • Page 3: Before Use

    Before Use Warning  Do Not Back Up Vehicle While Relying Only on the Monitor Image  Use Slow Speeds When Backing Up  The rear-view monitor image has the same right-left inversion as your vehicle’s rearview mirrors. Depending on the vehicle, the field and angle of view may differ. ...

  • Page 4: Features

    Features  Application of 7.0" WIDE TFT LCD with high resolution and low reflection  All functions are displayed on screen (OSD function)  7 Language Display Selection (ENGLISH-DEUTSCH-ITALIANO-FRANÇAIS-ESPAñON-  Picture quality control (PWM control)  Free voltage (From DC12V to DC24V) ...
  • Page 5 MODE (Camera/AV Selection)  It is a function to change CAMERA (CAM1/CAM2/AV). (1) Press [MODE] button. CAM1 • The characters of CAM1, CAM2 or AV appear on the screen and they disappear after 5 seconds. CAM1 CAM2 Note: In the mirror mode, the character is inverted.
  • Page 6 SET UP (SUB MENU) (3) Press [UP]/[DOWN] button to change Settings.  DIMMER – • This setting can also be changed by pressing [DIMMER] ( ) button.  LANGUAGE – – – – – ENGLISH DEUTSCH ITALIANO FRANÇAIS ESPAñON – ...
  • Page 7 PICTURE (SUB MENU) (3) Press [UP]/[DOWN] button to change Settings.  CONTRAST  BRIGHTNESS  COLOR CONTRAST CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS BRIGHTNESS COLOR COLOR COLOR TINT TINT TINT  TINT CONTRAST BRIGHTNESS COLOR TINT CAMERA (SUB MENU) (3) Press [UP]/[DOWN] button to change Settings. ...

  • Page 8: Names Of The Remote Controller Buttons

    Names of the Remote Controller Buttons [POWER] [MODE] [MENU] [VOL+-] [DISP] [MUTE] [DIM] Operations of Remote Controller POWER (1) Press [POWER] button to on the power. (STAND BY state is OFF) (2) Press [POWER] button again to off the power. (STAND BY state is ON)
  • Page 9 MODE (Camera/AV Selection)  It is a function to change CAMERA (CAM1/CAM2/AV). (1) Press [MODE] button. • The characters of CAM1, CAM2 or AV appear on the screen and they disappear after 5 seconds. CAM1 CAM1 CAM2 Note: In the mirror mode, the character is inverted.
  • Page 10  DIRECTION (Inverted upside down) DIMMER LANGUAGE ENGLISH DIRECTION DISPLAY WIDE RESET  DISPLAY (Screen size) FULL WIDE NORMAL CINEMA  RESET  A factory default reset will clear all of OSD information PICTURE (SUB MENU) (3) Press [ ] button to change Settings. ...
  • Page 11 VOL + (1) Press [VOL+] button to turn up the volume. VOLUME (2) Press [VOL-] button to turn down the volume. VOLUME DISP (1) Press [DISP] button to select the screen size. WIDE FULL NORMAL CINEMA MUTE (1) Press [MUTE] button to mute the sound. (2) Press [MUTE] button again to cancel.

  • Page 12: Connections

    VIDEO INPUT WHITE BLACK AUDIO INPUT GROUND ACCESSORY(ACC) Use a Clarion camera. DC12V A relay cable, sold separately, is required for connecting the camera. Use tape to keep the connection between the monitor cable and the camera relay cable secure.

  • Page 13: Installation

    Installation 1. Choose a location where you install the Monitor. Clean the place for the Stand with cleanser and remove the Protective Tape. And then attach it exactly where you want. 2. Fasten the Monitor with Tapping Screw. 3. Adjust angle of Stand and install Monitor. 4.

  • Page 14: Troubleshooting

    Troubleshooting Problem Cause Measure Is camera connected Check the wiring to the camera and the No image is displayed. properly? camera connection. Is power cable Check the wiring. connected properly? Power does not turn on. Is a fuse blown out? Replace with a fuse of the same amperage (3A).
  • Page 15 MEMO...
  • Page 16 Clarion Co., Ltd. All Rights Reserved. Copyright  2012: Clarion Co., Ltd. Printed in Korea / Gedruckt in Korea / Stampato in Corea / Imprimé en Corée / Impreso en Corea CJ-7100E 2012/11...
