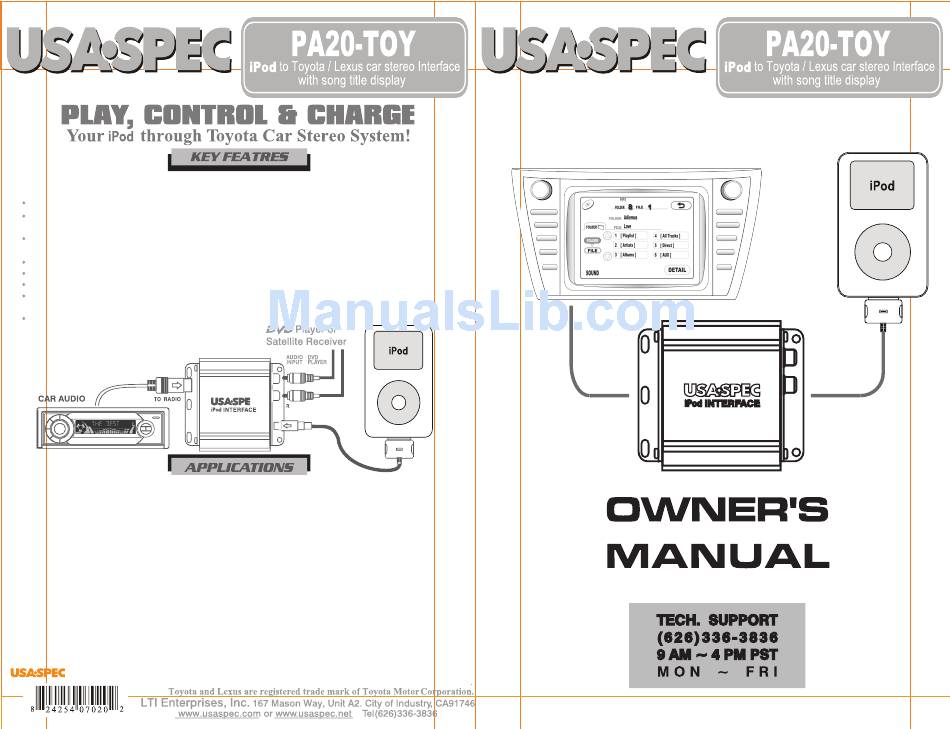

This interface connects an iPod or iPod mini dircetly to your Toyota audio
system with following benefits:
Connect directly iPod's audio output to Toyota vehicle audio system for optimal sound quality playback.
Display artist name and song title on radios equipped with TEXT button. (This features is supported
in Playlist Mode and Hybrid Mode. )
Hybrid Mode: Playlist and songs on iPod can be accessed either by using radio's CD change
button, as well as by using iPod's clik wheel.
Playlist Mode: Select songs and Playlists on iPod with CD changer button on radio.
Direct Mode: Search and select songs directly on iPod.
Maintain current Playlist when switching from portable to in-car use.
Charge the iPod battery while playing, charging automatically ends at one hour after iPod is
paused to prevent car battery drain.
Plus-DVD player, Satellite radio or other audio device can be used in conjunction with the
iPod through AUX Audio Input jack.
PA20-TOY is applicable to following Toyota models:
4Runner
98-08
Land Cruiser
Avalon
98-08
Matrix
Camry
98-08
MR2, Celica
Corolla, Echo
98-08
MR2, Celica
F j Cruiser
2008
RAV4
Highlander
01-08
Scion
PA20-TOY is applicable to following Lexus models:
ES 300/330/350
02-03(requires CAS-LEX cable)
04-08
GS 300/350/430/450
01-05(requires CAS-LEX cable)
06-07
GX 470
03-08
For application to earlier than 2005 Lexus vehicles, a cable adaptor is required. Please contact
@ 626-3363836 for detail.
Toyota and Lexus are registered trade mark of Toyota Motor Corporation.
98-08
Sequoia, Taundra
05-08
Sienna
98-08
Solara
04-08
Tacoma
98-08
Tundna
all models
Yaris
ES 300/330/350
01-05(requires CAS-LEX cable)
06-08
ES 300/330/350
01-03(NAV only(requires CAS-LEX cable)
04-08
LX 470
04-08
iPod is a registered trade mark of Apple Computer Inc.
XM is a registered trade mark of XM Satellite Radio Inc.
98-08
98-08
98-08
98-08
2008
2008
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for usa-spec PA20-TOY
Summary of Contents for usa-spec PA20-TOY
- Page 1 Charge the iPod battery while playing, charging automatically ends at one hour after iPod is paused to prevent car battery drain. Plus-DVD player, Satellite radio or other audio device can be used in conjunction with the iPod through AUX Audio Input jack. PA20-TOY is applicable to following Toyota models: 4Runner 98-08 Land Cruiser...
- Page 2 SAFETY NOTE: You should always give full attention to driving. Do not operate the features and functions of PA20-TOY in such a way that might distract you while you are driving. !!CAUTION!! In general, iPod has not been designed to withstand temperature extremes in automobiles.
-
Page 3: Package Contents
1. When using it with a MP3/WMA compatible navigation radio: PA20-TOY will display Album, Artist, Playlist, and All Songs menu list on Toyota and Lexus navigation screen and therefore will allow song title based search with on-screen touch buttons. This feature is not available on Toyota navigation screen if the vehicle has a factory installed rear seat entertainment DVD system (RSE). -
Page 4: Section 3. Cable Connection
Step 6-b- Set the DIP switch #2, #3 and #4 according to the table in Section 4. Step 7- Plug the CB-PA105 cable to the PA20-TOY adaptor box where it is labeled “iPod”. Step 8- Perform a test run before installing the radio back into the dash. - Page 5 & t t i...
- Page 6 Part 2- for radio recognition... DIP Switch Radio Make Model Year Type of Radio Note Button to 98 - 08 NON NAV DISC 4 Runner 98 - 05 DISC 06 - 09 DISC 98 - 04 ALL RADIOS DISC (1) (2) NON NAV w/ TAPE SAT or AM Avalon...
- Page 7 07 - 09 OFF ON ON DISC Note: (1) If PA20-TOY conflicts with CD changer or can not be recognized by radio, turn ACC (ignition) power ON and OFF 6 times within 15 seconds to complete the re-configuration of PA20-TOY.
- Page 8 SECTION 5. CONNECTING & PLAYING of iPod After iPod is connected to PA20-TOY, iPod will take a few moment to get into external control mode. During the initialization, iPod screen will change continuously for approximately 25 seconds...
- Page 9 In Fig (1) screen, function of the touch buttons are assigned as follow: Touch Button Function DISC 1 browse Playlists folders on iPod browse Artist folders on iPod DISC 2 DISC 3 browse Album folders on iPod DISC 4 browse All Song folders on iPod DISC 5 browse and search songs from iPod directly browse Genres folders on iPod if DIP switch #1 is OFF...
- Page 10 If iPod was playing a Playlist right before the connection with PA20-TOY, the same Playlist will continue to play at DISC 4 on screen Fig ( 1 ) after iPod is synchronized to the PA20-TOY. iPod will switch to “All Songs” after the last track in this Playlist is played.
-
Page 11: Selecting A Playlist
Disc 7 is to playback “All Songs” and DISC 1 to DISC 6 is to playback six Playlists on iPod . If iPod was playing a Playlist right before the connection with PA20-TOY, the same Playlist will continuc to play at DISC 7 and iPod will switch to “All Songs”... - Page 12 For example: if only three designated Playlists (TOYOTA1, TOYOTA3, and TOYOTA5) are created, the Playlist to DISC # assignment will be as followed. DISC 1: TOYOTA1... DISC 2: (1 available Playlist on iPod) DISC 3: TOYOTA3... DISC 4: (2 available Playlist on iPod) DISC 5: TOYOTA5...
-
Page 13: Section 6. Playback Function Controls
10 (i, e, 19, 29, 1, 11..) When PA20-TOY is configured to SAT port. press on Fast Forward button starts the 10 track jump and requires a second on the FF button to stop the track jump, To stop the fast retreat, a second press on Fast Rewind button is required.
