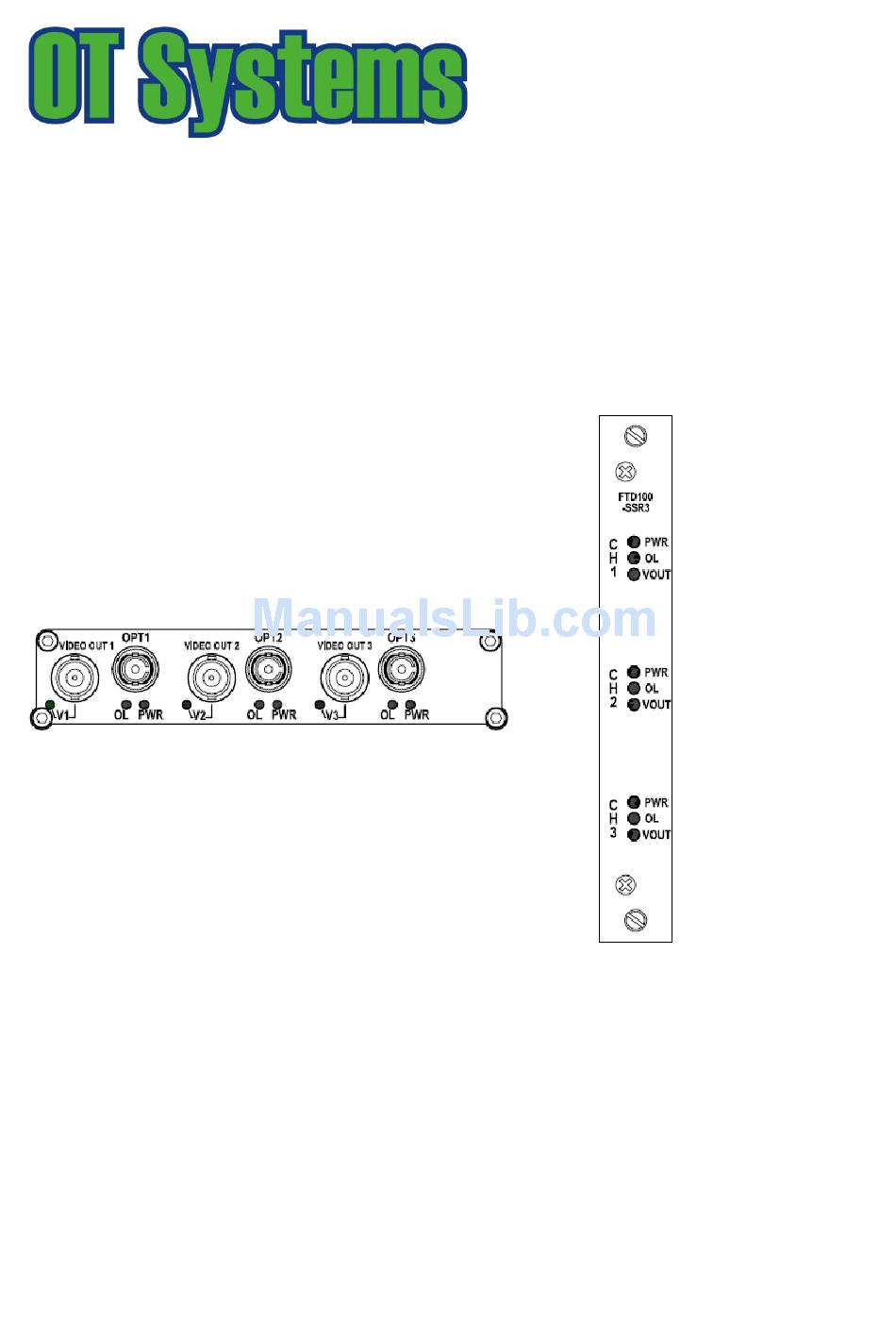

- Page 1 All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual FTD100-XXR3 Series 8-bit Digital Series Triple Independent Video Fiber Optic Receiver OT Systems Ltd., 2009 Rev 1.1...
- Page 2 FTD100-XXR3 Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Receivers Single-Mode Receivers FTD100-SSR3SA FTD100-SSR3 FTD100-SSR3LSA FTD100-SSR3L Multi-Mode Receiver Multi-Mode Receiver FTD100 –SMR3SA FTD100-SMR3 Compatible with the following TRANSMITTERS: FTD100Micro Series FTD100M Series FTD100 Series...
-
Page 3: Table Of Contents
FTD100-XXR3 Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS......ERROR! BOOKMARK NOT DEFINED. PRODUCT OVERVIEW ..................4 Introduction ....................... 4 Models selection table ..................5 INSTALLATION ....................... 6 General ......................6 Standalone unit installation ................6 Card module installation ................... 7 CABLE CONNECTIONS &... -
Page 4: Safety Instructions
FTD100-XXR3 Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
The standalone unit comes with an external power supply FT-PA/12V, which can be powered by local 110/220V power. The FTD100-XXR3 Series are also available as plug-in card modules installed in a 19” rack-mount chassis. Each plug-in card occupies one slot in the rack-mount chassis. The rack mount chassis has to be ordered separately, and comes with its own power supply for powering the installed card modules. -
Page 6: Models Selection Table
FTD100-XXR3 Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FTD100-SSR3SA Triple Independendent Single-mode Video Horizontally or FT-PA/12V Receiver Standalone Unit vertically external power FTD100-SSR3LSA Triple Independendent Single-mode wall-mounted supply is Standalone included for Long-haul Video Receiver Standalone Unit... -
Page 7: Installation
The Standalone unit works with an external power supply FT-PA/12V powered by local 110/220V power. The FTD100-XXR3 Series card modules are housed inside the FT-C18 rack-mount chassis (Fig. 3.2) with an included power supply unit. The whole chassis is powered by local 110/220V power. -
Page 8: Card Module Installation
FTD100-XXR3 Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided thumb screws. - Page 9 FTD100-XXR3 Series Installation & Operation Manual Typical System Cable Connections Diagrams: TRANSMITTERS CAN BE: FTD100Micro Series FTD100M Series FTD100-XXR3 Series Receiver FTD100 Series Fig 4.1 Micro units to Card Module connection diagram TRANSMITTERS CAN BE: FTD100Micro Series FTD100M Series FTD100-XXR3SA Series Receiver FTD100 Series Fig 4.2 Micro units to Standalone unit connection diagram...
-
Page 10: Ground Connection
FTD100-XXR3 Series Installation & Operation Manual 4.2 Ground connection For enhanced safety to reduce the risks of electrical shock and physical damage, caused by lightning and other power surges, as well as a connection to the surge suppresion devices in the product, a screw terminal is provided on the Standalone cabinets (Fig. -
Page 11: Specifications
FTD100-XXR3 Series Installation & Operation Manual (6) Specifications MODELS* FTD100-SSR3SA FTD100-SSR3LSA FTD100-SMR3SA FTD100-SSR3 FTD100-SSR3L FTD100-SMR3 PARAMETERS (Single-Mode) (Single-Mode) (Multi-Mode) OPTICAL No. of Fiber / Connector 3 / ST(or FC) 3 / ST(or FC) 3 / ST(or FC) Wavelength 1310 nm... -
Page 12: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems products are subject to a limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com.
