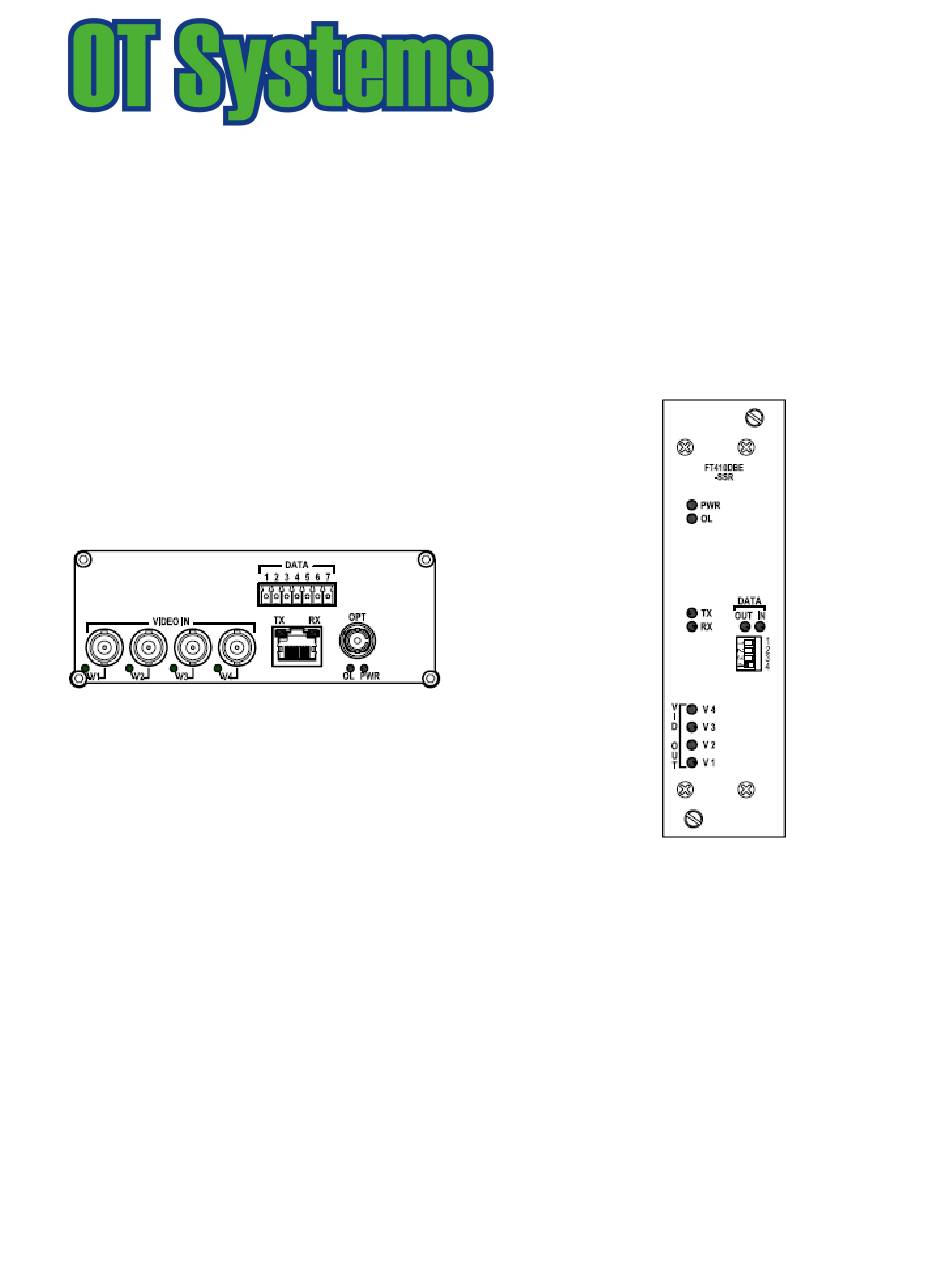

- Page 1 All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual FT410DBE Series 10-bit Digital Series 4-ch Video with 1 Bi-directional Data & Ethernet Fiber Optic Converter OT Systems Ltd., 2009 Rev 1.1...
- Page 2 FT410DBE Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Transmitters Single-Mode Transmitters FT410DBE-SSTSA FT410DBE-SST FT410DBE-SSTLSA FT410DBE-SSTL Single-Mode Receivers Single-Mode Receivers FT410DBE-SSRSA FT410DBE-SSR FT410DBE-SSRLSA FT410DBE-SSRL Multi-Mode Transmitter Multi-Mode Transmitter FT410DBE-SMTSA FT410DBE-SMT Multi-Mode Receiver Multi-Mode Receiver...
-
Page 3: Table Of Contents
FT410DBE Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS ..................3 PRODUCT OVERVIEW ..................4 2.1 Introduction ....................... 4 2.2 Models selection table ..................5 INSTALLATION ....................... 6 3.1 General ......................6 3.2 Standalone unit installation ................6 3.3 Card module installation ................... -
Page 4: Safety Instructions
FT410DBE Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
FT-PA/12V, which can be powered by local 110/220V power. The FT410DBE Series units are also available as plug-in card modules installed in a 19” rack-mount chassis. Each plug-in card occupies two slots in the rack-mount chassis. The rack mount chassis has to be ordered separately, and comes with its own power supply for powering the installed card modules. -
Page 6: Models Selection Table
FT410DBE Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FT410DBE-SSTSA Horizontally or FT-PA/12V Single-mode Video Transmitter with Data, Ethernet Transceiver Standalone unit vertically external FT410DBE-SSTLSA wall-mounted power Single-mode Long-haul Video Transmitter Standalone supply is... -
Page 7: Installation
Please check the equipment upon receipt for any visible damage which may have been caused during shipping. The FT410DBE Series standalone units (Fig. 3.1) can be either horizontally or vertically wall-mounted, or mounted on any fixture. The Standalone unit works with an external power supply FT-PA/12V powered by local 110/220V power. -
Page 8: Card Module Installation
FT410DBE Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided thumb screws. - Page 9 FT410DBE Series Installation & Operation Manual Standalone Transmitter Card Module Receiver Fig 4.2 Standalone unit to Card Module connection diagram Card Module Transmitter Card Module Receiver Fig 4.3 Card Module to Card Module connection diagram www.ot-systems.com...
-
Page 10: Data Port Assignment And Pin Connections
FT410DBE Series Installation & Operation Manual 4.2 Data port assignment and pin connections For data input and output connections, please note the following pin assignment: Pin Assignment (Screw Terminal Block) Data format RS422/485 (4-Wire) IN(+) IN(-) OUT(+) OUT(-) RS485 (2-Wire) -
Page 11: Dip Switch Setting Procedures
FT410DBE Series Installation & Operation Manual RS232 Data communication connection diagram: Transmitter End Receiver End User’s Equipment DATA PORT DATA PORT User’s Equipment (7-PIN) (7-PIN) 1 N/A 1 N/A 2 N/A 2 N/A 3 N/A 3 N/A 4 N/A 4 N/A... - Page 12 FT410DBE Series Installation & Operation Manual Dip switch settings for various types of data transmissions Function / Switch No. Sw. 3 Sw. 4 RS485 (2-Wire) RS422/485 (4-Wire)* RS232 * Factory setting [RS422/485 (4-Wire)] Dip switch settings for line terminations Line Output Termination Line Input Termination Function / Switch No.
-
Page 13: Pin Assignment For Ethernet Port
FT410DBE Series Installation & Operation Manual 4.4 RJ-45 Pin Assignment for Ethernet Port According to the EIA/TIA 586B standard, the Straight-through cable is used to connect between OT products and switch. 4.5 Ground connection For enhanced safety to reduce the risks of electrical shock and physical damage, caused by lightning and other power surges, as well as a connection to the surge suppresion devices in the product, a screw terminal is provided on the Standalone cabinets (Fig. -
Page 14: Ft410Dbe Series Receiver
FT410DBE Series Installation & Operation Manual Signal Ports OPT - ST (or FC) Optical Connector for fiber cable connection. VIDEO IN - BNC Video Connectors for video signal inputs. DATA - 7-pin Screw Terminal Block for data signal. ETHERNET - RJ45 Connector Jack for connection of Ethernet Cable. - Page 15 FT410DBE Series Installation & Operation Manual ELECTRICAL VIDEO Channel / Connector 4 / BNC System PAL, NTSC, SECAM Bandwidth 6.0 MHz ≥ Input/Output Impedance 75 Ohm Input/Output Level 1.0 Vp-p typical Differential Gain < 1% typical Differential Phase < 1 typical >65dB...
-
Page 16: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems products are subject to a limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com.
