Summary of Contents for OT Systems FTD110DB-XXR3 Series

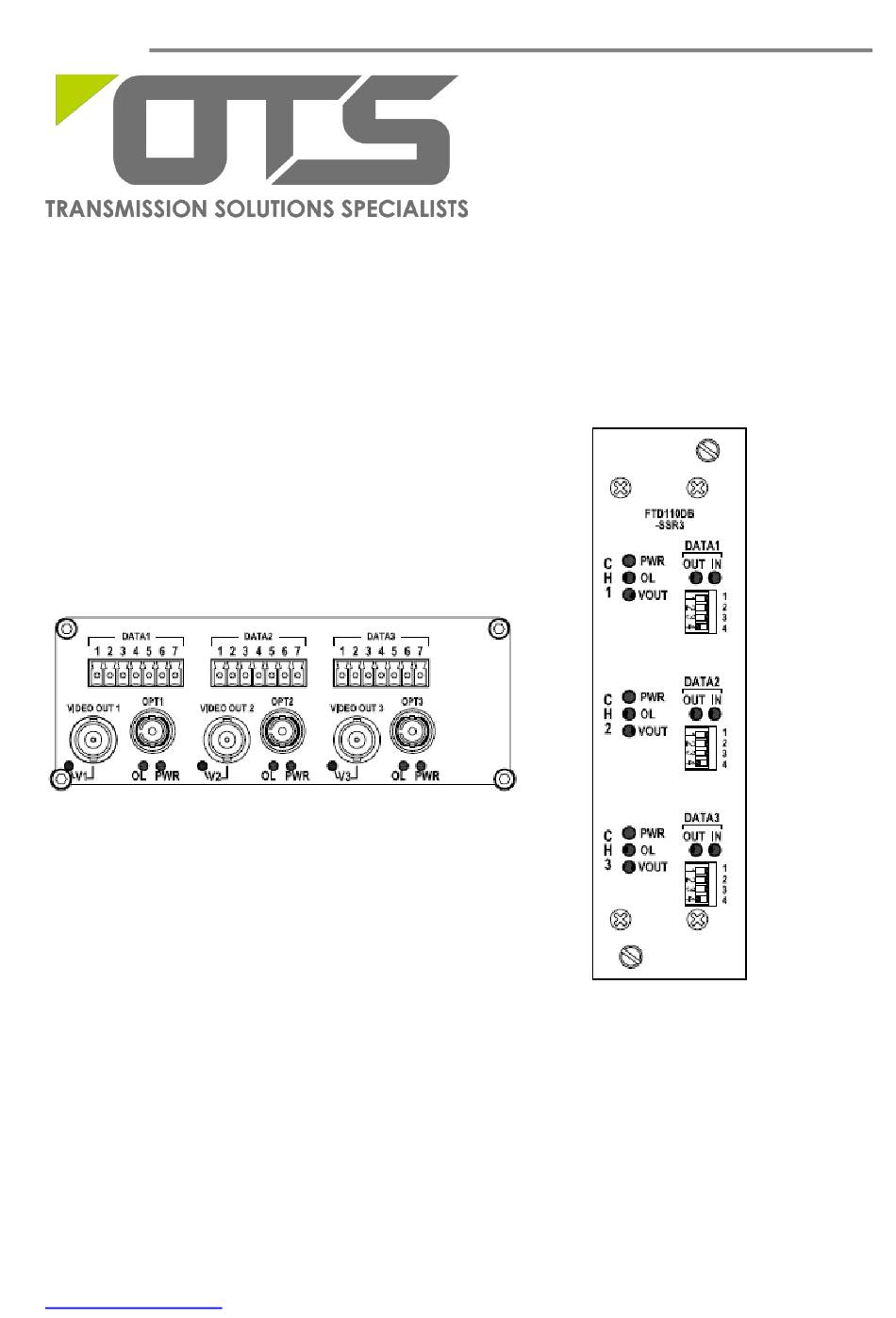

- Page 1 FTD110DB-XXR3 Series Installation & Operation Manual Installation and Operation Manual FTD110DB-XXR3 Series 8-bit Digital Series Triple Independent Video with Triple Bi-directional Data Fiber Optic Receiver OT Systems Ltd., 2014 Rev 1.2 www.ot-systems.com...
- Page 2 FTD110DB-XXR3 Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Receivers Single-Mode Receivers FTD110DB-SSR3SA FTD110DB-SSR3 FTD110DB-SSR3LSA FTD110DB-SSR3L Multi-Mode Receiver Multi-Mode Receiver FTD110DB –SMR3SA FTD110DB-SMR3 Compatible with the following TRANSMITTERS: FTD110DBMicro Series FTD110DBM Series FTD110DB Series...
-
Page 3: Table Of Contents
FTD110DB-XXR3 Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS ..........................4 PRODUCT OVERVIEW ............................ 5 ..............................5 NTRODUCTION ............................6 ODELS SELECTION TABLE INSTALLATION..............................7 ................................7 ENERAL ..........................7 TANDALONE UNIT INSTALLATION ........................... 8 ARD MODULE INSTALLATION CABLE CONNECTIONS &... -
Page 4: Safety Instructions
FTD110DB-XXR3 Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
The standalone unit comes with an external power supply FT-PA/12V, which can be powered by local 110/220V power. The FTD110DB-XXR3 Series are also available as plug-in card modules installed in a 19” rack-mount chassis. Each plug-in card occupies two slot in the rack-mount chassis. The rack mount chassis has to be ordered separately, and comes with its own power supply for powering the installed card modules. -
Page 6: Models Selection Table
FTD110DB-XXR3 Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FTD110DB-SSR3SA Triple Independendent Single-mode Horizontally or FT-PA/12V Video Receiver & Data Transceiver vertically external Standalone Unit wall-mounted power Standalone supply is FTD110DB-SSR3LSA Triple Independendent Single-mode... -
Page 7: Installation
(3) Installation 3.1 General All OT Systems products are thoroughly inspected, tested and securely packaged before delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon receipt for any visible damage which may have been caused during shipping. -
Page 8: Card Module Installation
FTD110DB-XXR3 Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided thumb screws. - Page 9 FTD110DB-XXR3 Series Installation & Operation Manual Typical System Cable Connections Diagrams: TRANSMITTERS CAN BE: FTD110DBMicro Series FTD110DBM Series FTD110DB-XXR3 Series Receiver FTD110DB Series Fig 4.1 Micro units to Card Module connection diagram TRANSMITTERS CAN BE: FTD110DBMicro Series FTD110DB-XXR3SA Series Receiver...
-
Page 10: Data Port Assignment And Pin Connections
FTD110DB-XXR3 Series Installation & Operation Manual 4.2 Data port assignment and pin connections Data ports assignments and pin connections are identical for Data1, Data2 and Data3. For data input and output connections, please note the following pin assignment: Pin Assignment... -
Page 11: Dip Switch Setting Procedures
Selections must be made by setting the dip switches (Fig. 4.8) through the access on the front panel. (a) Dip switches on FTD110DB-XXR3 Series Standalone unit (b) Dip switches on FTD110DB-XXR3 Series Card Module Fig. 4.4 Location of Dip Switches... - Page 12 FTD110DB-XXR3 Series Installation & Operation Manual Dip switch settings for various types of data transmissions Function / Switch No. Sw. 3 Sw. 4 RS485 (2-Wire) RS422/485 (4-Wire)* RS232 * Factory setting [RS422/485 (4-Wire)] Dip switch settings for line terminations Line Output Termination Line Input Termination Function / Switch No.
-
Page 13: Ground Connection
FTD110DB-XXR3 Series Installation & Operation Manual 4.4 Ground connection For enhanced safety to reduce the risks of electrical shock and physical damage, caused by lightning and other power surges, as well as a connection to the surge suppresion devices in the product, a screw terminal is provided on the Standalone cabinets (Fig. -
Page 14: Specifications
FTD110DB-XXR3 Series Installation & Operation Manual (6) Specifications MODELS* FTD110DB-SSR3SA FTD110DB-SSR3LSA FTD110DB-SMR3SA FTD110DB-SSR3 FTD110DB-SSR3L FTD110DB-SMR3 PARAMETERS (Single-Mode) (Single-Mode) (Multi-Mode) OPTICAL No. of Fiber / Connector 3 / ST(or FC) 3 / ST(or FC) 3 / ST(or FC) Wavelength 1310/1550 nm... -
Page 15: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems FT Series products are subject to a limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com. -
Page 16: Contact Information
FTD110DB-XXR3 Series Installation & Operation Manual (9) Contact Information APAC Operation EMEA Operation AMERICAS Operation Address: Address: Address: Unit 1023, 10/F, Landmark J. Slovackio str. 4, LT-11107, 18 West Main Street, Plano, North, 39 Lung Sum Avenue, Vilnius, Lithuania IL 60545, U.S.A.
