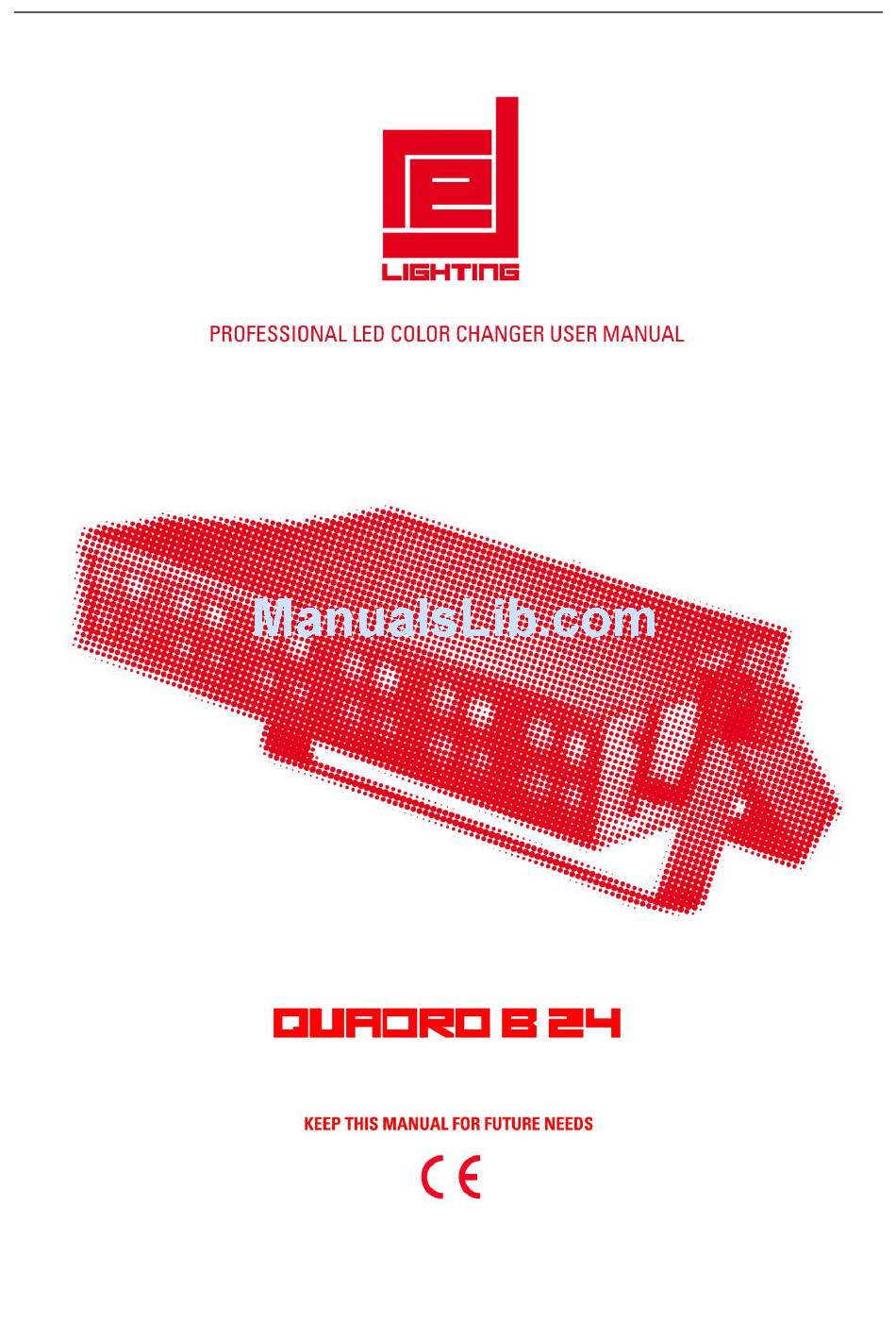

red lighting Quadro B24 User Manual

Professional led color changer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadro B24 and is the answer not in the manual?

Questions and answers

Related Manuals for red lighting Quadro B24

Summary of Contents for red lighting Quadro B24

  • Page 2: General Guidelines

    Introduction Thank you for using QUADRO B24. This unit is a DMX intelligent LED wash light that can be used as a stand alone or a sound-active mode. The unit can also be controlled via Wireless DMX. QUADRO B24 has been thoroughly tested and has been shipped in perfect operating condition.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. ...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Mounting the device QUADRO B24 can support power supply from 110V to 230V so you need to be sure to connect the machine with the correct voltage. The applicable temperature is between 0°C～45°C Do not use the lighting under or above the temperature.

  • Page 5: Panel Instruction

    Panel Instruction 1．Power in and out powerconn connectors. 2．Dmx in and out xlr connectors. 3．On/Off wireless switch. 4．Charge/Off/On Battery selector. 5．On/Off AC selector. On with AC On with Battery 3: Off 1: Power plug connected 4: On 4: Off 4: Off 5: Off 5: Off 5: On...

  • Page 6: Operating Instructions

    1. This function will allow you to control each individual unit’s traits with a standard DMX 512 controller. 2. The QUADRO B24 uses 7/24/27 DMX channels to operate. Please see “DMX Values and Functions” for the DMX traits and choose the preferred DMX mode by menu.

  • Page 7: Lcd Operation Menu

    LCD Operation Menu The brand name will be displayed when the unit is power on. After initialization, it will show the model name. Then, the unit is ready for setting and working. Please see the following table for setting information. Menu Function Sel menu...
  • Page 8  24 Channels mode: Channel Value Function 0-255 first dot red dimmer. 0-255 first dot green dimmer. 0-255 first dot blue dimmer. 0-255 first dot white dimmer. 0-255 second dot red dimmer. 0-255 second dot green dimmer. 0-255 second dot blue dimmer. 0-255 second dot white c dimmer.
  • Page 9  27 Channels mode: Channel Value Function 0-255 Master dimmer 0-255 0-10:NoStrobe; 11-245:Strobe from slow to fast; 246-255:NoStrobe Color Functions (0-10:NoFunction; 11-127:Color changing from slow to 0-255 fast; 128-245:Color fade from slow to fast; 246-255:NoFunction) 0-255 first dot red dimmer. 0-255 first dot green dimmer.

  • Page 10: Cleaning And Maintenance

    DMX Wireless specification: General specifications: Batteries specifications: Wireless DMX-512 protocol Rechargeable Battery with up to Model: QUADRO B24 Built in 2.400G-2.525 receiver / 18 hours of battery life Voltage: 110V-230V / 60Hz-50Hz transmitter for wireless DMX Battery power indicator 0-100%...
