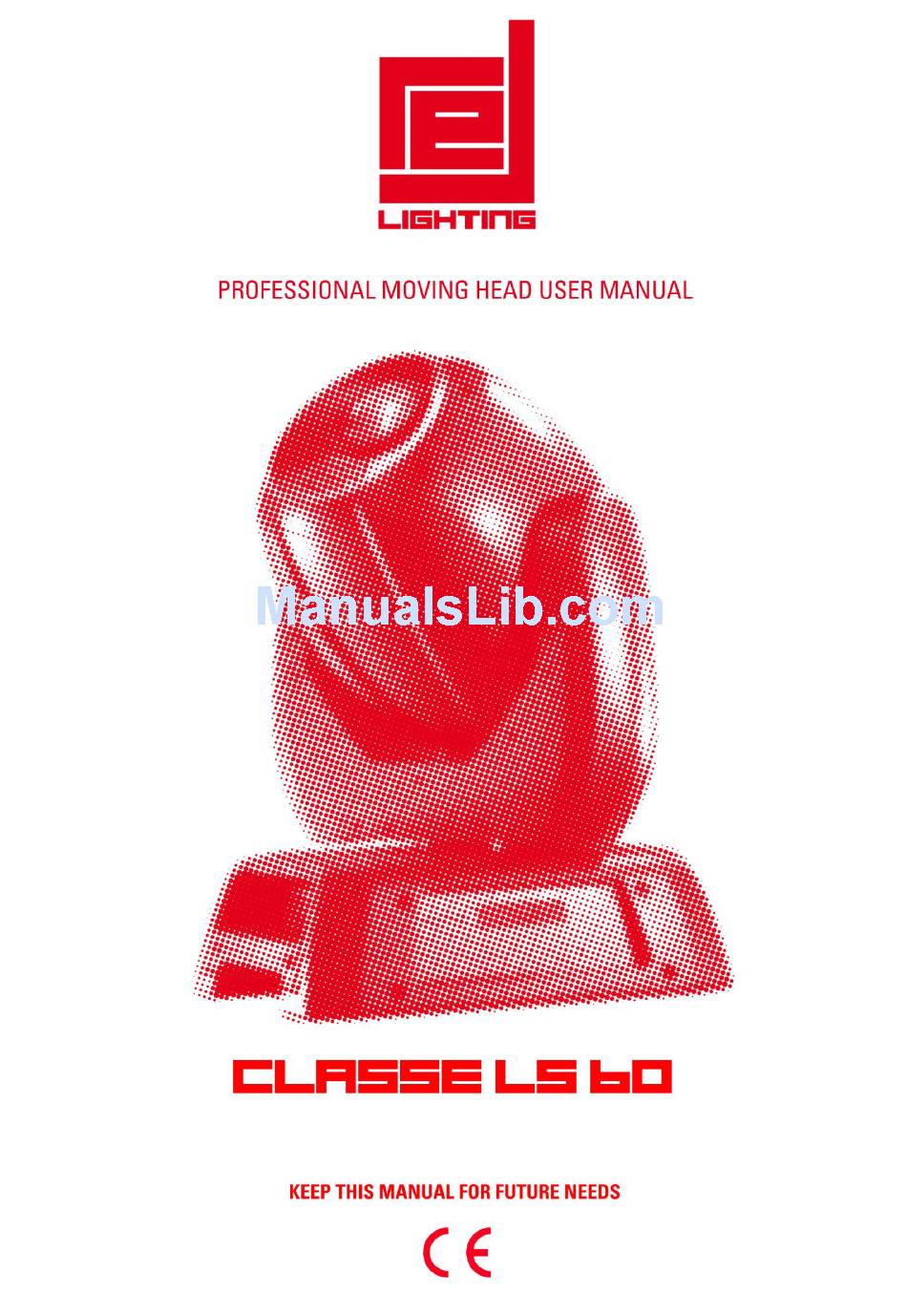

red lighting Classe L5 User Manual

Professional moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classe L5 and is the answer not in the manual?

Questions and answers

Related Manuals for red lighting Classe L5

Summary of Contents for red lighting Classe L5

  • Page 2: Table Of Contents

    Contents 1. FEATURES ..............................- 2 - 2. FIXTURE OVERVIEW ..........................- 3 - 3. SAFETY INSTRUCTIONS ........................- 3 - 3.1) Important safety warns ........................- 3 - 3.2) GENERAL GUIDELINES ......................- 4 - 4. INSTALLATION INSTRUCTIONS ......................- 5 - 4.1) Mounting the device .........................

  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 4: Fixture Overview

    2. FIXTURE OVERVIEW 1: Lens 2: Display 3: Mode/Esc-button 4: Up-button 5: Down-button 6: Enter-button 7: Microphone 8: 3-Pin DMX out 9: 3-DMX in 10: 5-Pin DMX out 11: 5-DMX in 12: Power switch 13: Fuse 14: Power supply 3. SAFETY INSTRUCTIONS 3.1) Important safety warns This device has left the factory in perfect condition.

  • Page 5: General Guidelines

    Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.

  • Page 6: Installation Instructions

    Do not shake the device.Avoid brute force when installing or operating the device. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from the projector and the illuminated surface must be more than 0.5 meter.
  • Page 7 The electric connection must only be carried out by a qualified electrician. Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s weight. Connect the fixture to the mains with the power plug. Installation via the Omega holders a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket.
  • Page 8 Dimensional Drawings: - 7 - Classe LS 60 v1.0...

  • Page 9: Dmx-512 Control Connection

    Layout Drawings: Mounting points Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 10: Dmx-512 Connection With Dmx Terminator

    Address 29 Address15 Address 1 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 11: Control Board

    If you set the same address, all the units will start to “listen” to the same control signal from the same channel number. In other words, changing the settings of one channel will affect all the fixtures simultaneously. If you set a different address, each unit will start to “listen” to the channel number you have set, based on the quantity of control channels of the unit.
  • Page 12 Temperature C/F Celsius Temperature switch between ℃/℉ Fahrenheit PAN…… Initial Effect PAN =XXX Initial effect position Reset Default ON/OFF Restore factory set. Reset All Reset all motors Reset Pan&Tilt Reset Pan/Tilt Reset Colors Reset color wheel Reset Gobos Reset gobos Reset Others Reset other motors PAN ……...
  • Page 13 8.1.2 Value Display With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing. 1．Access the main menu. 2．Tap the <Up/Down>button until“Value Display”is displayed. 3．Press ENTER, the display will show “Value Display”. 4．Tap the <Up/Down>button，choose each channel.

  • Page 14: Temperature Info

    3．Press< ENTER>, the display will show “Current Time”. 4．The display will show “XXXX” (Hours) ； 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Total Life Hours With this function, you can display the running time of the device. The display shows “XXXX”, “XXXX”...

  • Page 15: Personality

    4．The display show “Ver 1.0……”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 8.3PERSONALITY 8.3.1Status setting Address via DMX With this function, you can adjust the desired DMX-address via an external controller. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed.
  • Page 16 2．Press <Up/Down>, the display will show “Tilt Reverse”. 3．Press< ENTER>, the display will show “Tilt Reverse”. 4．The display show “OFF”,Press <Up/Down>, the display will show “ON”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pan Degree With this function, you can select pan degree for 630 or 540.

  • Page 17: Fans Control

    4．The display show “70%”,Press <Up/Down>, the display will show “0~99%”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Hibernation ——Standby mode The lamp and step motors will be power off if the fixture stay without DMX signal for 15 mins (Factory default).And the fixture will be reset before working once it receive DMX signal again.

  • Page 18: Initial Effect

    2．Press <Up/Down>, the display will show “Temperature C/F”. 3．Press< ENTER>, the display will show “Temperature C/F”. 4．The display show “Celsius”,Press <Up/Down>, the display will show “Fahrenheit”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.5 Initial effect With this function, Display initial effect position.

  • Page 19: Calibrate Values

    focus the light on a flat surface (wall) and erform the fine lamp adjustment. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”. 2．Press <Up/Down>, the display will show “Manual control”. 3．Press<...
  • Page 20 automatically be transmitted to the moving head. Excursion: A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop.
  • Page 21 • Press the Enter button to confirm. • Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program. • Press the Enter button to confirm. • Press the MODE/ESC button in order to return to the main menu. 5.

  • Page 22: Instructions On Use

    9. INSTRUCTIONS ON USE: DMX channel´s functions and their values (16 DMX channels): Mode/Channel Value Function Color Wheel 0-14 Open / white 15-29 Color1 30-44 Color2 45-59 Color3 60-74 Color4 75-89 Color5 90-104 Color6 105-119 Color7 120-127 Color8 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255...
  • Page 23 0-255 Fine indexing Speed pan/tilt movement 0-225 max to min speed 226-235 blackout by movement 236-245 blackout by all wheel changing 246-255 no function PAN Movement 8bit 0-255 Pan Movement By 540/630 TILT Movement 8bit 0-255 Tilt Movement By 270 Rotating prism, Prism / Gobo macros: 0-31 open...

  • Page 24: Error Message

    160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Dimmer (intensity) 0-255 Intensity 0 to 100% Reset, internal programs 0-19 Color&Gobo change normal 20-29 Color change to any position 30-39 Color&Gobo change to any position 40-59 No function 60-79...

  • Page 25: Cleaning And Maintenance

    Color wheel Er (Color wheel- error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The color wheel is not located in the default position after the reset.

  • Page 26: Technical Specifications

    In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights. 1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust.
